Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

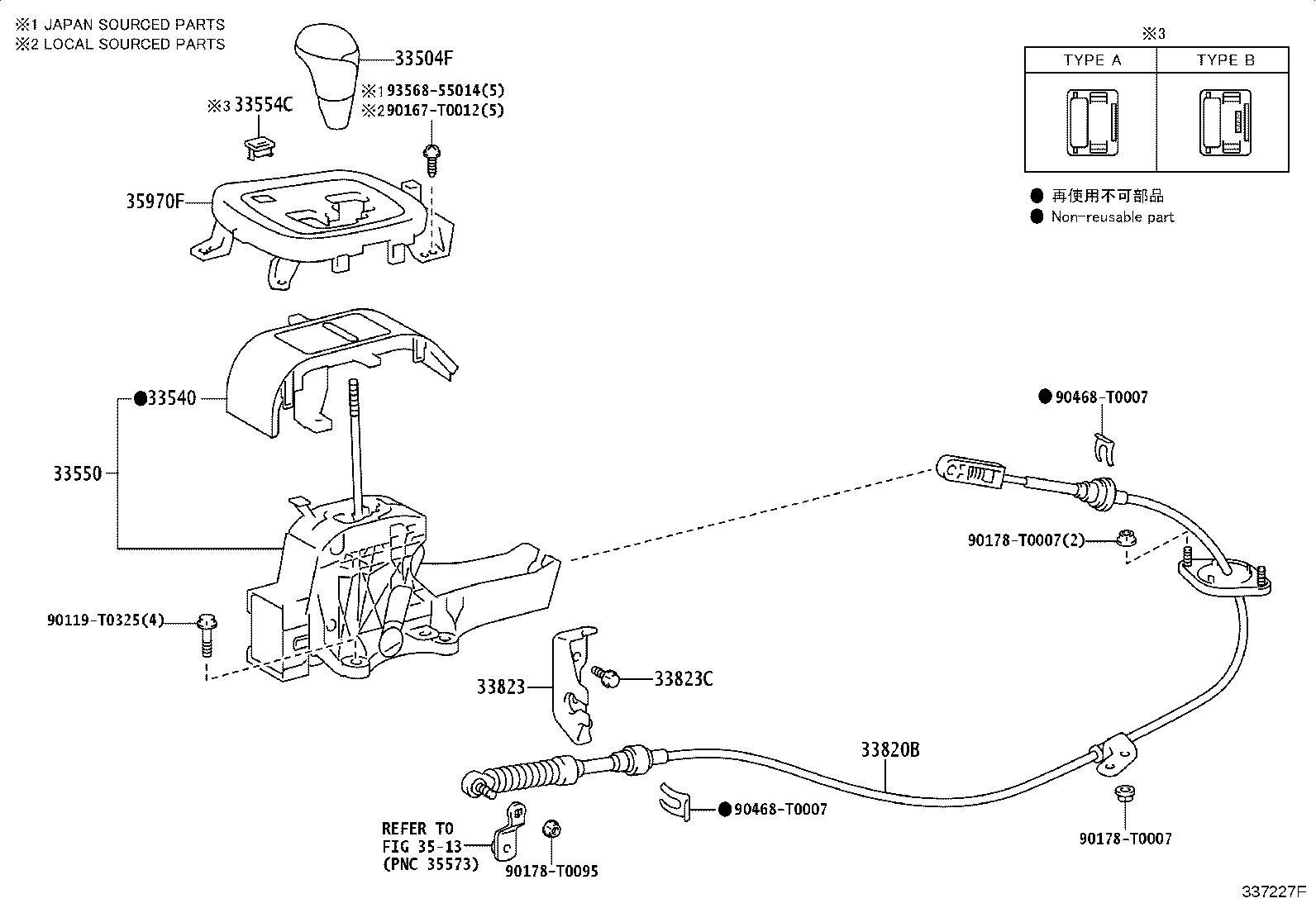

Exploded illustration 337227F 33820B — CABLE ASSY, TRANSMISSION CONTROL (3 parts) 33823 — BRACKET, TRANSMISSION CONTROL CABLE, NO.1 (2 parts) 33823C — BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) (2 parts) 90468T0007 — not listed in this catalogue 90178T0007 — not listed in this catalogue 90178T0095 — not listed in this catalogue 90167T0012 — not listed in this catalogue 90468T0007 — not listed in this catalogue 33504F — KNOB SUB-ASSY, SHIFT LEVER (33 parts) 3513 — not listed in this catalogue 33554C — COVER, SHIFT LOCK RELEASE BUTTON (5 parts) 35970F — HOUSING ASSY, POSITION INDICATOR (9 parts) 33550 — FLOOR SHIFT ASSY, TRANSMISSION (6 parts) 33540 — PLATE ASSY, SHIFT LEVER (3 parts) 90178T0007 — not listed in this catalogue 90119T0325 — not listed in this catalogue 9356855014 — not listed in this catalogue
337227F · 8 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-0K090-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN122,135 XTR 6F L;GUN125,126 +3 —
33504-0K090-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN122 S TH —
33504-0K101-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN125,126 THP 6F H;GUN122,135 +3 —
33504-0K101-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN125 TH —
33504-0K101-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN125 TH —
33504-0K101-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
GUN126,136 6F H SA —
33504-0K121-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN120,126,135 XTR THP 6FC +2 —
33504-0K121-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
GUN126,136 6FC SA —
33504-0K131-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN126 6FC GCC —
33504-0K131-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN126,136 RHD 6FC (L,S);GUN120,125,135,TGN121 +2 —
33504-0K131-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN120 S —
33504-0K131-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
GUN125,135 6FC SA —
33504-0K141-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
GUN126,136 XTR 6FC SA —
33504-0K141-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2023-11 ended
GUN135 6FC S —
33504-0K141-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
33504-0K160-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
TGN136 SA —
33504-0K230-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
GUN125,135 RHD SCB L +1 —
33504-0K230-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
GUN125 XTR L CBU;GUN125,126,135 +3 —
33504-0K230-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-12 ended
GUN125 S KEN —
33504-0K270-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
TGN126,136 AGTP —
33504-0K270-C0 note Knob Sub-assy, Shift Lever
2023-08 → —
GUN122,TGN121 PKN —
33504-0K270-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN112,122,TGN11#,12# GCC —
33504-0K270-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN112,122,TGN110,121,126 THP 5F (ARL,GEN,IDN,LA,PH,TH) —
33504-0K280-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
GUN122,LAN125,TGN120,121 SA —
33504-0K290-C0 note Knob Sub-assy, Shift Lever
2023-08 → —
GUN126 PKN —
33504-0K290-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-08 ended
GUN125 MA —
33504-0K290-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN111,125,126 6F GCC —
33504-0K290-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-10 ended
GUN125,126,135 AGTP —
33504-0K290-C0 note Knob Sub-assy, Shift Lever
2023-08 → 2024-07 ended
GUN121,122,125,126,135 SCB THP 6F +2 —
33504-0K300-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
GUN125,135 SCB L SA —
33504-0K300-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-12 ended
GUN125,135 L KEN —
33504-0K300-C0 note Knob Sub-assy, Shift Lever
2024-02 → 2024-10 ended
GUN125 SA IV3 —
33504-42140 Knob Sub-assy, Shift Lever
2023-11 → 2024-07 ended
XPN135 —
33540 — Plate Assy, Shift Lever
33540-0K040 Plate Assy, Shift Lever
2023-08 → 2024-07 ended
GUN120,125,126,13#,TGN121 RHD THP 6FC —
33540-0K040 Plate Assy, Shift Lever
2023-08 → 2024-10 ended
GUN125,126,13# 6FC SA —
33540-0K050 Plate Assy, Shift Lever
2023-08 → 2024-07 ended
GUN126 6FC GCC —
33550 — Floor Shift Assy, Transmission
33550-0K160 Floor Shift Assy, Transmission
2023-08 → 2024-07 ended
GUN120,125,126,13#,TGN121 RHD THP 6FC +1 —
33550-0K160 Floor Shift Assy, Transmission
2023-08 → 2024-10 ended
GUN135 6FC SA;GUN125,126,136 SCB +2 —
33550-0K170 Floor Shift Assy, Transmission
2023-08 → 2024-07 ended
GUN126,135 THP 6FC H —
33550-0K170 note Floor Shift Assy, Transmission
2023-08 → 2024-07 ended
GUN135 6FC (L,S) TH —
33550-0K170 Floor Shift Assy, Transmission
2023-08 → 2024-10 ended
GUN126,136 XTR 6FC SA —
33550-0K180 Floor Shift Assy, Transmission
2023-08 → 2024-07 ended
GUN126 6FC GCC —
33554C — Cover, Shift Lock Release Button
33554-0K010 Cover, Shift Lock Release Button
2023-08 → 2024-07 ended
GUN120,126,135 6FC TH —
33554-0K020 Cover, Shift Lock Release Button
2023-08 → 2024-10 ended
GUN125,135 6FC SA —
33554-0K020 note Cover, Shift Lock Release Button
2024-02 → 2024-10 ended
GUN126,136 6FC SA —
33554-0K020 note Cover, Shift Lock Release Button
2024-02 → 2024-10 ended
GUN126,136 XTR 6FC SA —
33554-0K020 Cover, Shift Lock Release Button
2023-08 → 2024-07 ended
GUN125,126,136,TGN121 6FC (ARL,GCC) —
33820B — Cable Assy, Transmission Control
33820-0K171 Cable Assy, Transmission Control
2023-08 → 2024-07 ended
GUN120,125,126,13# THP 6FC —
33820-0K171 Cable Assy, Transmission Control
2023-08 → 2024-10 ended
GUN125,126,13# 6FC SA —
33820-0K180 Cable Assy, Transmission Control
2023-08 → 2024-07 ended
TGN121 6FC —
33823 — Bracket, Transmission Control Cable, NO.1
33823-KK010 Bracket, Transmission Control Cable, NO.1
2023-08 → 2024-07 ended
GUN120,125,126,13#,TGN121 THP 6FC —
33823-KK010 Bracket, Transmission Control Cable, NO.1
2023-08 → 2024-10 ended
GUN125,126,13# 6FC SA —
33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102 Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2023-08 → 2024-10 ended
GUN125,126,13# 6FC SA —
90119-T0102 Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2023-08 → 2024-07 ended
GUN120,125,126,13#,TGN121 THP 6FC —
35970F — Housing Assy, Position Indicator
35970-0K010 Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN120,126 6FC L —
35970-0K040 Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN135 6FC TH;GUN120,126 6FC +2 —
35970-0K180 Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN125,126,136,TGN121 6FC (L,S) ARL —
35970-0K180 Housing Assy, Position Indicator
2023-08 → 2024-10 ended
GUN125,135 6FC SA —
35970-0K250 Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN126 6FC GCC —
35970-0K310 Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN126 ARL CBU —
35970-0K310 Housing Assy, Position Indicator
2023-08 → 2024-10 ended
GUN126,136 6FC SA —
35970-0K370 note Housing Assy, Position Indicator
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
35970-0K390 note Housing Assy, Position Indicator
2024-02 → 2024-10 ended
GUN126,136 XTR 6FC SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
