Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

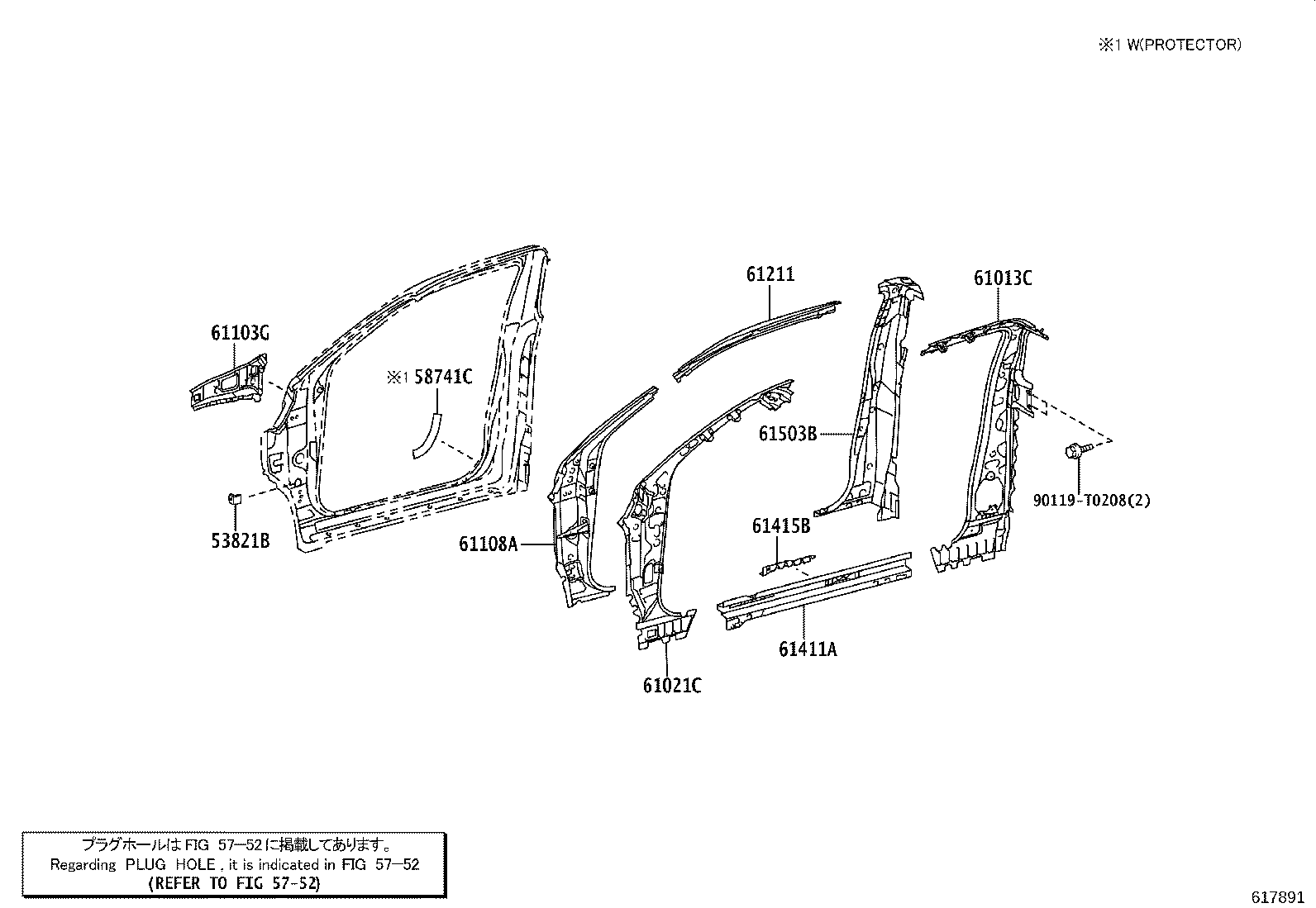

Exploded illustration 617891 53821B — BRACKET, FRONT FENDER, REAR RH (4 parts) 58741C — PROTECTOR, QUARTER PANEL, RH (6 parts) 61013C — PANEL SUB-ASSY, SIDE, INNER RH (5 parts) 61021C — PILLAR SUB-ASSY, FRONT BODY, RH (12 parts) 61103G — GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH (4 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (6 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (6 parts) 61411A — REINFORCEMENT, ROCKER PANEL, NO.1 RH (7 parts) 61415B — EXTENSION, ROCKER, OUTER RH (2 parts) 61503B — REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH (7 parts) 90119T0208 — not listed in this catalogue 5752 — not listed in this catalogue
617891 · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-08 ended
GUN125 MA —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → —
GUN122,126,TGN121 PKN —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
58741C — Protector, Quarter Panel, RH
58741-0K070 Protector, Quarter Panel, RH
2023-08 → 2024-07 ended
GUN125,135,TGN121 SCB ARL —
58741-0K070 note Protector, Quarter Panel, RH
2023-08 → 2024-07 ended
TGN121 S;GUN122,TGN121 L GCC +1 —
58741-0K070 note Protector, Quarter Panel, RH
2023-08 → 2024-07 ended
TGN126 S —
58741-0K130 note Protector, Quarter Panel, RH
2024-02 → 2024-09 ended
GUN135 SCB S;GUN125 LHD +5 —
58741-0K130 Protector, Quarter Panel, RH
2024-02 → 2024-10 ended
GUN125 .SCB LHD (L,S) +6 —
58741-0K130 note Protector, Quarter Panel, RH
2024-02 → 2024-10 ended
GUN126 SCB H;GUN125,136 RHD +3 —
61013C — Panel Sub-assy, Side, Inner RH
61013-KK040 Panel Sub-assy, Side, Inner RH
2023-09 → 2024-08 ended
GUN125 MA —
61013-KK040 Panel Sub-assy, Side, Inner RH
2023-09 → —
GUN122,126,TGN121 PKN —
61013-KK040 Panel Sub-assy, Side, Inner RH
2023-09 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
61013-KK090 Panel Sub-assy, Side, Inner RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SCB (KEN,SA) —
61013-KK090 Panel Sub-assy, Side, Inner RH
2023-08 → 2024-07 ended
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP —
61021C — Pillar Sub-assy, Front Body, RH
61021-KK020 Pillar Sub-assy, Front Body, RH
2023-11 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
61021-KK030 note Pillar Sub-assy, Front Body, RH
2023-08 → 2024-07 ended
GUN122 L (GEN,PH,TH);GUN112,120,TGN110,121 IDN,TH —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-12 ended
GUN125 S KEN —
61021-KK030 note Pillar Sub-assy, Front Body, RH
2023-08 → 2024-10 ended
TGN120 SA —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-10 ended
GUN125 SCB S SA;GUN126,13#,TGN136 +2 —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-08 ended
GUN125 MA —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-07 ended
TGN121 ARL,GEN;GUN121,125,126,13#,TGN126 THP —
61021-KK040 note Pillar Sub-assy, Front Body, RH
2023-08 → 2024-07 ended
GUN121 —
61021-KK040 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-10 ended
GUN125 XTR S SA;GUN122,125,135,LAN125,TGN120,121 +2 —
61021-KK040 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-07 ended
TGN121 GCC,TH;GUN11#,120,122,TGN11#,120,XPN135 THP —
61021-KK040 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-12 ended
GUN125,135 L KEN —
61021-KK040 Pillar Sub-assy, Front Body, RH
2023-08 → —
GUN122,126,TGN121 PKN —
61103G — Gusset Sub-assy, Front Body Pillar, Lower RH
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → —
GUN122,126,TGN121 PKN —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-08 ended
GUN125 MA —
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-08 ended
GUN125 MA —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-12 ended
GUN125,135 KEN —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → —
GUN122,126,TGN121 PKN —
61108-KK901 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-11 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
61211 — Rail, Roof Side, Outer RH
61210-KK040 Rail, Roof Side, Outer RH
2023-08 → 2024-07 ended
GUN120,122,125,126,13# XTR THP —
61210-KK040 Rail, Roof Side, Outer RH
2023-08 → 2024-10 ended
GUN125,126,13# XTR SA —
61211-KK020 Rail, Roof Side, Outer RH
2023-08 → 2024-08 ended
GUN125 MA —
61211-KK020 Rail, Roof Side, Outer RH
2023-08 → —
GUN122,126,TGN121 PKN —
61211-KK020 Rail, Roof Side, Outer RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,KENP,SAP) —
61211-KK020 Rail, Roof Side, Outer RH
2023-08 → 2024-07 ended
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP —
61411A — Reinforcement, Rocker Panel, NO.1 RH
61401-KK901 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-07 ended
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP —
61401-KK901 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-08 ended
GUN125 MA —
61401-KK901 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,SAP) —
61401-KK901 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → —
GUN122,126,TGN121 PKN —
61401-KK901 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-12 ended
GUN125,135 KEN —
61401-KK902 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-07 ended
GUN120,122,125,126,13# XTR THP —
61401-KK902 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-10 ended
GUN125,126,13# XTR SA —
61415B — Extension, Rocker, Outer RH
61415-KK010 Extension, Rocker, Outer RH
2023-08 → 2024-07 ended
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP —
61415-KK020 Extension, Rocker, Outer RH
2023-08 → 2024-07 ended
GUN120,122,125,126,13# XTR THP —
61503B — Reinforcement Sub-assy, Quarter Lock Pillar, RH
61503-KK900 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-07 ended
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP —
61503-KK900 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-08 ended
GUN125 MA —
61503-KK900 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,SAP) —
61503-KK900 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-12 ended
GUN125,135 KEN —
61503-KK900 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → —
GUN122,126,TGN121 PKN —
61503-KK901 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-07 ended
GUN120,122,125,126,13# XTR THP —
61503-KK901 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-08 → 2024-10 ended
GUN125,126,13# XTR SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
