Toyota Hilux (SCB/XTR)
2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States
Supported model
Data version 2024-11

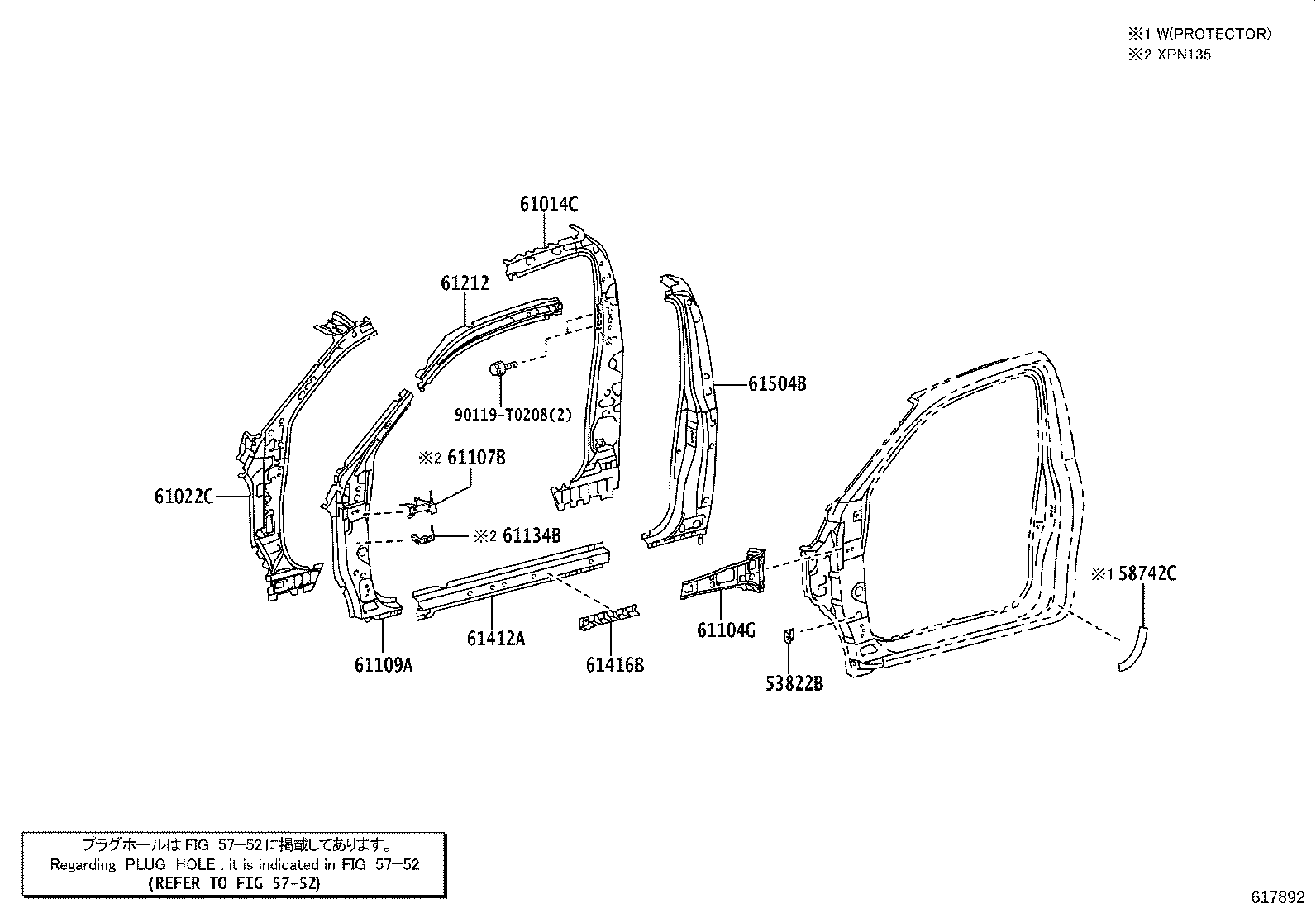

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53822B — Bracket, Front Fender, Rear LH | ||||
| 53257-35030 |
Bracket, Front Fender, Rear LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 53257-35030 |
Bracket, Front Fender, Rear LH
2023-08 → 2024-07
ended
|
GUN11#,12#,13#,TGN11#,12#,XPN135 THP | — | |
| 53257-35030 |
Bracket, Front Fender, Rear LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 53257-35030 |
Bracket, Front Fender, Rear LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP | — | |
| 58742C — Protector, Quarter Panel, LH | ||||
| 58742-0K070 |
Protector, Quarter Panel, LH
2023-08 → 2024-07
ended
|
GUN125,135,TGN121 SCB ARL | — | |
| 58742-0K070 note |
Protector, Quarter Panel, LH
2023-08 → 2024-07
ended
|
TGN121 S;GUN122,TGN121 L GCC +1 | — | |
| 58742-0K070 note |
Protector, Quarter Panel, LH
2023-08 → 2024-07
ended
|
TGN126 S | — | |
| 58742-0K130 note |
Protector, Quarter Panel, LH
2024-02 → 2024-09
ended
|
GUN135 SCB S;GUN125 LHD +5 | — | |
| 58742-0K130 |
Protector, Quarter Panel, LH
2024-02 → 2024-10
ended
|
GUN125 .SCB LHD (L,S) +6 | — | |
| 58742-0K130 note |
Protector, Quarter Panel, LH
2024-02 → 2024-10
ended
|
GUN126 SCB H;GUN125,136 RHD +3 | — | |
| 61014C — Panel Sub-assy, Side, Inner LH | ||||
| 61014-KK040 |
Panel Sub-assy, Side, Inner LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61014-KK040 |
Panel Sub-assy, Side, Inner LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61014-KK040 |
Panel Sub-assy, Side, Inner LH
2023-08 → 2024-12
ended
|
GUN125,135 KEN | — | |
| 61014-KK040 |
Panel Sub-assy, Side, Inner LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,SAP) | — | |
| 61014-KK040 |
Panel Sub-assy, Side, Inner LH
2023-08 → 2024-07
ended
|
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP | — | |
| 61022C — Pillar Sub-assy, Front Body, LH | ||||
| 61022-KK020 |
Pillar Sub-assy, Front Body, LH
2023-11 → 2024-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 61022-KK030 note |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-07
ended
|
GUN122 L (GEN,PH,TH);GUN112,120,TGN110,121 IDN,TH | — | |
| 61022-KK030 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-12
ended
|
GUN125 S KEN | — | |
| 61022-KK030 note |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-10
ended
|
TGN120 SA | — | |
| 61022-KK030 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-10
ended
|
GUN125 SCB S SA;GUN126,13#,TGN136 +2 | — | |
| 61022-KK030 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61022-KK030 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-07
ended
|
TGN121 ARL,GEN;GUN121,125,126,13#,TGN126 THP | — | |
| 61022-KK040 note |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-07
ended
|
GUN121 | — | |
| 61022-KK040 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-10
ended
|
GUN125 XTR S SA;GUN122,125,135,LAN125,TGN120,121 +2 | — | |
| 61022-KK040 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-07
ended
|
TGN121 GCC,TH;GUN11#,120,122,TGN11#,120,XPN135 THP | — | |
| 61022-KK040 |
Pillar Sub-assy, Front Body, LH
2023-08 → 2024-12
ended
|
GUN125,135 L KEN | — | |
| 61022-KK040 |
Pillar Sub-assy, Front Body, LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61104G — Gusset Sub-assy, Front Body Pillar, Lower LH | ||||
| 61104-KK010 |
Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61104-KK010 |
Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP | — | |
| 61104-KK010 |
Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 61104-KK010 |
Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61104-KK040 |
Gusset Sub-assy, Front Body Pillar, Lower LH
2023-11 → 2024-07
ended
|
XPN135 | — | |
| 61107B — Reinforce Sub-assy, Front Body Pillar, Upper LH | ||||
| 61107-KK010 |
Reinforce Sub-assy, Front Body Pillar, Upper LH
2023-11 → 2024-07
ended
|
XPN135 | — | |
| 61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH | ||||
| 61109-KK900 |
Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-07
ended
|
GUN11#,12#,13#,TGN11#,12#,XPN135 THP | — | |
| 61109-KK900 |
Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61109-KK900 |
Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP | — | |
| 61109-KK900 |
Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-12
ended
|
GUN125,135 KEN | — | |
| 61109-KK900 |
Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61134B — Bracket, Front Body Pillar Outer, LH | ||||
| 61134-KK010 |
Bracket, Front Body Pillar Outer, LH
2023-11 → 2024-07
ended
|
XPN135 | — | |
| 61212 — Rail, Roof Side, Outer LH | ||||
| 61212-KK020 |
Rail, Roof Side, Outer LH
2023-08 → 2024-07
ended
|
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP | — | |
| 61212-KK020 |
Rail, Roof Side, Outer LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61212-KK020 |
Rail, Roof Side, Outer LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,KENP,SAP) | — | |
| 61212-KK020 |
Rail, Roof Side, Outer LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61220-KK020 |
Rail, Roof Side, Outer LH
2023-08 → 2024-07
ended
|
GUN120,122,125,126,13# XTR THP | — | |
| 61220-KK020 |
Rail, Roof Side, Outer LH
2023-08 → 2024-10
ended
|
GUN125,126,13# XTR SA | — | |
| 61412A — Reinforcement, Rocker Panel, NO.1 LH | ||||
| 61402-KK901 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-07
ended
|
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP | — | |
| 61402-KK901 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61402-KK901 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-12
ended
|
GUN125,135 KEN | — | |
| 61402-KK901 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,SAP) | — | |
| 61402-KK901 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61402-KK902 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-10
ended
|
GUN125,126,13# XTR SA | — | |
| 61402-KK902 |
Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-07
ended
|
GUN120,122,125,126,13# XTR THP | — | |
| 61416B — Extension, Rocker, Outer LH | ||||
| 61416-KK010 |
Extension, Rocker, Outer LH
2023-08 → 2024-07
ended
|
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP | — | |
| 61416-KK020 |
Extension, Rocker, Outer LH
2023-08 → 2024-07
ended
|
GUN120,122,125,126,13# XTR THP | — | |
| 61504B — Reinforcement Sub-assy, Quarter Lock Pillar, LH | ||||
| 61504-KK900 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-07
ended
|
GUN11#,12#,135,TGN11#,12#,XPN135 SCB THP | — | |
| 61504-KK900 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-08
ended
|
GUN125 MA | — | |
| 61504-KK900 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-10
ended
|
GUN122,125,126,13#,LAN125,TGN12#,136 SCB (AGTP,SAP) | — | |
| 61504-KK900 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-12
ended
|
GUN125,135 KEN | — | |
| 61504-KK900 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 61504-KK901 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-07
ended
|
GUN120,122,125,126,13# XTR THP | — | |
| 61504-KK901 |
Reinforcement Sub-assy, Quarter Lock Pillar, LH
2023-08 → 2024-10
ended
|
GUN125,126,13# XTR SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
