Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 7 illustrations

Illustrations

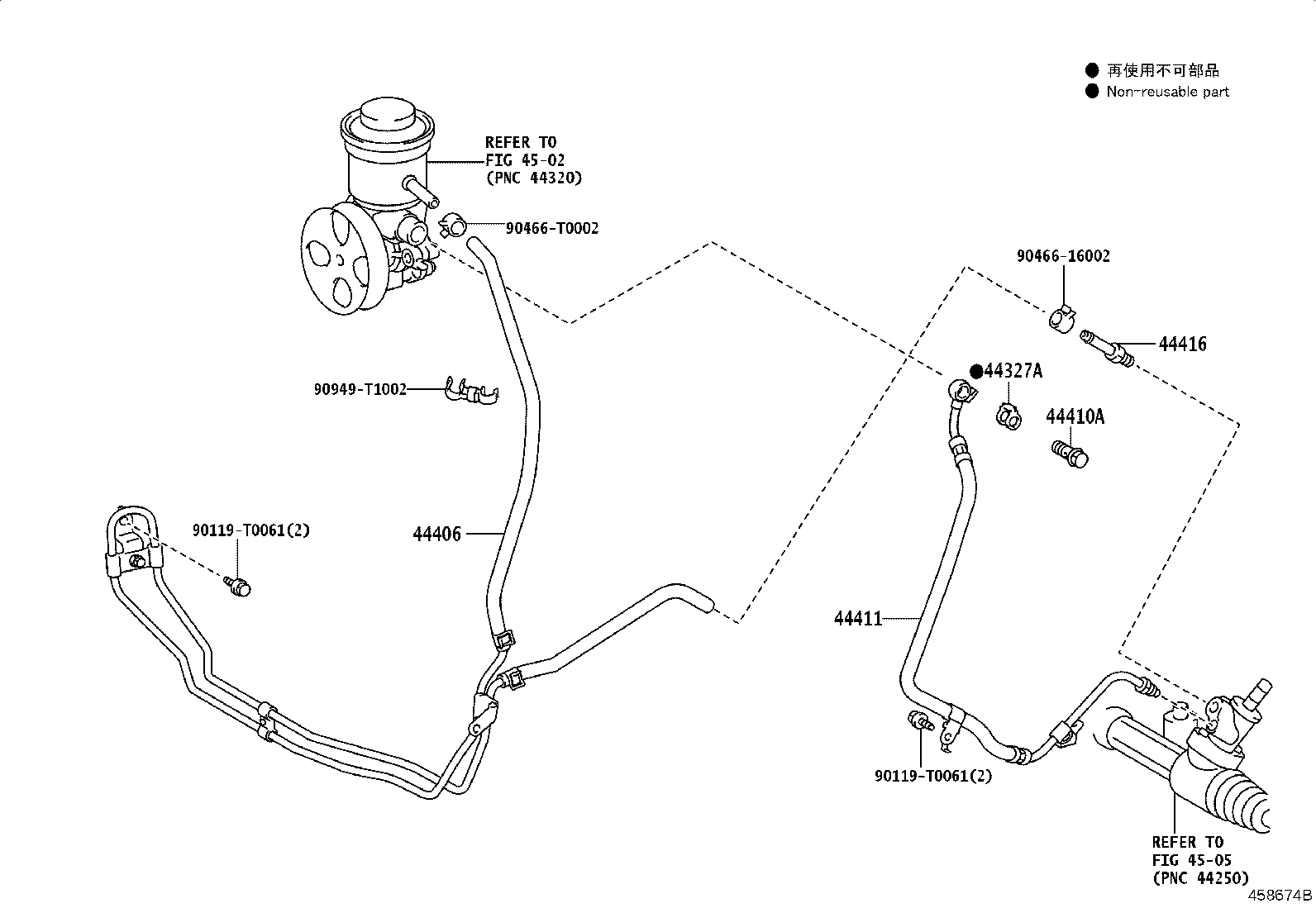

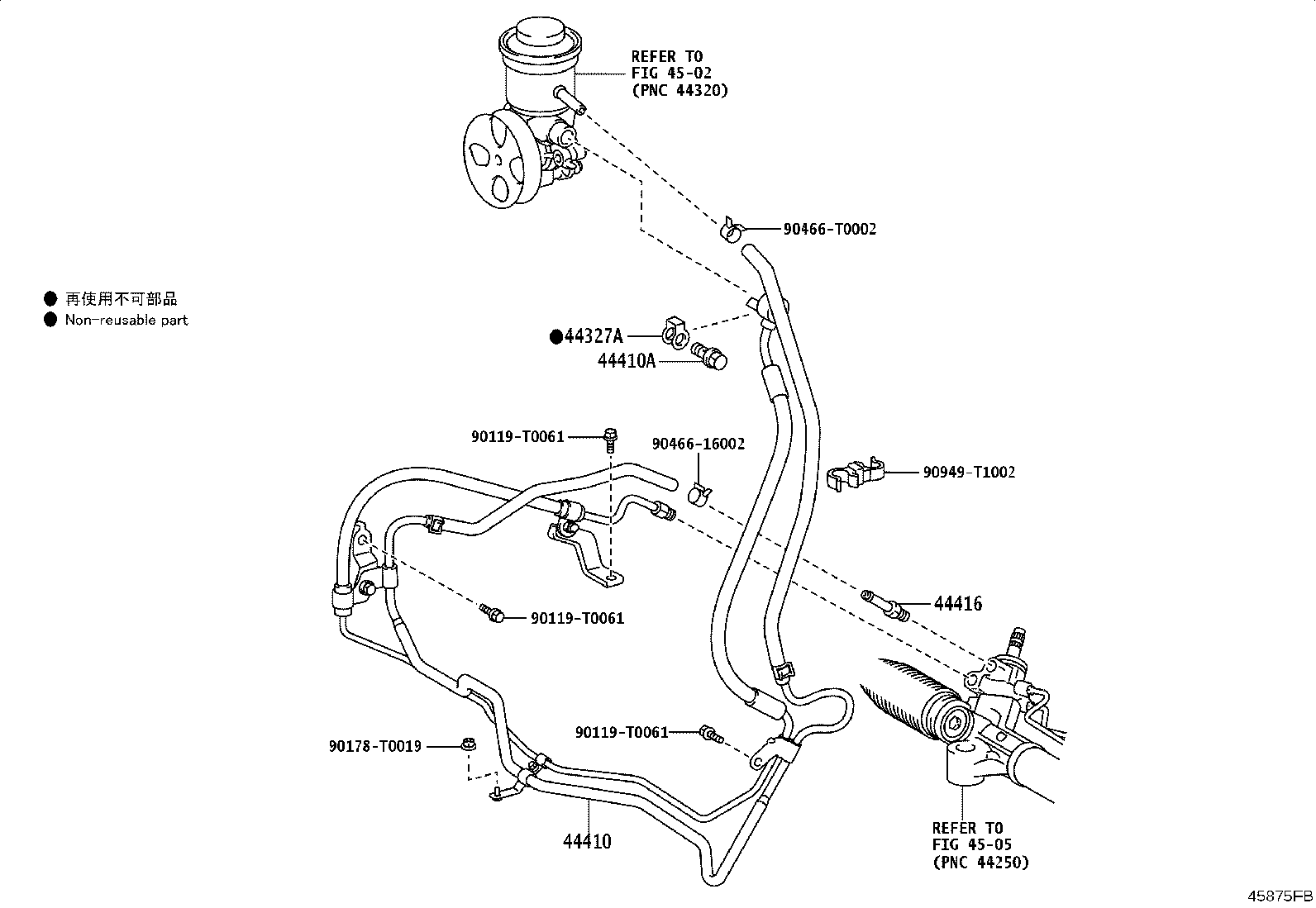

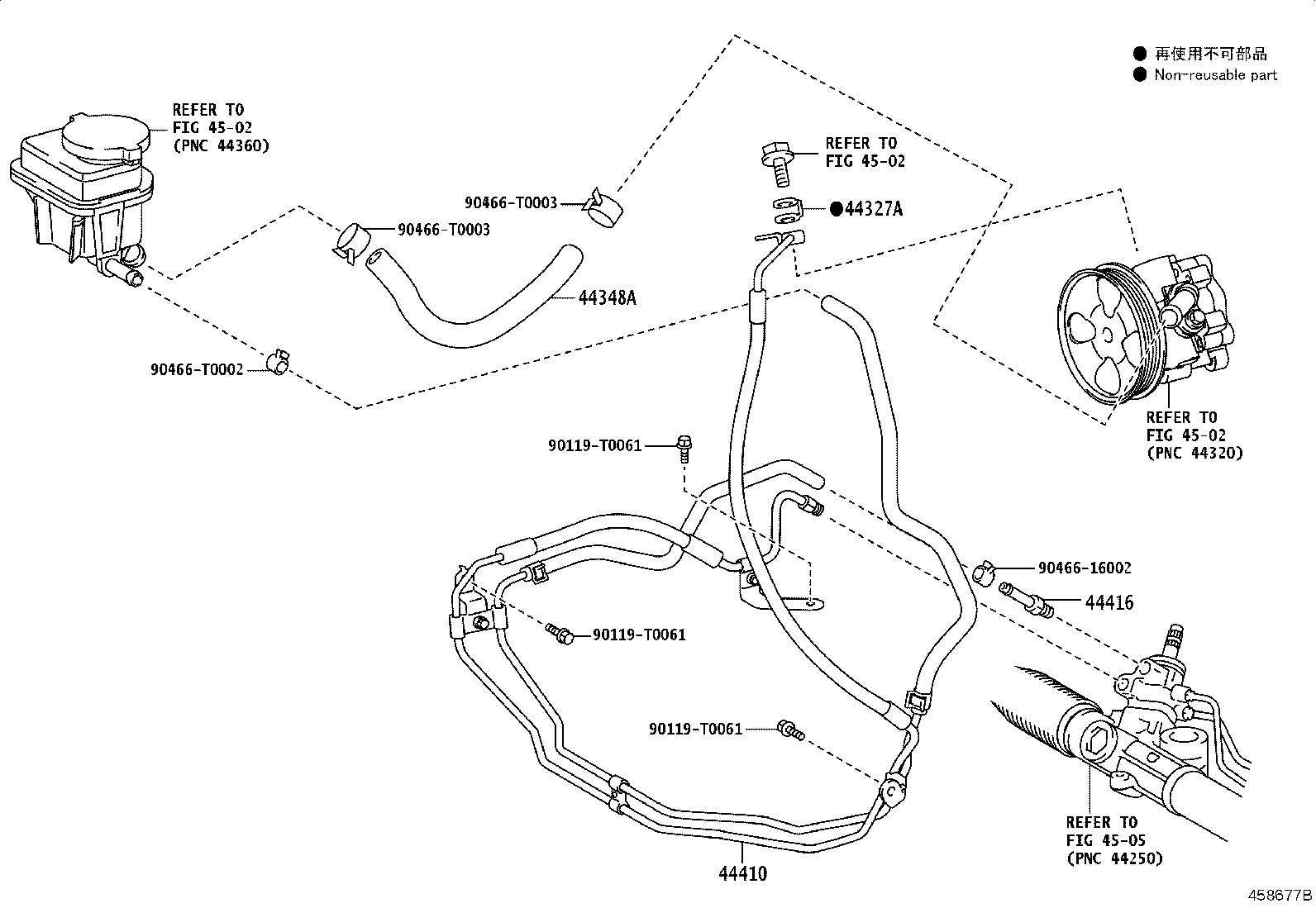

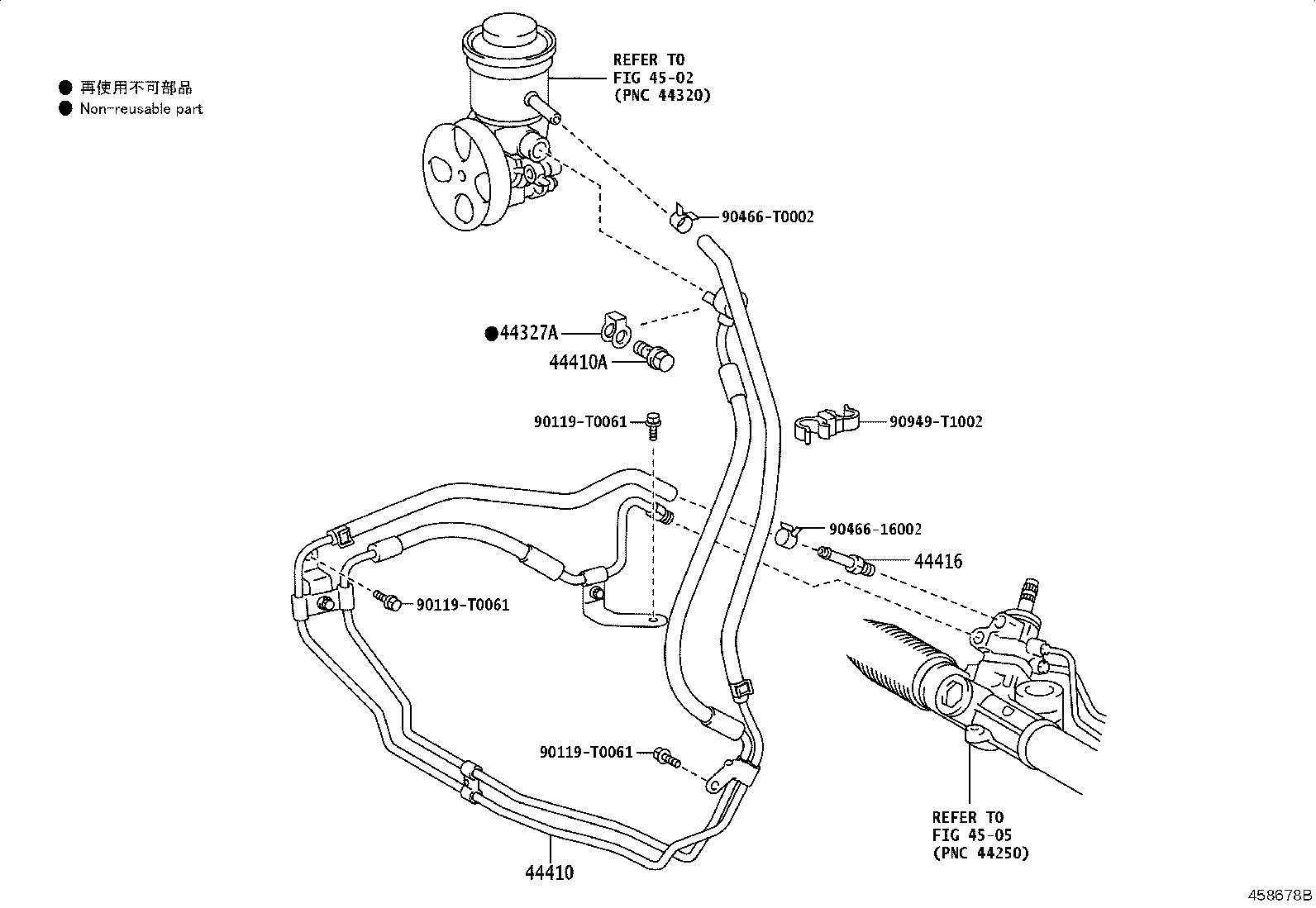

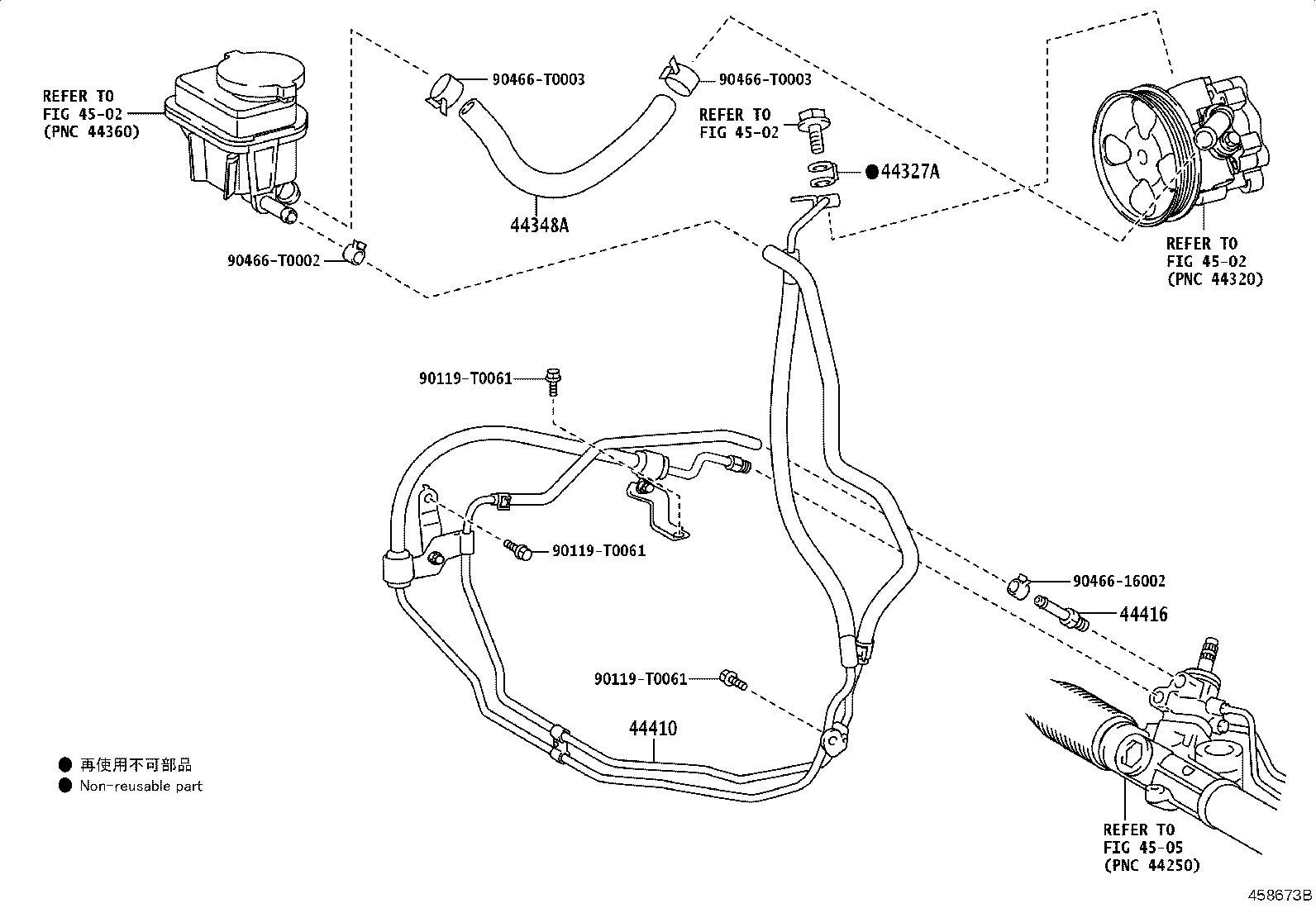

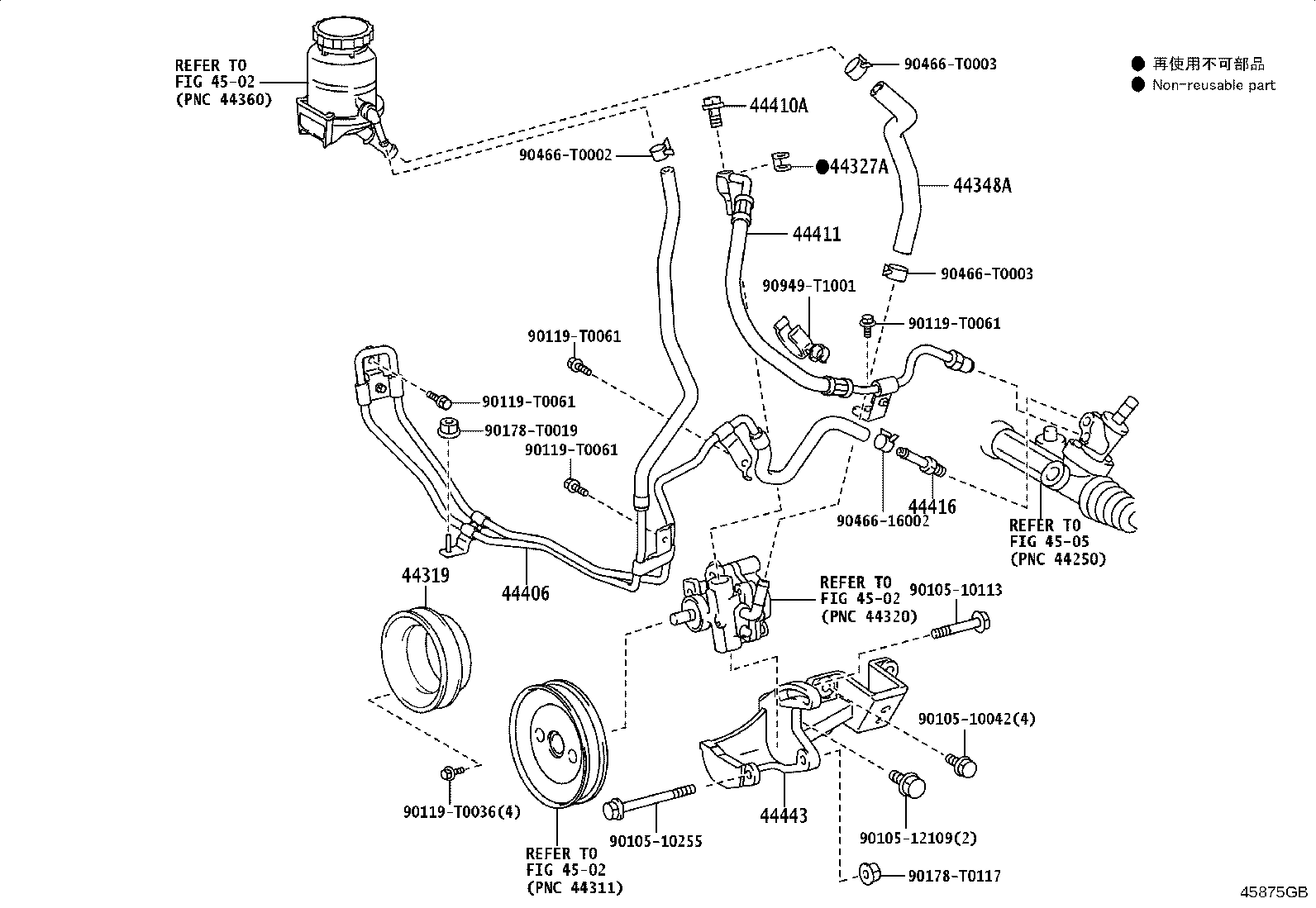

Figure 458672B 458672B 2023-08 → — Figure 458677B 458677B 2023-08 → — Figure 458673B 458673B 2023-08 → — Figure 458674B 458674B 2023-08 → — Figure 458678B 458678B 2023-08 → — Figure 45875FB 45875FB 2024-02 → — Figure 45875GB 45875GB 2024-02 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
