Toyota Hilux (SCB/XTR)
2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States
Supported model
Data version 2024-11

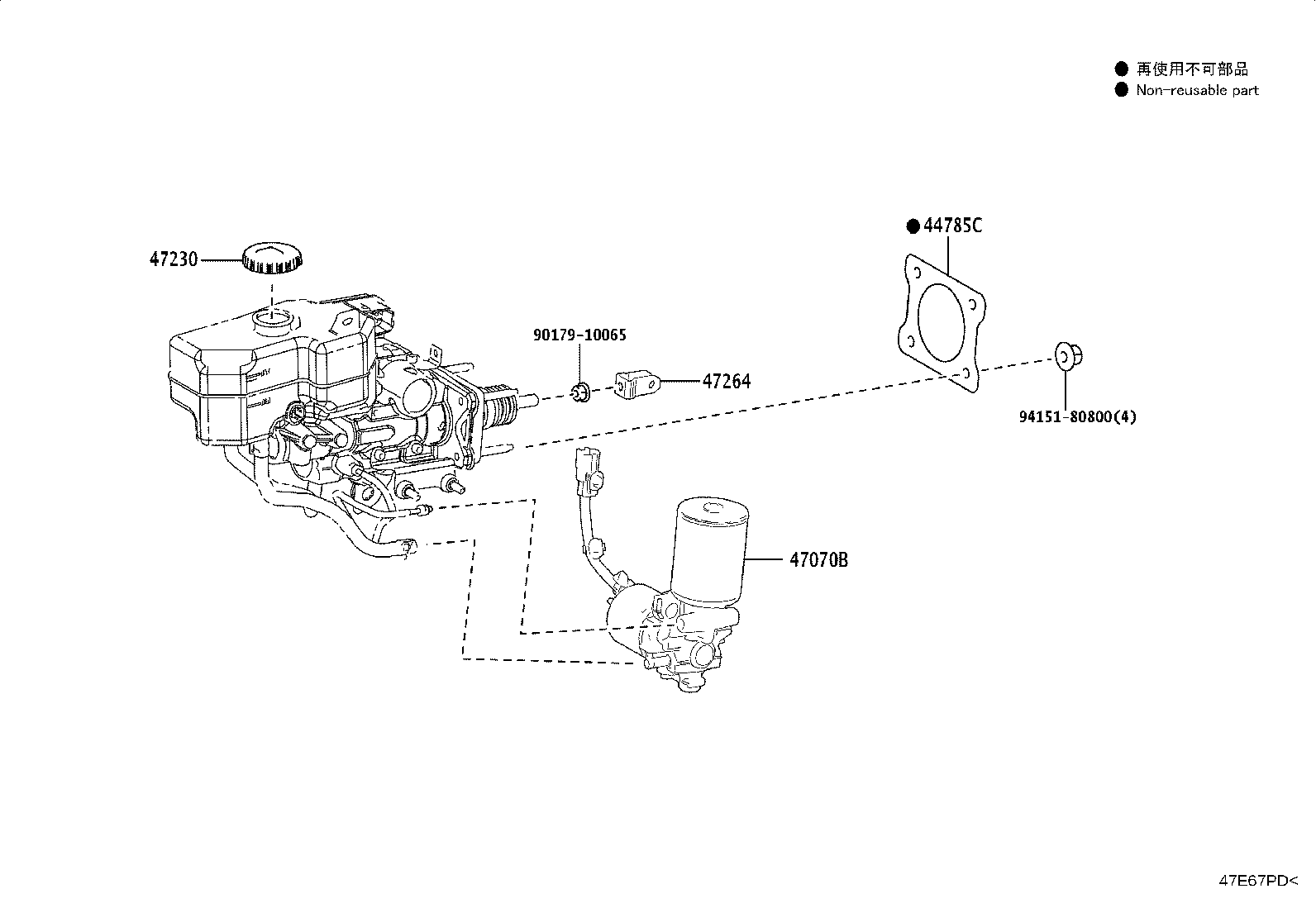

Brake Master Cylinder
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44781D | Bracket, Reservoir Hose |
| 44785C | Gasket, Brake Booster |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47287 | Label, Brake Fluid Information |
| 47288A | Label, Brake Fluid Notice |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
