Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 3 illustrations

Illustrations

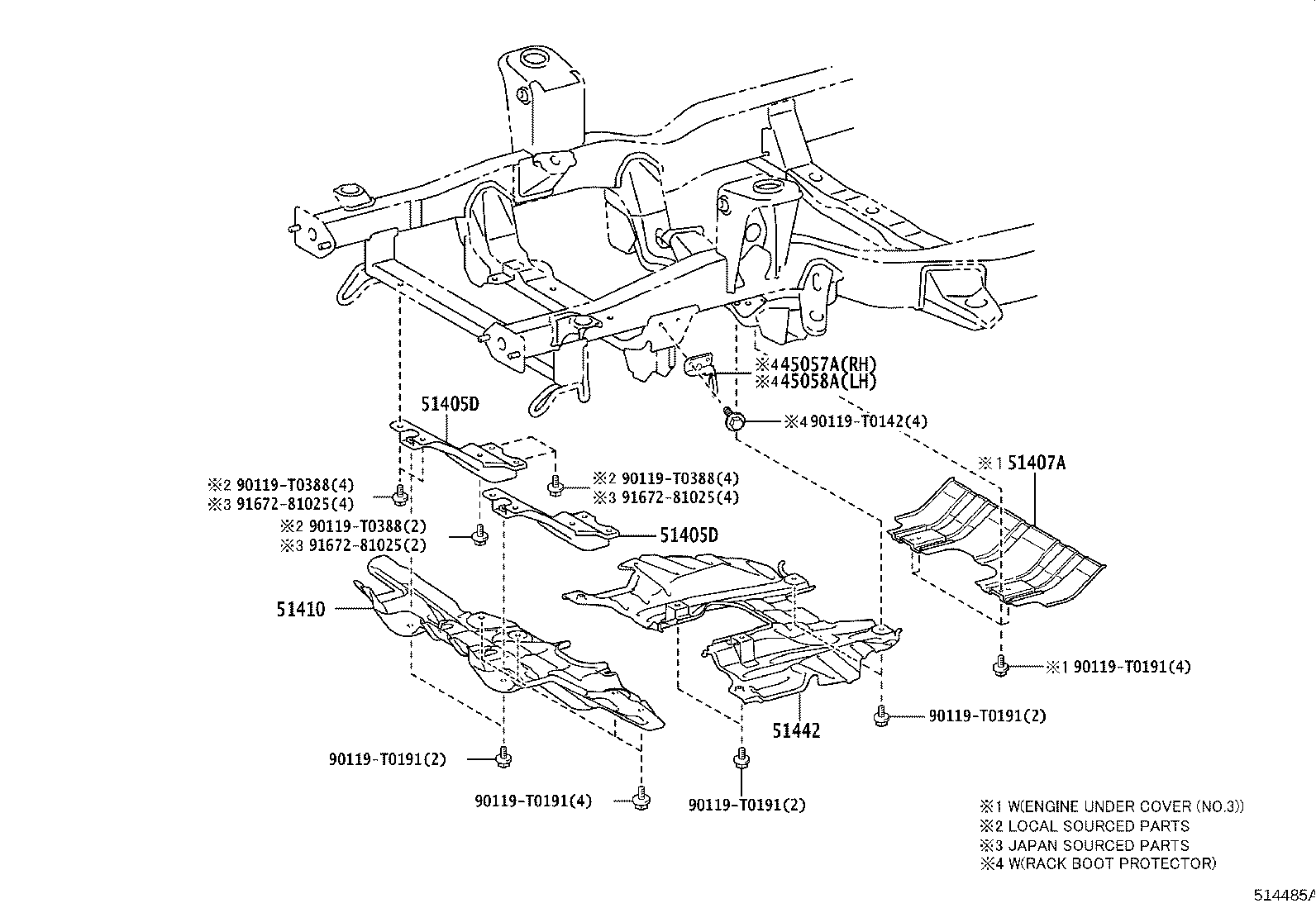

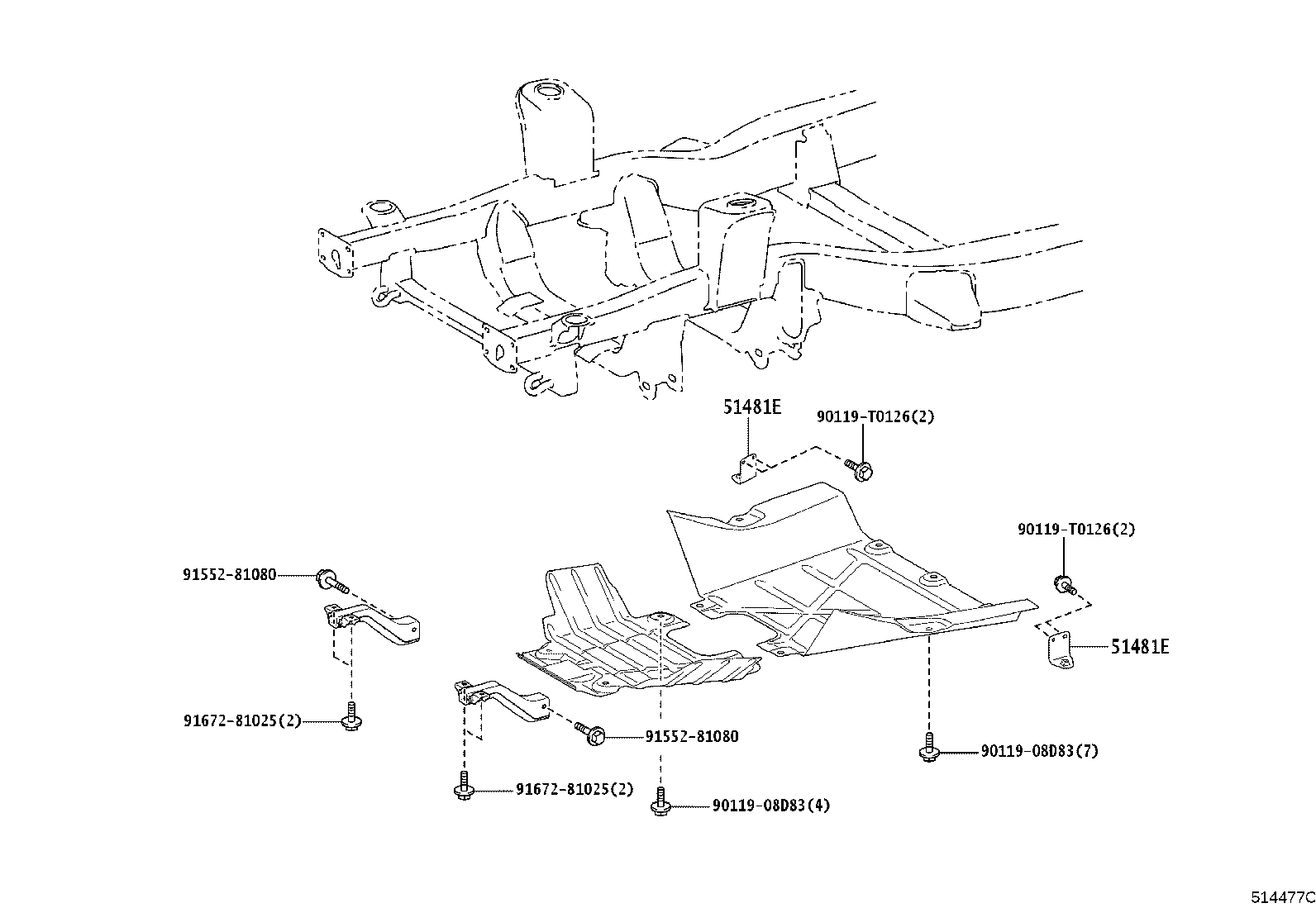

Figure 514484 514484 2023-08 → — Figure 514485A 514485A 2023-08 → — Figure 514477C 514477C 2023-11 → —

Part groups

PNCDescription
45057A Protector Sub-assy, Rack Boot, NO.1 RH
45058A Protector Sub-assy, Rack Boot, NO.1 LH
51405D Brace Sub-assy, Engine Under
51407A Cover Sub-assy, Engine Under, NO.3
51410 Cover Assy, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
51481E Bracket, Under Guard, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
