Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

81 part groups · 18 illustrations

Illustrations

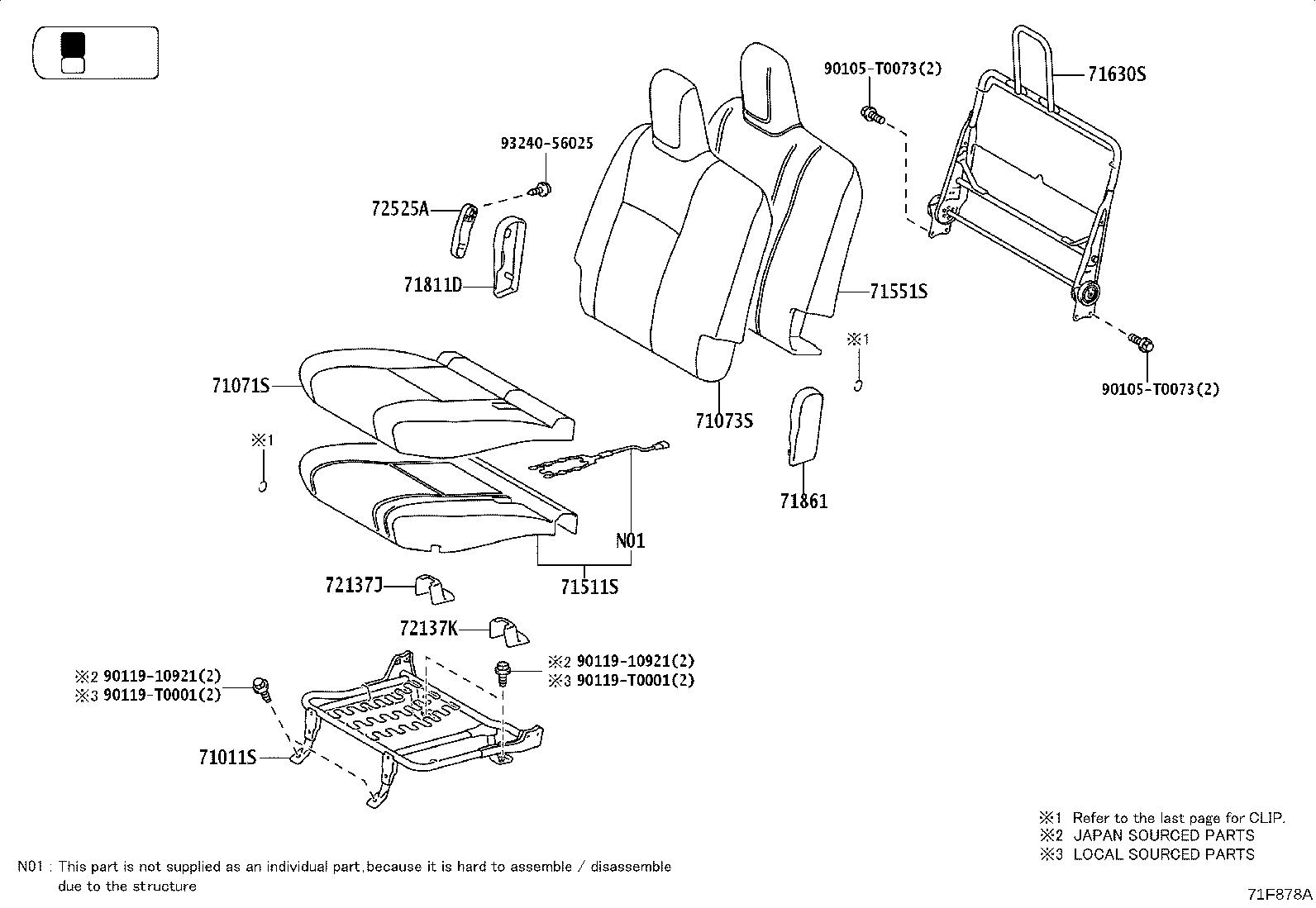

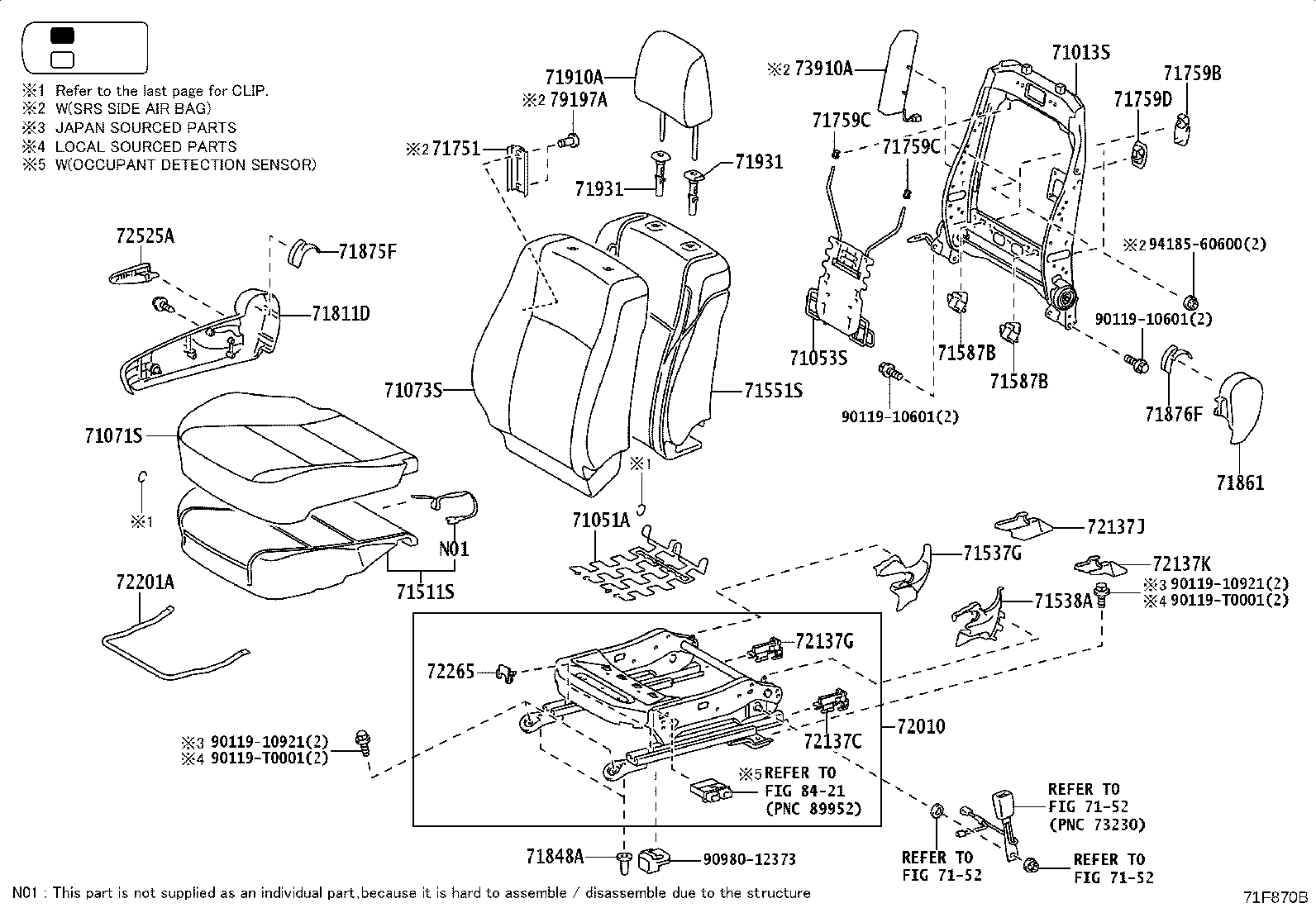

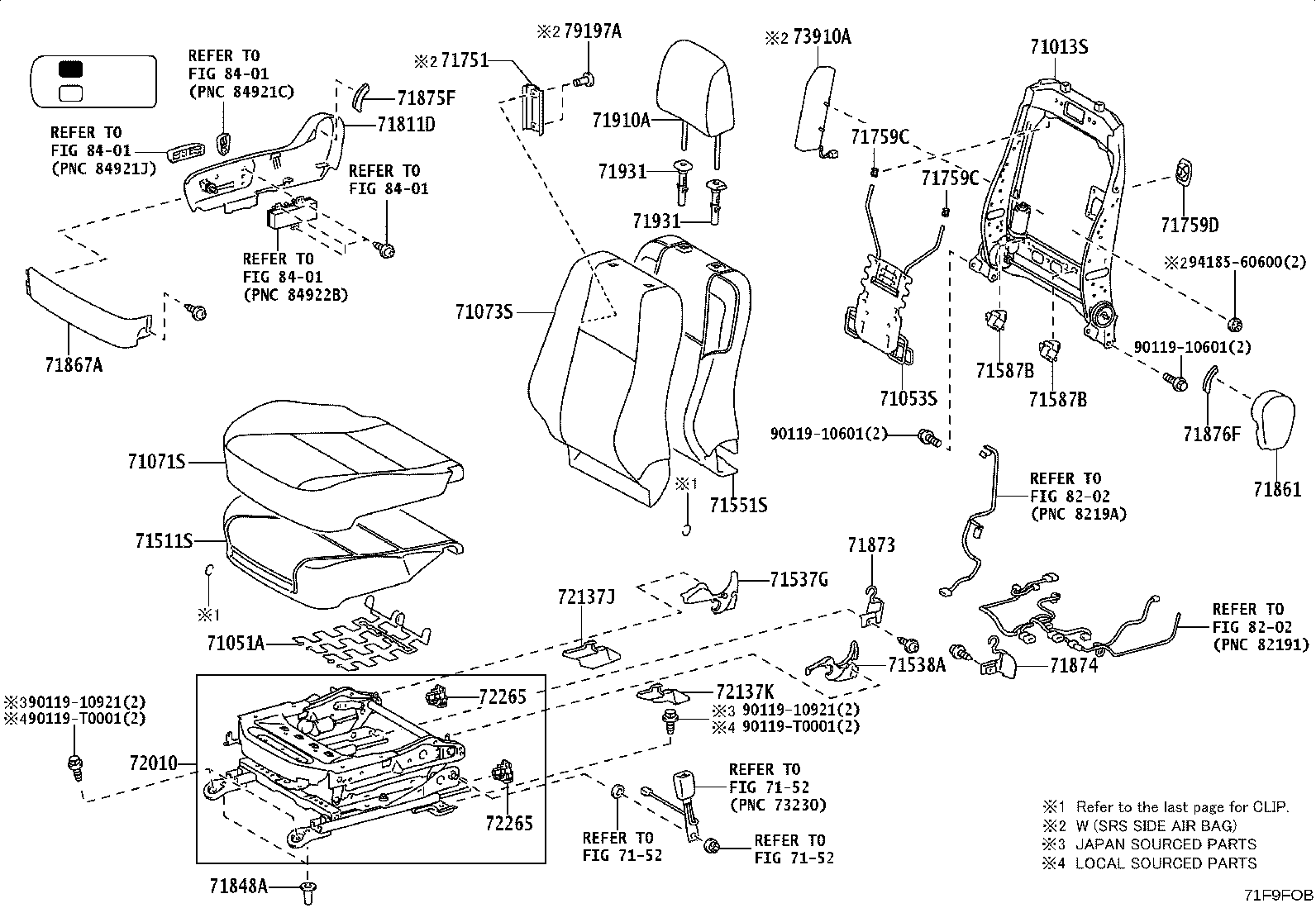

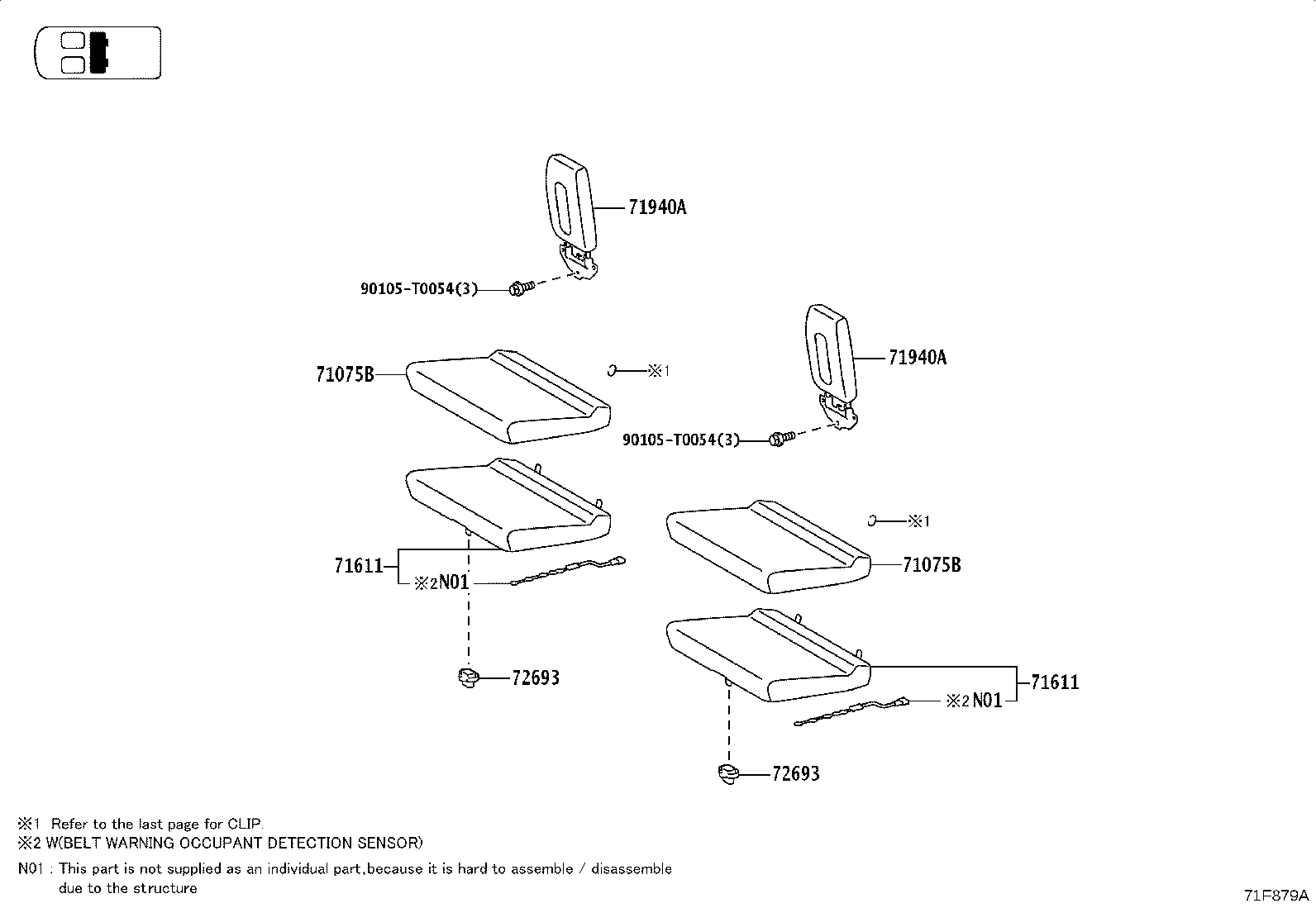

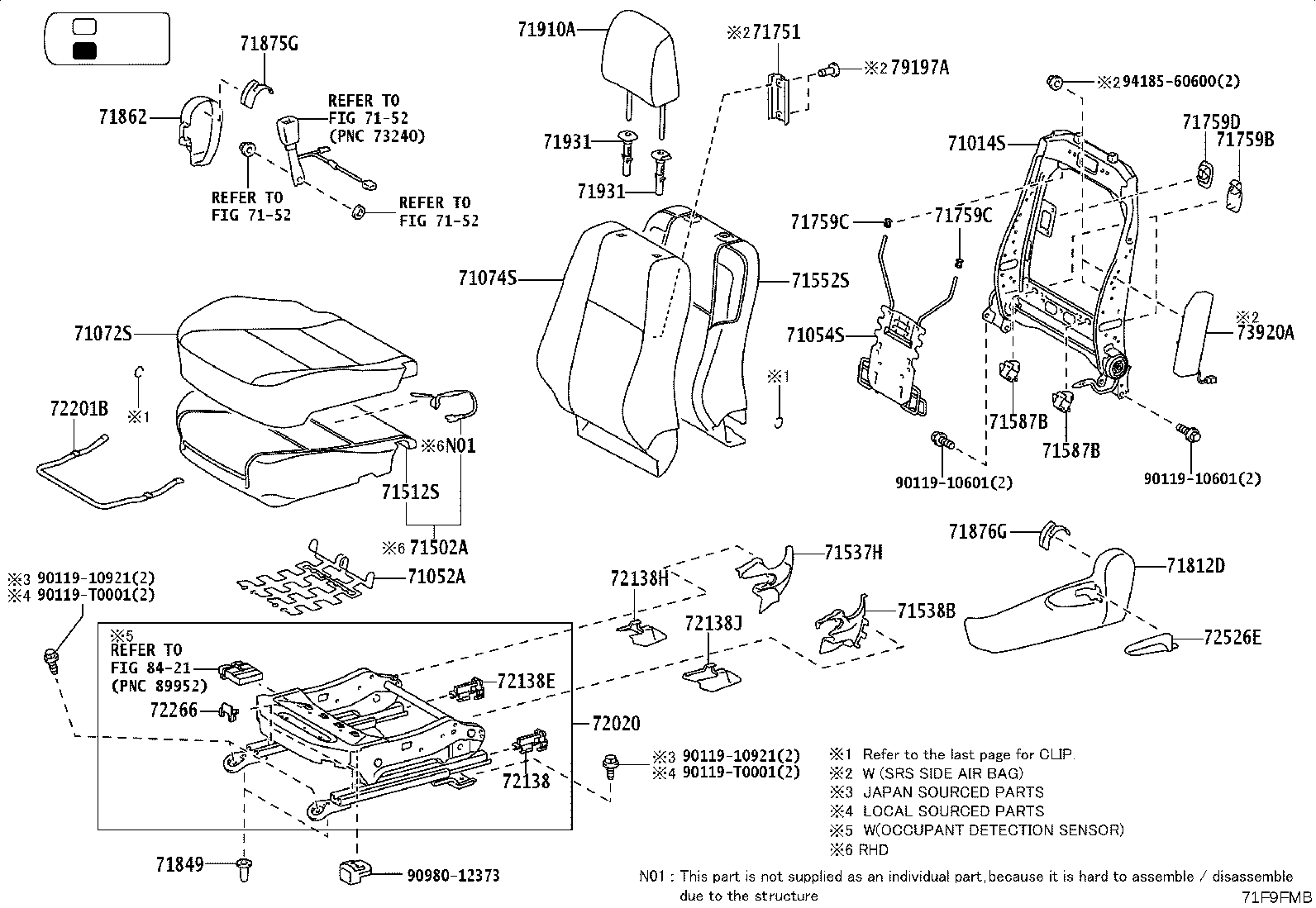

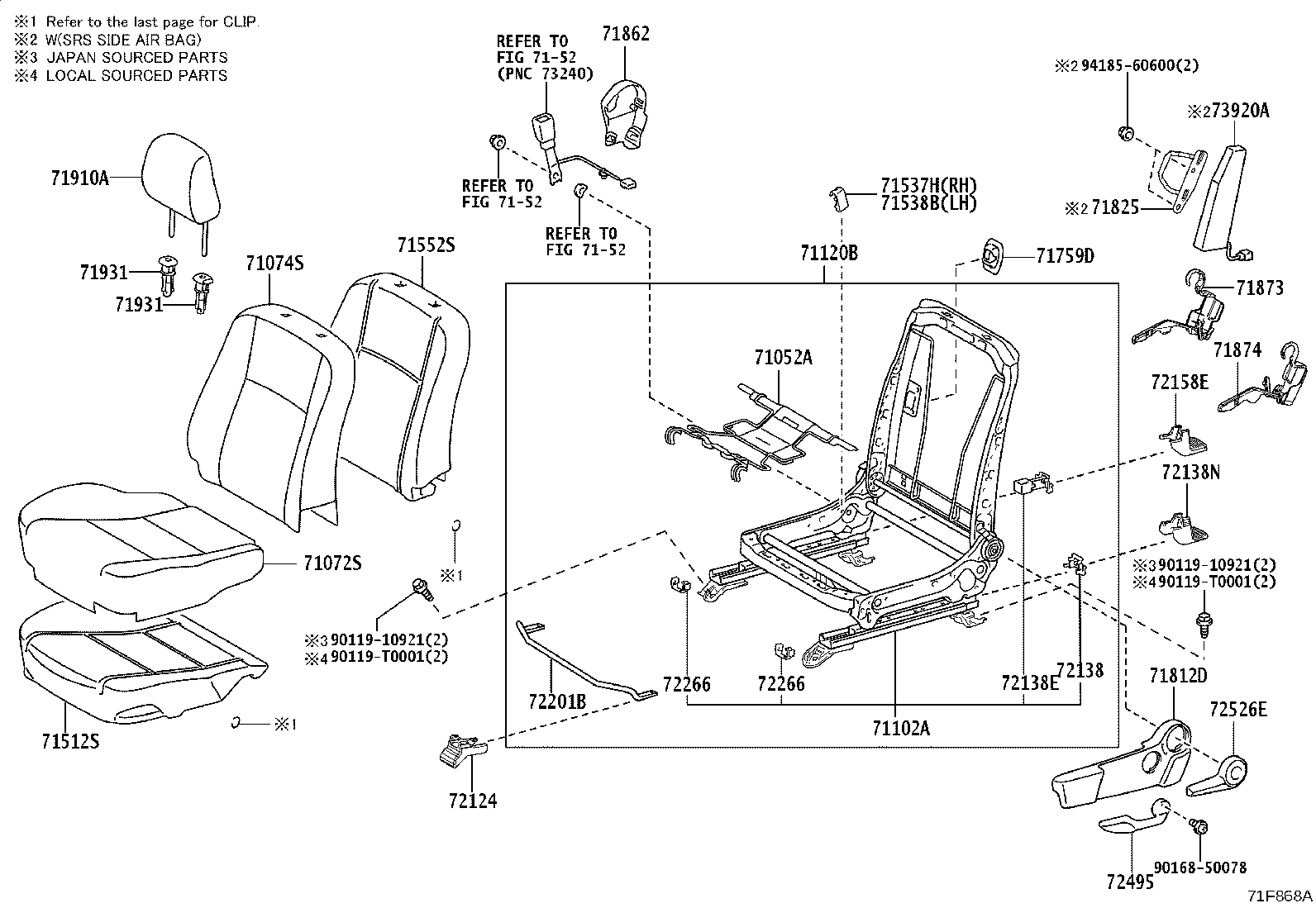

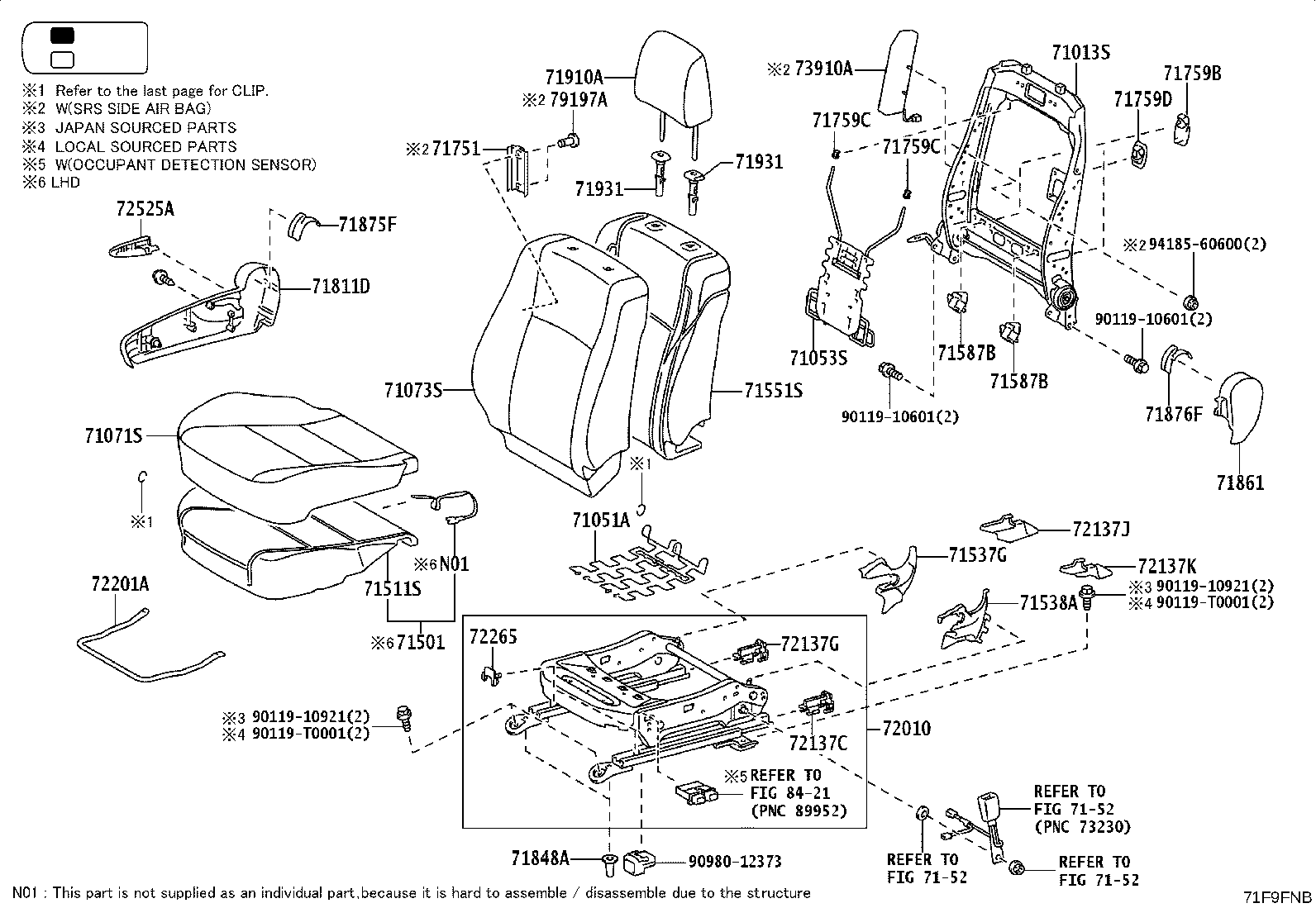

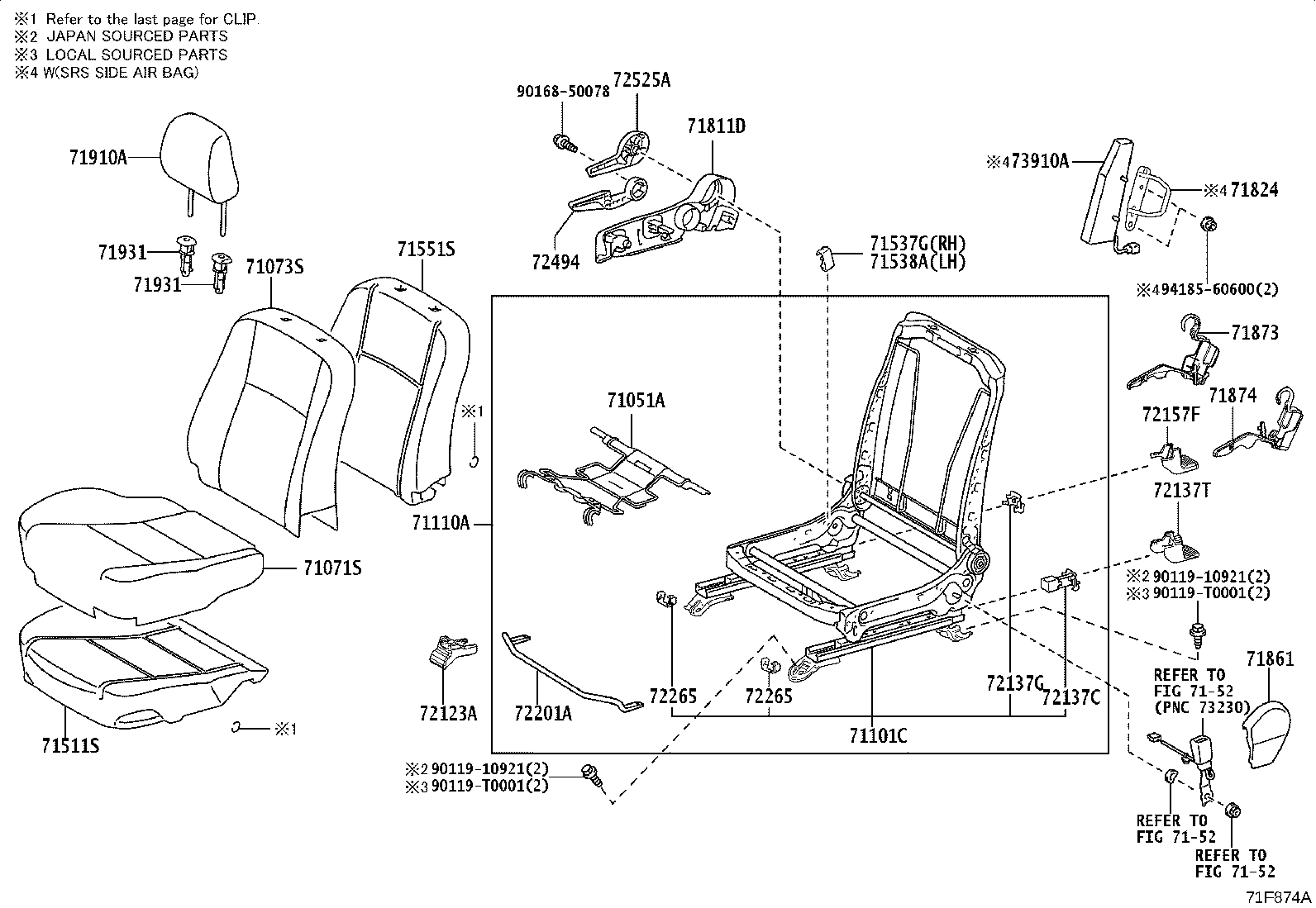

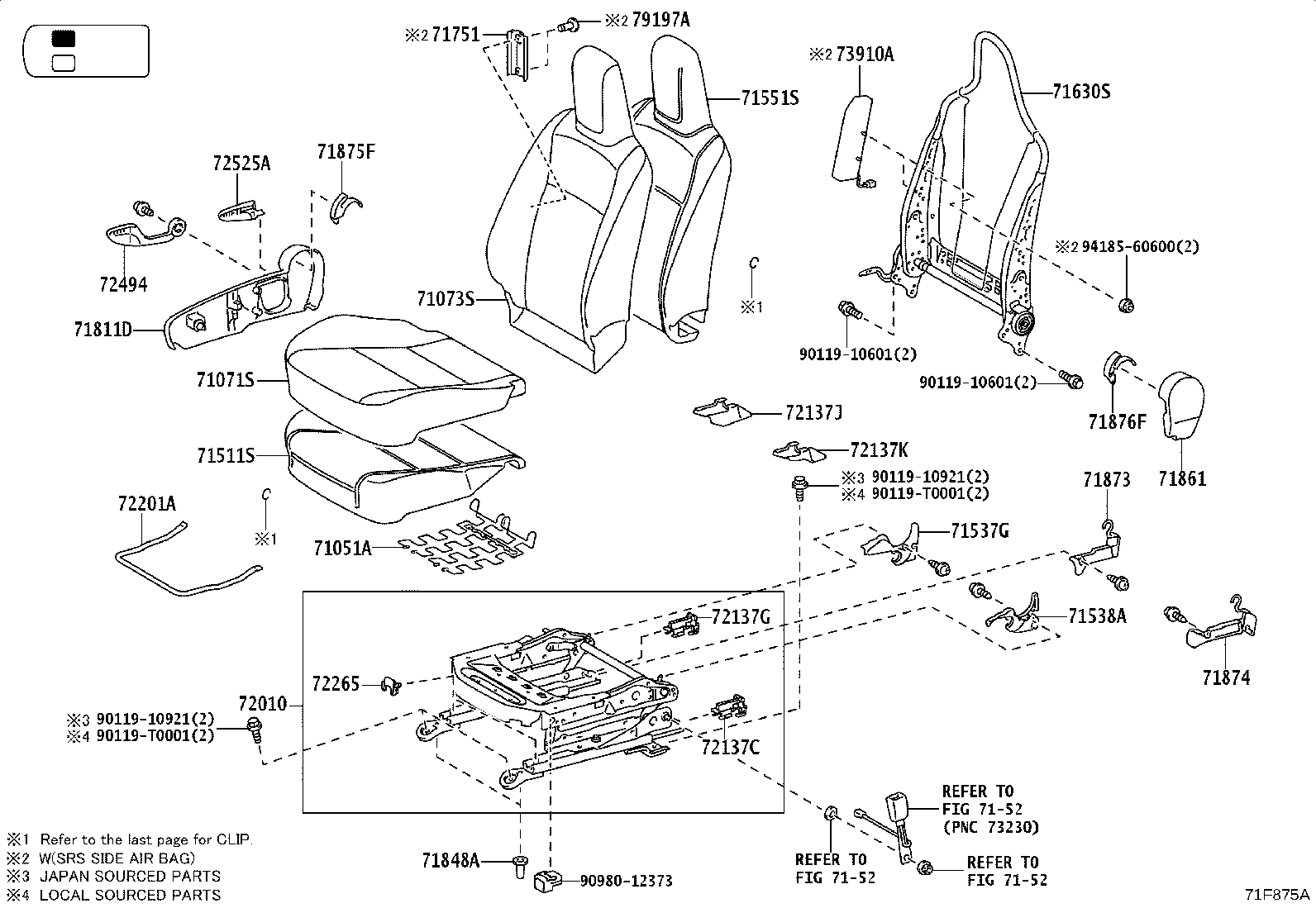

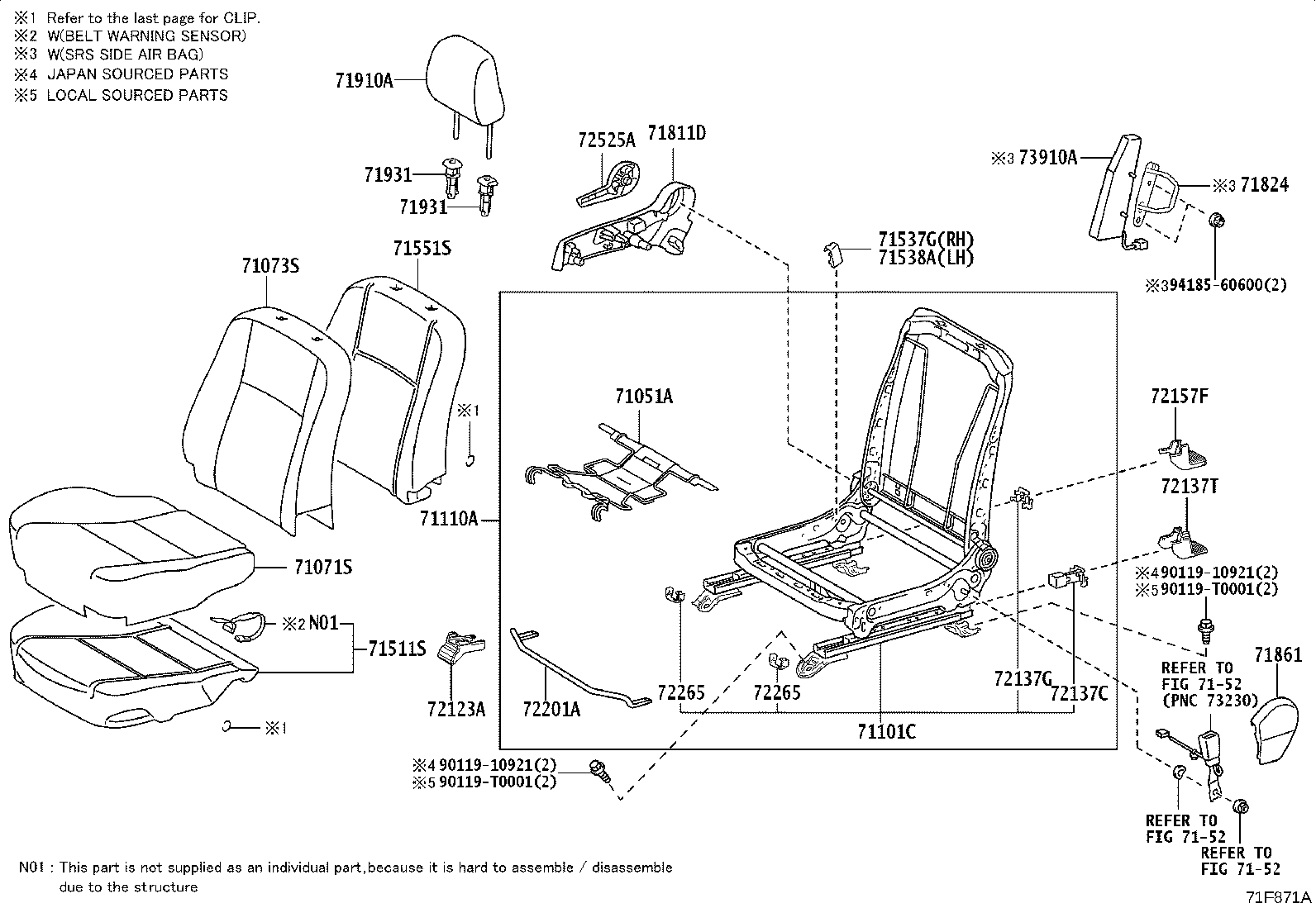

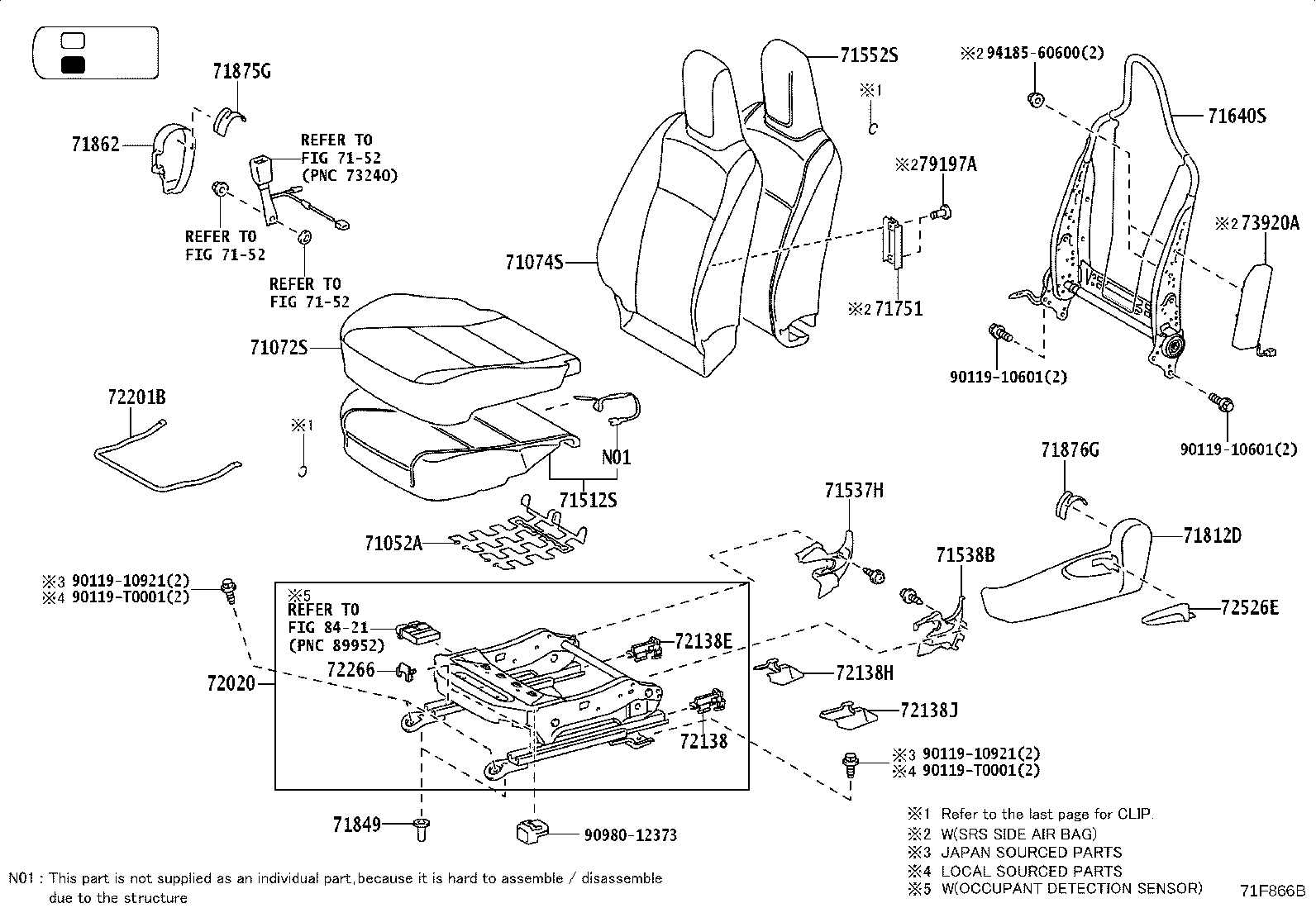

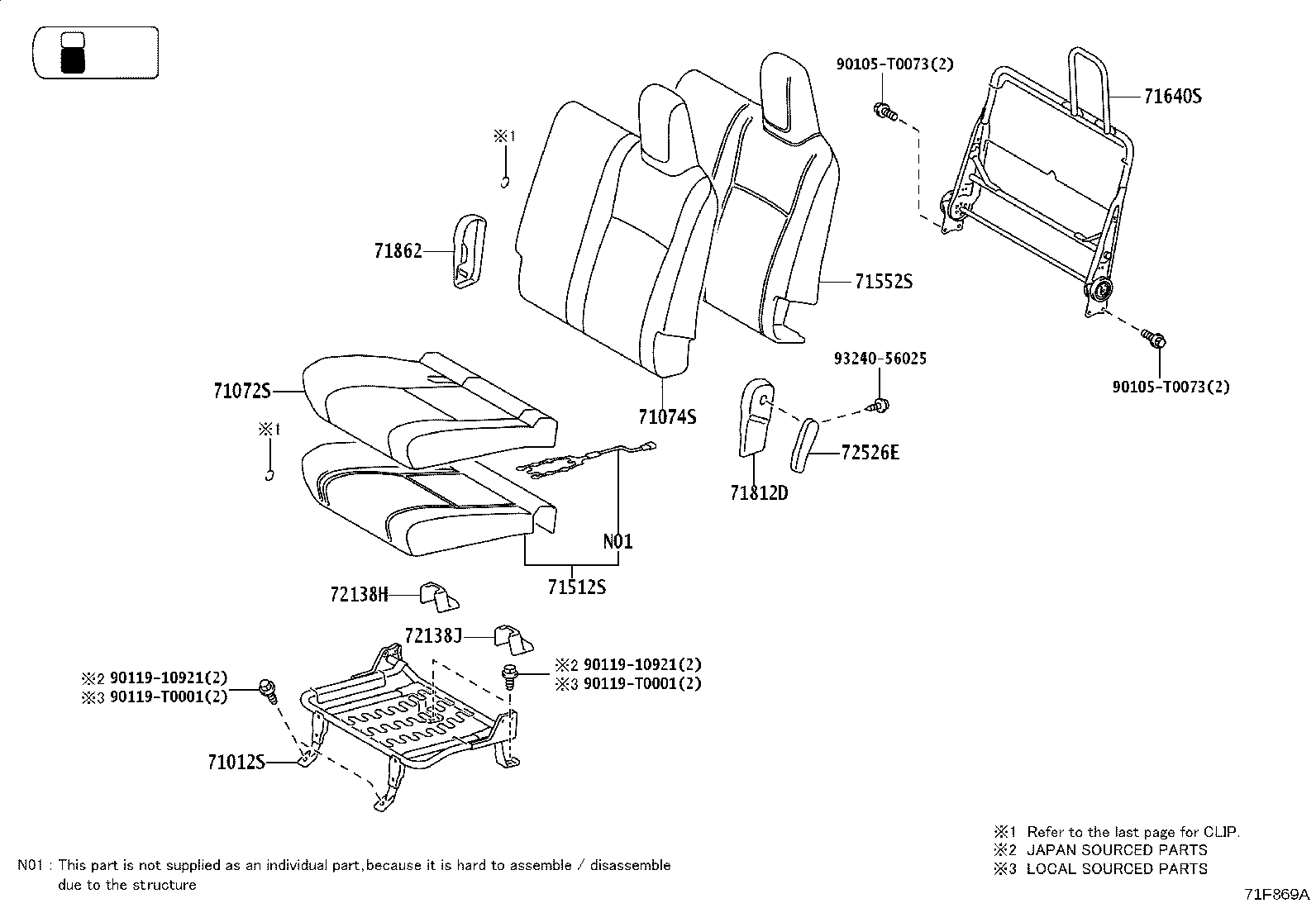

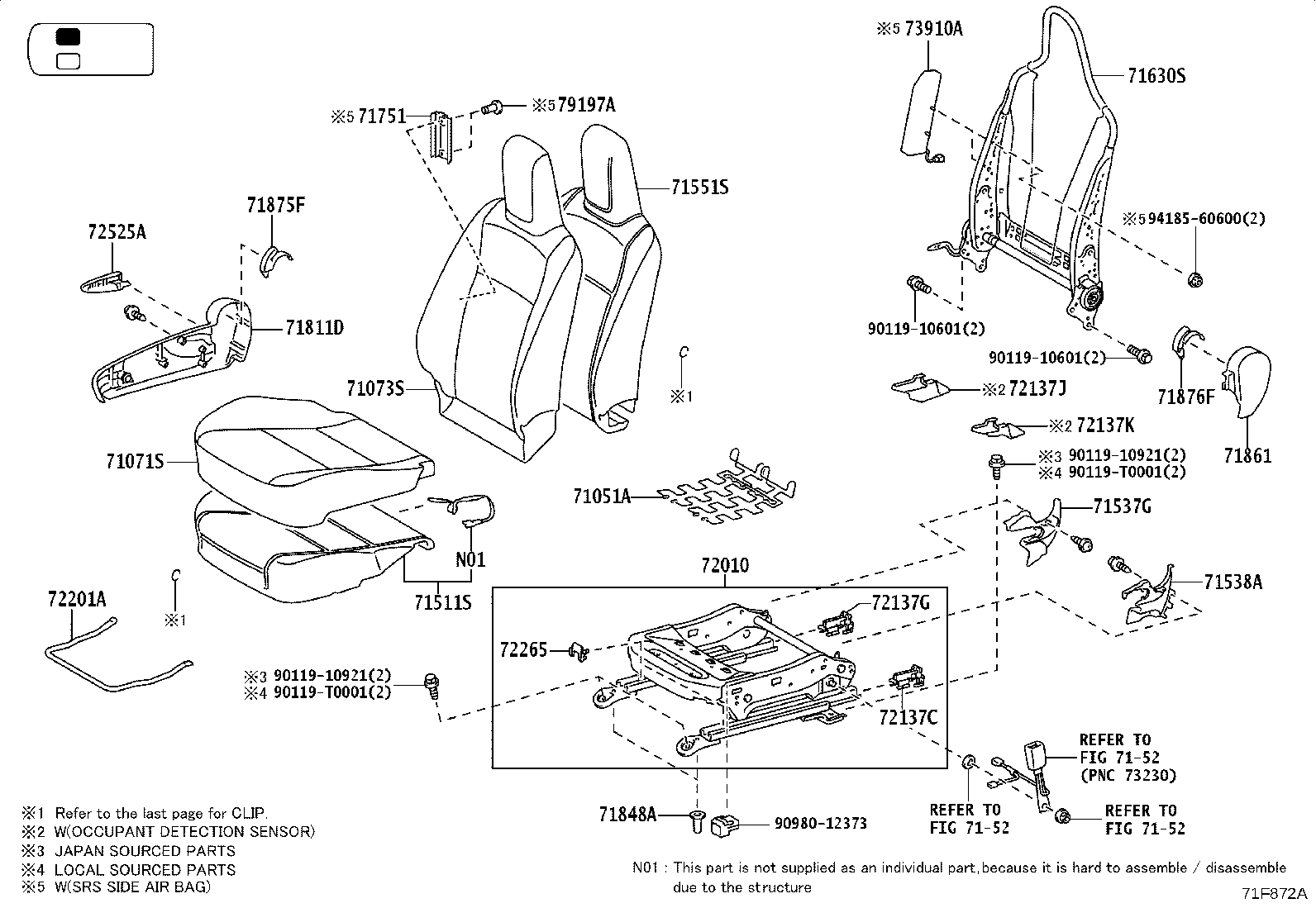

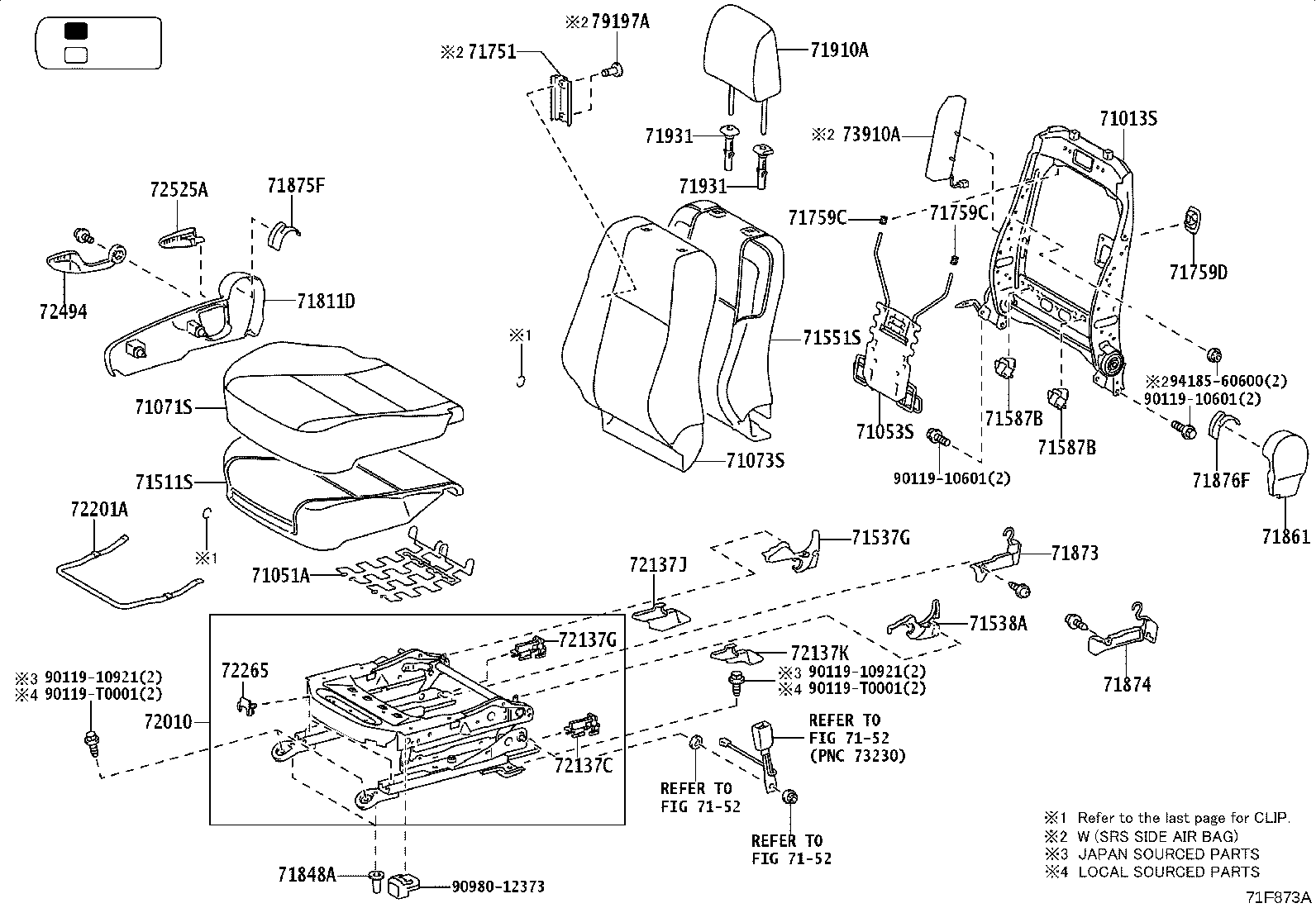

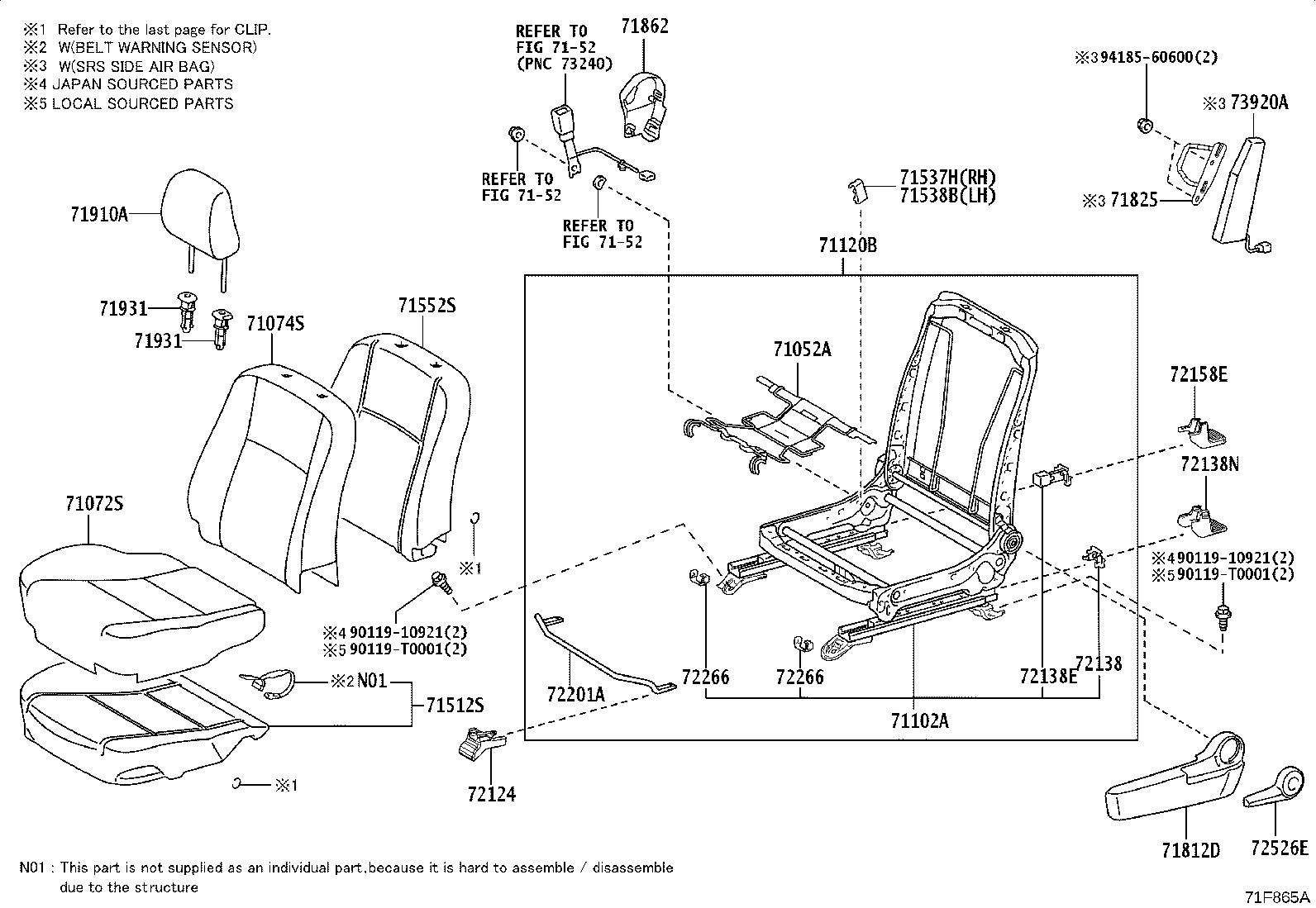

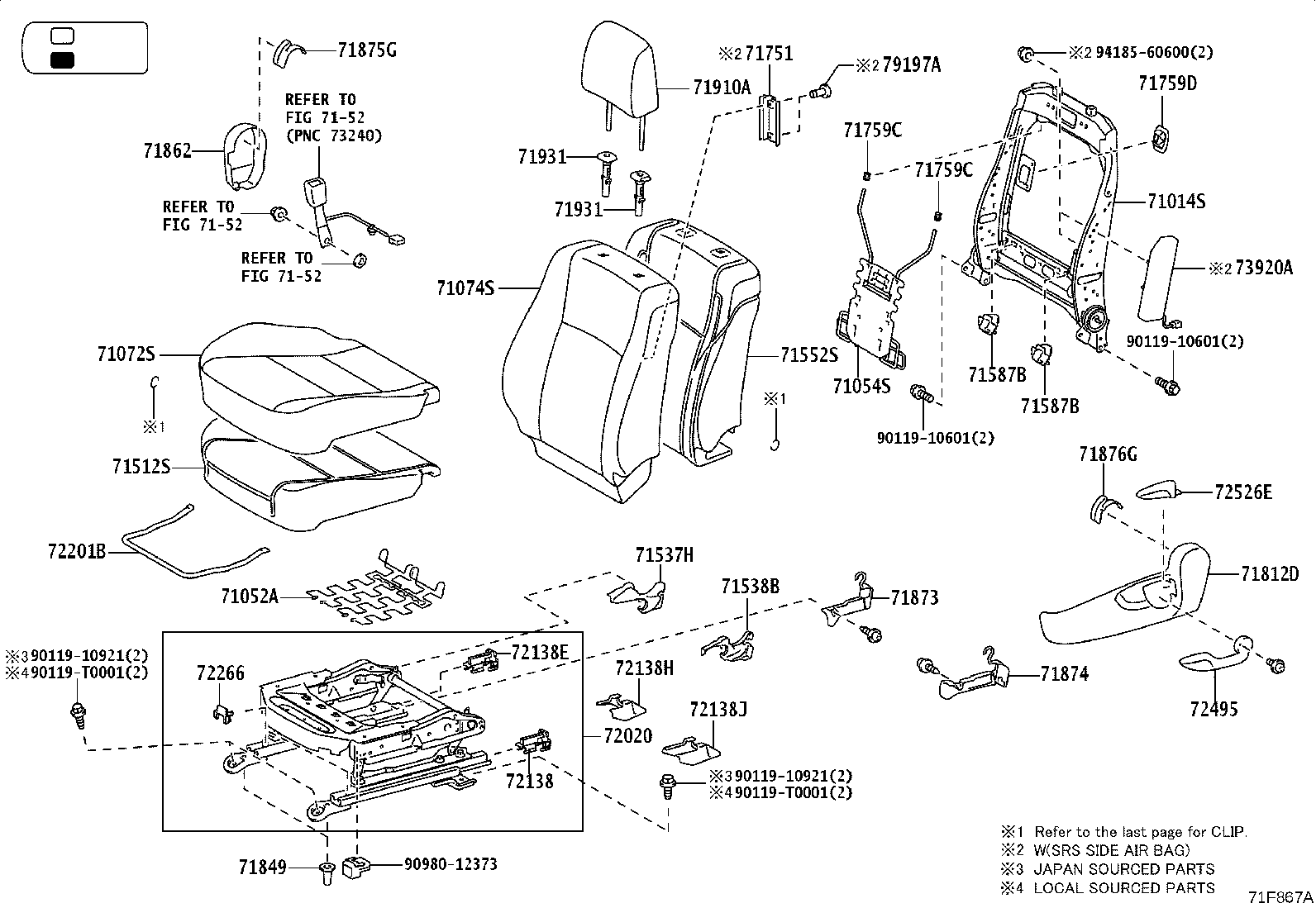

Figure 71F864B 71F864B 2023-08 → — Figure 71F9FMB 71F9FMB 2024-02 → — Figure 71F865A 71F865A 2023-08 → — Figure 71F866B 71F866B 2023-08 → — Figure 71F867A 71F867A 2023-08 → — Figure 71F868A 71F868A 2023-08 → — Figure 71F869A 71F869A 2023-08 → — Figure 71F870B 71F870B 2023-08 → — Figure 71F9FNB 71F9FNB 2024-02 → — Figure 71F871A 71F871A 2023-08 → — Figure 71F872A 71F872A 2023-08 → — Figure 71F873A 71F873A 2023-08 → — Figure 71F874A 71F874A 2023-08 → — Figure 71F875A 71F875A 2023-08 → — Figure 71F878A 71F878A 2023-08 → — Figure 71F9FOB 71F9FOB 2023-08 → — Figure 71F879A 71F879A 2023-08 → — Figure 71F855A 71F855A 2023-08 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71501 Pad Sub-assy, Front Seat Cushion, RH
71502A Pad Sub-assy, Front Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587B Protector, Front Seatback Edge
71611 Pad, Rear Seat Cushion
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71751 Hanger, Seat Cover
71759B Hook, Front Seatback
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71824 Bracket, Front Seat Side, NO.1 RH
71825 Bracket, Front Seat Side, NO.1 LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71940A Headrest Assy, Rear Seat
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72137C Cover, Seat Track Inner, RH
72137G Cover, Seat Track, Outer RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72137T Cover, Seat Track Bracket, Outer Rear RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526E Handle, Reclining Adjuster Release, LH
72693 Hook, Rear Seat Cushion Lock
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79197A Rivet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
