Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

6 part groups · 2 illustrations

Illustrations

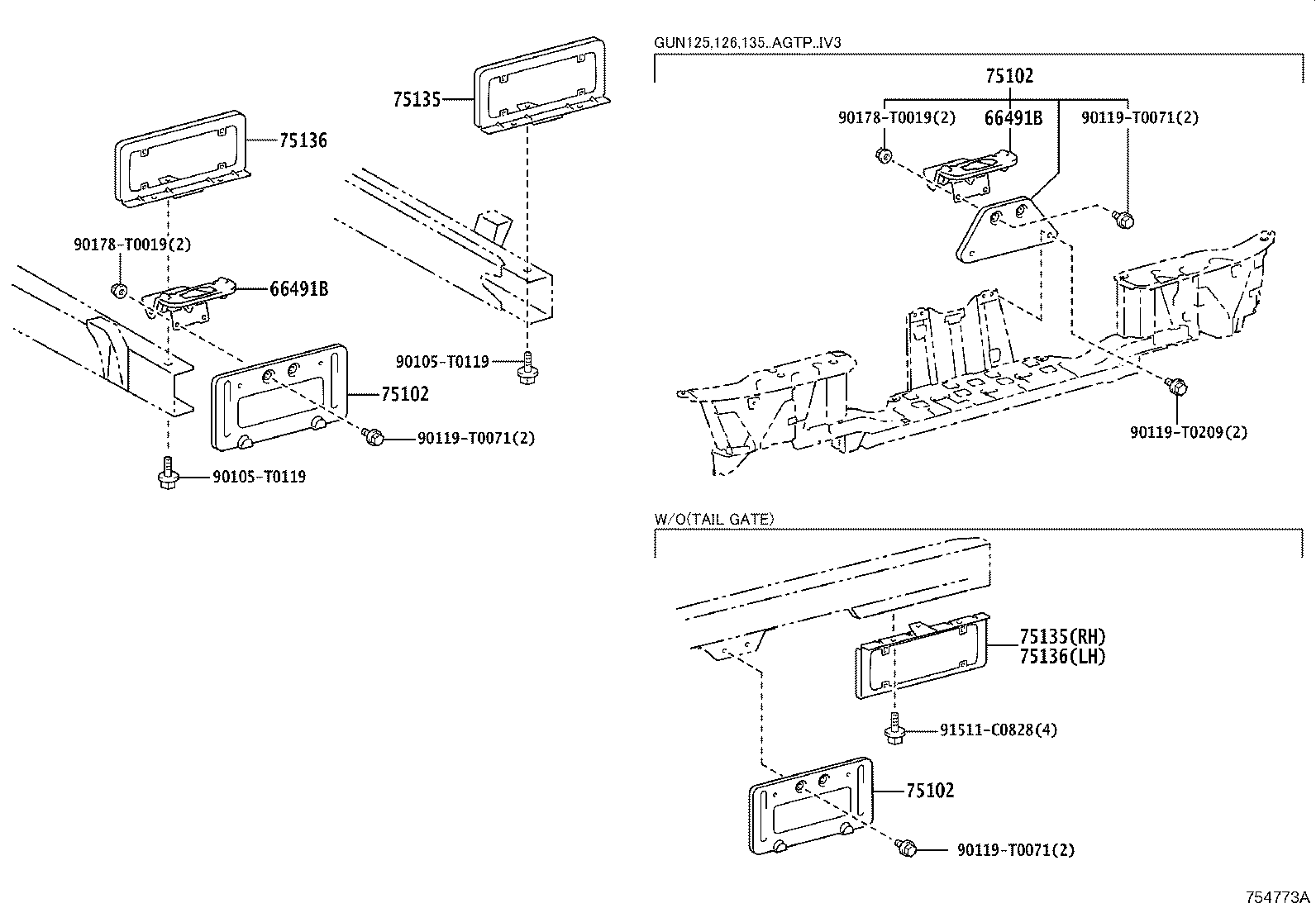

Figure 754772 754772 2023-08 → — Figure 754773A 754773A 2023-08 → —

Part groups

PNCDescription
58780 Band Assy, Tool Box
64779M Tray, Spare Wheel Cover
66491B Hanger, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
