Toyota Hilux (SCB/XTR)
2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States
Supported model
Data version 2024-11
Wiring & Clamp
94 part groups · 22 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

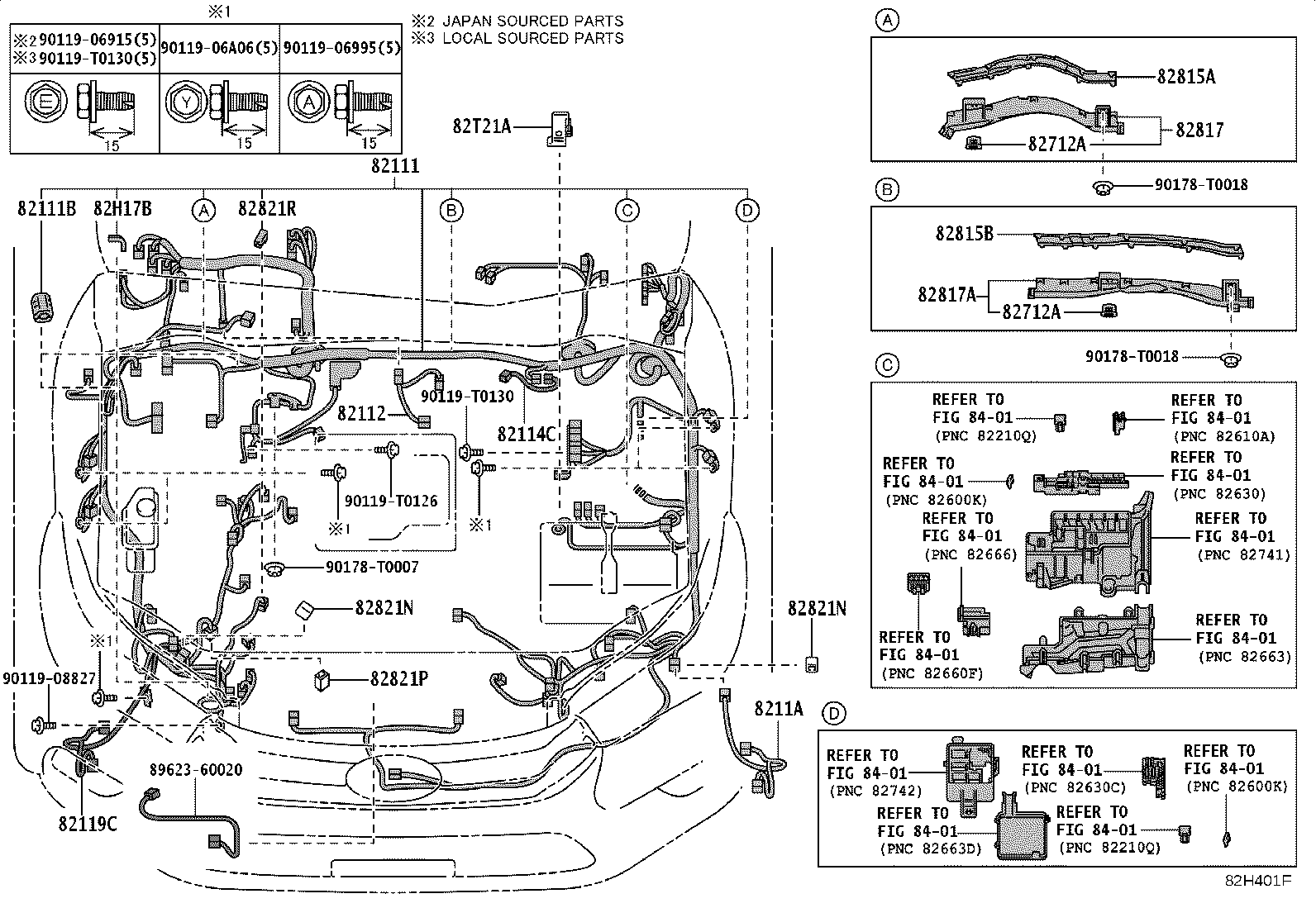

| 82111 | Wire, Engine Room Main |
| 82111B | Condenser |
| 82112 | Wire, Engine Room, NO.2 |
| 82114C | Wire, Front Compartment, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |
| 8211A | Wire, Engine Room, NO.6 |

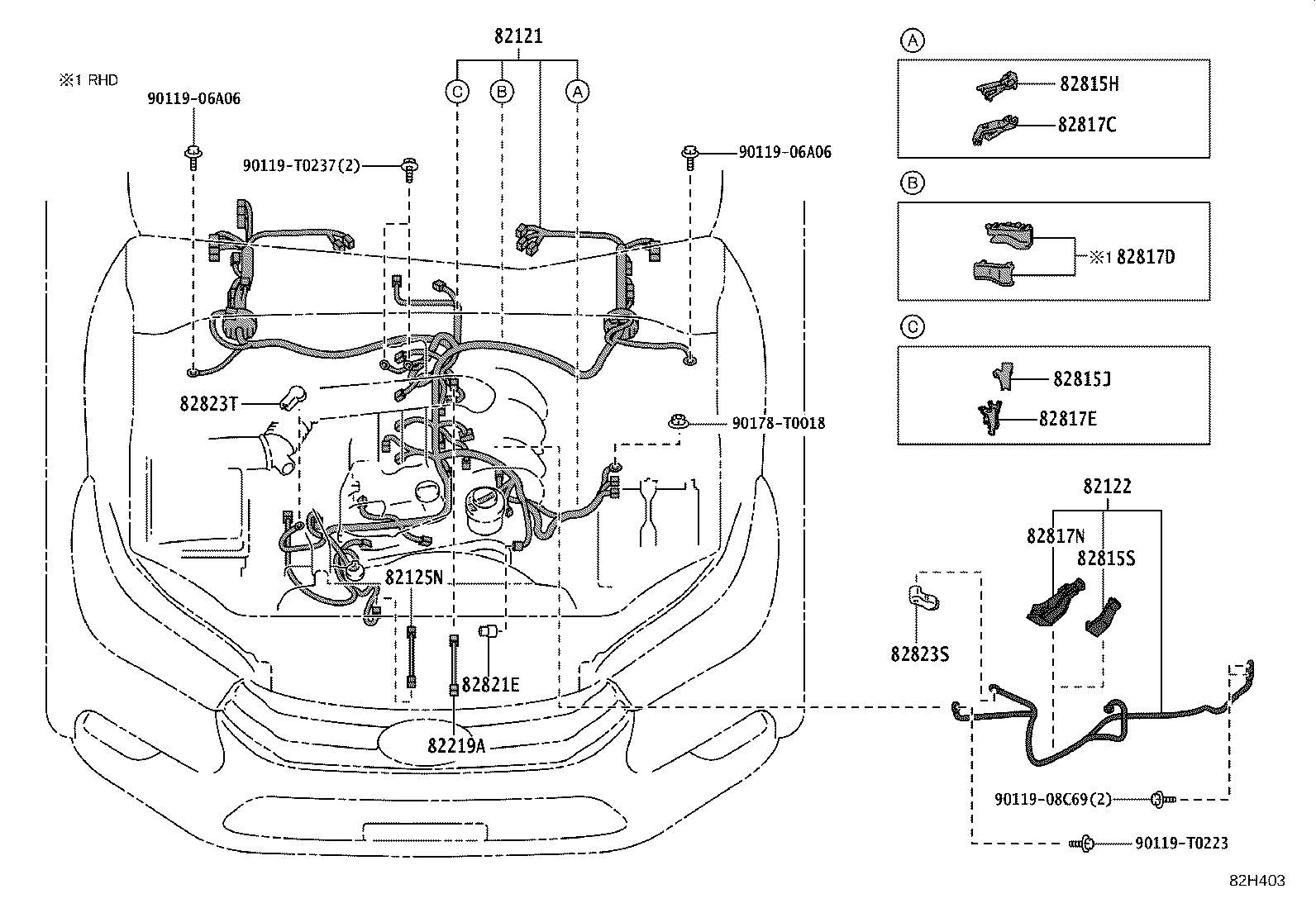

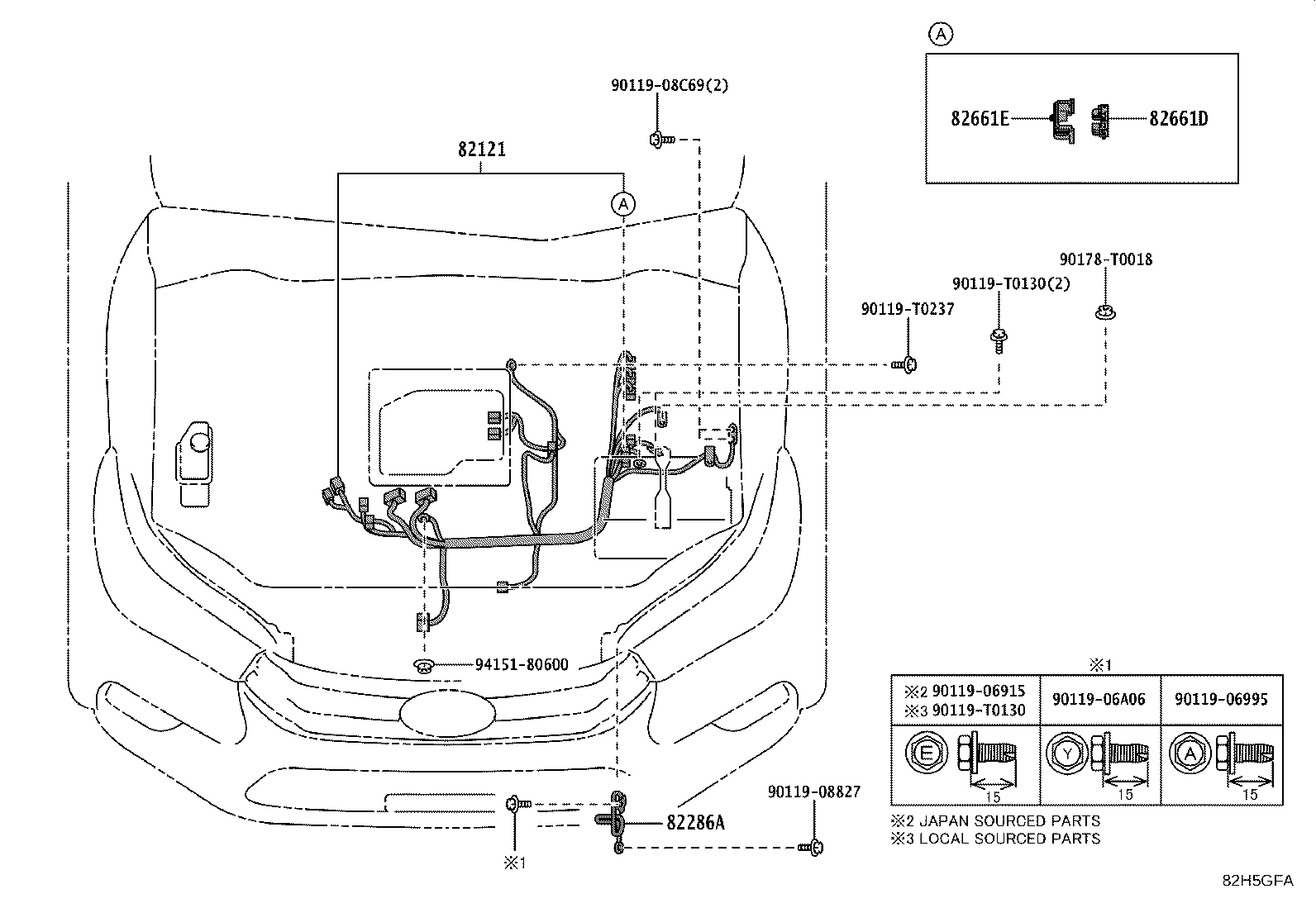

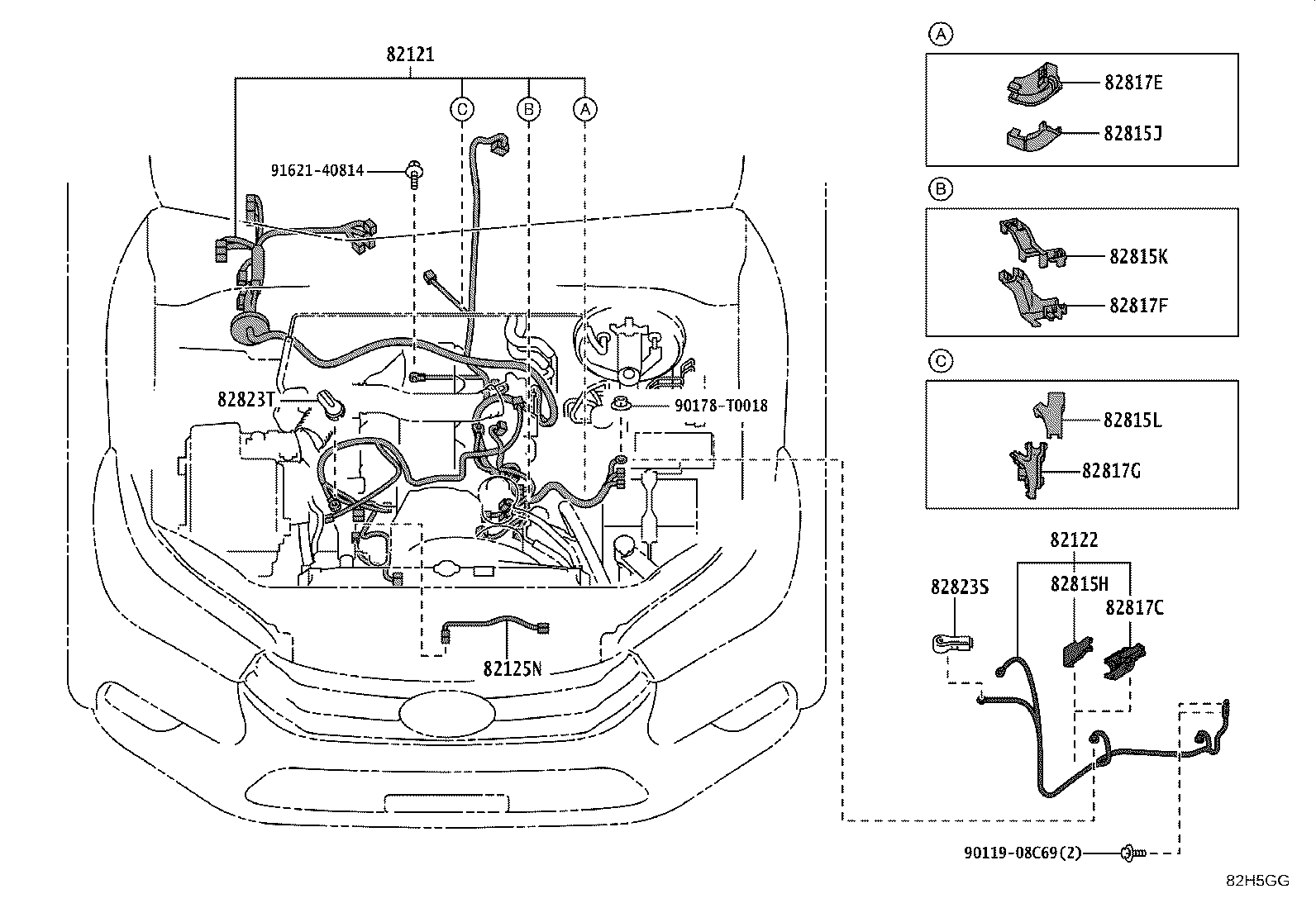

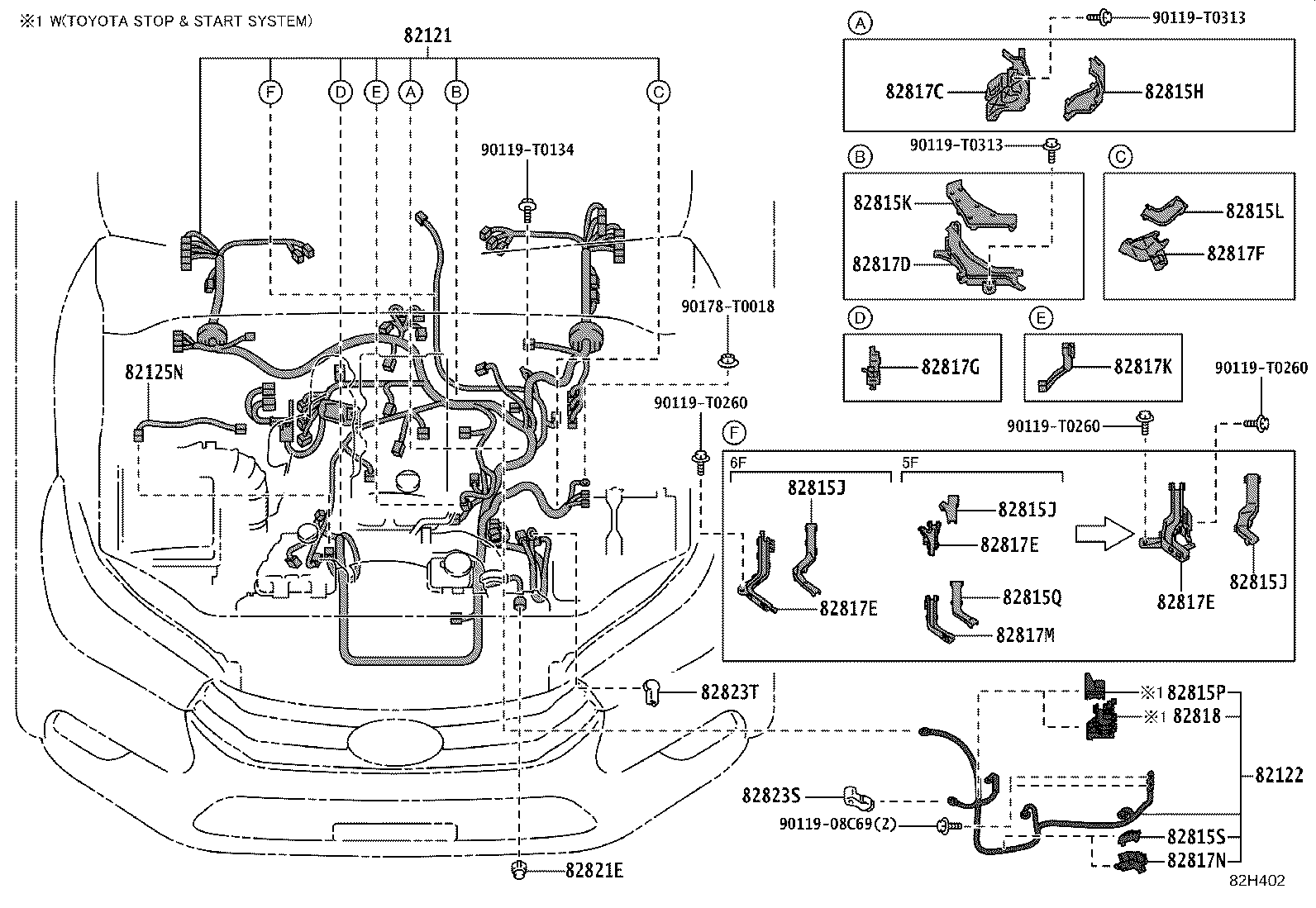

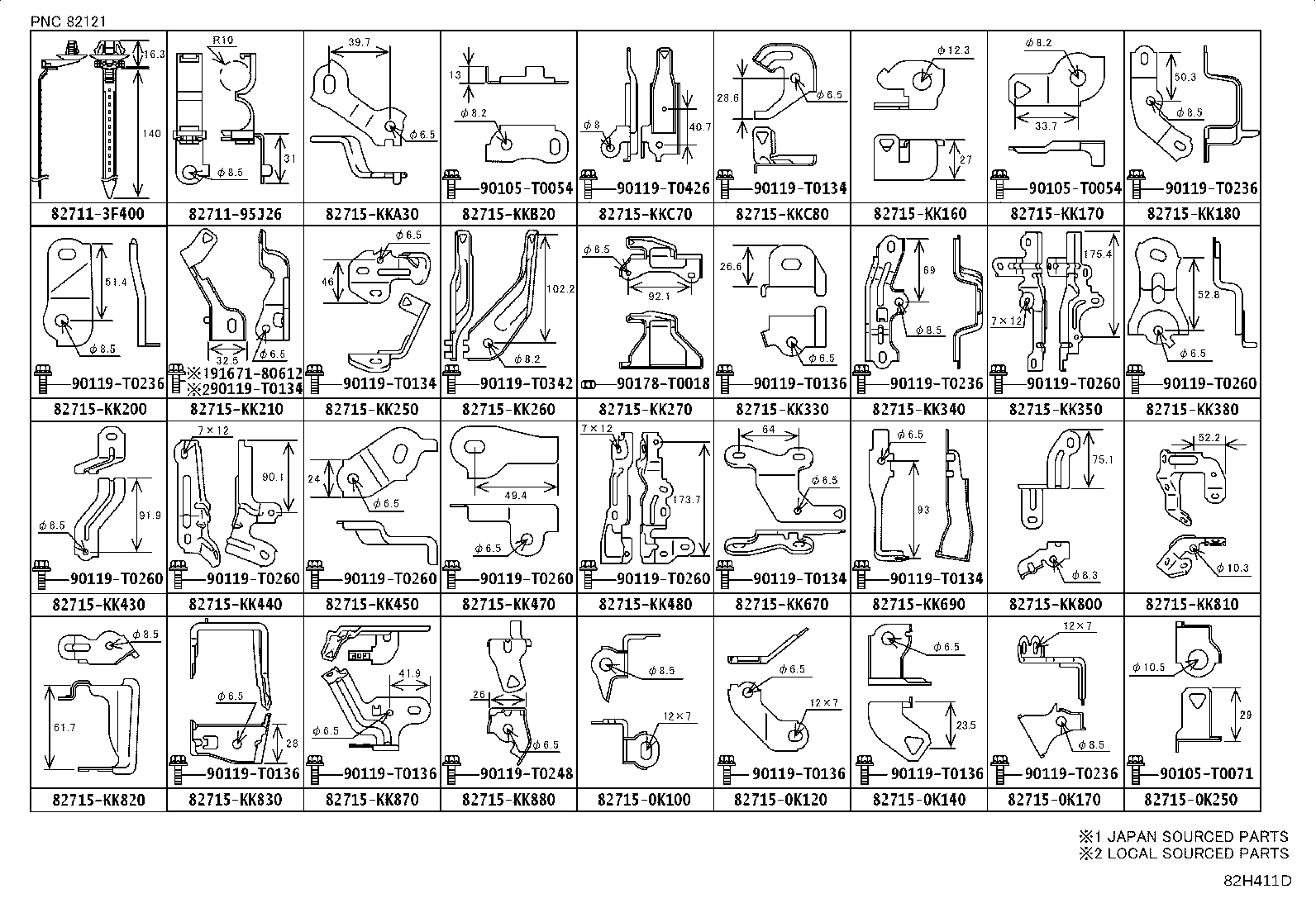

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82125N | Wire, Engine, NO.5 |
| 82127 | Wire, Differential |

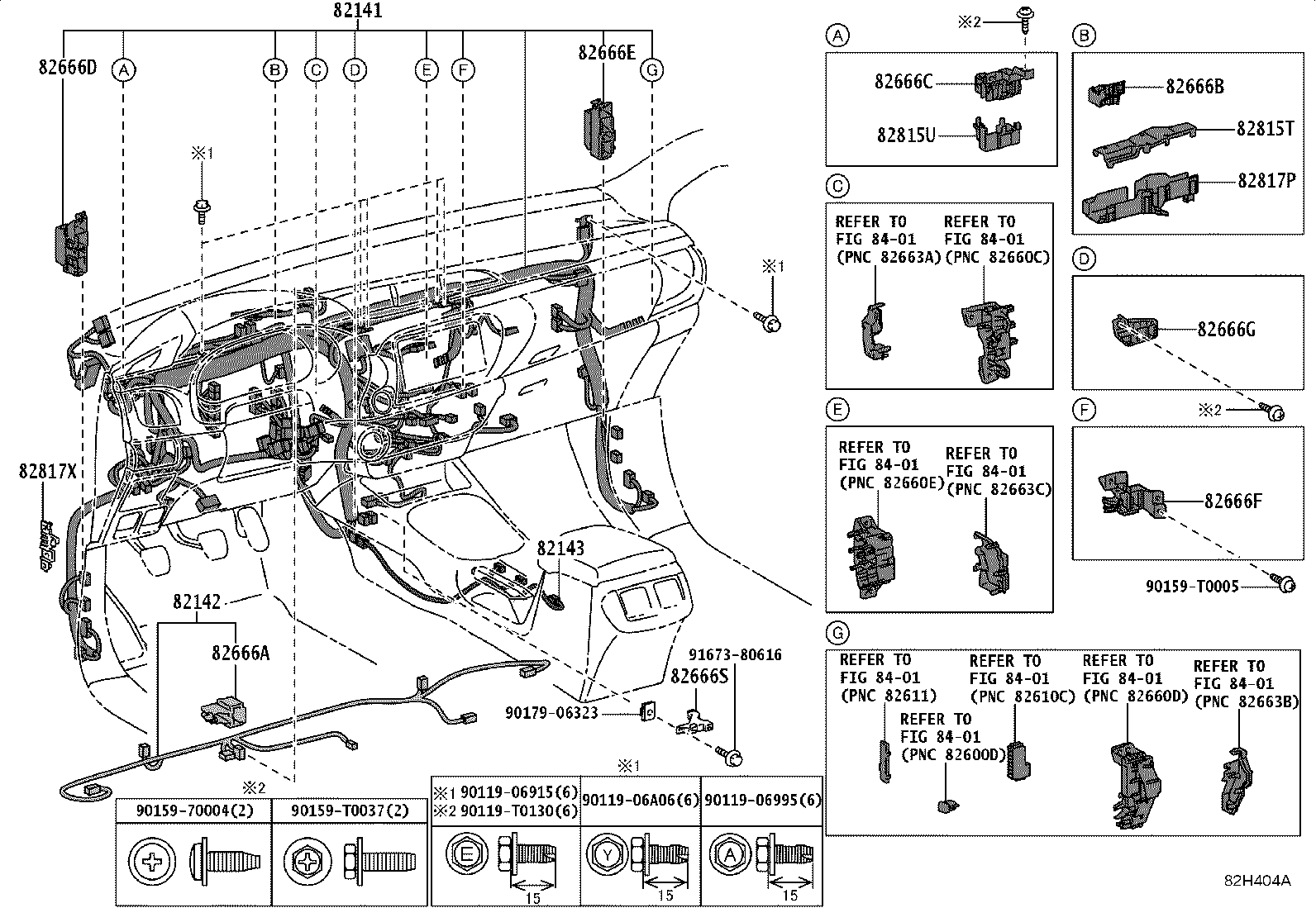

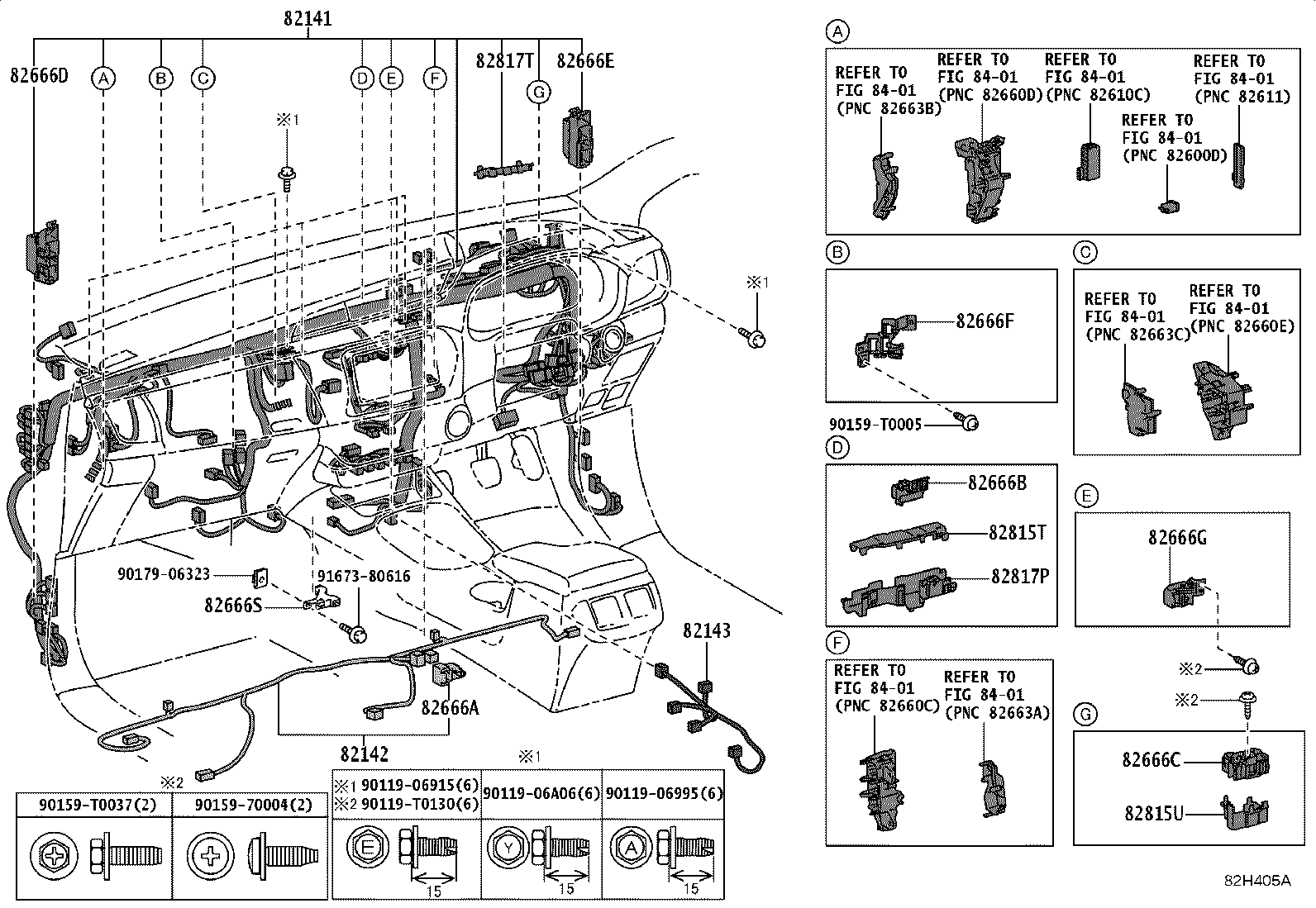

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |

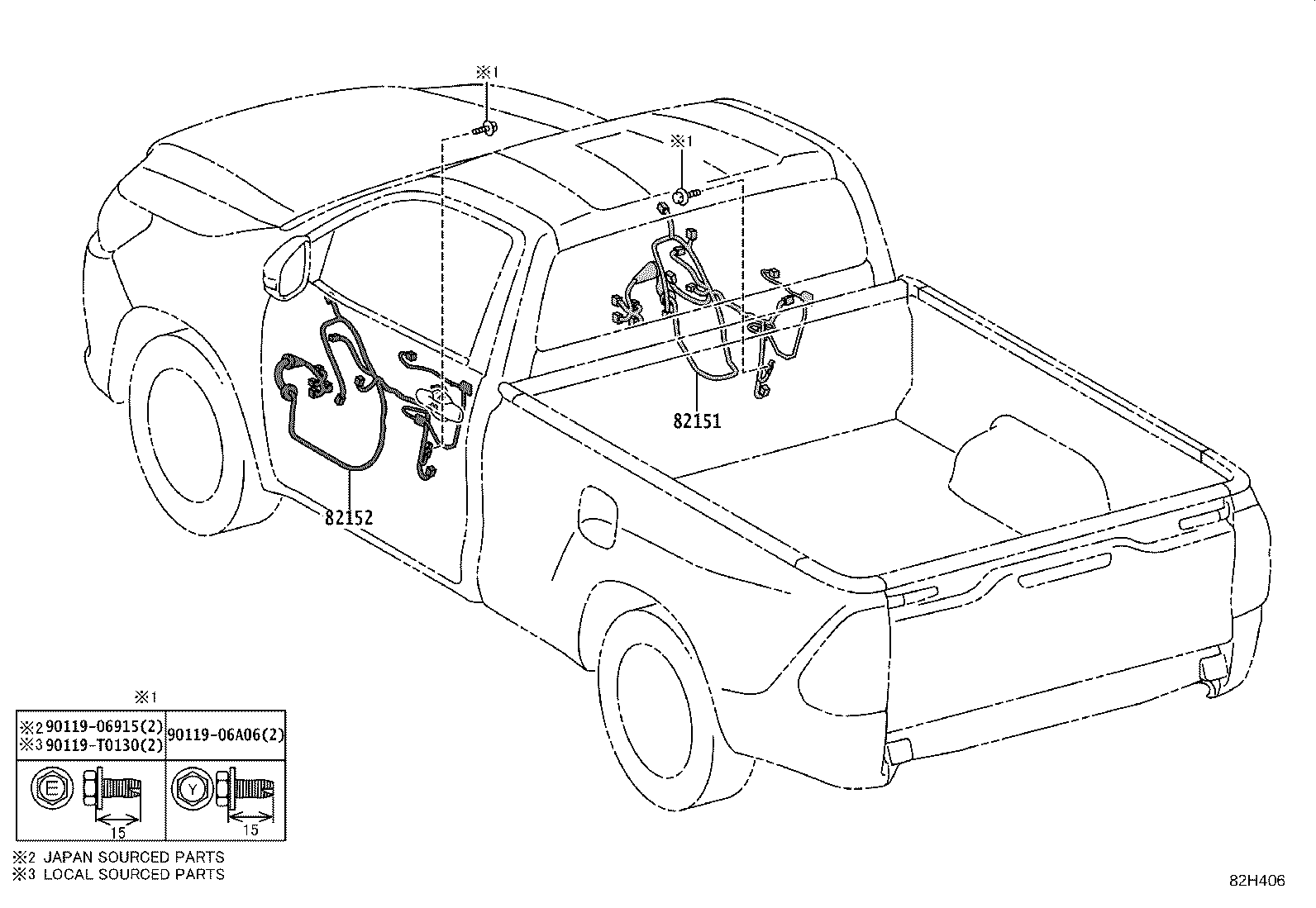

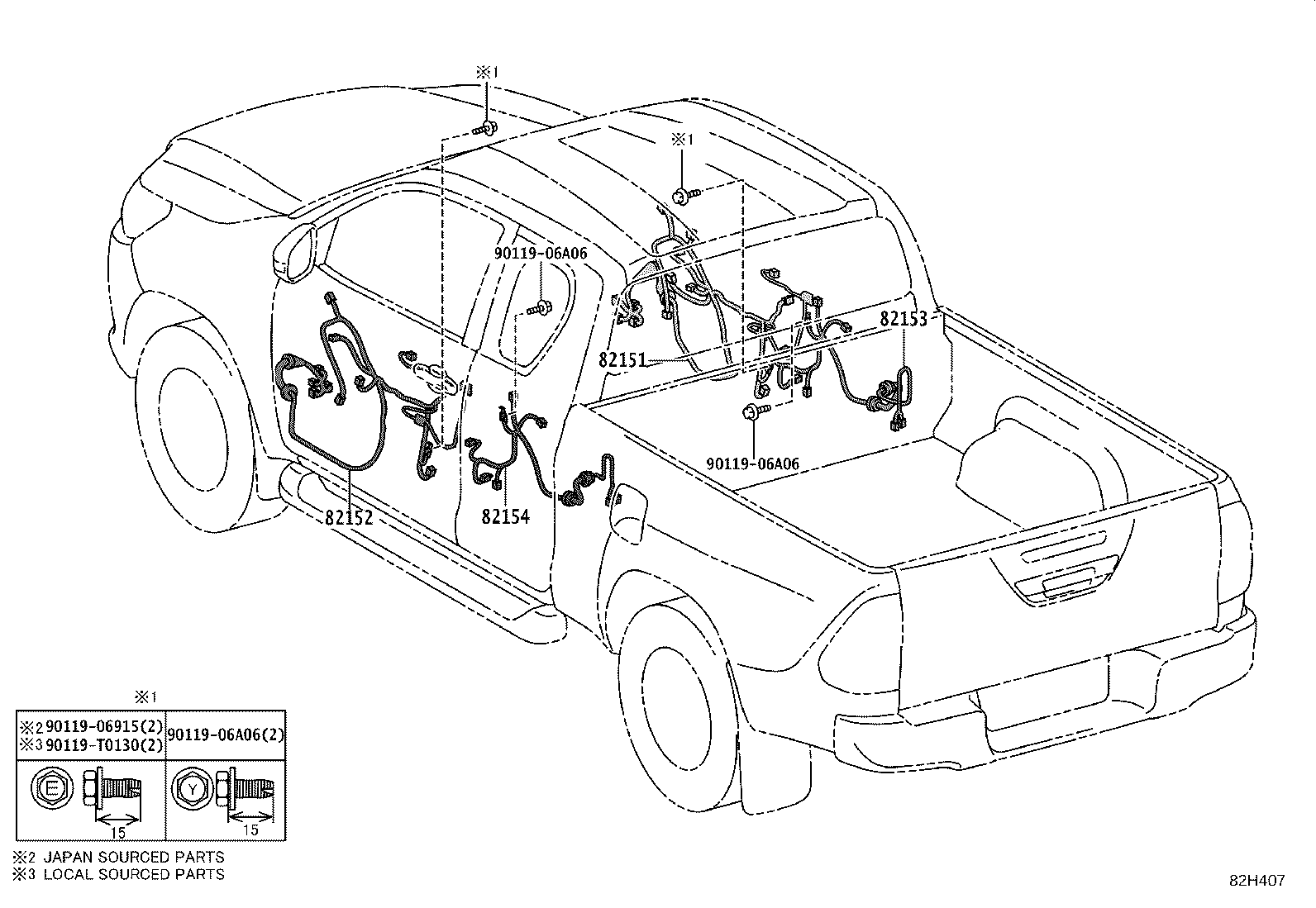

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

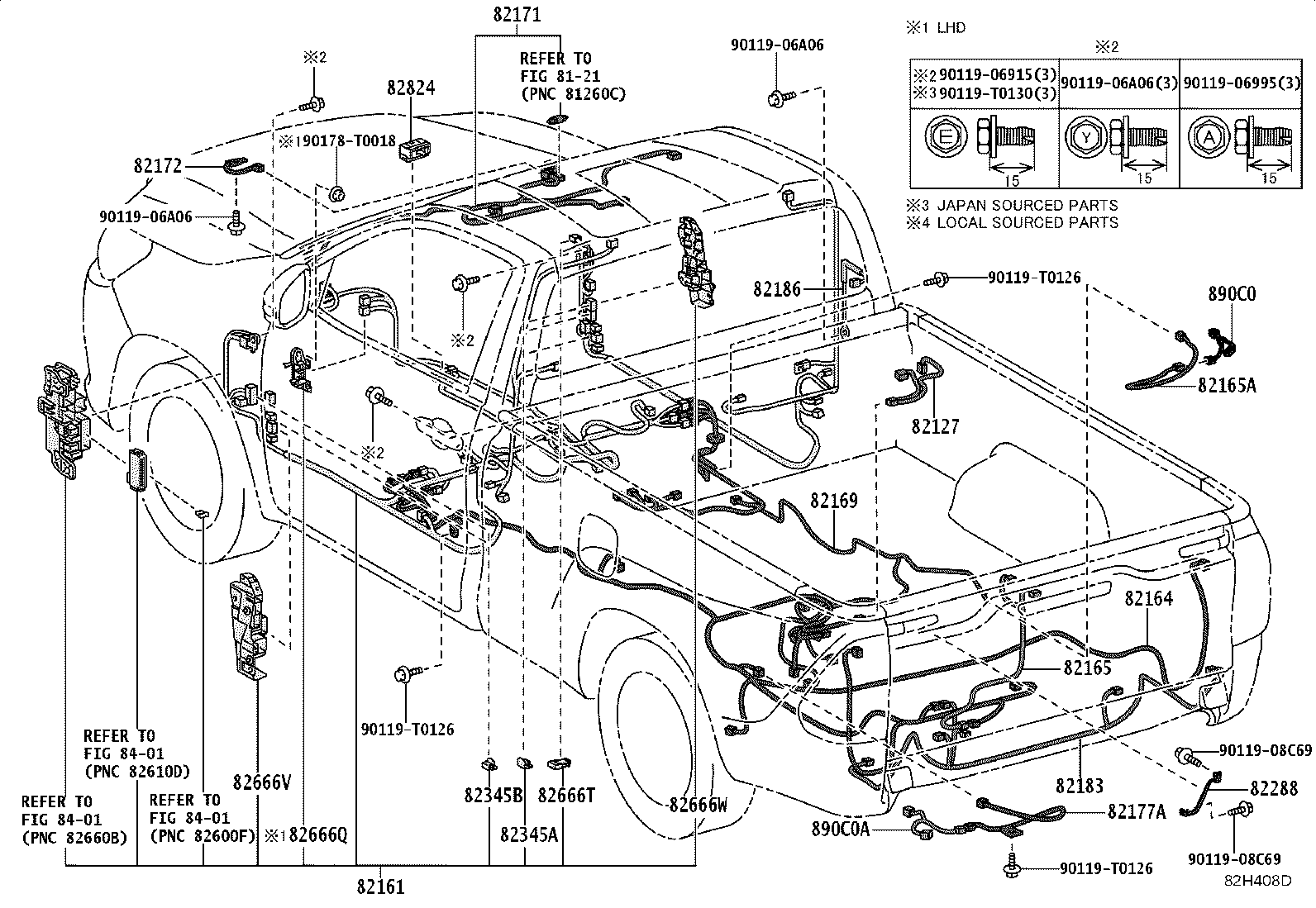

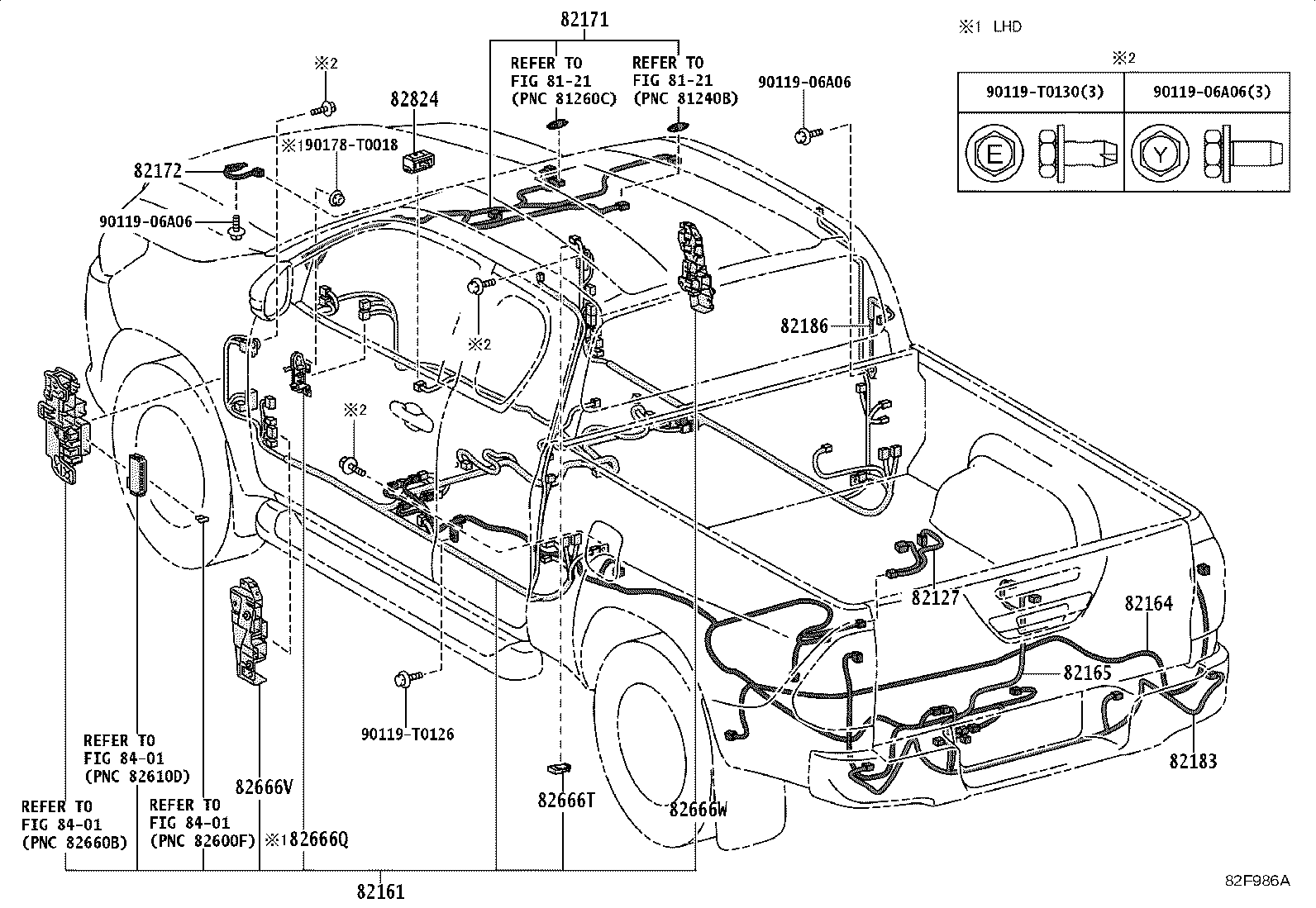

| 82161 | Wire, Floor |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82165A | Wire, Frame, NO.2 |
| 82169 | Wire Frame, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82177A | Wire, Frame, NO.4 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82186 | Wire, Rear Window, NO.1 |

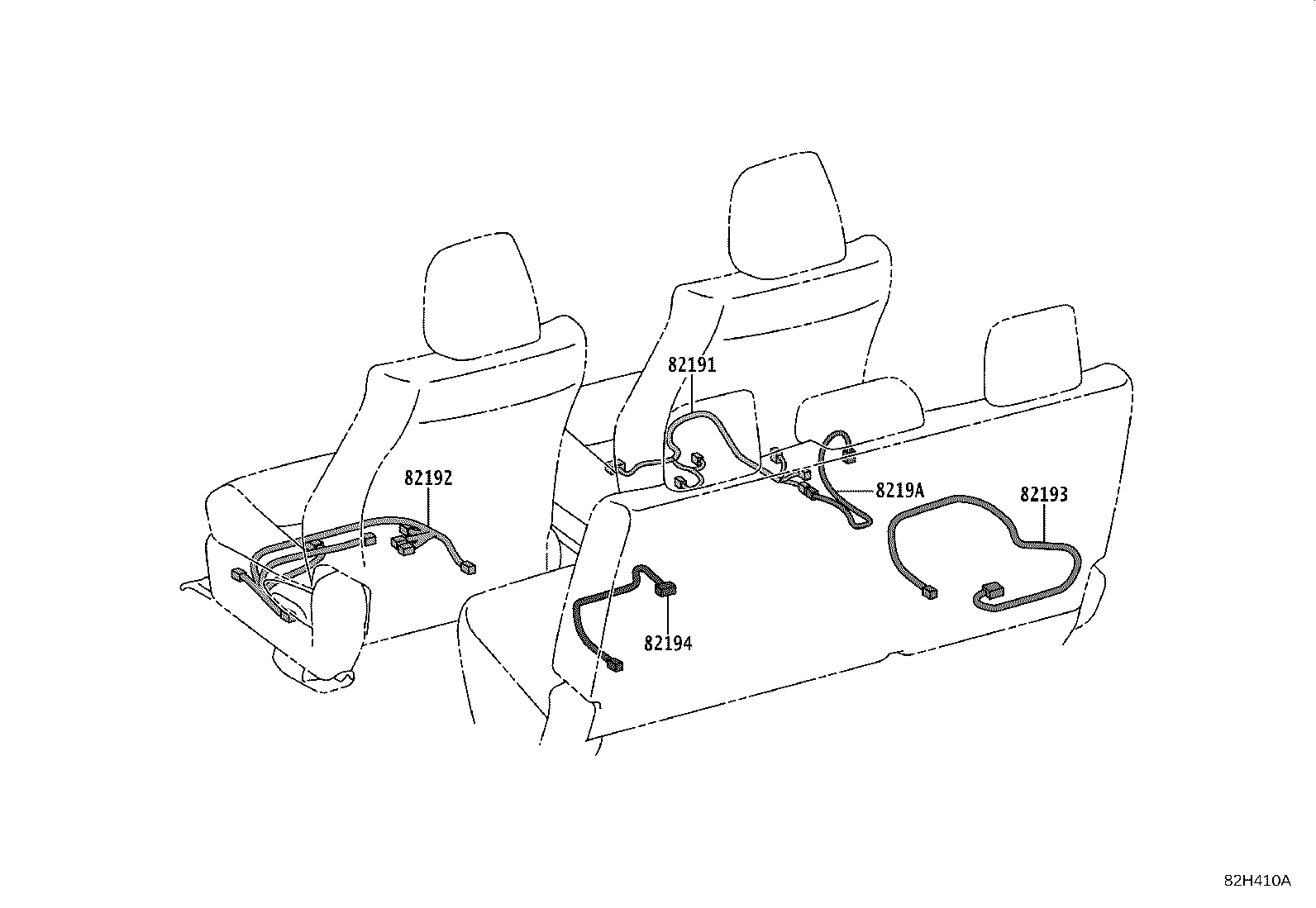

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |

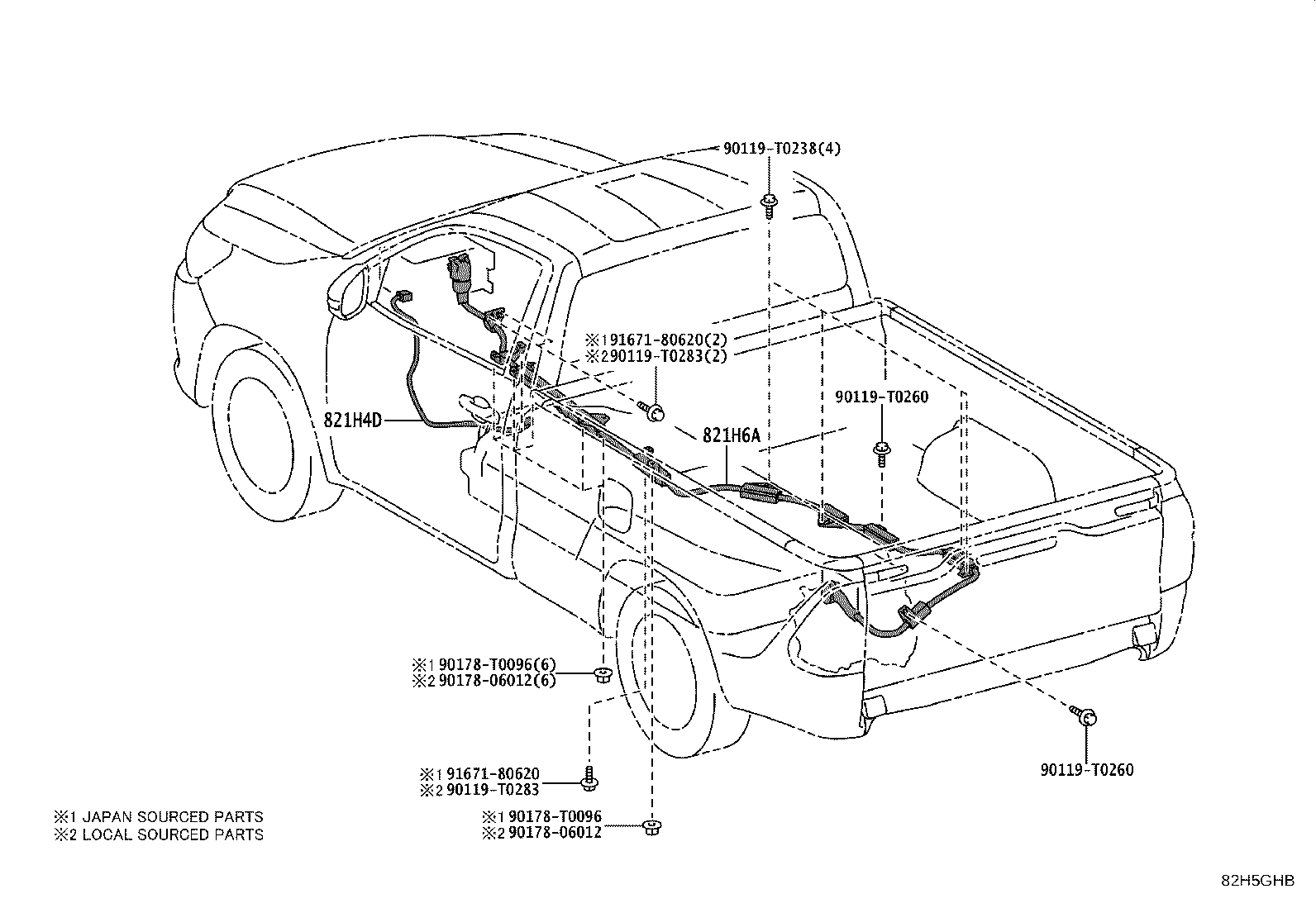

| 821H4D | Wire, High Voltage Socket Inverter, NO.1 |
| 821H6A | Wire, Floor Under, NO.2 |
| 82219A | Wire, Sensor |

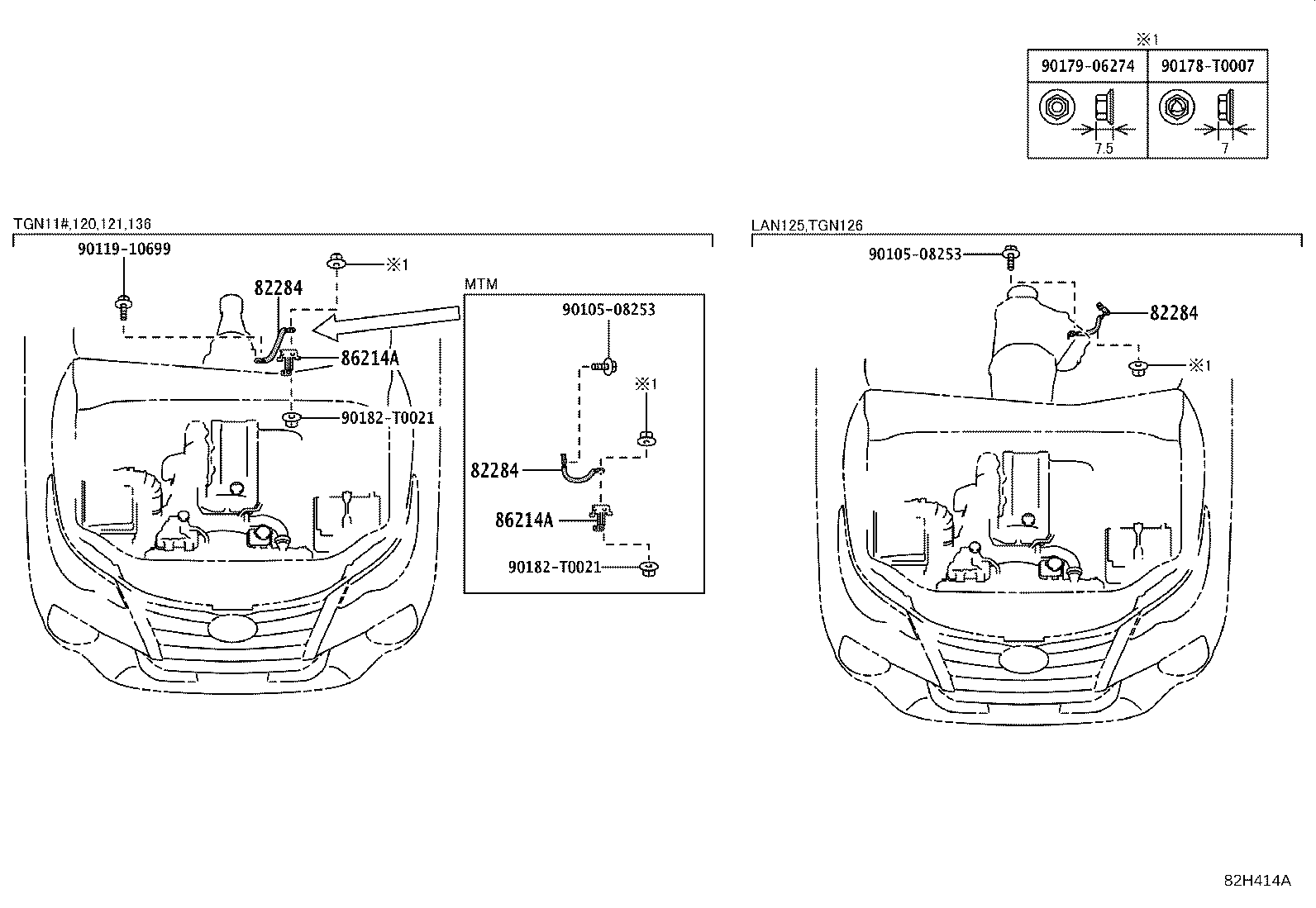

| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82288 | Wire, Earth NO.4 |
| 82345A | Diode |
| 82345B | Diode |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82661E | Cover, Relay Block, Side NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |

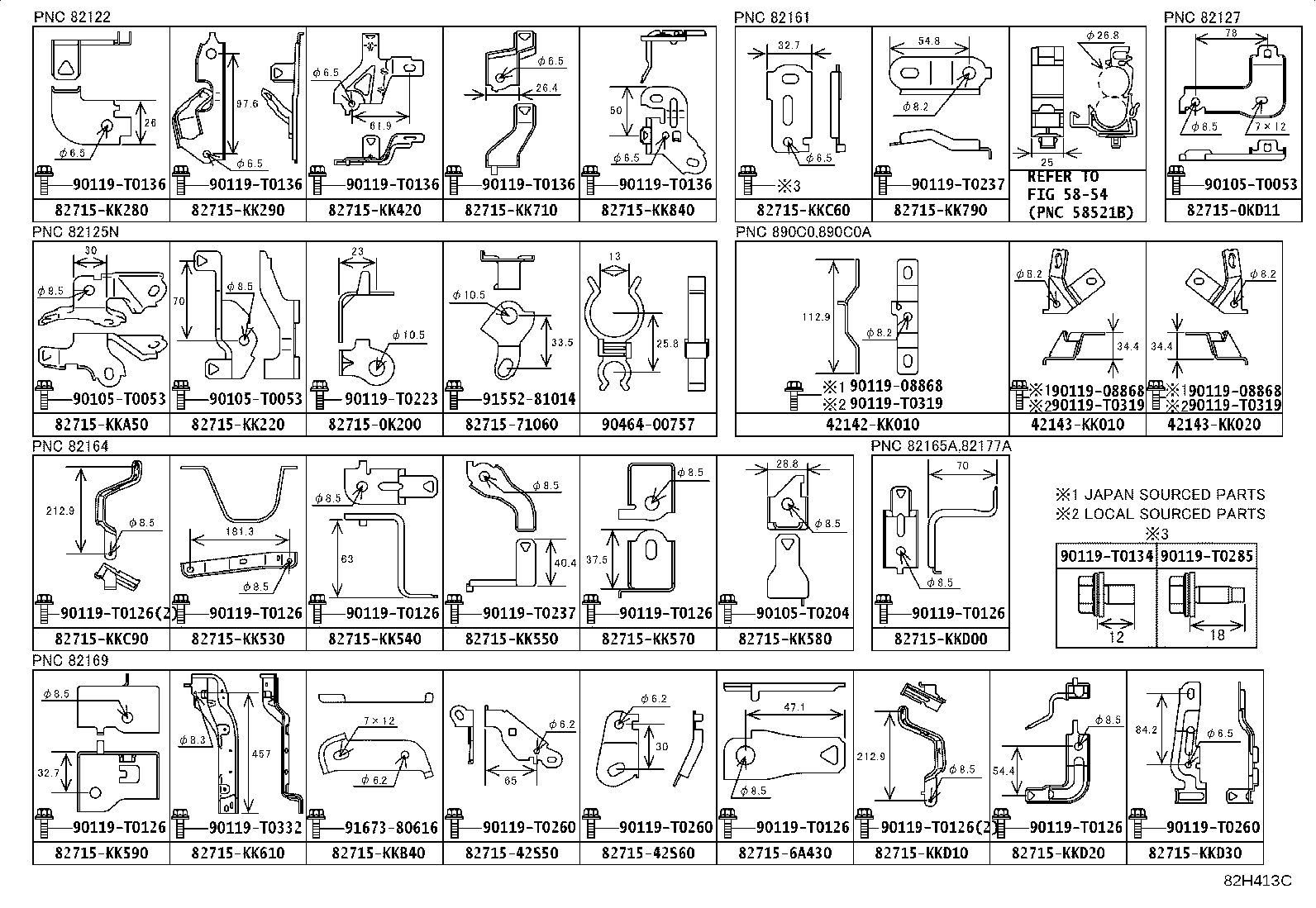

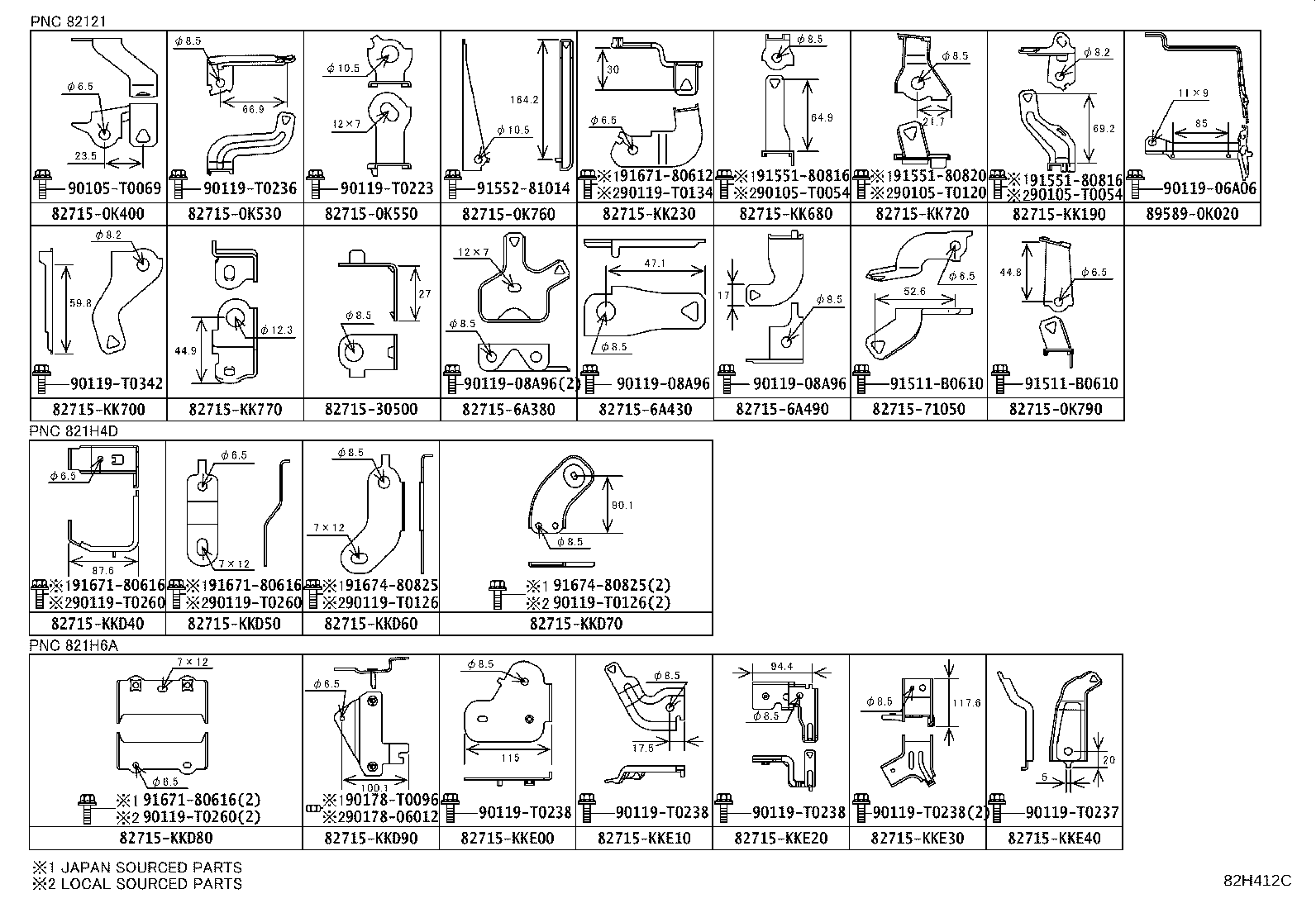

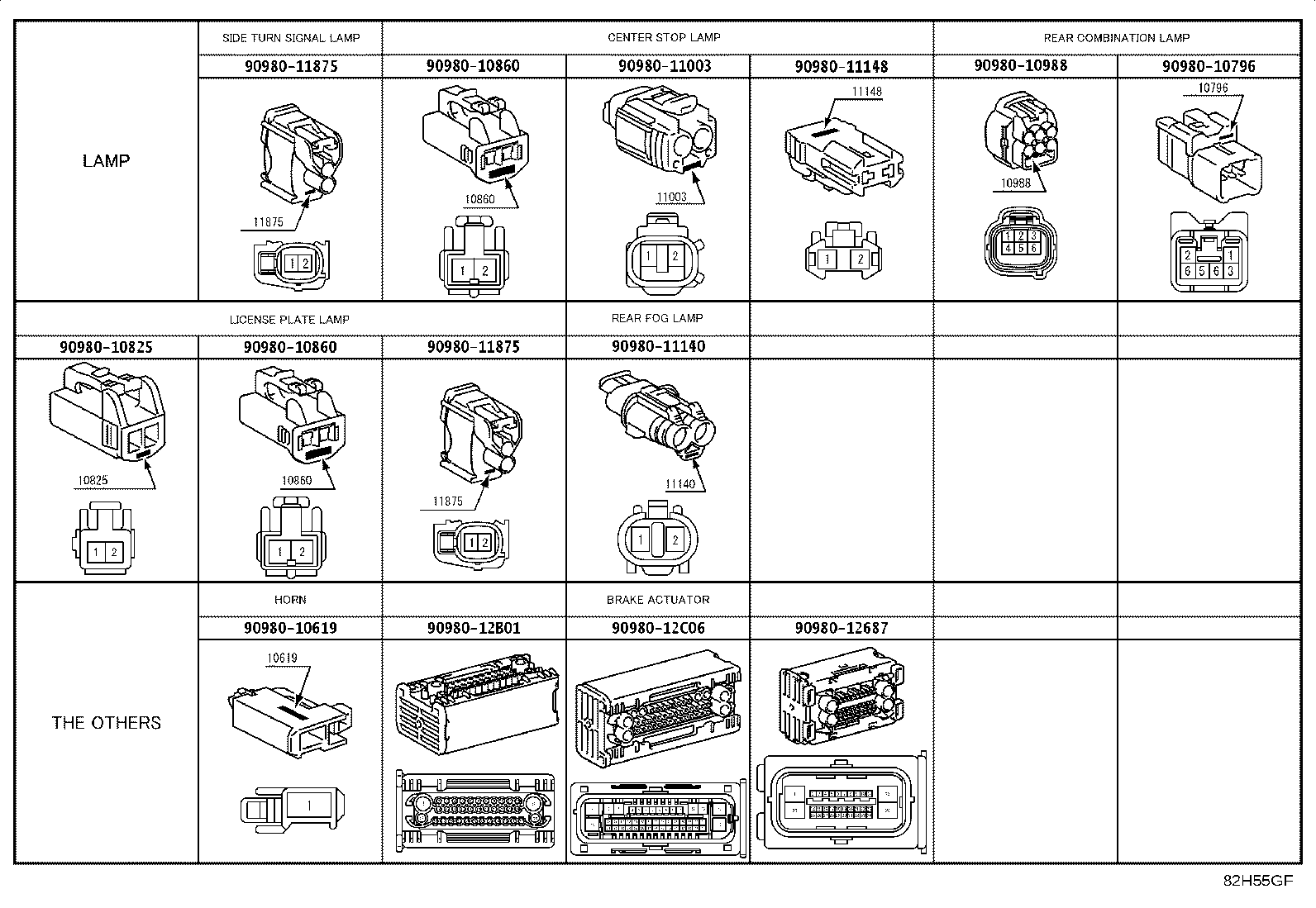

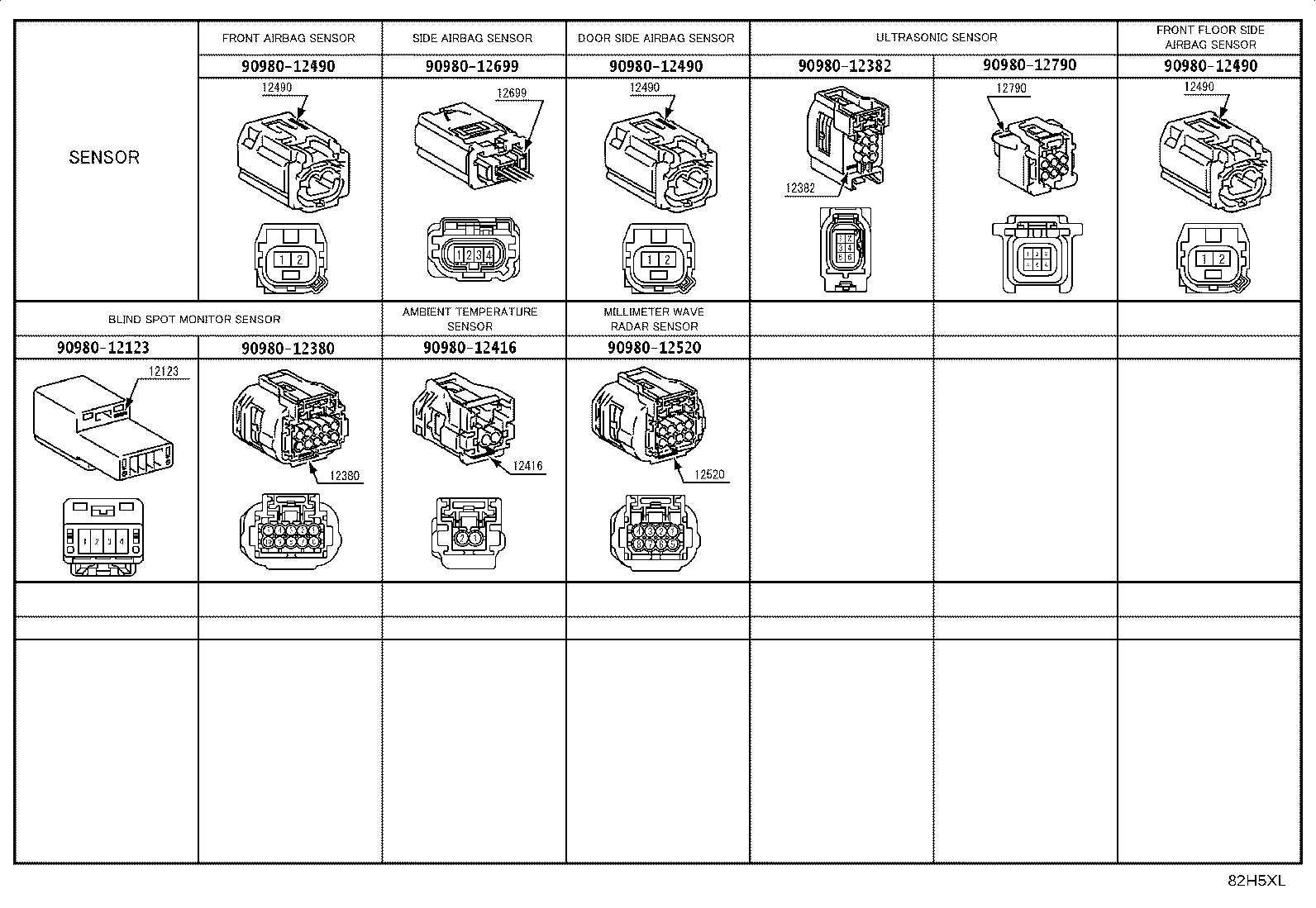

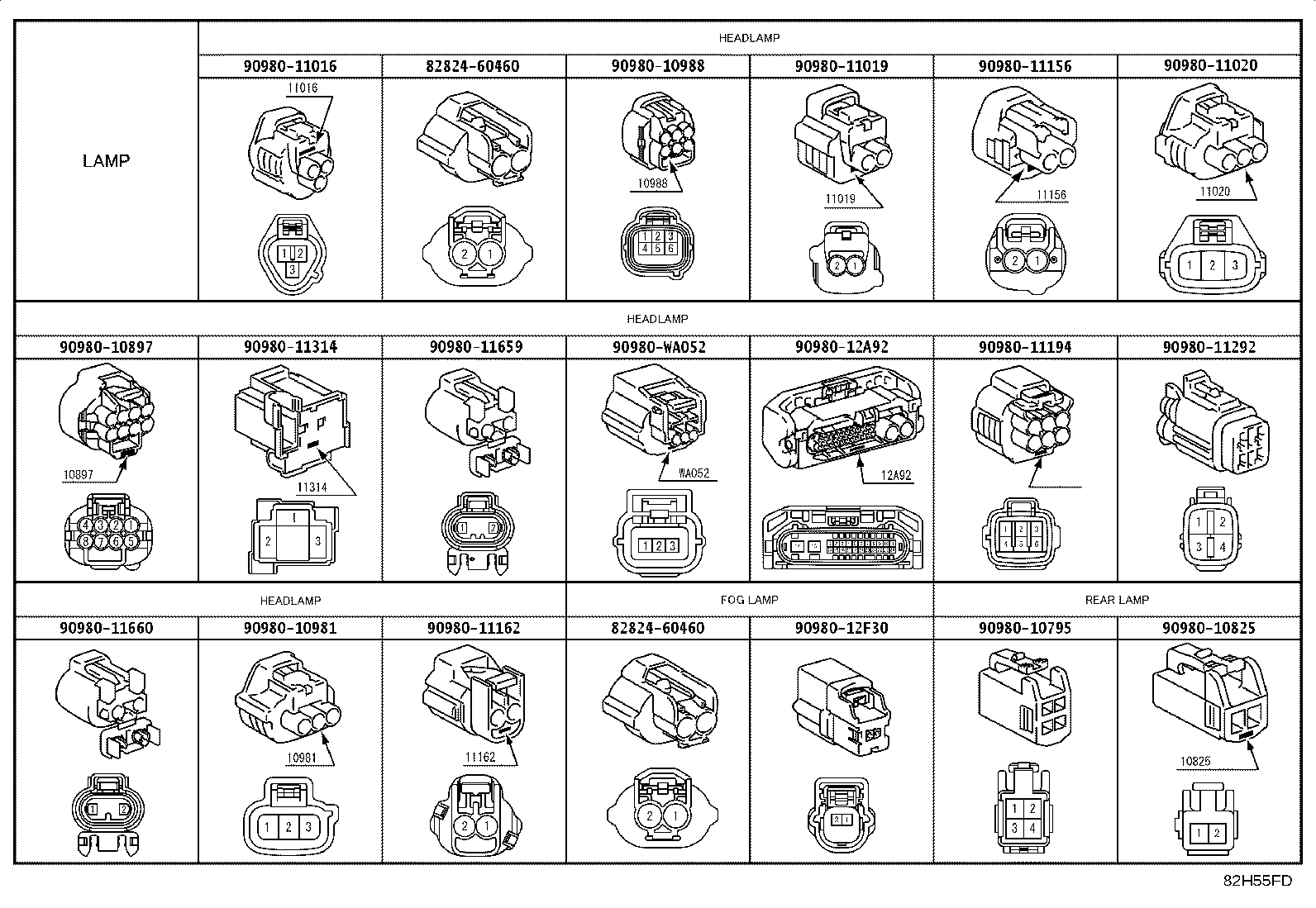

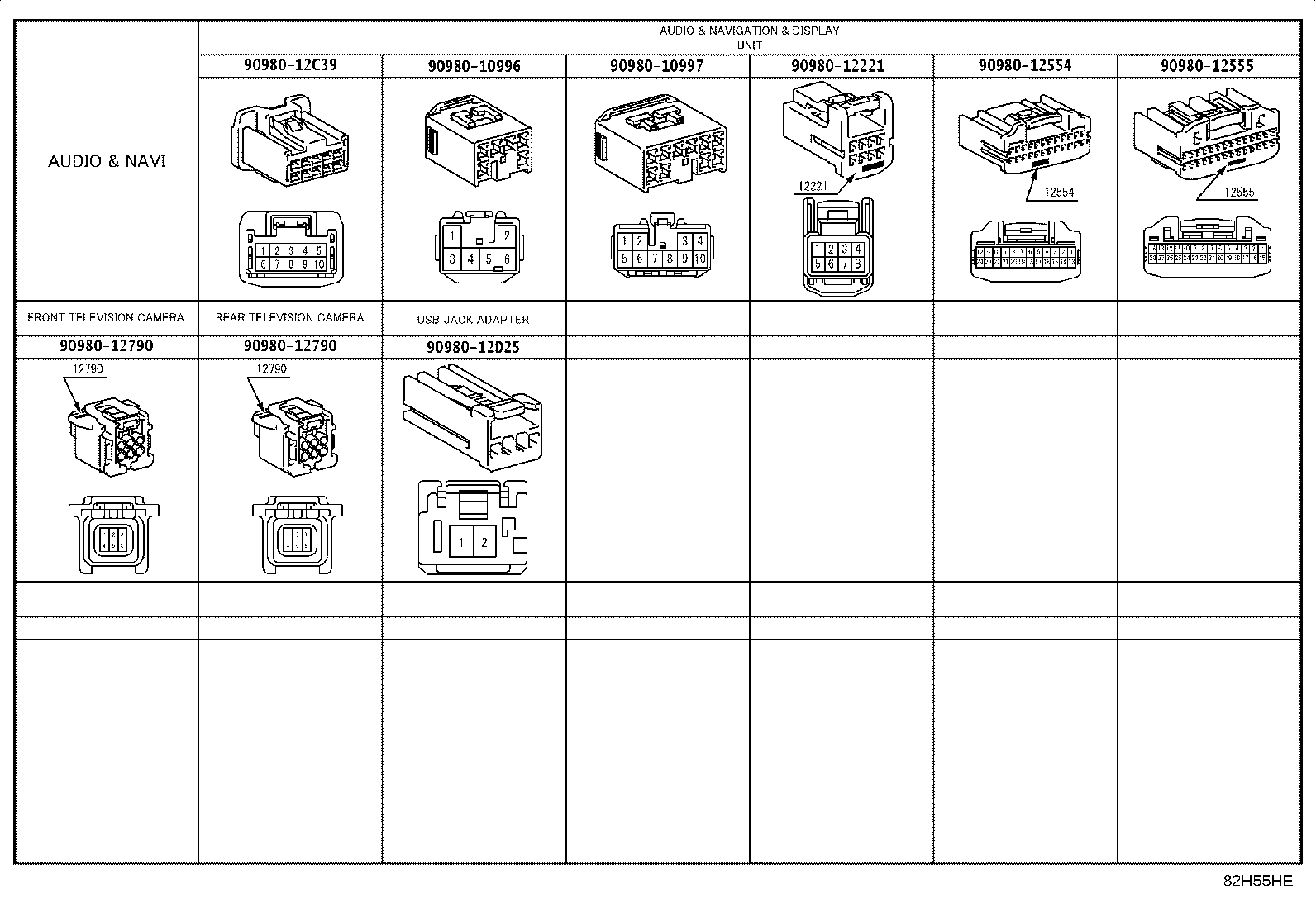

| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82821E | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82H17B | Protector, Wiring Harness, NO.1 |
| 82T21A | Cover, Connector |
| 86214A | Bracket, Radio Earth |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
