Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 3 illustrations

Illustrations

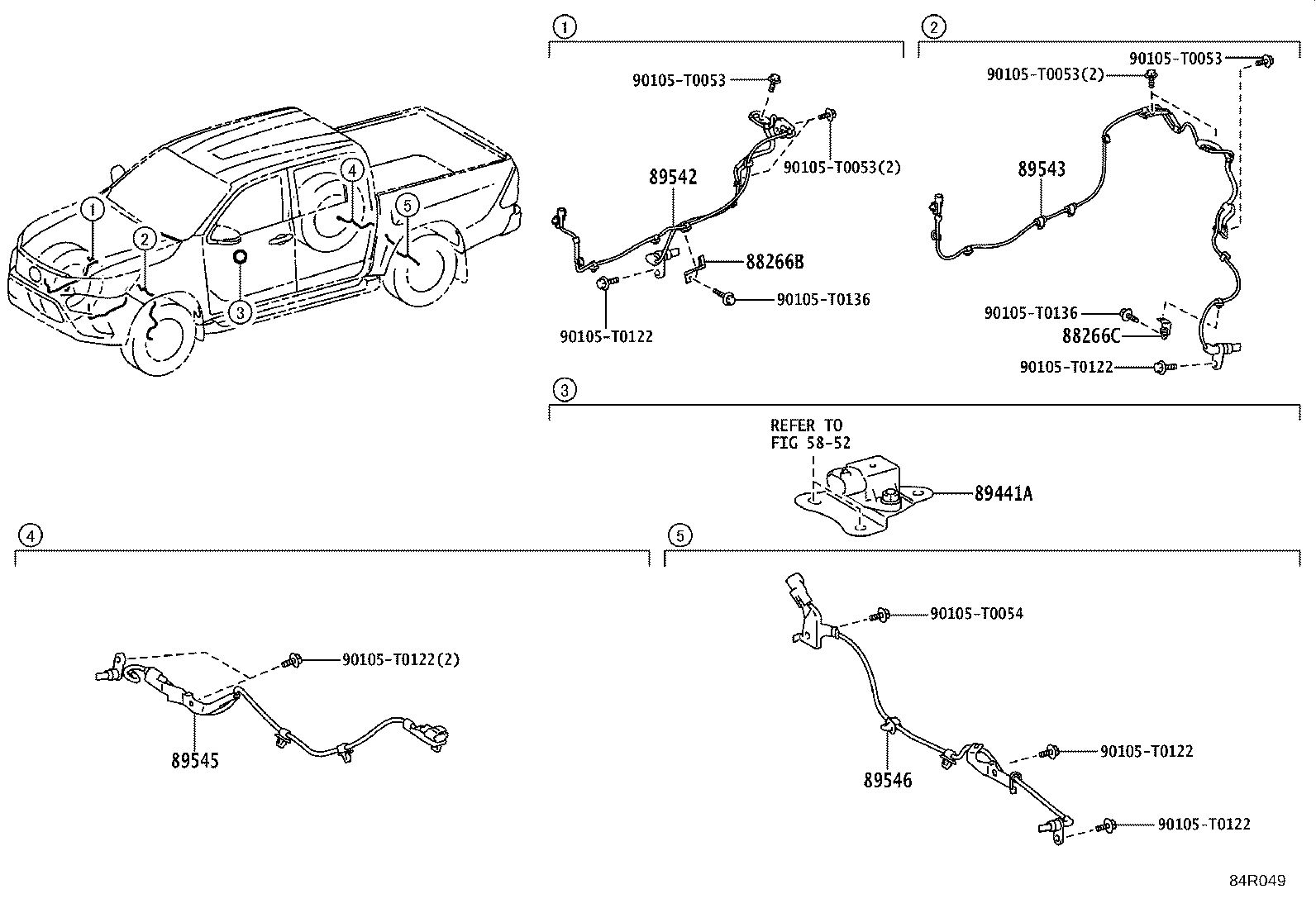

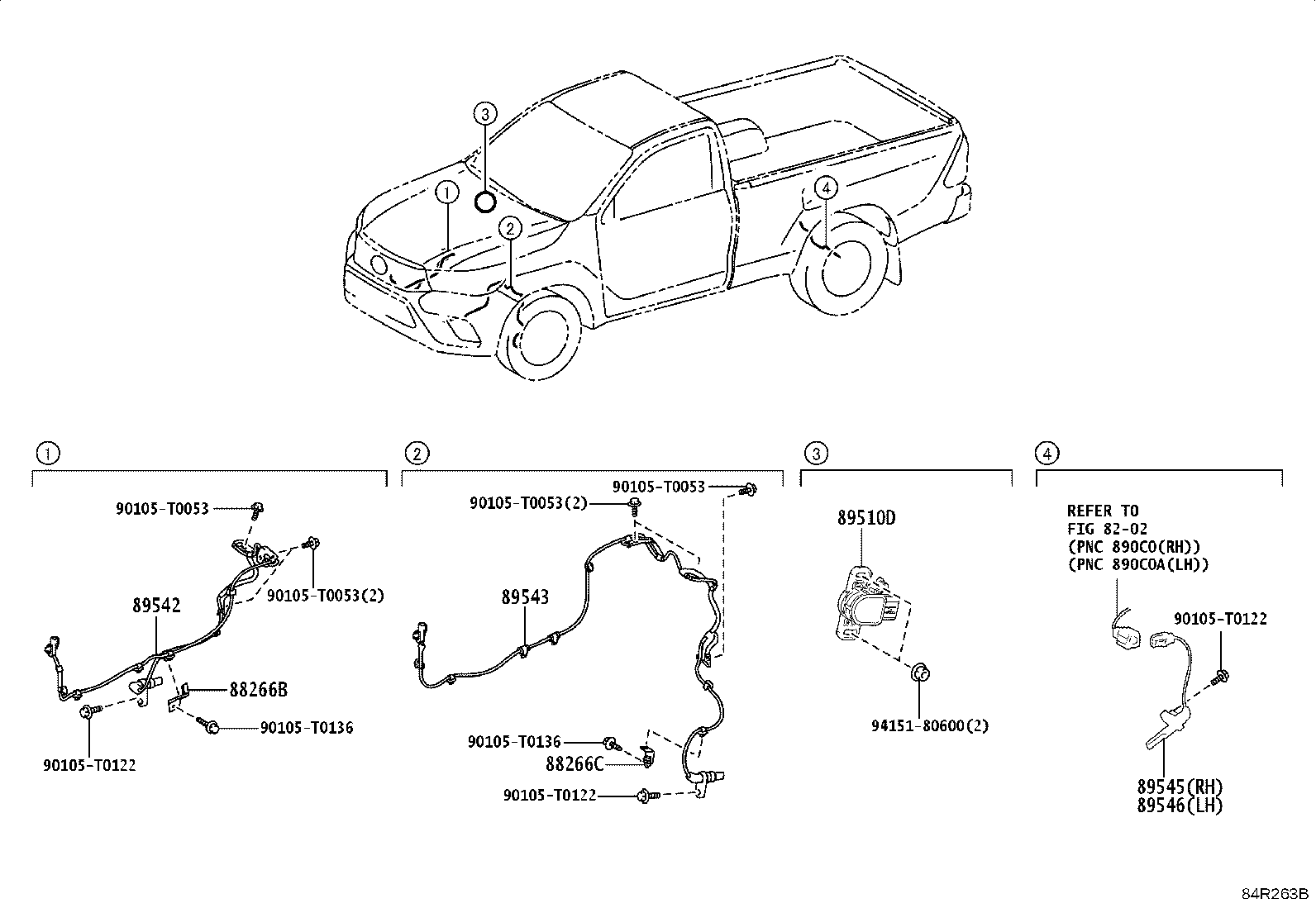

Figure 84R045 84R045 2023-08 → — Figure 84R049 84R049 2023-08 → — Figure 84R263B 84R263B 2023-11 → —

Part groups

PNCDescription
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
89441A Sensor, Deceleration
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
