Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · United States

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

37 part groups · 15 illustrations

Illustrations

Figure NE5465A

NE5465A 1988-08 → —

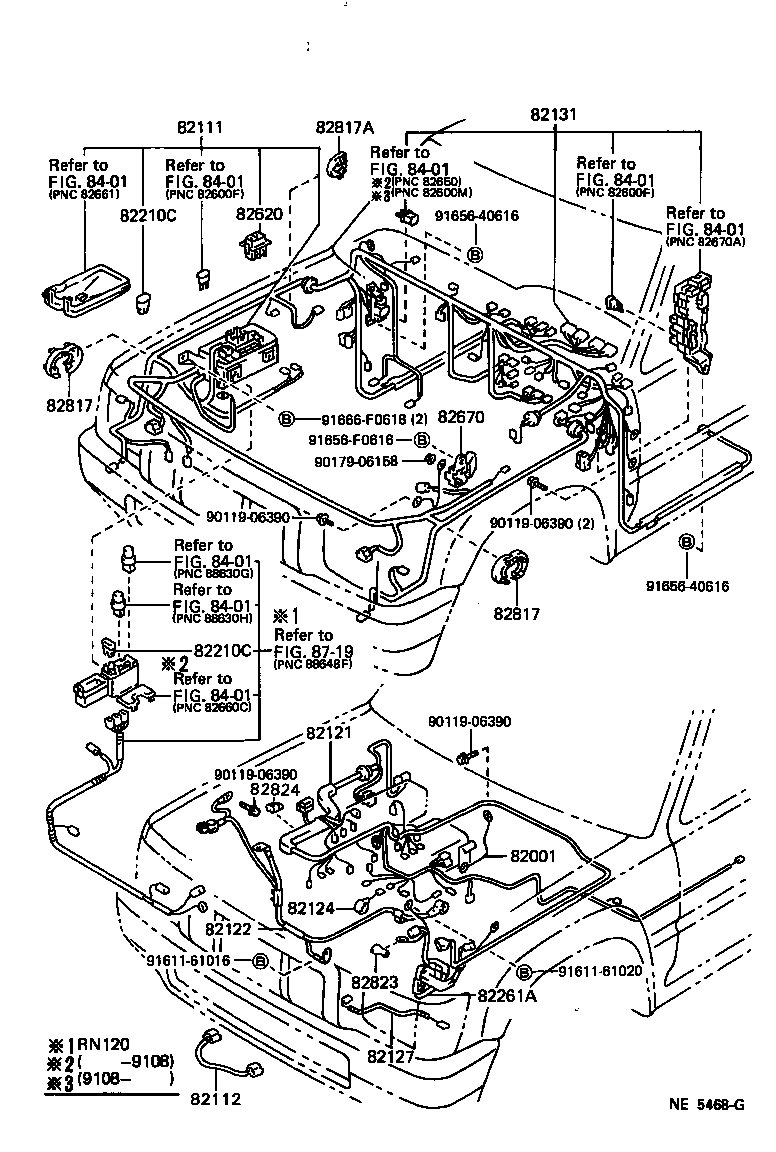

Figure NE5468G

NE5468G 1988-08 → —

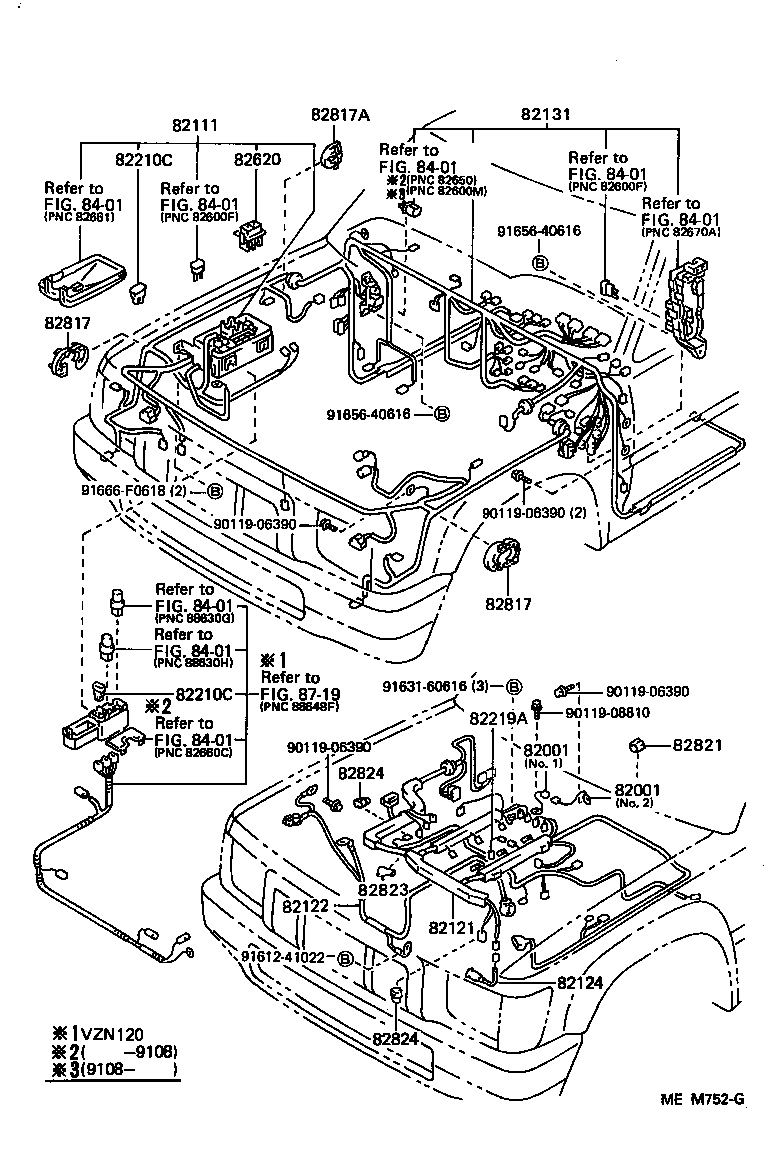

Figure MEM752G

MEM752G 1988-08 → —

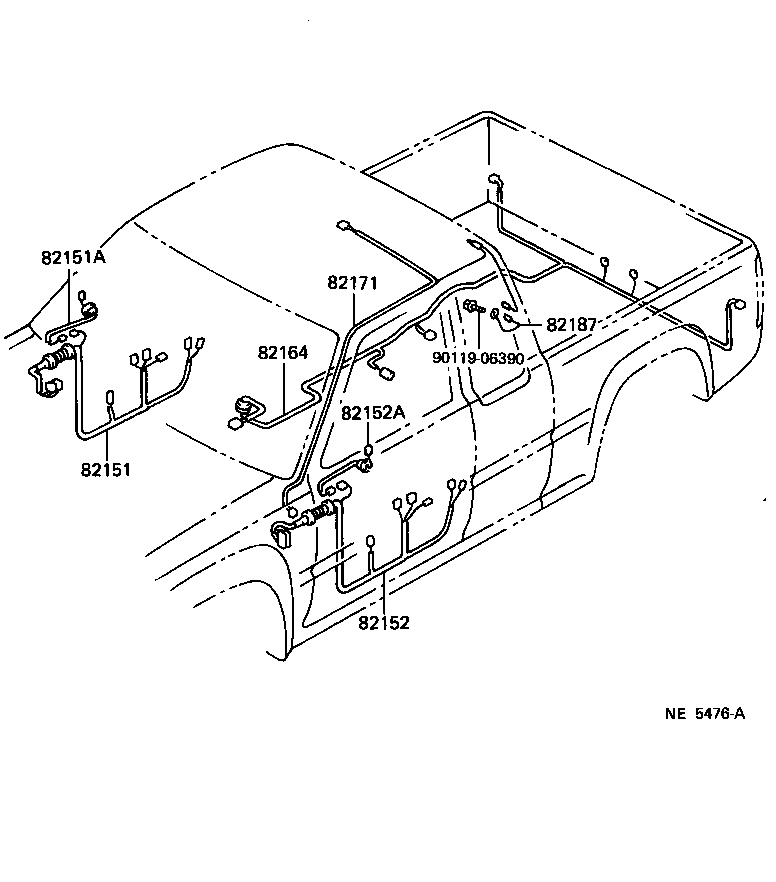

Figure NE5476A

NE5476A 1988-08 → —

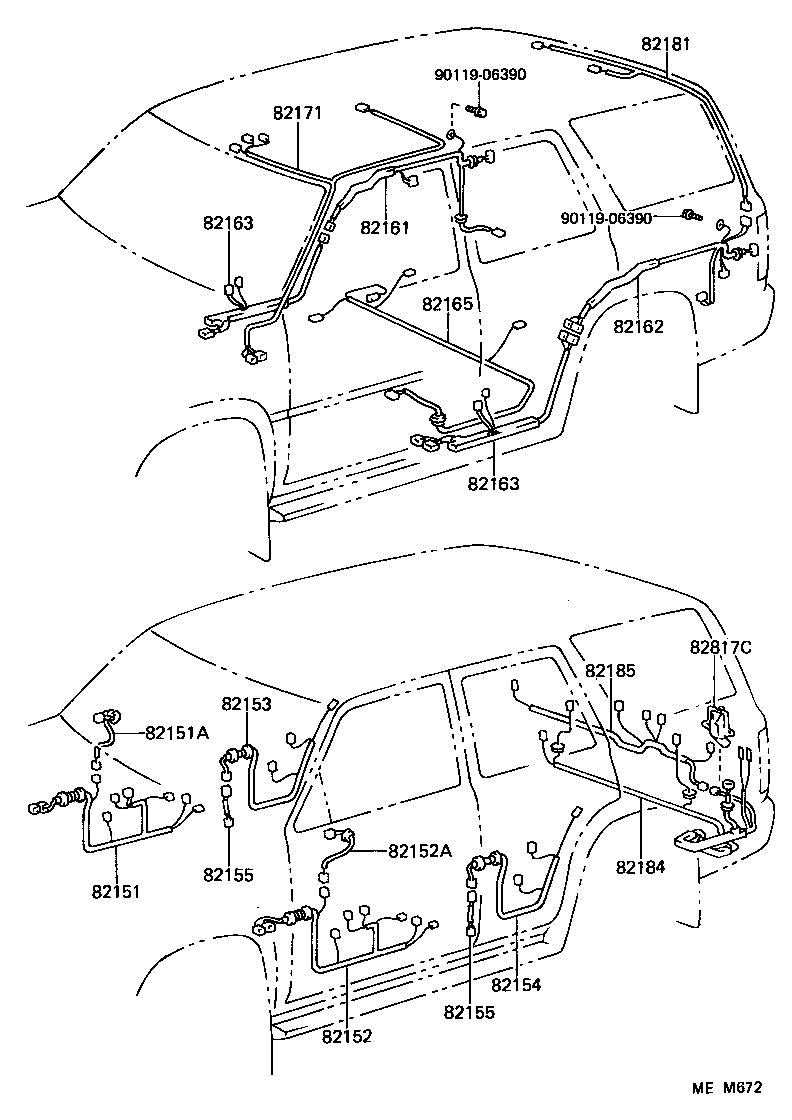

Figure MEM672

MEM672 1989-04 → —

Figure NE5480A

NE5480A 1988-08 → —

Figure MES210

MES210 1988-08 → —

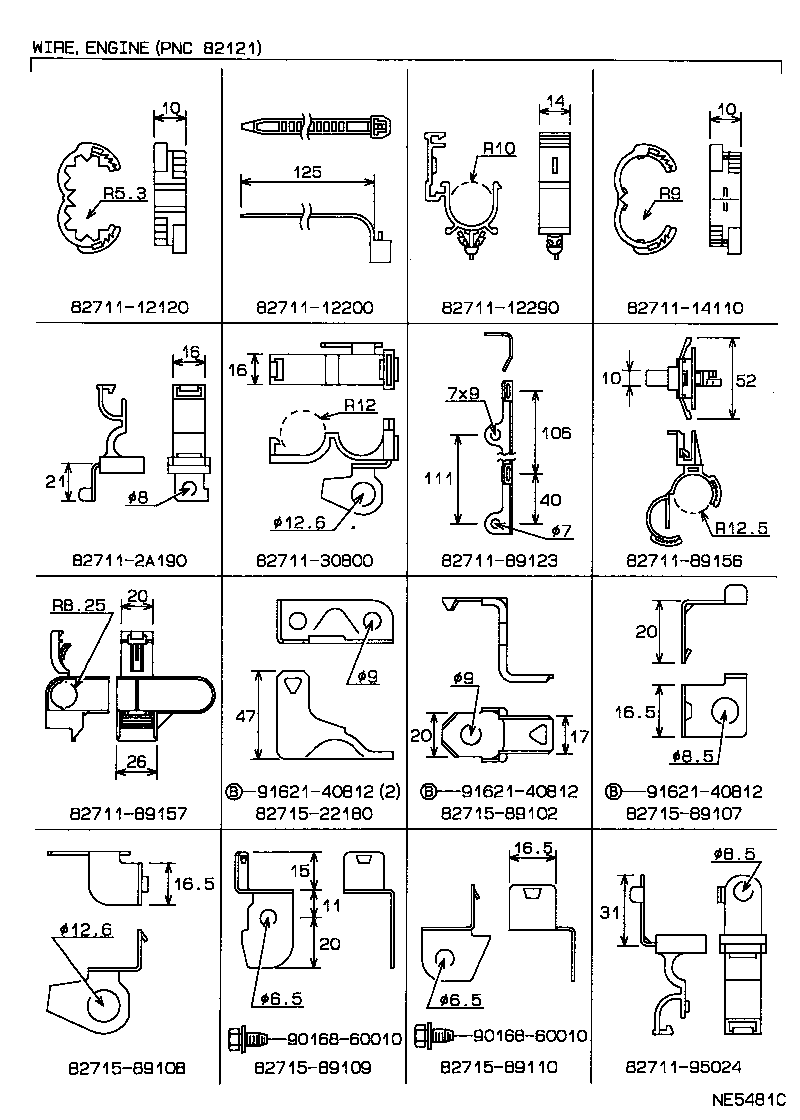

Figure NE5481C

NE5481C 1988-08 → —

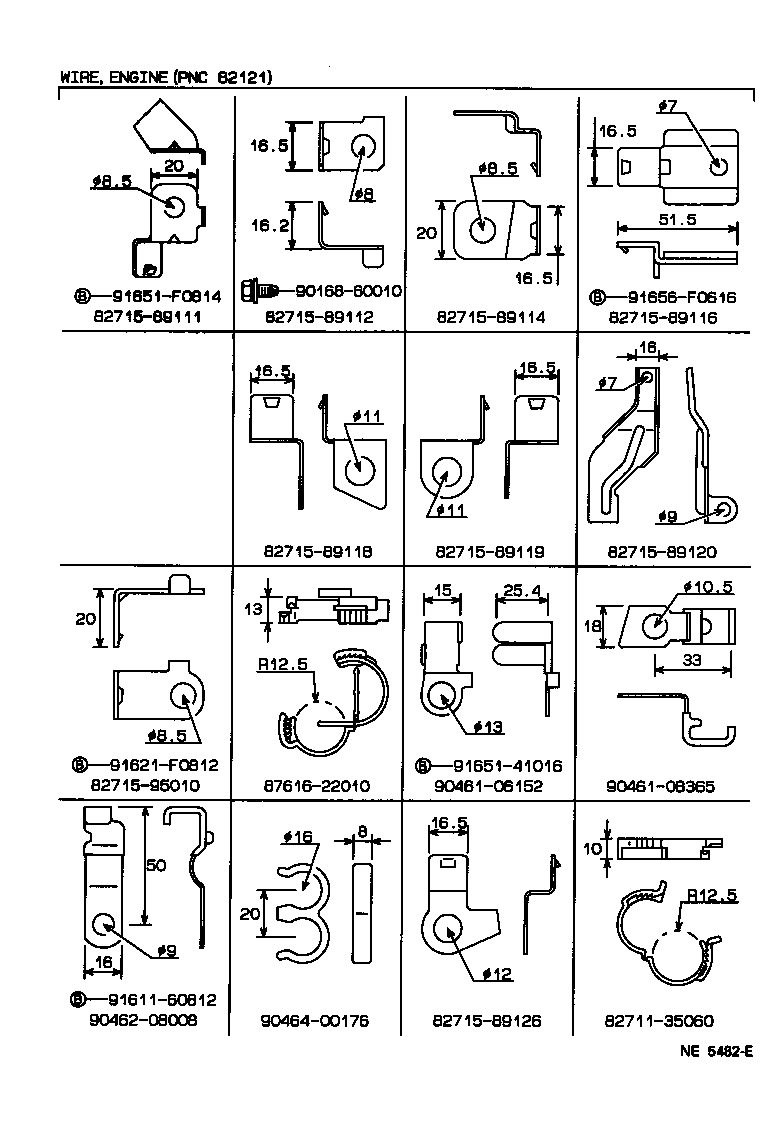

Figure NE5482E

NE5482E 1988-08 → —

Figure MES211

MES211 1988-08 → —

Figure NE5483D

NE5483D 1988-08 → —

Figure MEU853

MEU853 1988-08 → —

Figure MEU854

MEU854 1988-08 → —

Figure MES215

MES215 1988-08 → —

Figure MEW199

MEW199 1988-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82124	Wire, Engine, NO.4
82127	Wire, Differential
82131	Wire, Cowl
82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82155	Wire, Center Piller, NO.1
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82165	Wire, Frame, NO.2
82171	Wire, Roof, NO.1
82181	Wire, Luggage Room, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82219A	Wire, Sensor
82261A	Wire, Alternator
82620	Block Assy, Fusible Link
82670	Block Assy, Junction, NO.1
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817C	Protector, Wiring Harness, NO.4
82821	Retainer, Headlamp Harness
82823	Cap, Terminal, NO.1
82824	Connector, Wiring Harness
82991	Wire, Fusible Link Repair

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
