Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

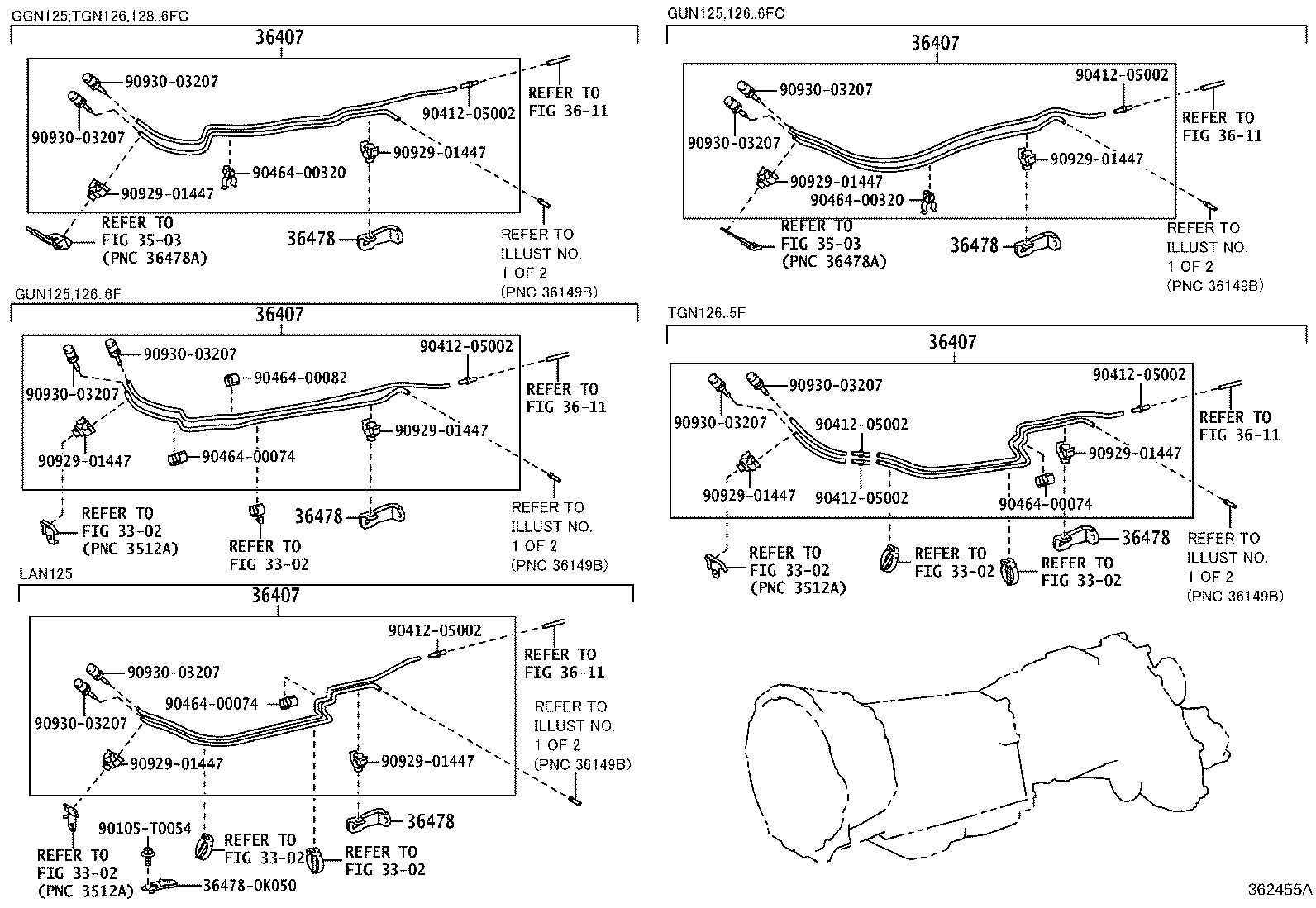

Exploded illustration 362455A 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (6 parts) 9092901447 — not listed in this catalogue 9092901447 — not listed in this catalogue 9046400320 — not listed in this catalogue 3611 — not listed in this catalogue 3302 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (22 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (6 parts) 9092901447 — not listed in this catalogue 9092901447 — not listed in this catalogue 9046400320 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (22 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (6 parts) 9092901447 — not listed in this catalogue 9046400074 — not listed in this catalogue 9046400082 — not listed in this catalogue 9092901447 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (22 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (6 parts) 9092901447 — not listed in this catalogue 9046400074 — not listed in this catalogue 9092901447 — not listed in this catalogue 3302 — not listed in this catalogue 3302 — not listed in this catalogue 3302 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (22 parts) 3302 — not listed in this catalogue 3503 — not listed in this catalogue 3503 — not listed in this catalogue 3302 — not listed in this catalogue 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 9092901447 — not listed in this catalogue 90105T0054 — not listed in this catalogue 9092901447 — not listed in this catalogue 3302 — not listed in this catalogue 3611 — not listed in this catalogue 9046400074 — not listed in this catalogue 3302 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (22 parts) 36478 — BRACKET, TRANSFER BREATHER (6 parts) 364780K050 — not listed in this catalogue
362455A · 10 callouts, 50 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
36407 — Hose Sub-assy, Transfer Breather
36407-0K010 Hose Sub-assy, Transfer Breather
2021-08 → 2022-07 ended
TGN126 THP 5F —
36407-0K010 Hose Sub-assy, Transfer Breather
2021-08 → 2023-01 ended
TGN126 5F SA —
36407-0K010 Hose Sub-assy, Transfer Breather
2021-08 → 2022-10 ended
TGN126 AGTP —
36407-0K020 Hose Sub-assy, Transfer Breather
2021-08 → 2022-07 ended
TGN126 THP 6FC —
36407-0K020 Hose Sub-assy, Transfer Breather
2021-08 → 2023-01 ended
TGN126 6FC SA —
36407-0K020 Hose Sub-assy, Transfer Breather
2021-08 → 2022-10 ended
TGN128 —
36407-0K030 Hose Sub-assy, Transfer Breather
2021-08 → 2023-01 ended
GGN125 SA —
36407-0K030 Hose Sub-assy, Transfer Breather
2021-08 → 2022-07 ended
GGN125 GCC —
36407-0K030 Hose Sub-assy, Transfer Breather
2021-08 → 2022-10 ended
GGN125 AGTP —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2022-09 ended
GUN126 6F IND —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2023-03 ended
GUN125,126 6F (GHA,KEN,SA) —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2023-01 ended
GUN126 6F PKN —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2022-07 ended
GUN125,126 THP 6F —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2022-10 ended
GUN125,126 AGTP 6F —
36407-0K050 Hose Sub-assy, Transfer Breather
2021-08 → 2022-08 ended
GUN125 6F MA —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2022-10 ended
GUN125,126 AGTP 6FC —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2022-07 ended
GUN125,126 THP 6FC —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2022-09 ended
GUN126 6FC IND —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2023-01 ended
GUN126 6FC PKN —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2022-08 ended
GUN125,126 6FC MA —
36407-0K060 Hose Sub-assy, Transfer Breather
2021-08 → 2023-03 ended
GUN125,126 6FC (GHA,KEN,MMR,SA) —
36407-0K070 Hose Sub-assy, Transfer Breather
2021-09 → 2023-01 ended
LAN125 —
36478 — Bracket, Transfer Breather
36478-0K020 Bracket, Transfer Breather
2021-08 → 2022-07 ended
GGN125,GUN125,126,TGN126 THP —
36478-0K020 Bracket, Transfer Breather
2021-08 → 2022-08 ended
GUN125,126 MA —
36478-0K020 Bracket, Transfer Breather
2021-08 → 2022-09 ended
GUN126 IND —
36478-0K020 Bracket, Transfer Breather
2021-08 → 2022-10 ended
GGN125,GUN125,126,TGN126,128 AGTP —
36478-0K020 Bracket, Transfer Breather
2021-08 → 2023-01 ended
GUN126 PKN —
36478-0K020 Bracket, Transfer Breather
2021-08 → 2023-03 ended
GGN125,GUN125,126,LAN125,TGN126 GHA,KEN,MMR,SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
