Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02

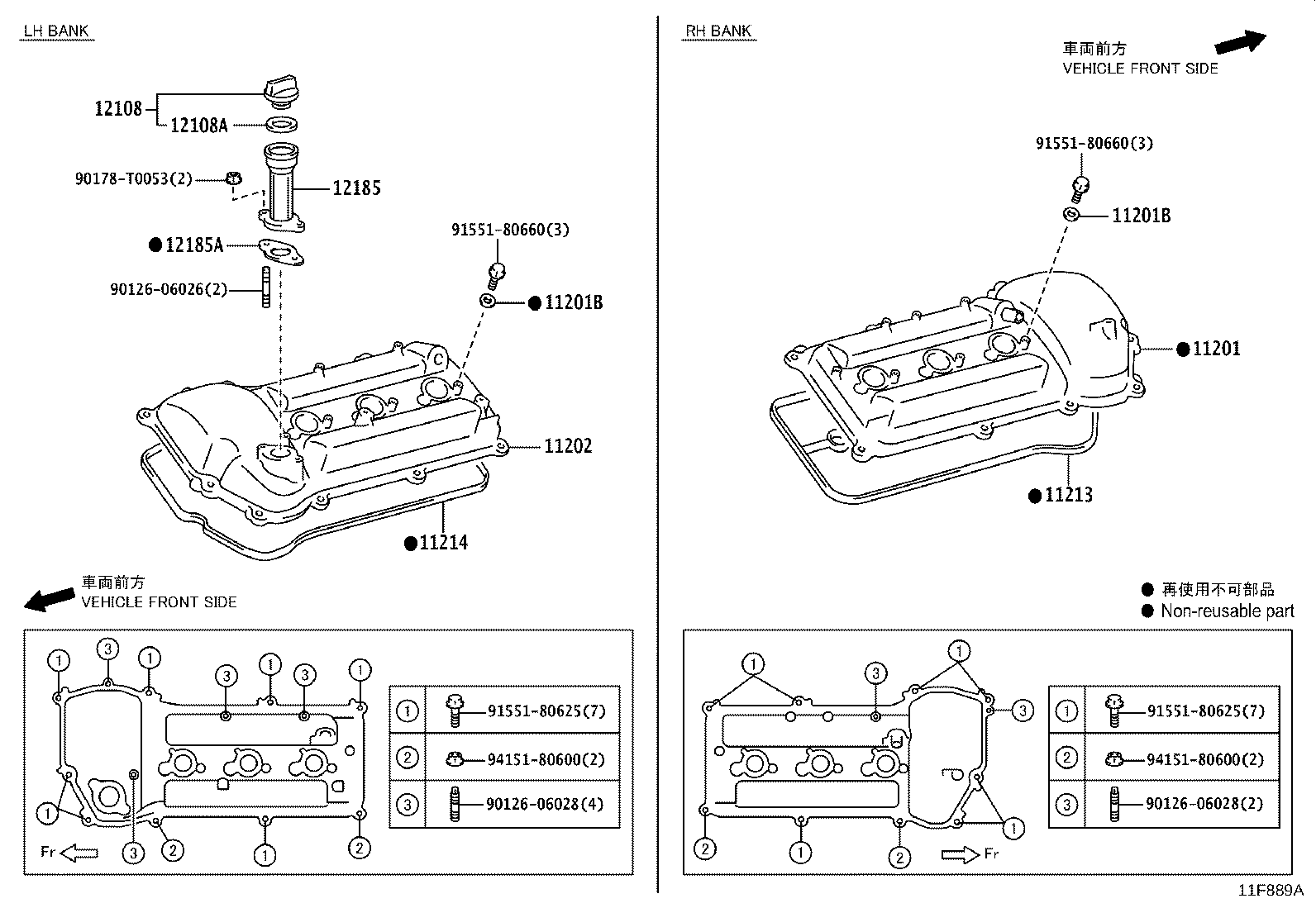

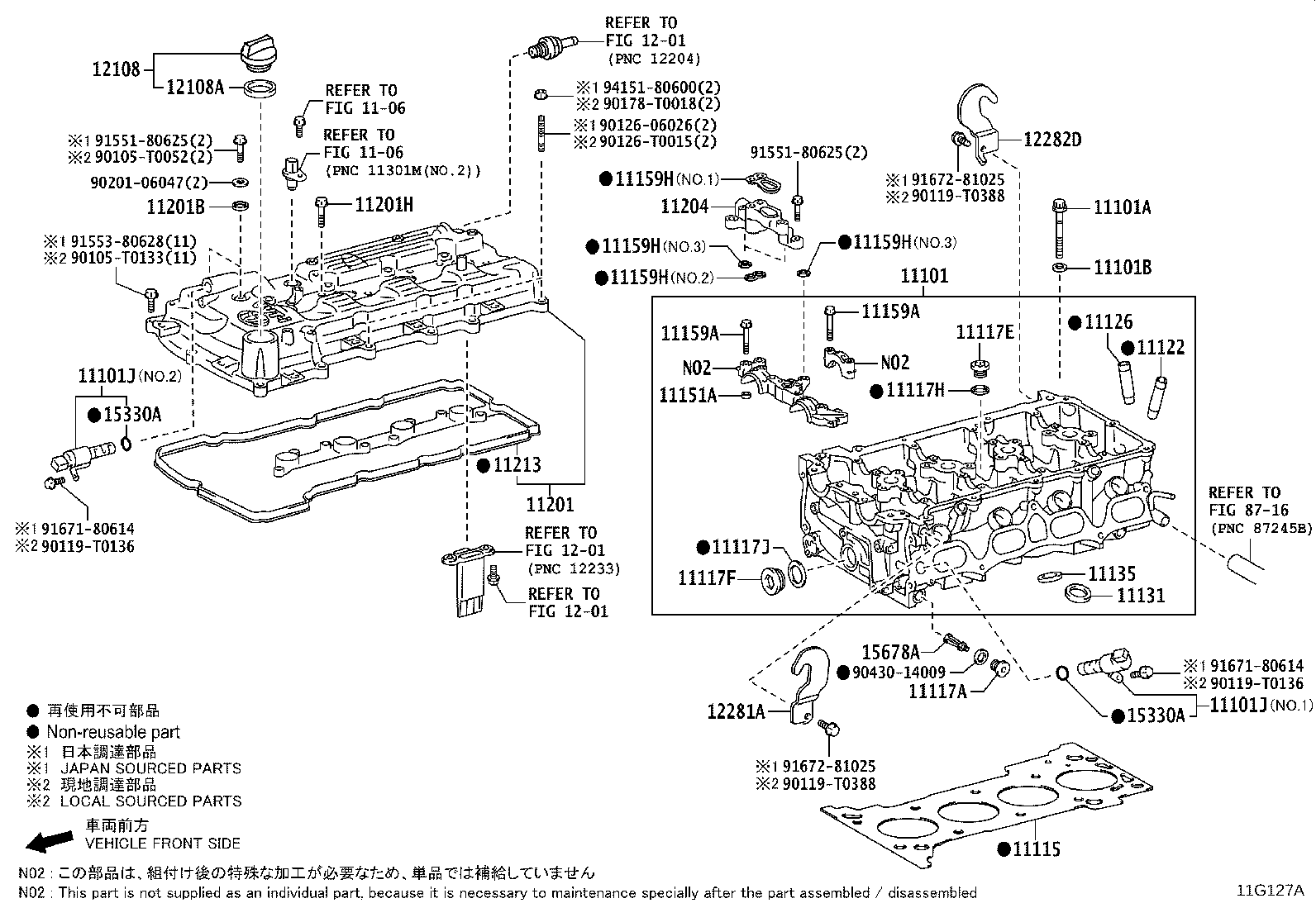

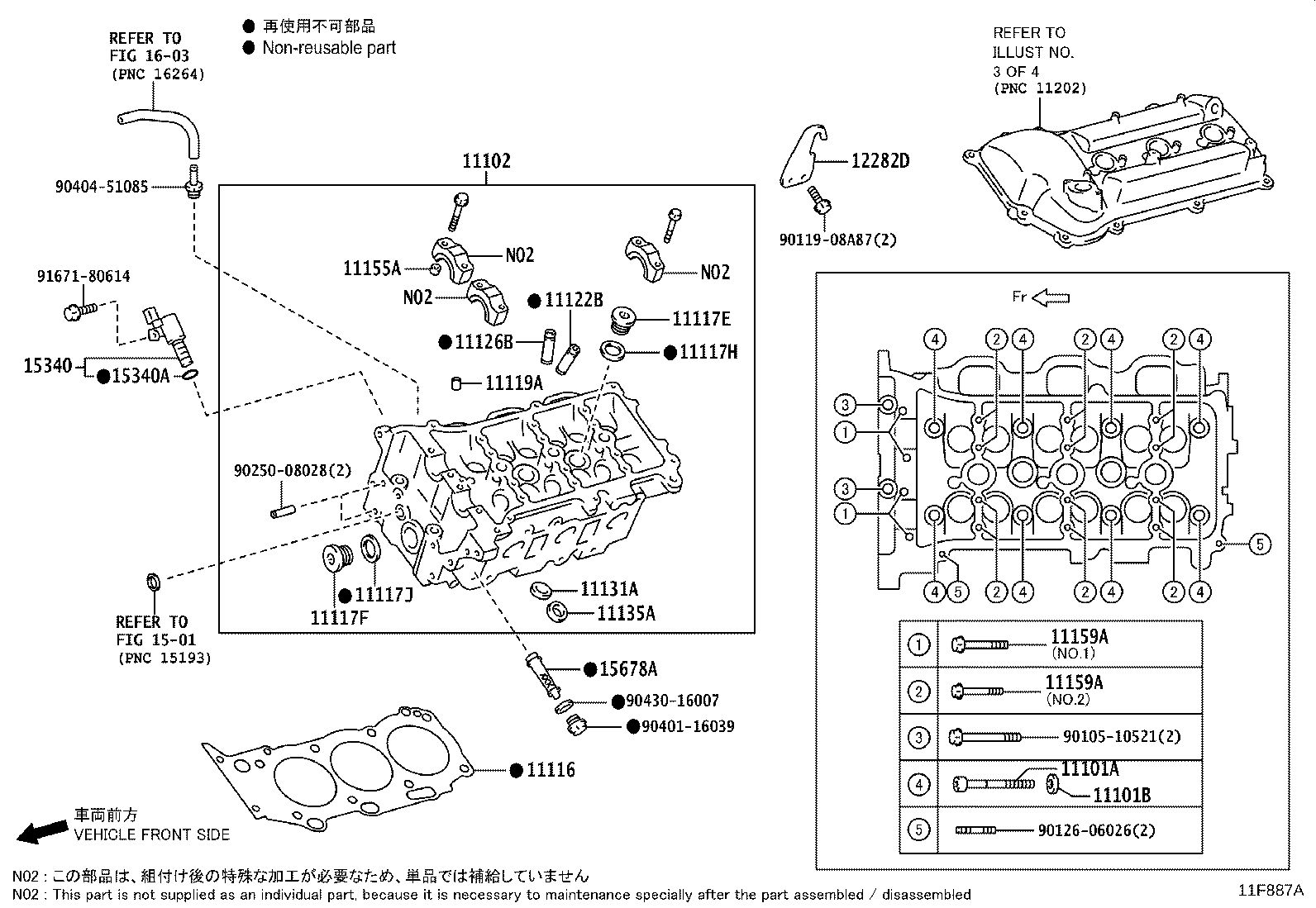

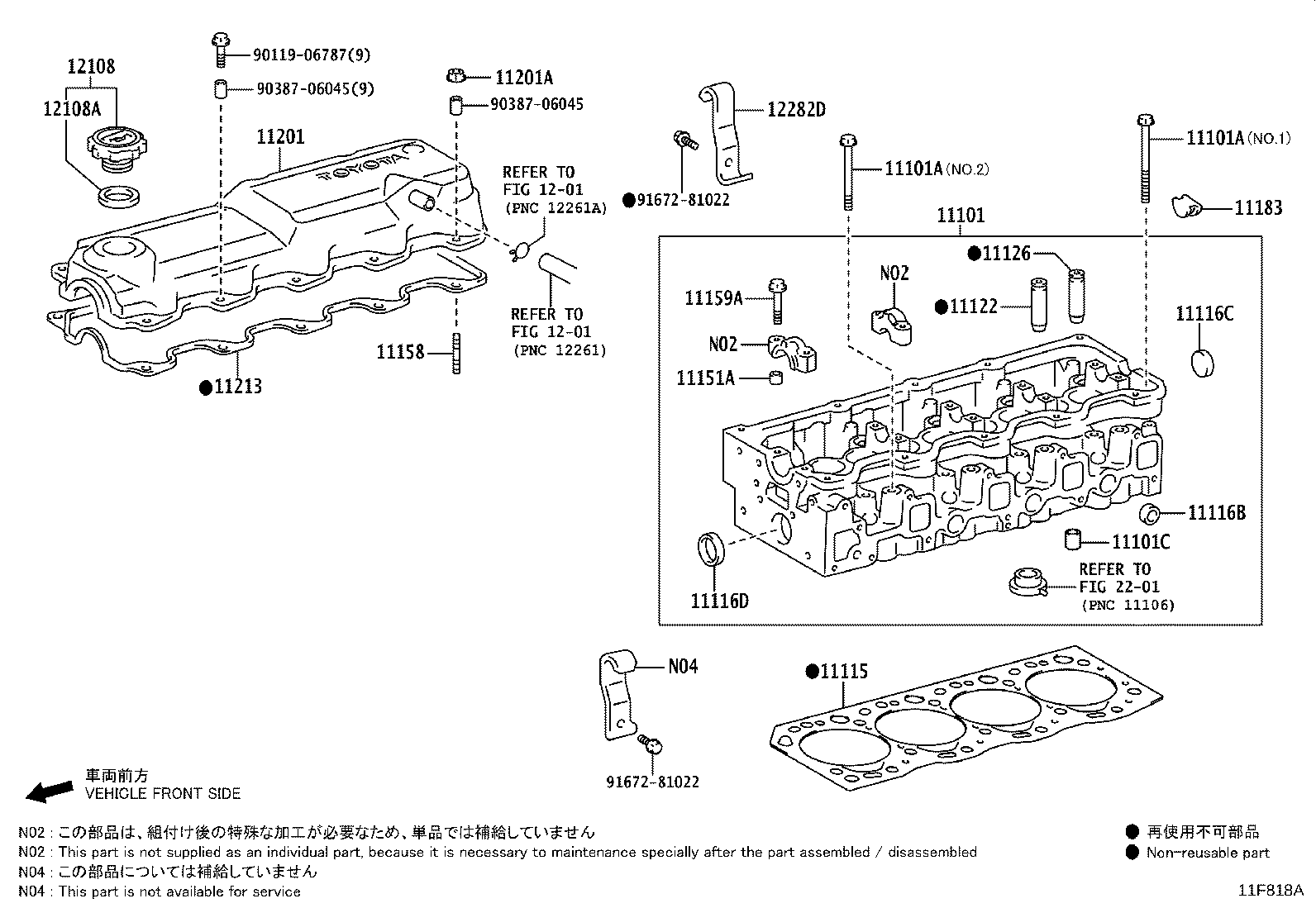

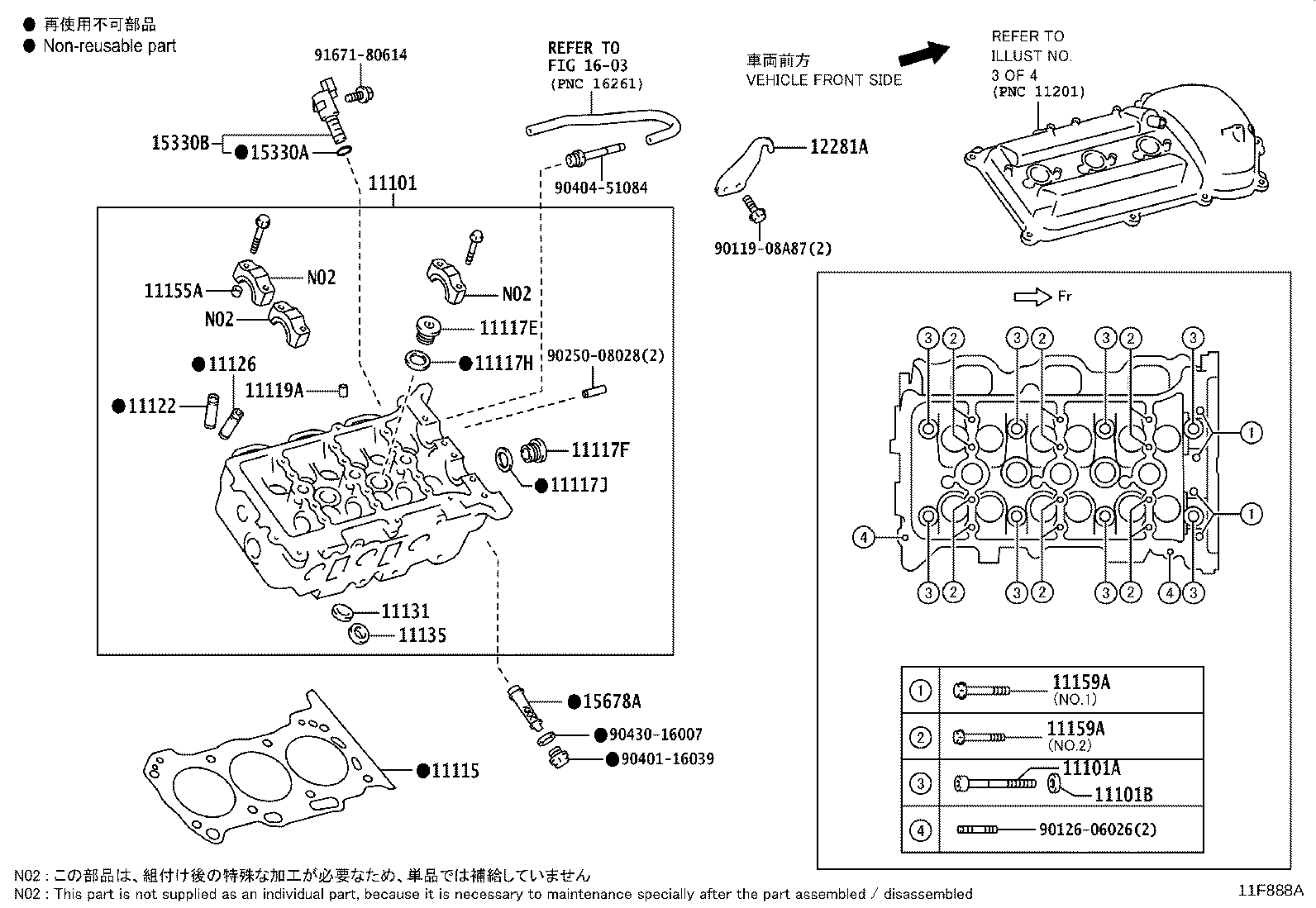

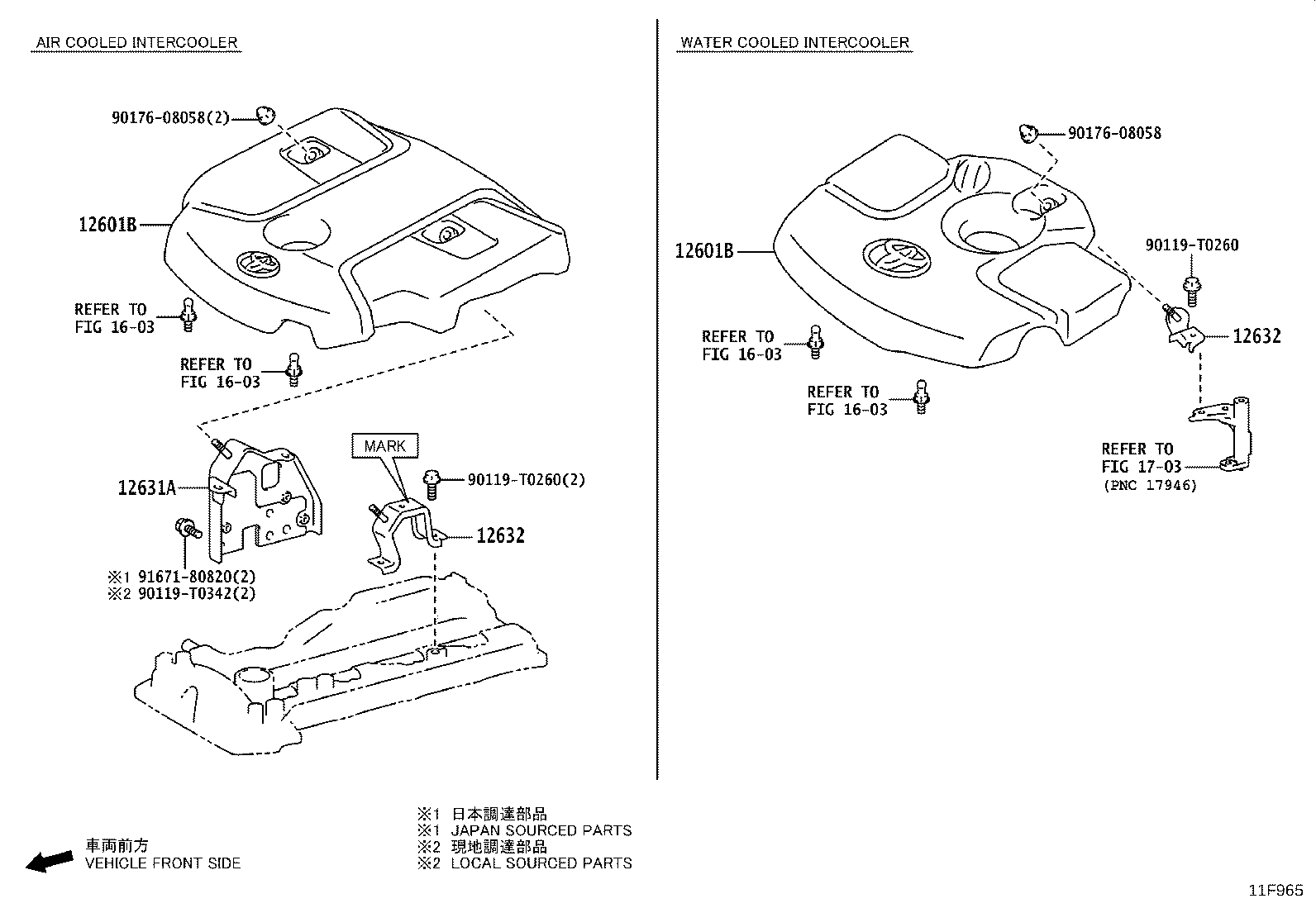

Cylinder Head
60 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101C | Tube(FOR CYLINDER HEAD) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101U | Spacer(FOR CYLINDER HEAD SET BOLT) |
| 11102 | Head, Cylinder, LH |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11122B | Bush, Intake Valve Guide, NO.2 |
| 11126 | Bush, Exhaust Valve Guide |
| 11126B | Bush, Exhaust Valve Guide, NO.2 |
| 11131 | Seat, Intake Valve |
| 11131A | Seat, Intake Valve, NO.2 |
| 11135 | Seat, Exhaust Valve |
| 11135A | Seat, Exhaust Valve, NO.2 |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11155A | Pin, Ring W/Head |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11183 | Plug, Semicircular |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11204 | Connector Sub-assy, Cylinder Head Cover |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11382C | Retainer, Camshaft Oil Seal |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12284A | Hanger, Engine, NO.1 Upper |
| 12601B | Cover Sub-assy, Engine, NO.1 |
| 12631A | Bracket, Engine Cover |
| 12632 | Bracket, Engine Cover, NO.2 |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15330B | Valve Assy, Cam Timing Oil Control, RH |
| 15340 | Valve Assy, Cam Timing Oil Control, LH |
| 15340A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678A | Filter, Oil Control Valve |
| 23682 | Gasket, Nozzle Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
