Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

20 part groups · 4 illustrations

Illustrations

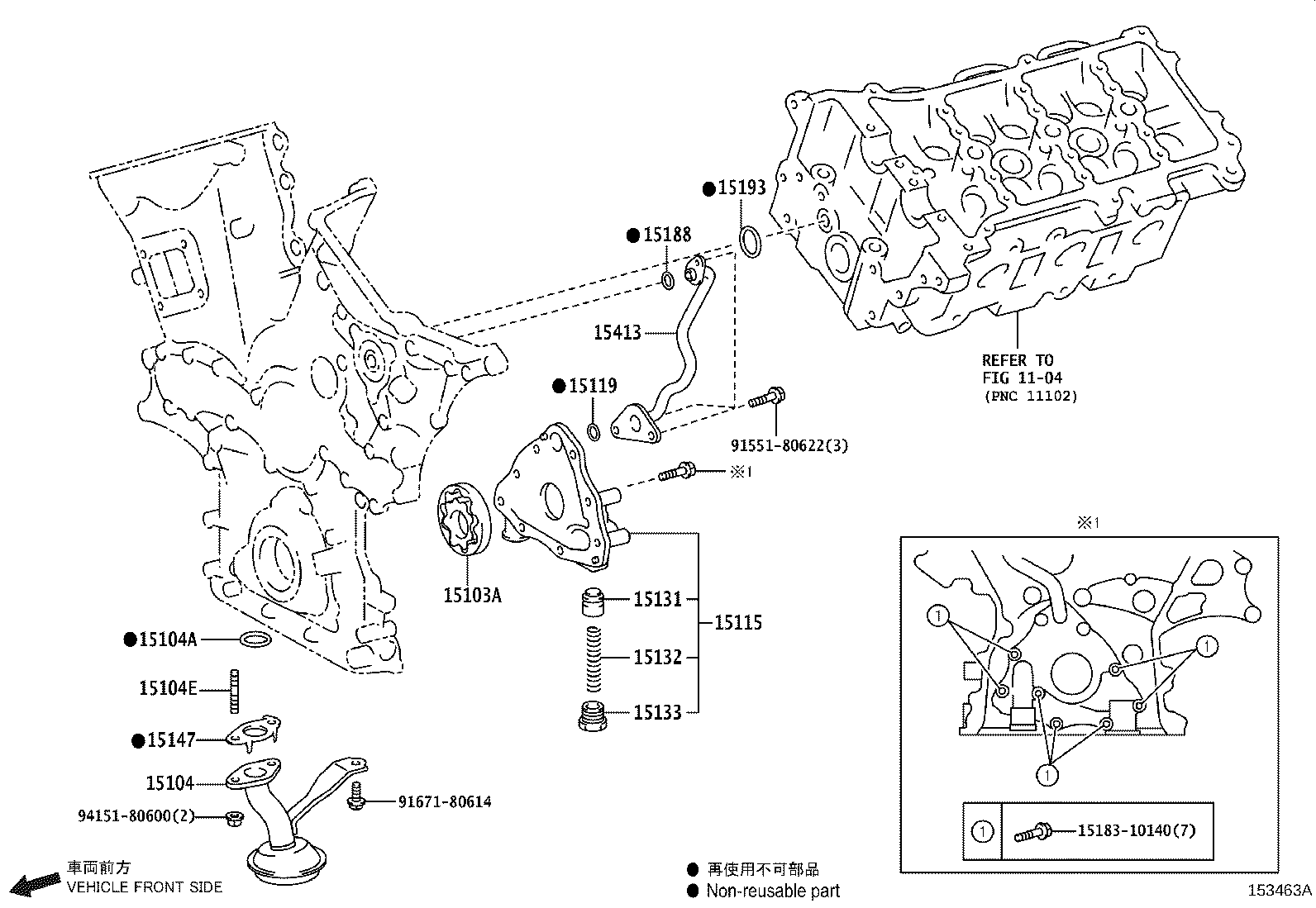

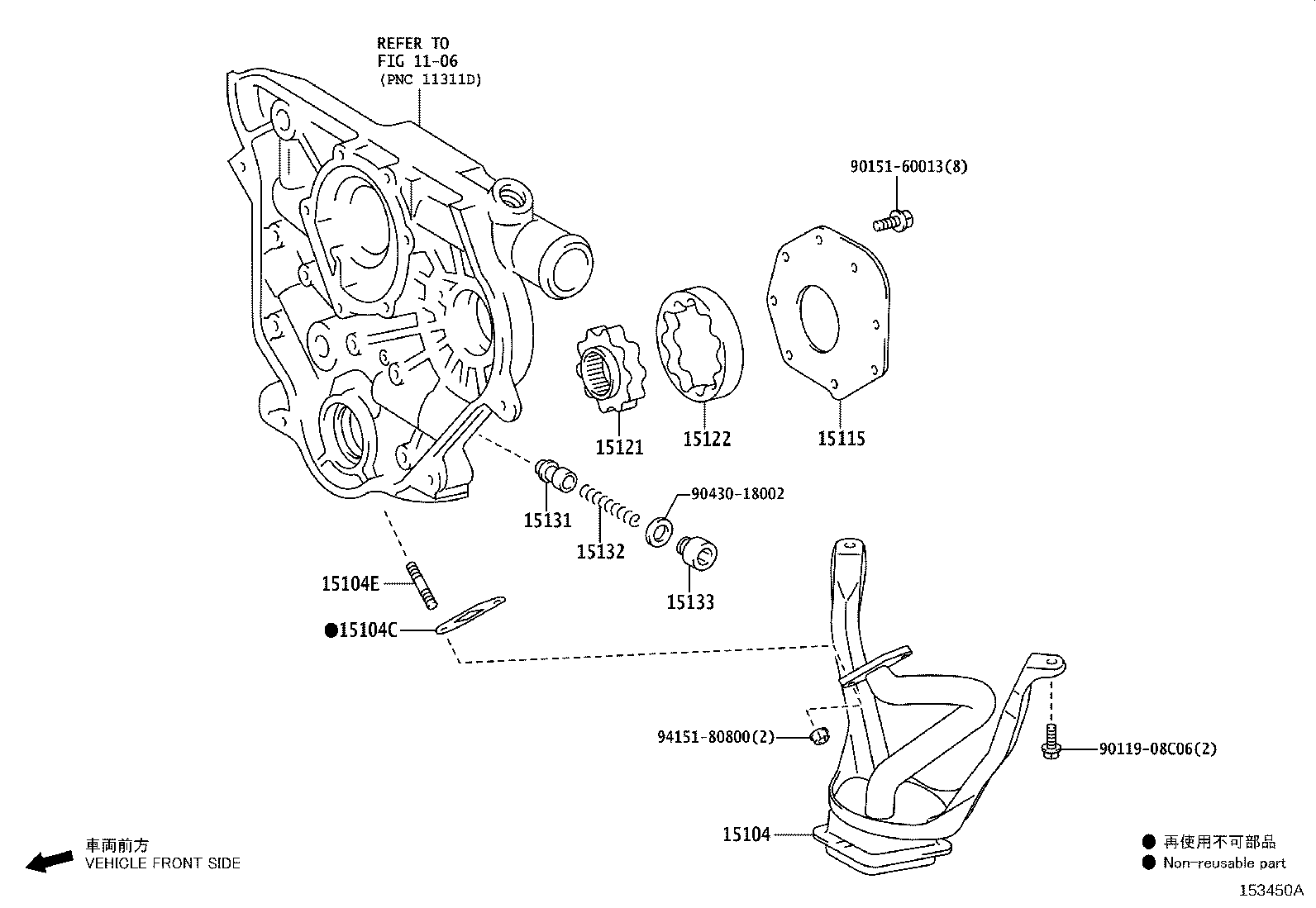

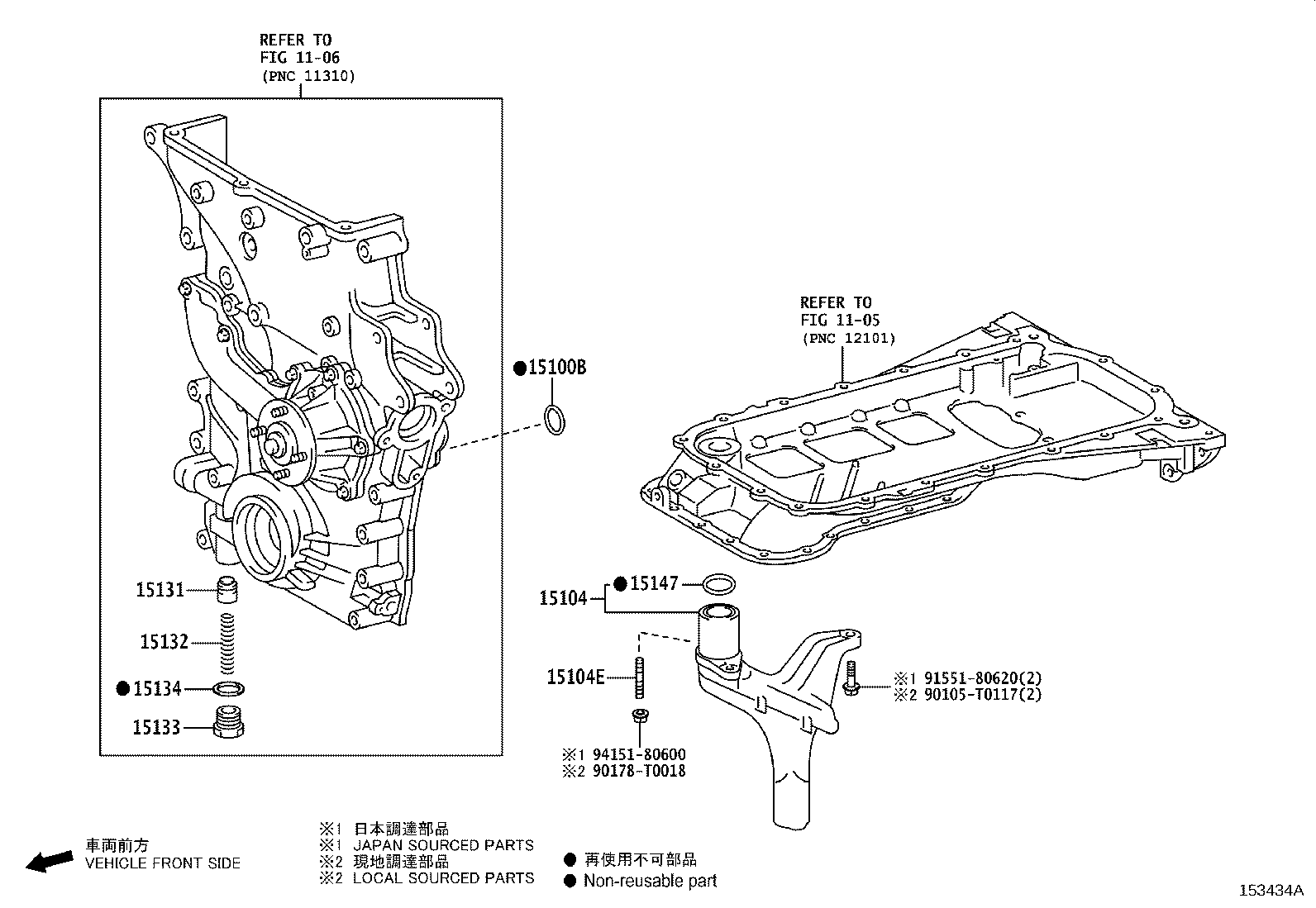

Figure 153475A 153475A 2021-08 → — Figure 153463A 153463A 2021-08 → — Figure 153450A 153450A 2021-09 → — Figure 153434A 153434A 2021-08 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100B Ring, O(FOR OIL PUMP)
15103A Rotor Sub-assy, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15188 Gasket, Oil Pump
15193 Gasket, Oil Pump
15413 Pipe, Oil Pump Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
