Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02
Ignition Coil & Spark Plug / Glow Plug
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

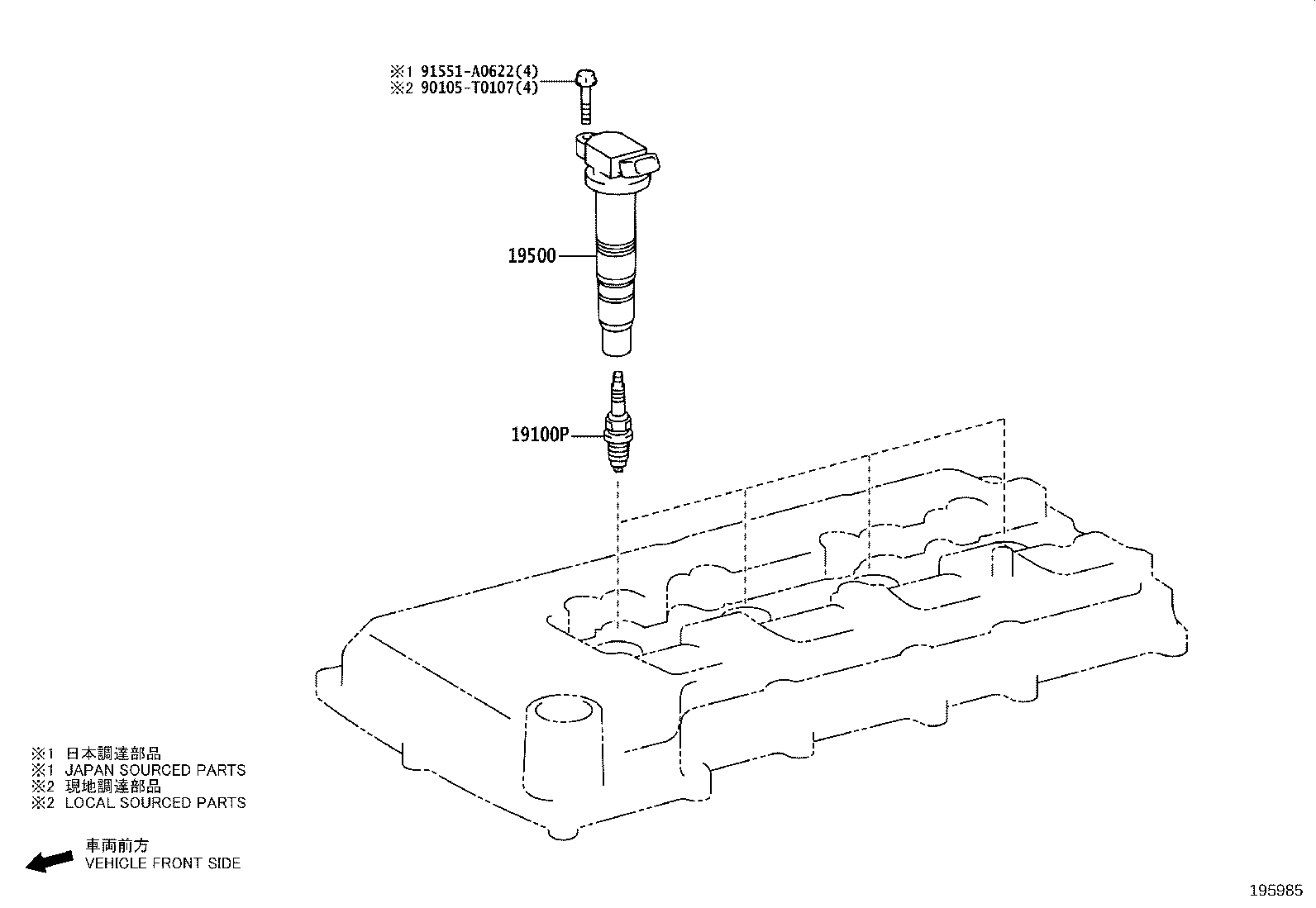

| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |

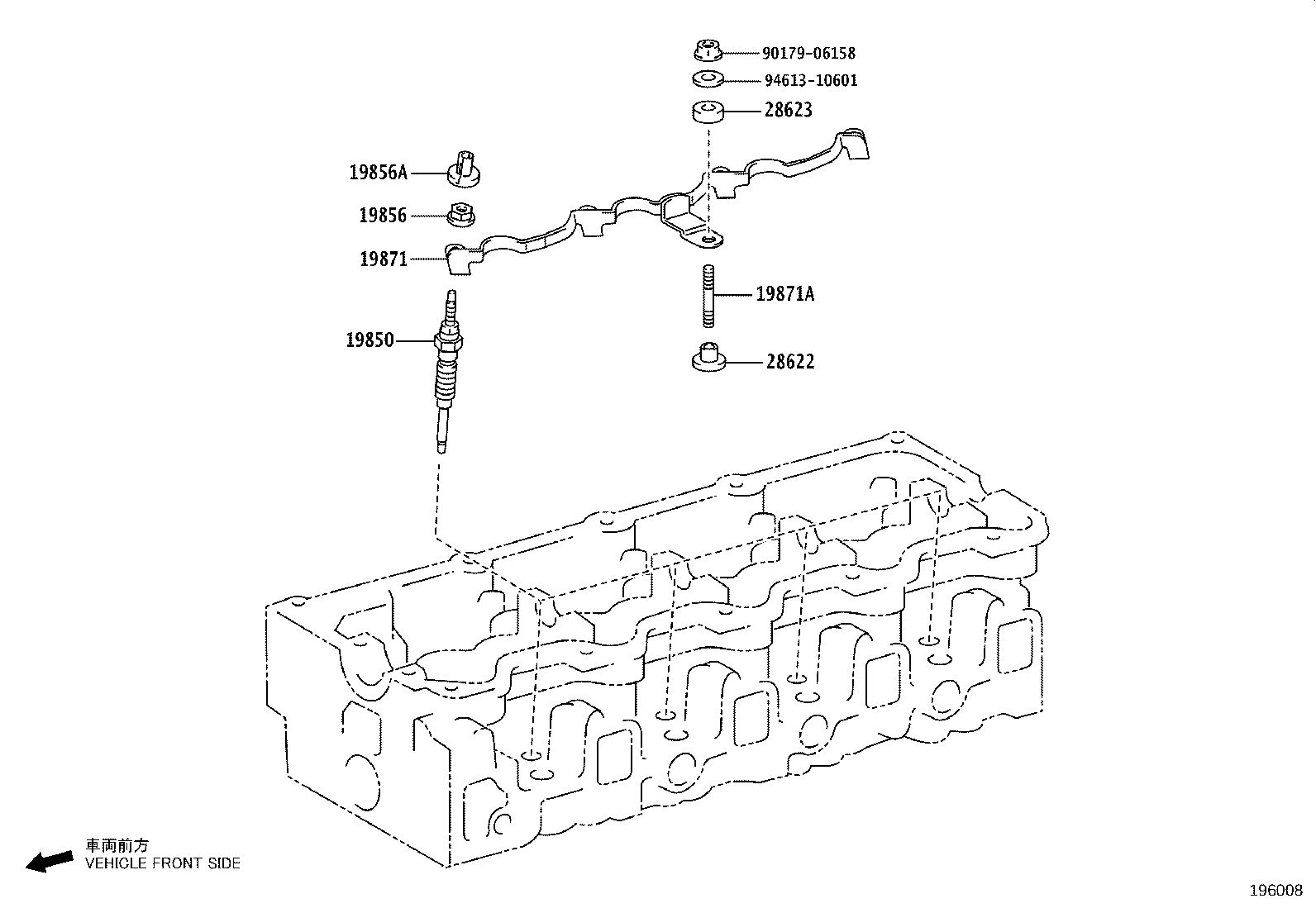

| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19856 | Nut, Connecting(FOR GLOW PLUG) |
| 19856A | Grommet, Screw(FOR, GLOW PLUG CONNECTOR) |
| 19871 | Connector, Glow Plug NO.1 |
| 19871A | Bolt, Stud(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR NO.1) |
| 28622 | Insulator, Glow Plug Resistor, NO.1 |
| 28623 | Insulator, Glow Plug Resistor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
