Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

17 part groups · 14 illustrations

Illustrations

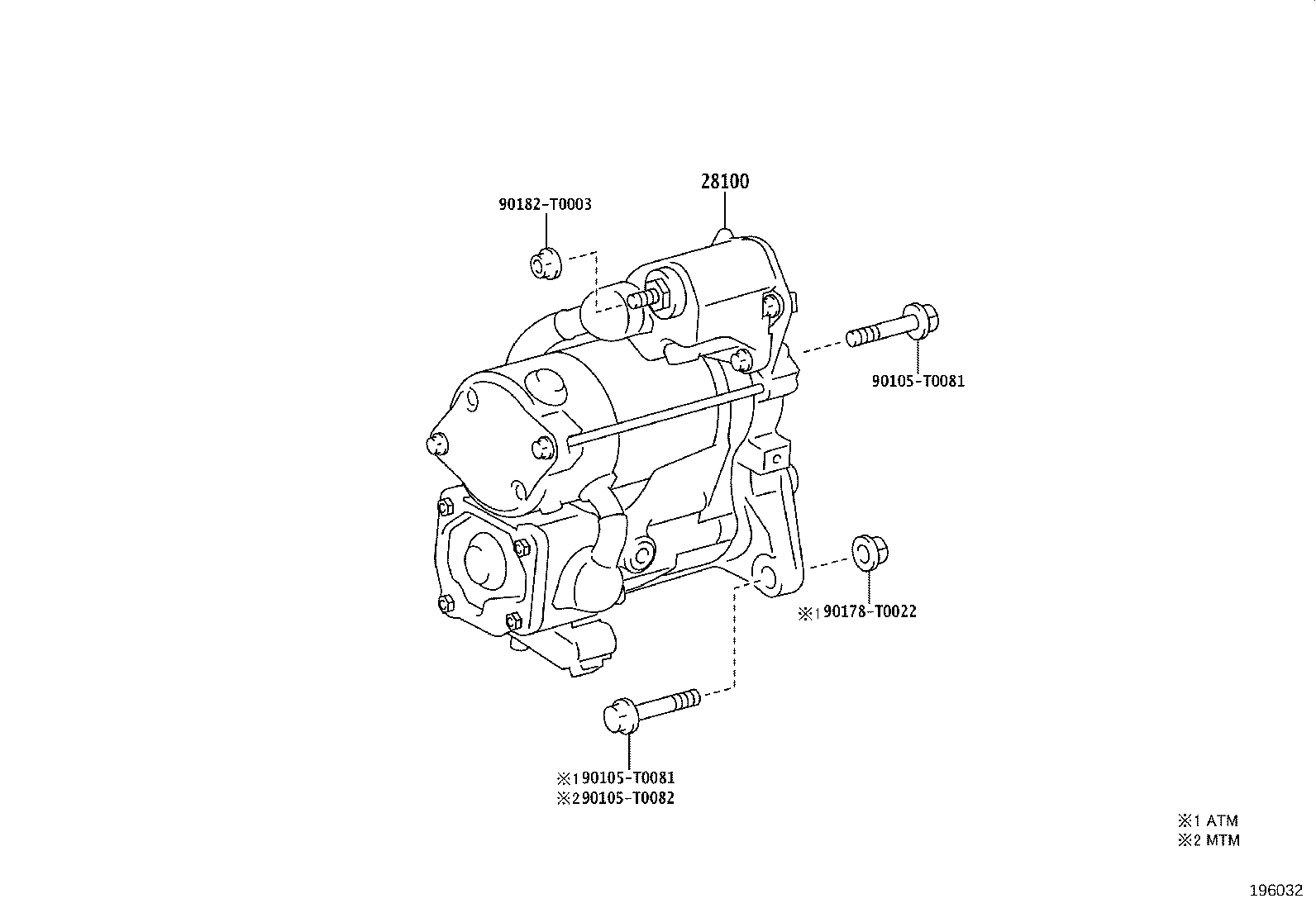

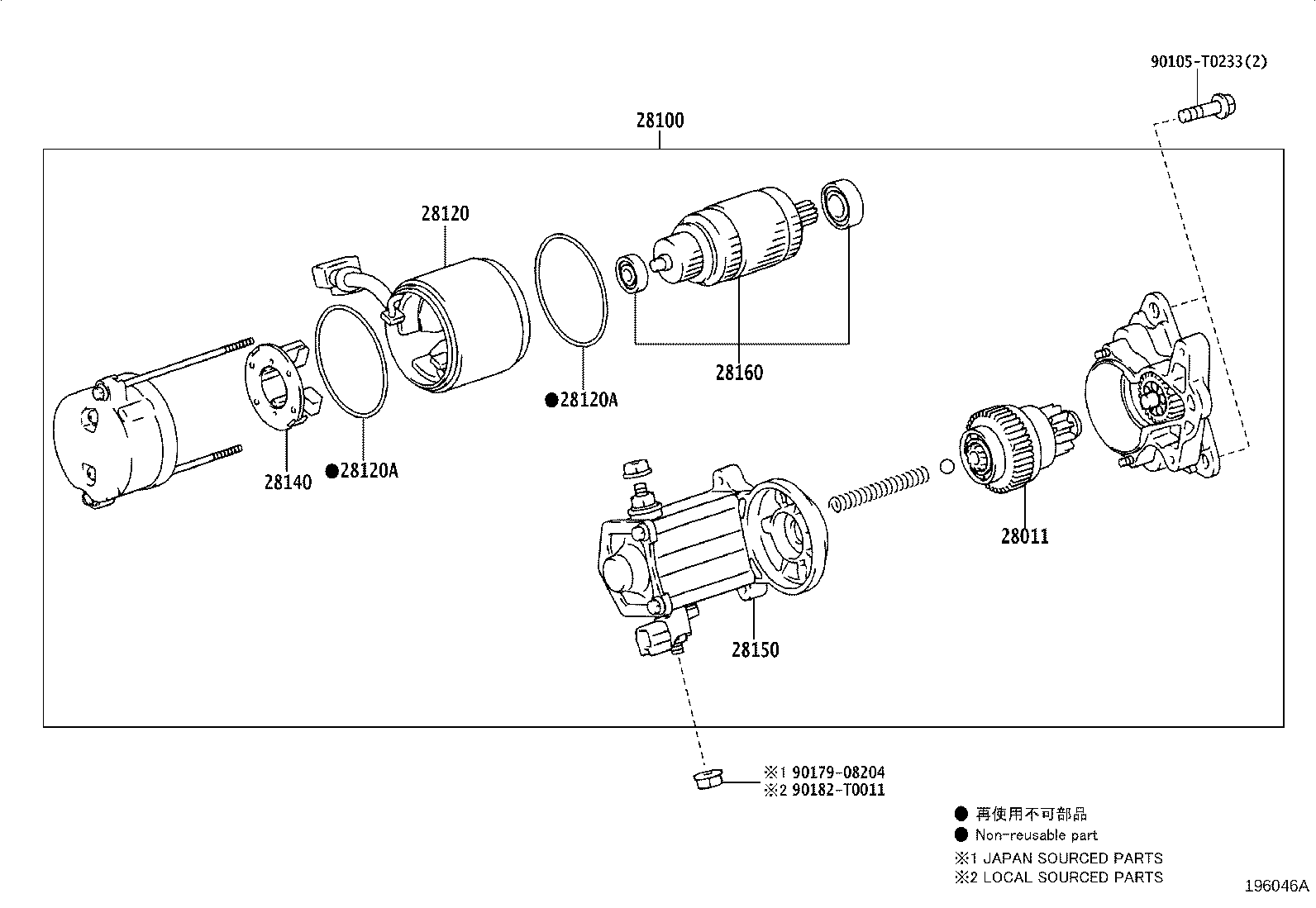

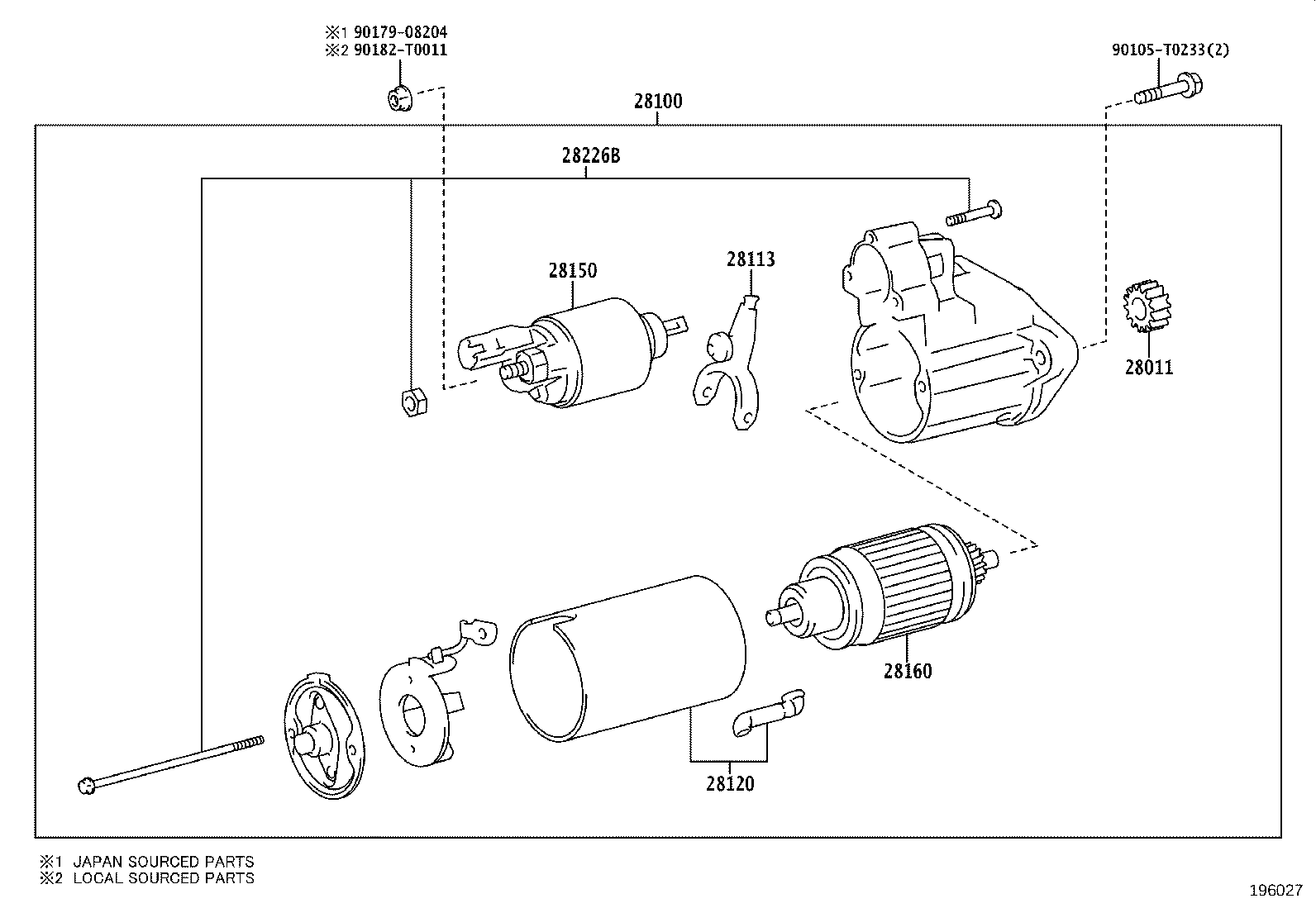

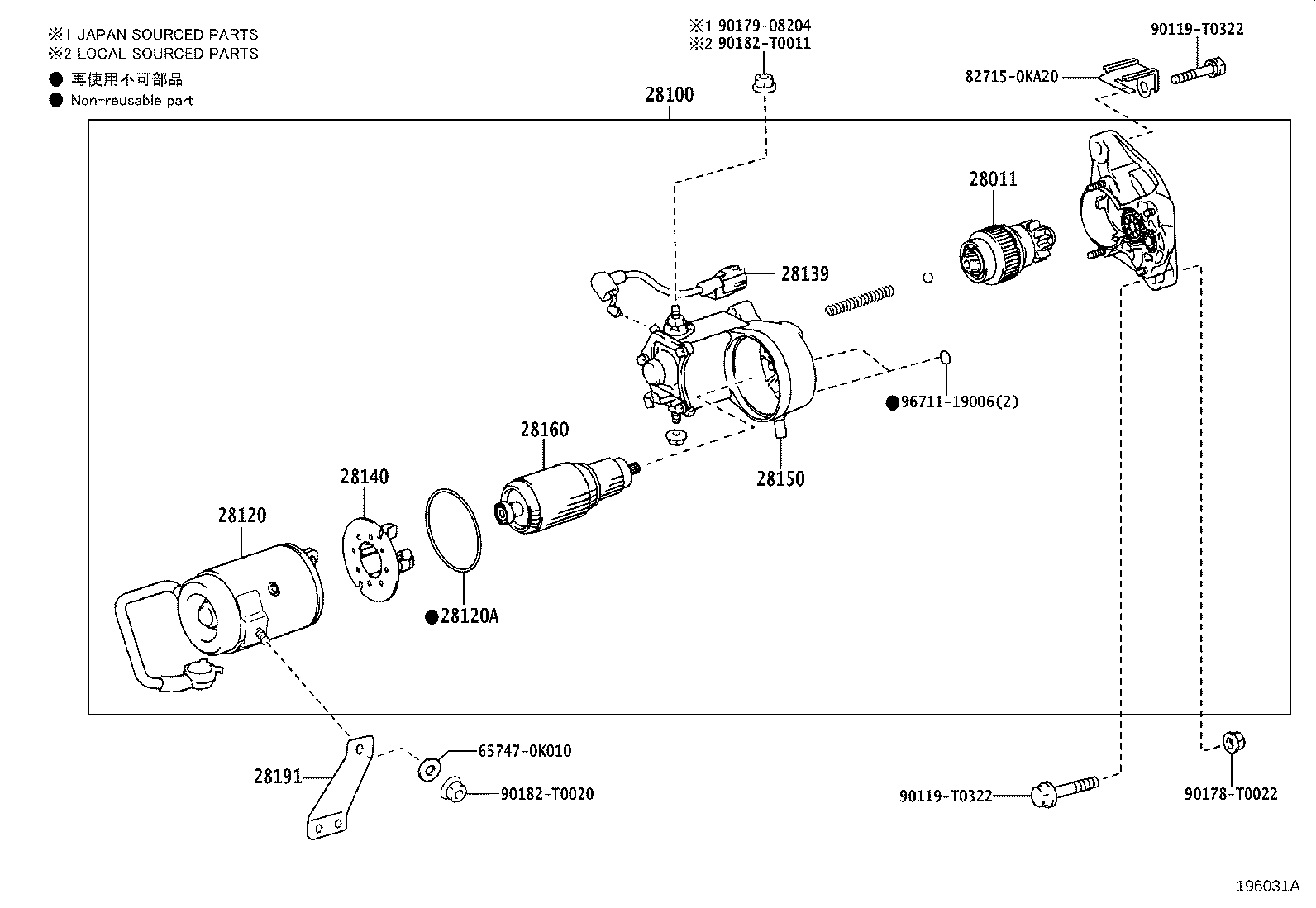

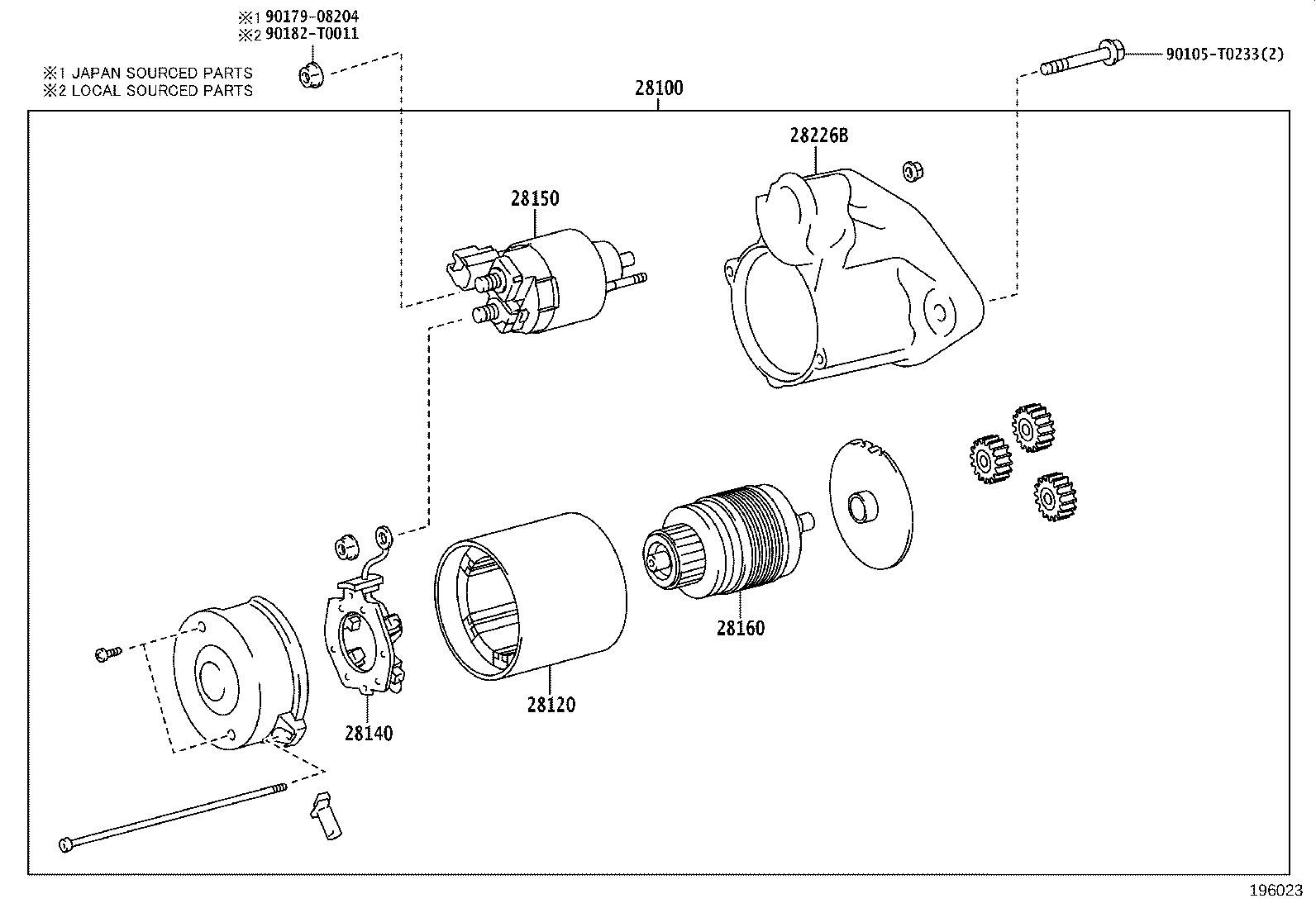

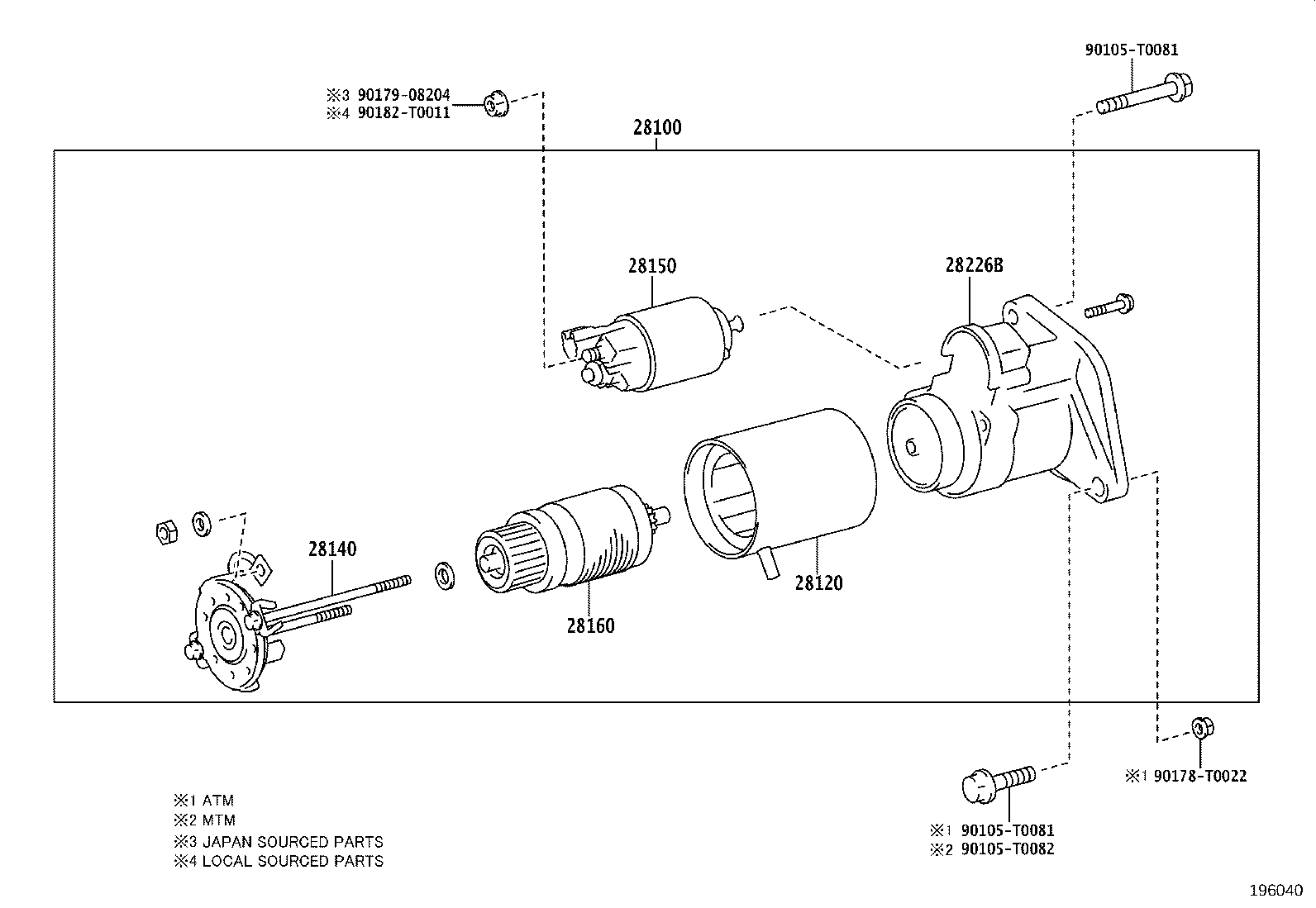

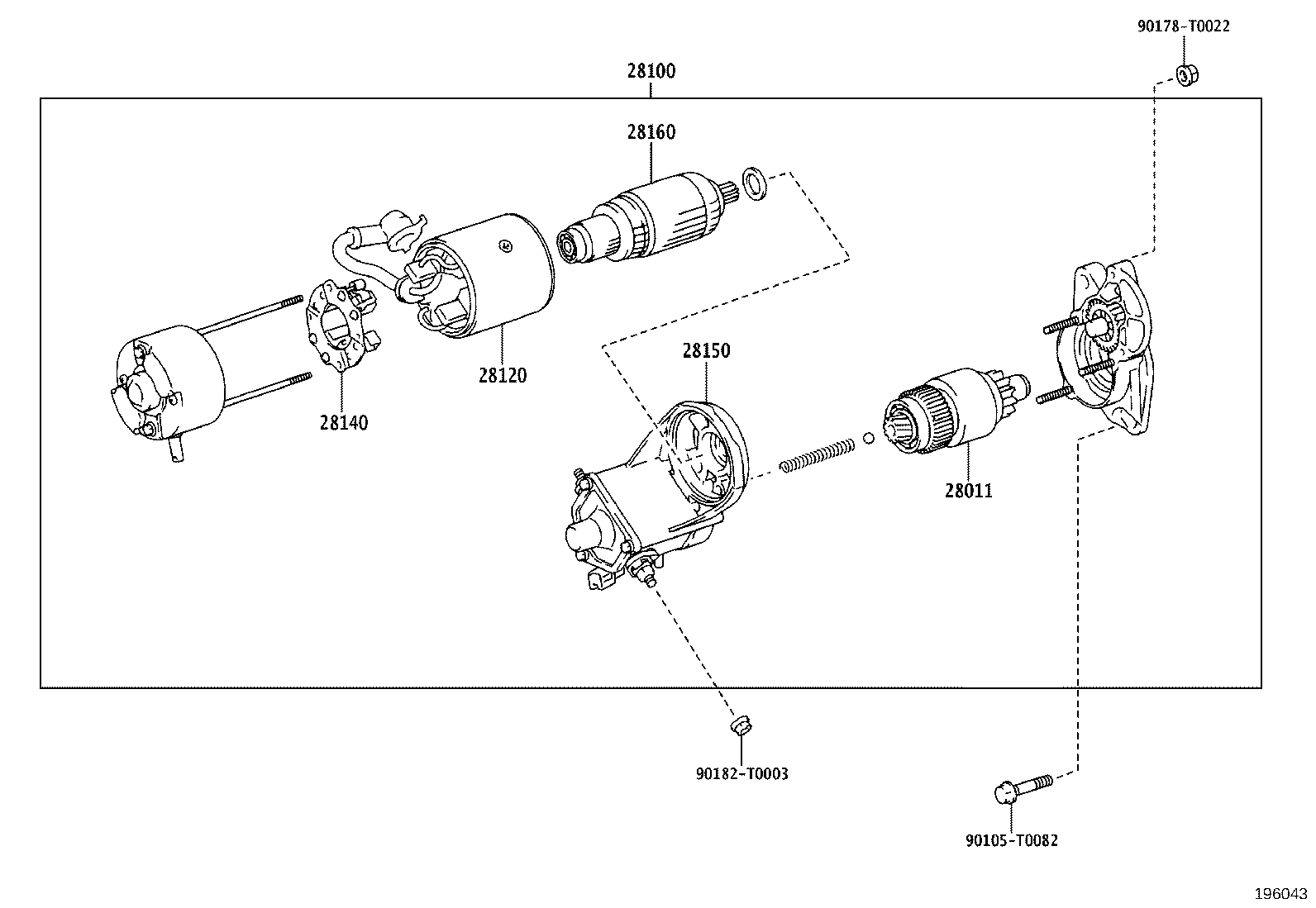

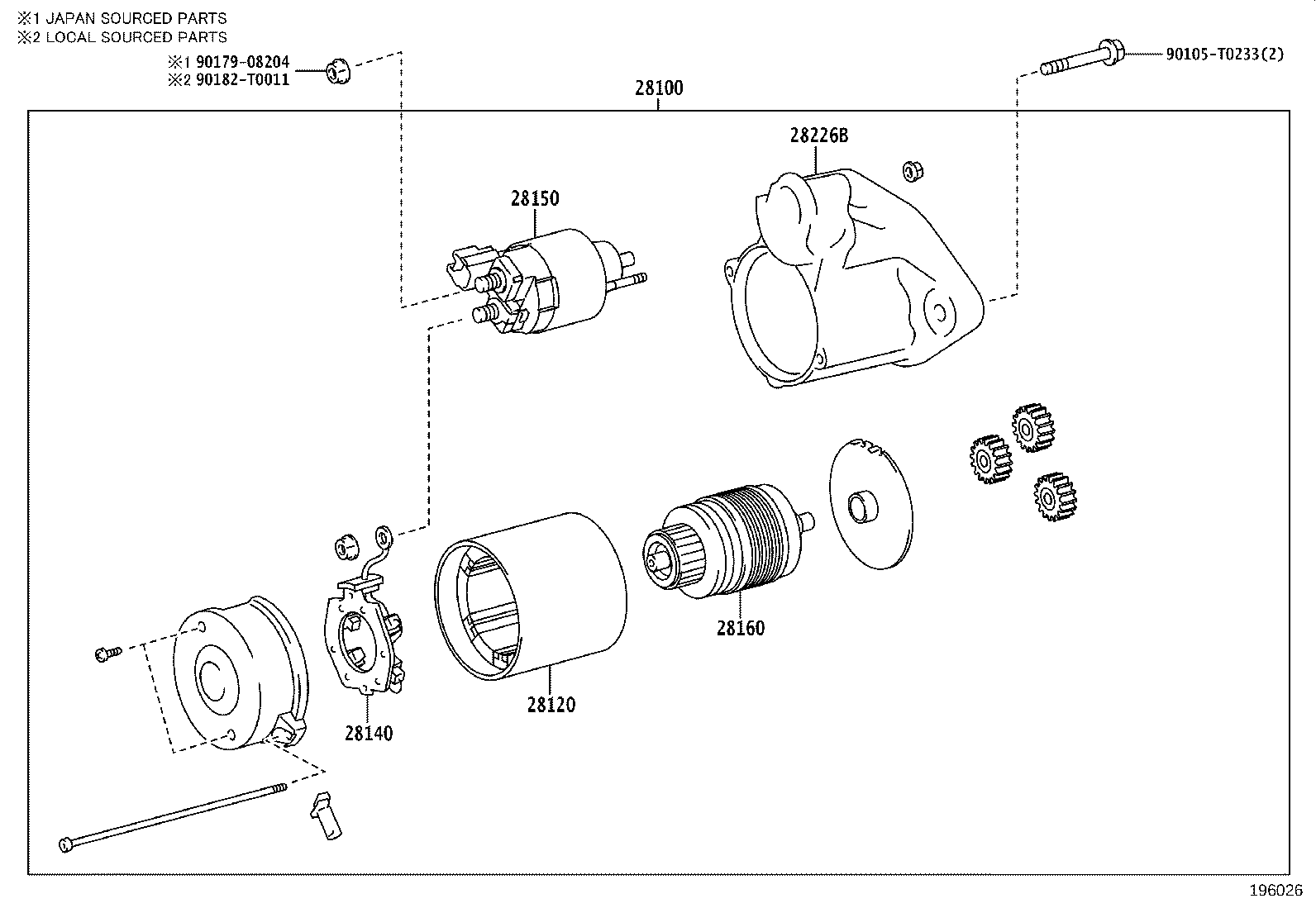

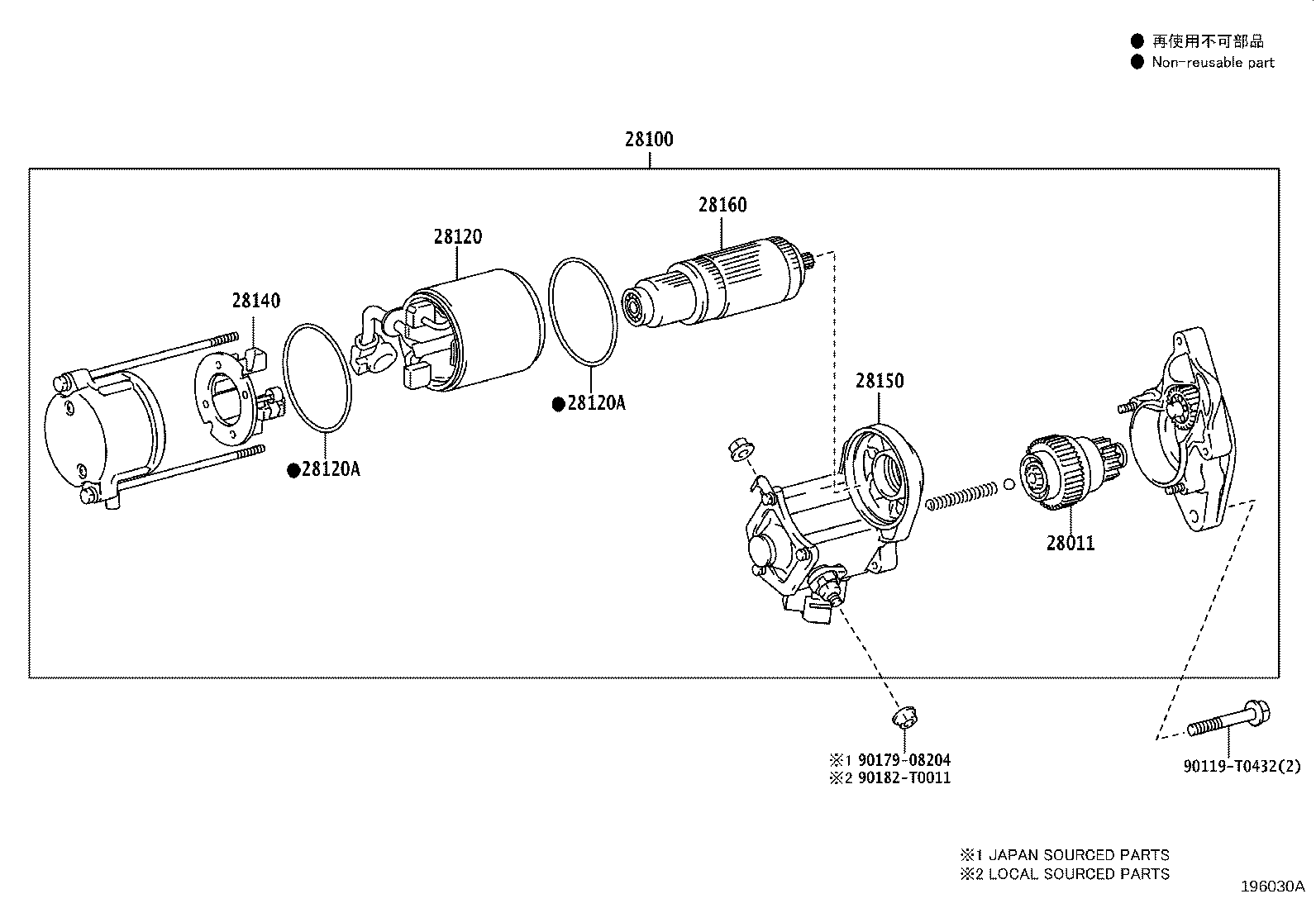

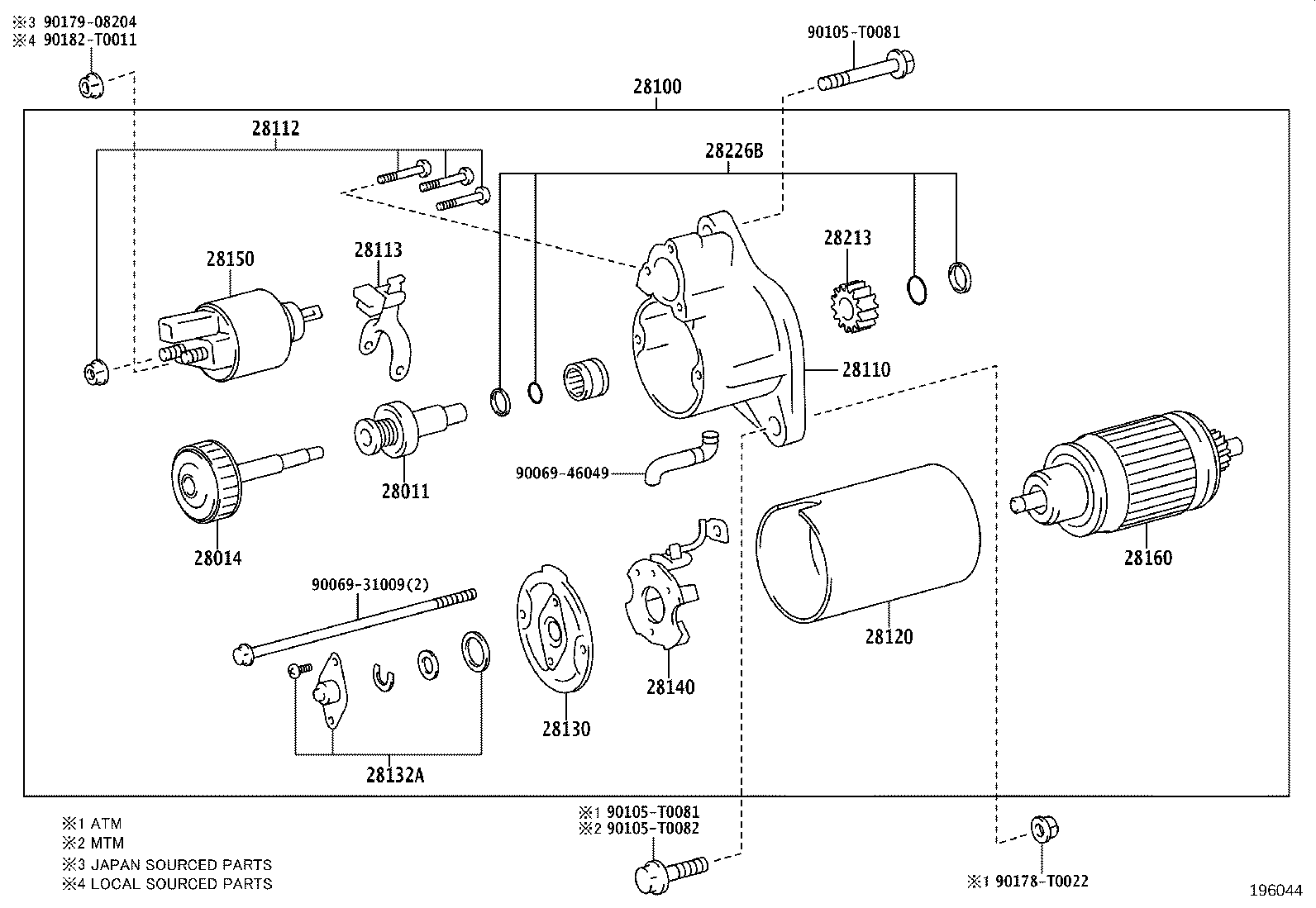

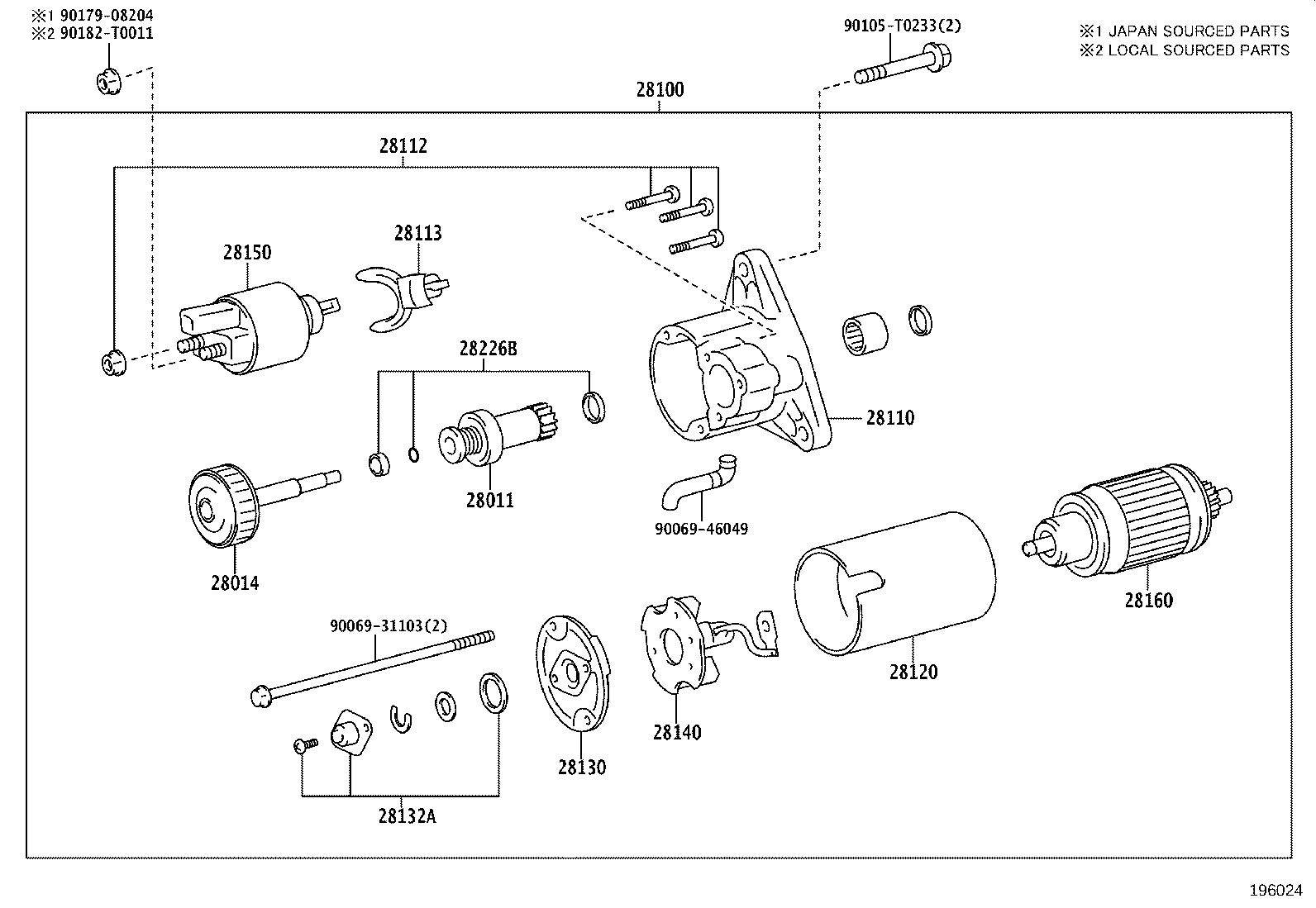

Figure 196033 196033 2021-08 → — Figure 196040 196040 2021-08 → — Figure 196032 196032 2021-08 → — Figure 196043 196043 2021-08 → — Figure 196044 196044 2021-09 → — Figure 196044 196044 2021-11 → — Figure 196030A 196030A 2021-08 → — Figure 196031A 196031A 2021-09 → — Figure 196023 196023 2021-08 → — Figure 196046A 196046A 2021-08 → — Figure 196025 196025 2021-09 → — Figure 196024 196024 2021-11 → — Figure 196026 196026 2021-11 → — Figure 196027 196027 2021-11 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28014 Shaft Sub-assy, Planet Carrier
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28191 Stay, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
