Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02

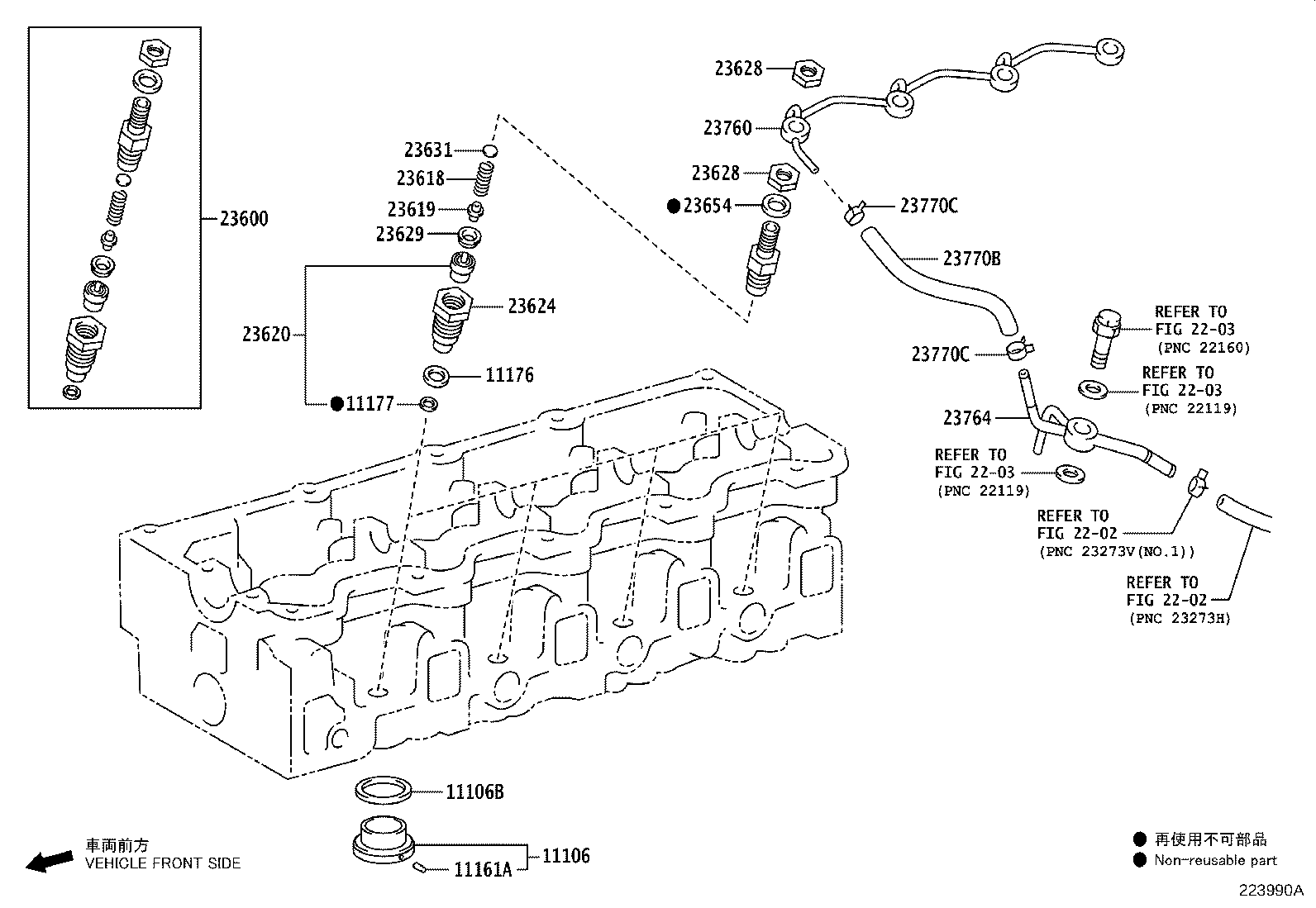

Injection Nozzle
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11106 | Chamber Sub-assy, Combustion |
| 11106B | Shim(FOR COMBUSTION CHAMBER) |
| 11161A | Pin, Straight(FOR COMBUSTION CHAMBER) |
| 11176 | Seat, Injection Nozzle |
| 11177 | Gasket, Injection Nozzle Seat |
| 23256B | Ring, Fuel Injector Back-up, NO.1 |
| 23257B | Ring, Fuel Injector Back-up, NO.2 |
| 23258B | Ring, Fuel Injector Back-up, NO.3 |
| 23282H | Hose, Fuel, NO.4 |
| 23284C | Hose, Fuel, NO.5 |
| 23286C | Hose, Fuel, NO.6 |
| 23295C | Holder, Injector |
| 23600 | Holder & Nozzle Set, Nozzle |
| 23600C | Gasket(FOR HOLDER & NOZZLE SET) |
| 23618 | Spring, Nozzle Holder Pressure |
| 23619 | Pin, Nozzle Holder Pressure |
| 23620 | Nozzle Assy |
| 23624 | Nut, Nozzle Retaining |
| 23628 | Nut(FOR RING PACKING SETTING) |
| 23629 | Piece, Distance(FOR NOZZLE) |
| 23631 | Washer(FOR NOZZLE HOLDER PRESSURE SPRING) |
| 23654 | Washer(FOR RING PACKING) |
| 23670 | Injector Assy |
| 23670A | Ring, O(FOR INJECTOR ASSY) |
| 23679 | Screw, Injector Follow |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23695B | Clamp, Nozzle Holder, NO.2 |
| 23699A | Seat, Nozzle Holder Clamp |
| 23710B | Injector Assy, Exhaust Fuel Addition |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23760A | Gasket |
| 23764 | Pipe, Nozzle Leakage, NO.4 |
| 23770 | Pipe Assy, Nozzle Leakage, NO.2 |
| 23770B | Hose, Fuel |
| 23770C | Clamp OR Clip(FOR FUEL HOSE SET) |
| 23811H | Pipe, Fuel, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
