Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02

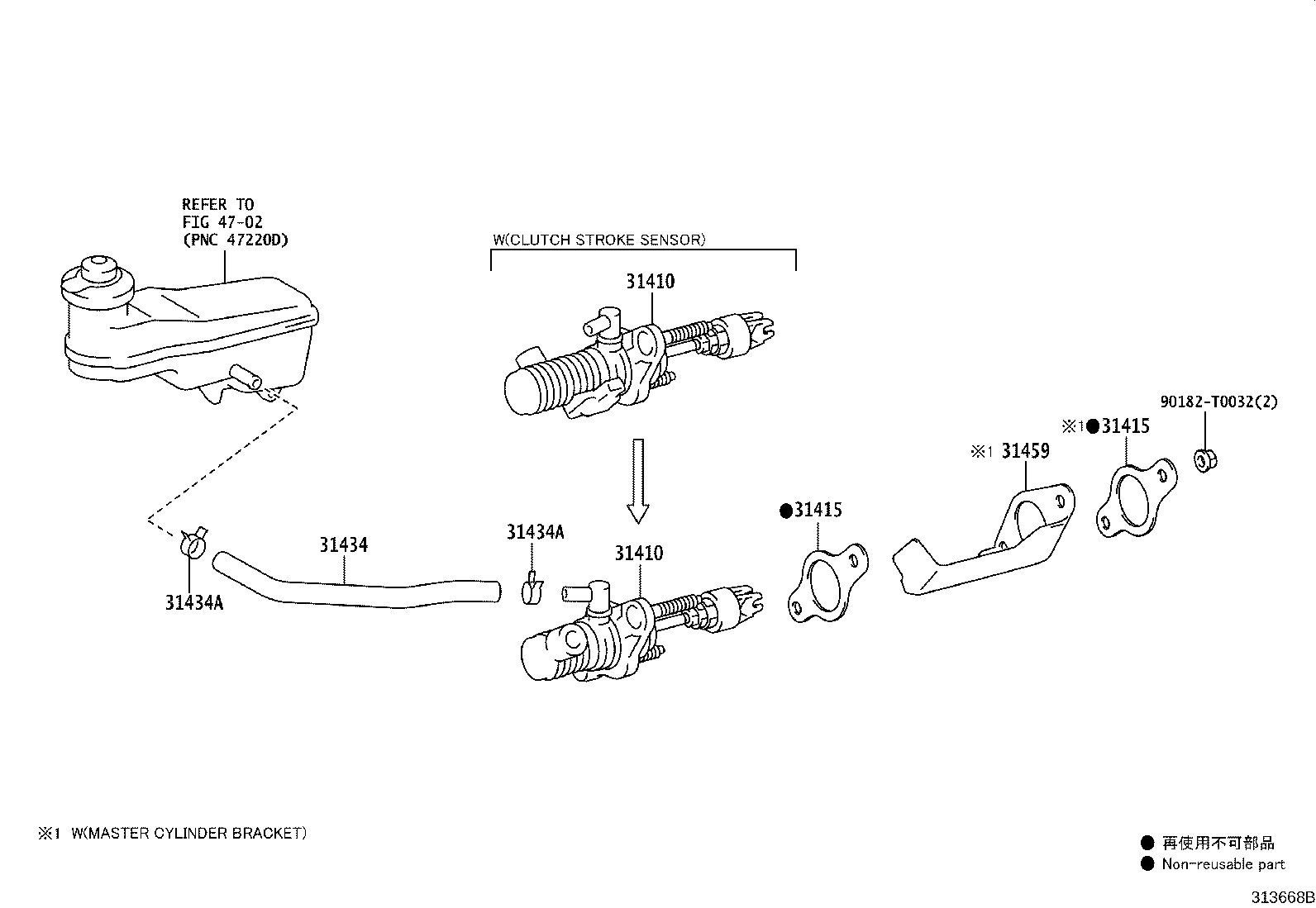

Clutch Master Cylinder
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31410 | Cylinder Assy, Clutch Master |
| 31415 | Gasket, Clutch Master Cylinder |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31459 | Bracket, Clutch Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
