Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Gear (MTM)

91 part groups · 4 illustrations

Illustrations

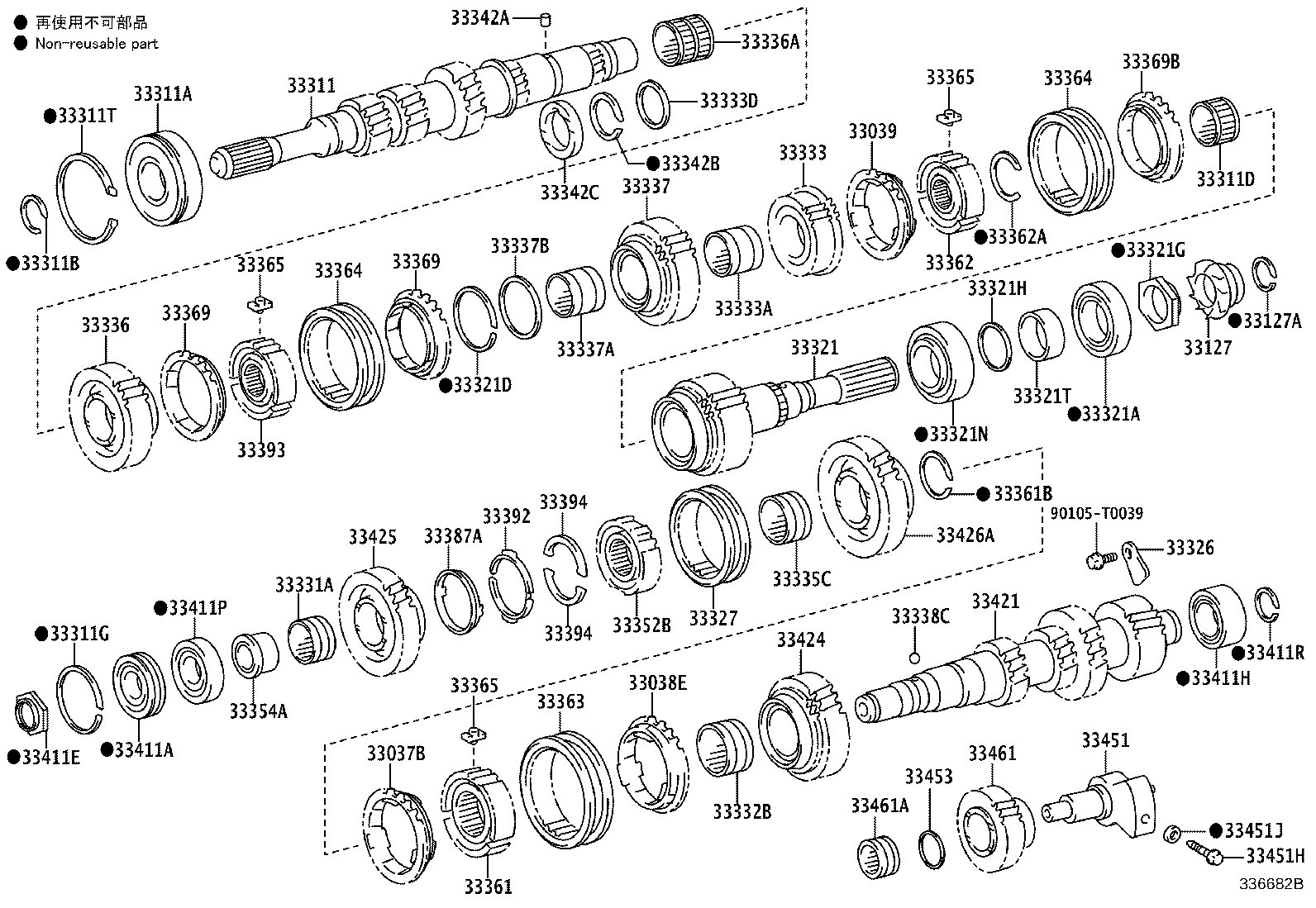

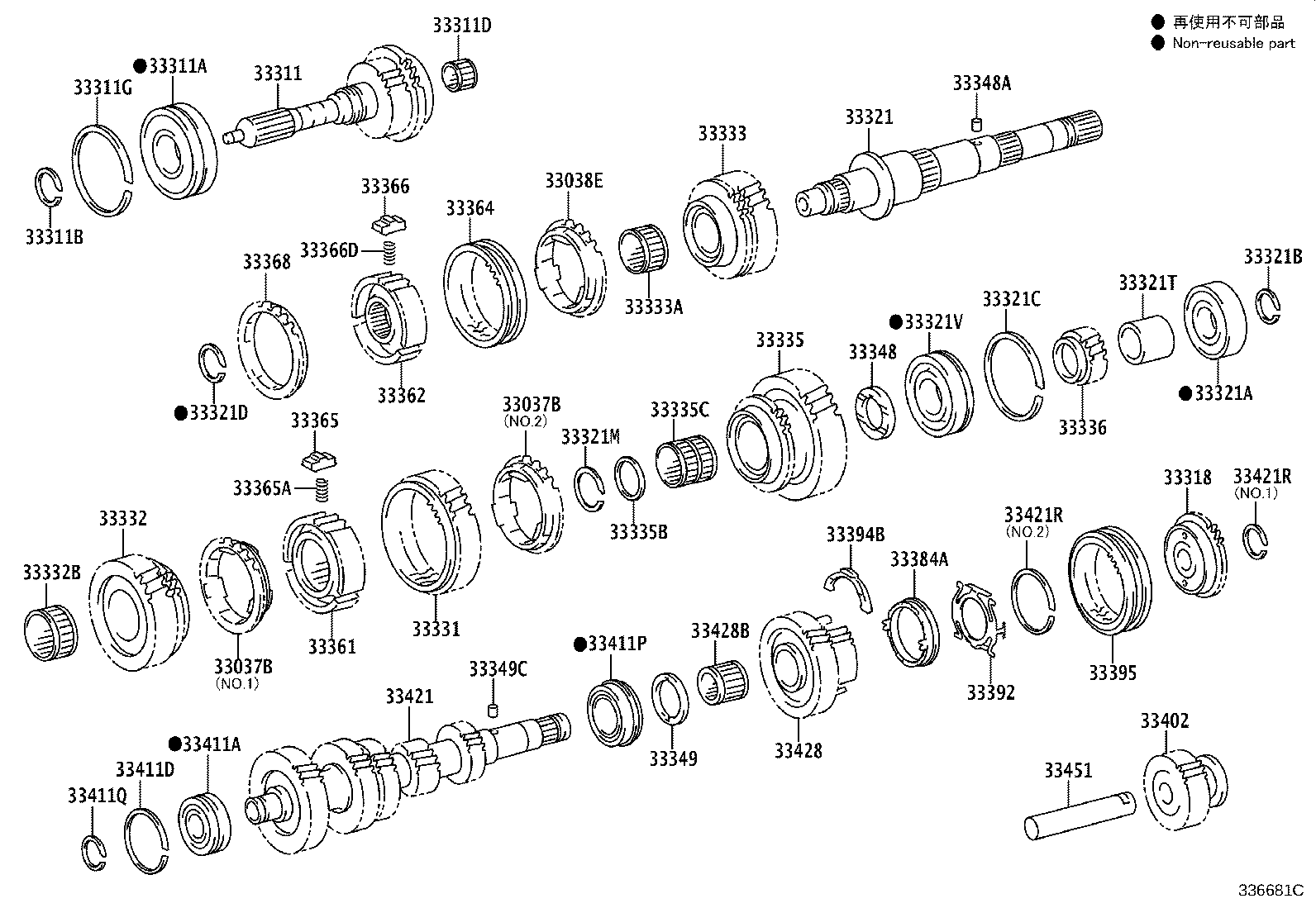

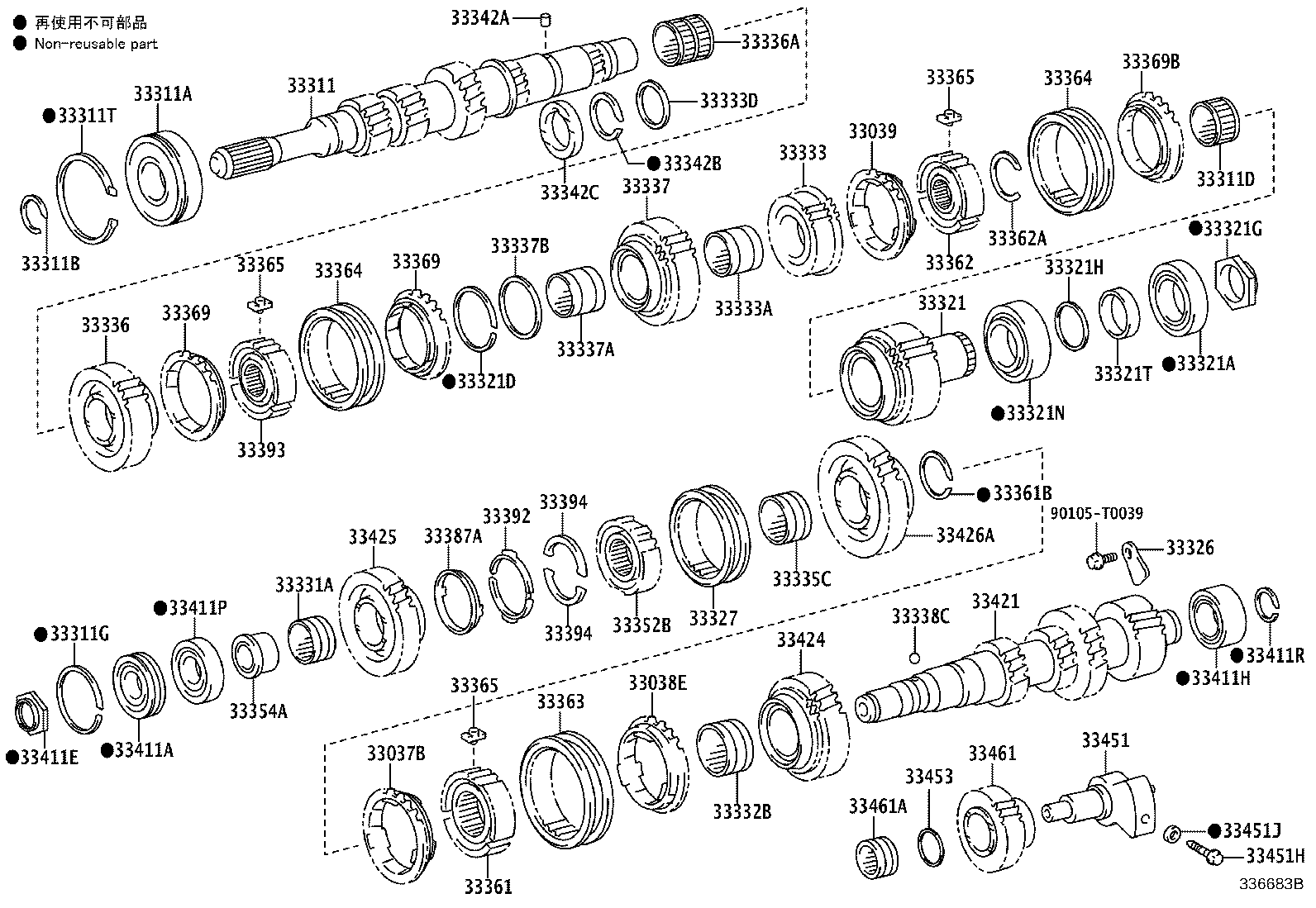

Figure 336680B 336680B 2021-08 → — Figure 336681C 336681C 2021-08 → — Figure 336682B 336682B 2021-08 → — Figure 336683B 336683B 2021-08 → —

Part groups

PNCDescription
33037B Ring Set, Synchronizer, NO.1
33038E Ring Set, Synchronizer, NO.2
33039 Ring Set, Synchronizer, NO.3
33127 Runner, Transmission Oil
33127A Ring, Snap (FOR OUTPUT SHAFT)
33311 Shaft, Input
33311A Bearing (FOR INPUT SHAFT FRONT)
33311B Ring, Shaft Snap (FOR FRONT BEARING)
33311D Bearing, Input Shaft
33311G Ring, Shaft Snap (FOR FRONT BEARING)
33311T Ring, Shaft Snap (FOR INPUT SHAFT)
33318 Piece, Gear Spline, NO.5
33321 Shaft, Output
33321A Bearing (FOR OUTPUT SHAFT REAR)
33321B Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
33321C Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
33321D Ring, Shaft Snap (FOR CLUTCH HUB SET)
33321G Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321H Shim (FOR OUTPUT SHAFT REAR BEARING)
33321M Ring, Shaft Snap (FOR BEARING)
33321N Bearing (FOR OUTPUT SHAFT FRONT)
33321T Spacer (FOR OUTPUT SHAFT)
33321V Bearing (FOR OUTPUT SHAFT CENTER)
33326 Plate, Bearing Lock
33327 Sleeve, Transmission Hub, NO.4
33331 Gear, Reverse
33331A Bearing (FOR REVERSE GEAR)
33332 Gear, 2ND
33332B Bearing, Needle Roller (FOR 2ND GEAR)
33333 Gear, 3RD
33333A Bearing, Needle Roller (FOR 3RD GEAR)
33333D Spacer (FOR 3RD GEAR)
33335 Gear, 1ST
33335B Spacer(FOR 1ST GEAR BEARING)
33335C Bearing, Needle Roller(FOR 1ST GEAR)
33336 Gear, 5TH
33336A Bearing, Needle Roller (FOR 5TH GEAR)
33337 Gear Sub-assy, 6TH
33337A Bearing, Needle Roller (FOR 6TH GEAR)
33337B Spacer (FOR 6TH GEAR)
33338C Ball, Reverse Shift Restrict
33342A Pin, Straight (FOR GEAR THRUST WASHER)
33342B Ring, Shaft Snap (FOR GEAR THRUST WASHER)
33342C Washer, 3RD Gear Thrust
33348 Washer, 1ST Gear Thrust
33348A Pin OR Ball (FOR 1ST GEAR THRUST WASHER)
33349 Washer, 5TH Gear Thrust
33349C Pin (FOR 5TH GEAR THRUST WASHER)
33352B Hub, Transmission Clutch, NO.4
33354A Race, Reverse Gear Bearing, Inner
33361 Hub, Transmission Clutch, NO.1
33361B Ring, Shaft Snap (FOR CLUTCH HUB NO.1)
33362 Hub, Transmission Clutch, NO.2
33362A Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
33363 Sleeve, Transmission Hub, NO.1
33364 Sleeve, Transmission Hub, NO.2
33365 Key, Synchromesh Shifting, NO.1
33365A Spring, Compression
33366 Key, Synchromesh Shifting, NO.2
33366D Spring, Compression
33368 Ring, Synchronizer, NO.2
33369 Ring, Synchronizer, NO.3
33369B Ring, Synchronizer, NO.4
33384A Ring, Synchronizer, Outer NO.3
33387A Ring, Reverse Synchronizer
33392 Spring, Synchromesh Shifting Key, NO.3
33393 Hub, Transmission Clutch, NO.3
33394 Key, Synchromesh Shifting, NO.3
33394B Key, Synchromesh Shifting, NO.3
33395 Sleeve, Transmission Hub, NO.3
33402 Gear Sub-assy, Reverse Idler
33411A Bearing OR Roller(FOR COUNTER GEAR FRONT)
33411D Ring, Counter Gear Front Bearing Snap, NO.1
33411E Nut(FOR COUNTER GEAR SHAFT)
33411H Bearing OR Roller(FOR COUNTER GEAR REAR)
33411P Bearing, Countershaft Center
33411Q Ring, Counter Gear Front Bearing Snap, NO.2
33411R Ring, Snap, Counter Gear Rear Bearing
33421 Gear, Counter
33421R Ring, Shaft Snap(FOR COUNTER GEAR REAR)
33424 Gear, Countershaft 2ND Speed
33425 Gear, Countershaft Reverse
33426A Gear, Countershaft, 1ST Speed
33428 Gear, Countershaft 5TH
33428B Bearing (FOR COUNTER 5TH GEAR)
33451 Shaft, Reverse Idler Gear
33451H Bolt (FOR REVERSE IDLER GEAR SHAFT)
33451J Gasket (FOR REVERSE IDLER GEAR SHAFT)
33453 Spacer, Reverse Idler Gear Shaft
33461 Gear, Reverse Idler
33461A Bearing, Reverse Idler Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
