Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02

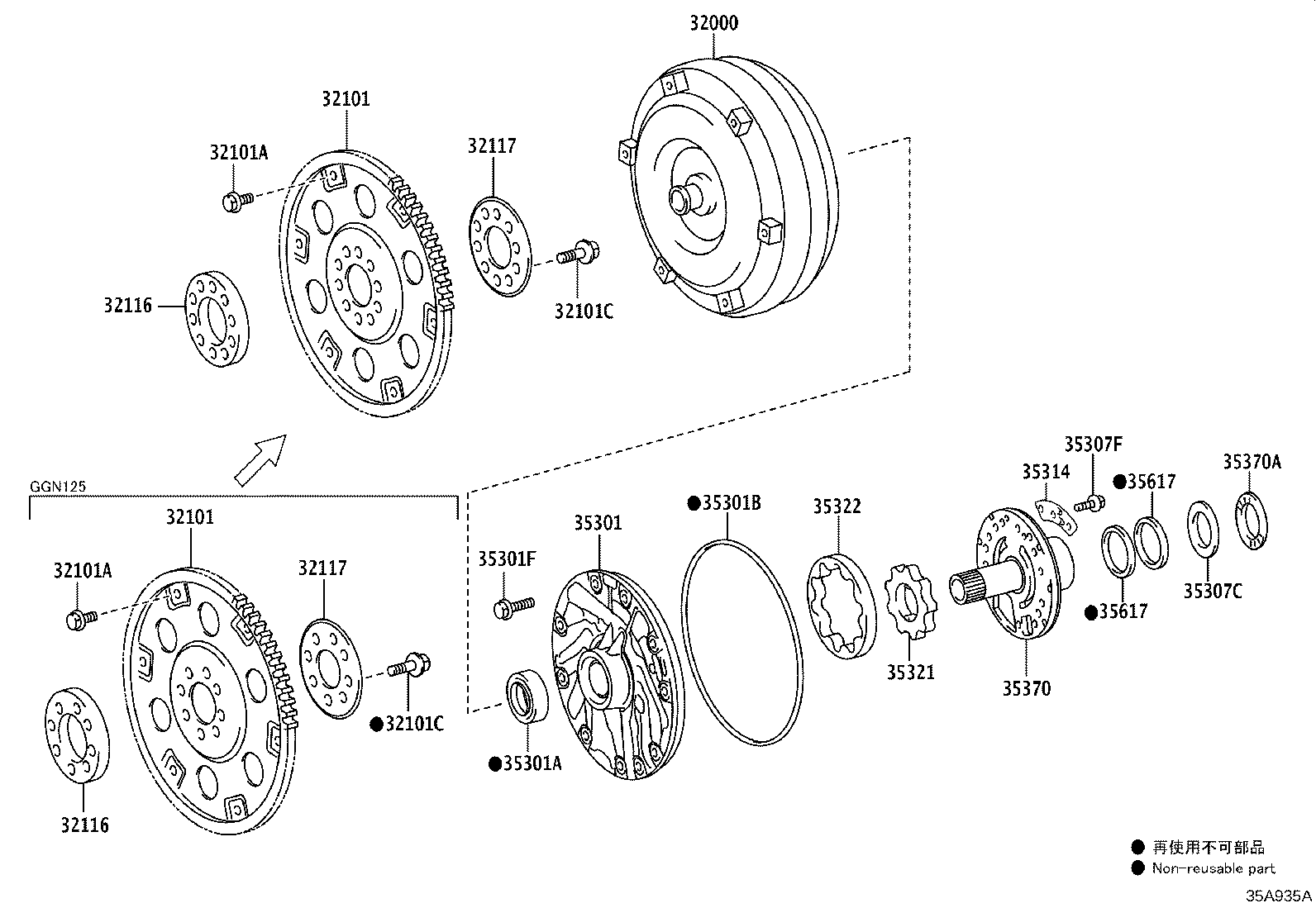

Torque Converter, Front Oil Pump & Chain (ATM)
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000 | Converter Assy, Torque |
| 32101 | Gear Sub-assy, Drive Plate & Ring |
| 32101A | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101C | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32111 | Plate, Pump Impeller Drive |
| 32116 | Spacer, Drive Plate, Front |
| 32117 | Spacer, Drive Plate, Rear |
| 35301 | Body Sub-assy, Front Oil Pump |
| 35301A | Seal, Oil (FOR FRONT OIL PUMP) |
| 35301B | Ring, O (FOR FRONT OIL PUMP BODY) |
| 35301F | Bolt (FOR FRONT OIL PUMP SETTING) |
| 35307C | Race, Thrust Bearing (FOR STATOR SHAFT) |
| 35307F | Bolt (FOR STATOR SHAFT) |
| 35314 | Plate, Front Oil Pump |
| 35321 | Gear, Front Oil Pump Drive |
| 35322 | Gear, Front Oil Pump Driven |
| 35370 | Shaft Assy, Stator |
| 35370A | Bearing, Thrust Needle Roller(FOR STATOR SHAFT) |
| 35617 | Ring, Clutch Drum Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
