Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

24 part groups · 5 illustrations

Illustrations

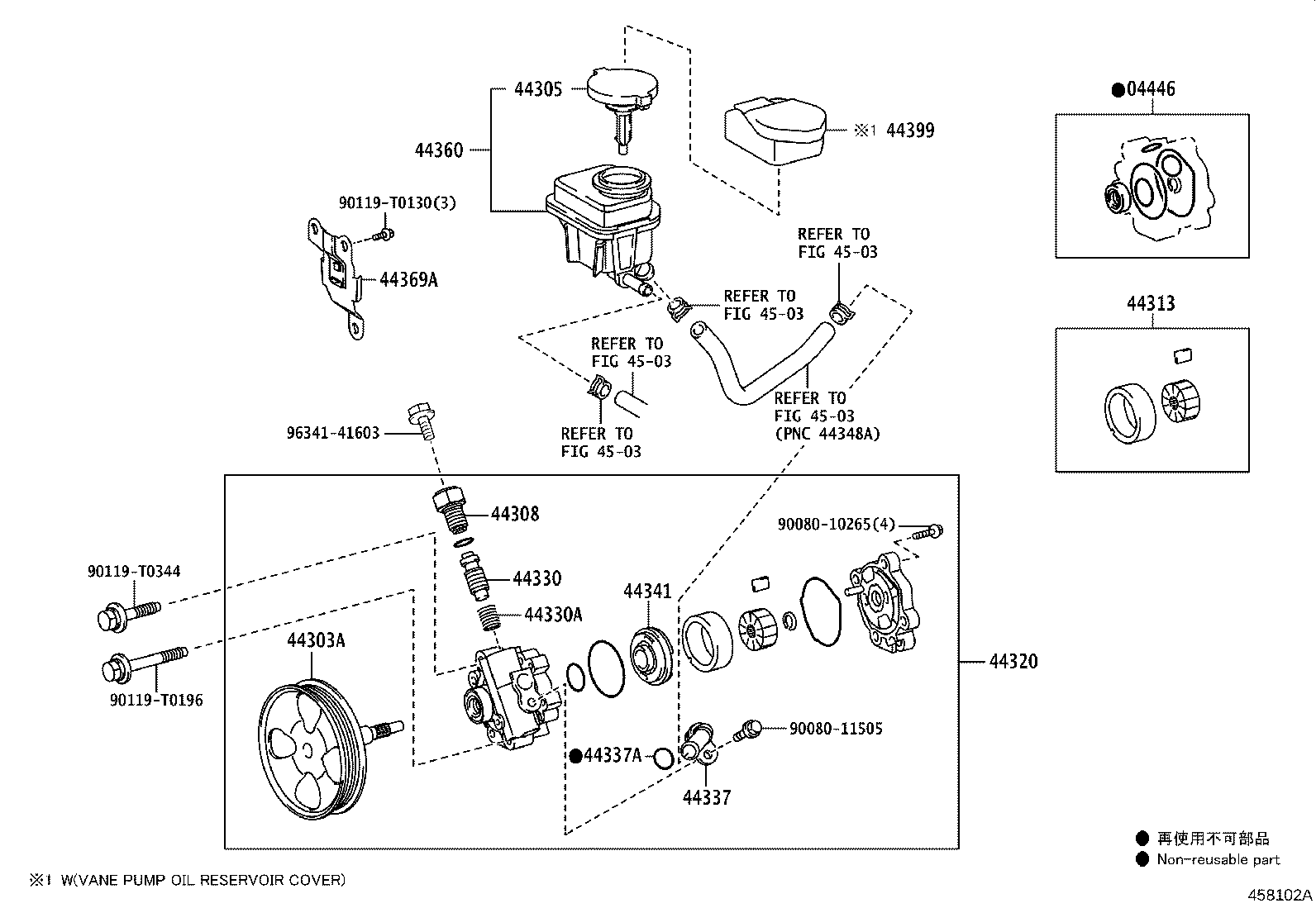

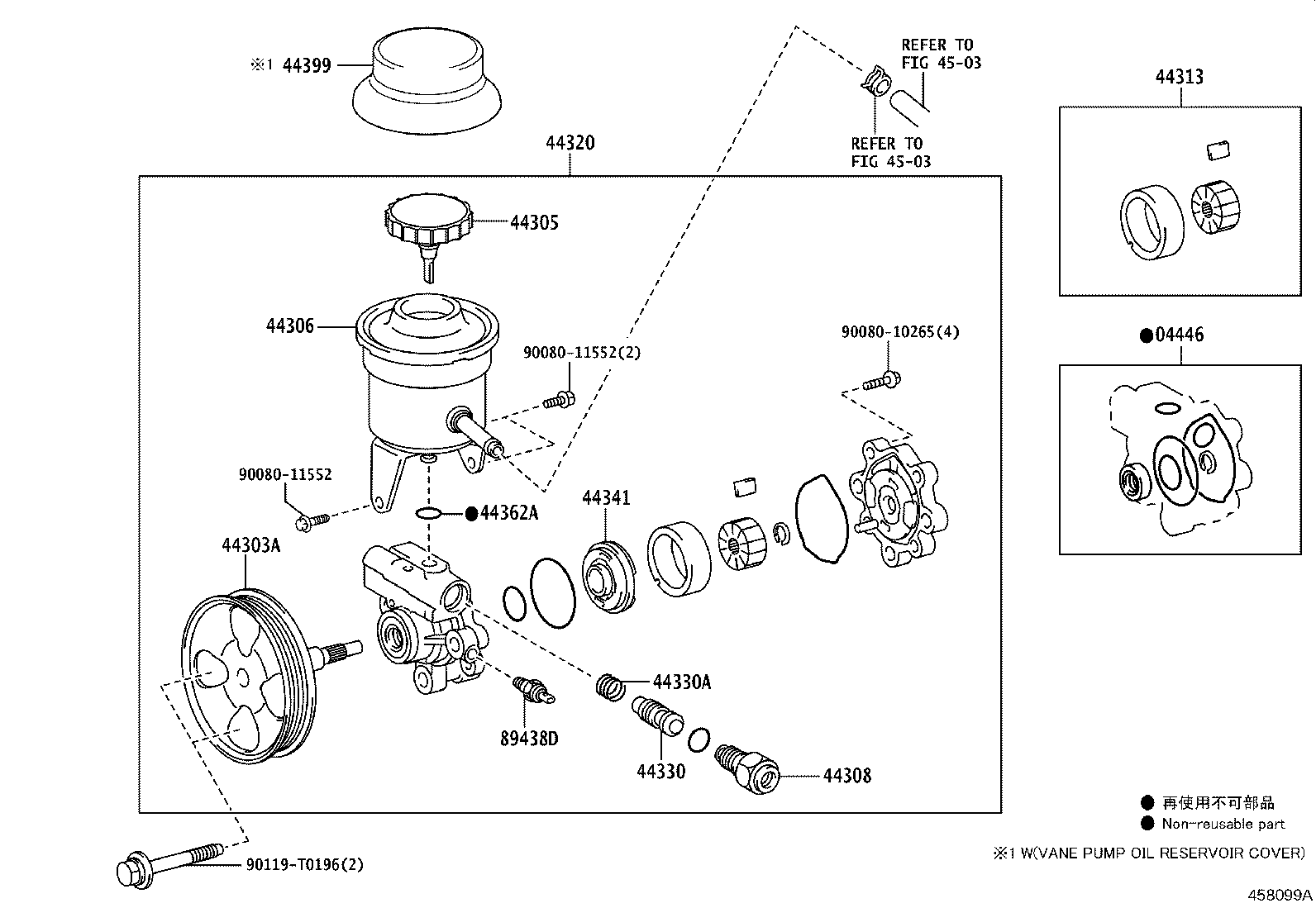

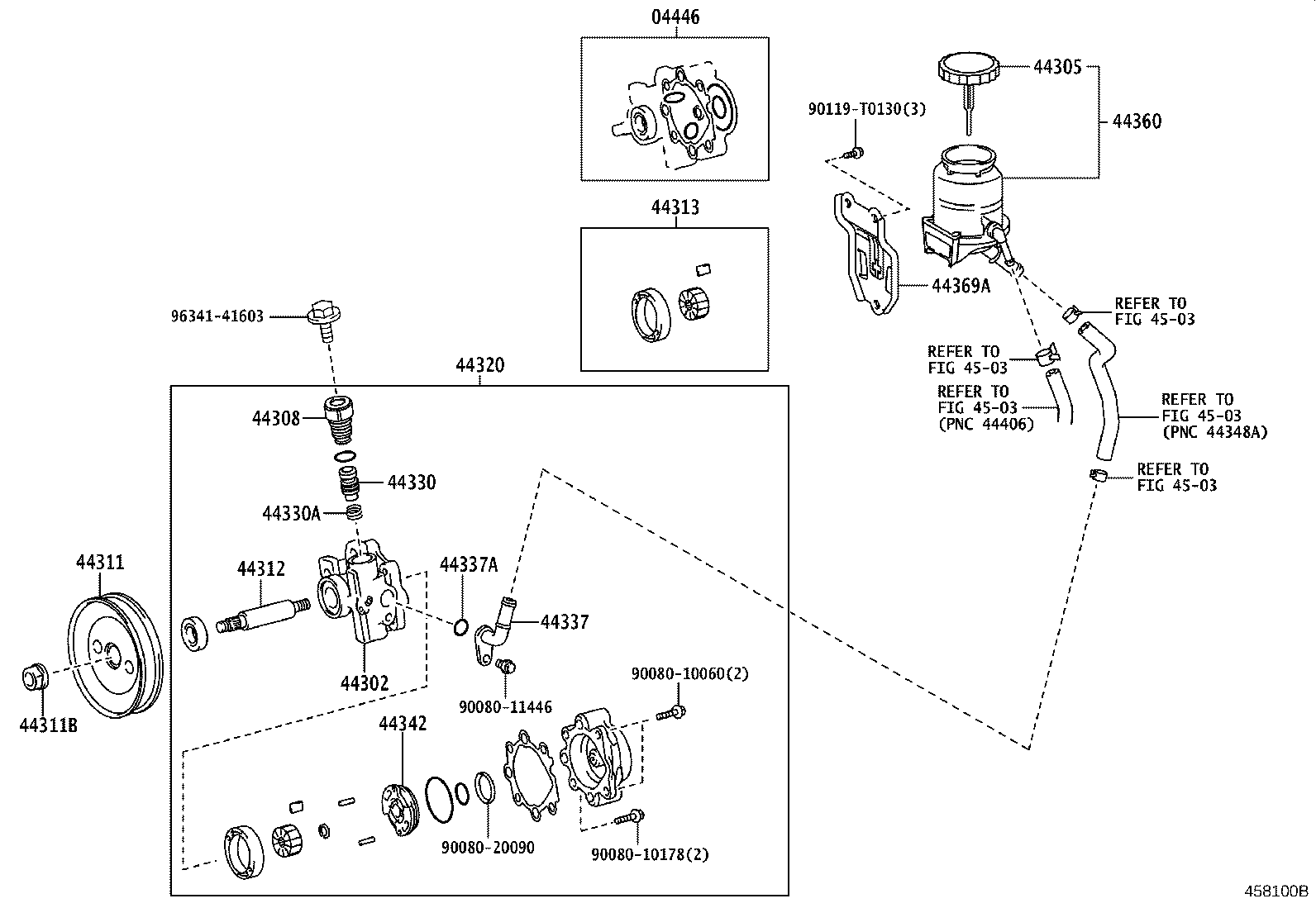

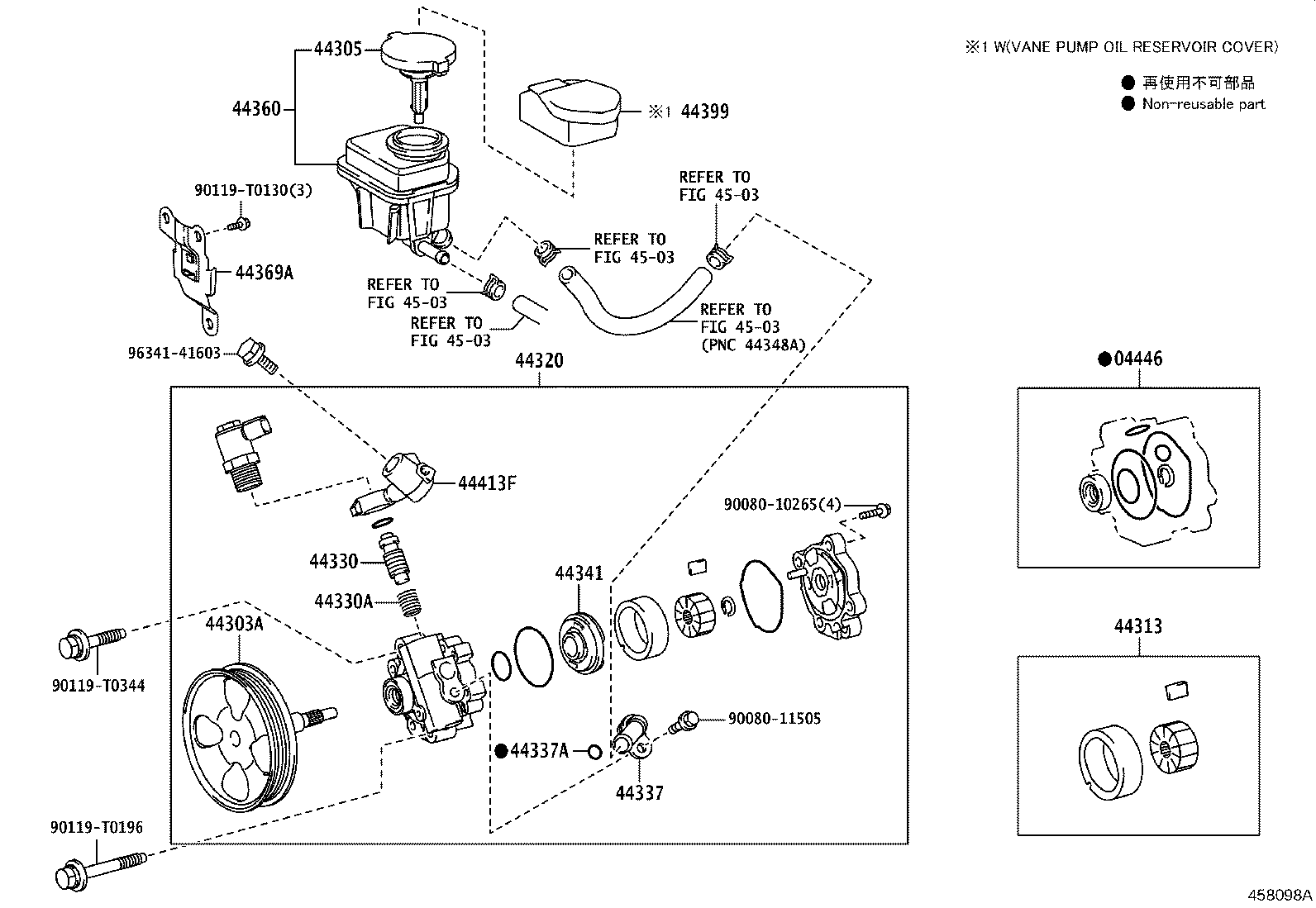

Figure 458097A 458097A 2021-08 → — Figure 458098A 458098A 2021-08 → — Figure 458102A 458102A 2021-08 → — Figure 458099A 458099A 2021-08 → — Figure 458100B 458100B 2021-09 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302 Housing Sub-assy, Vane Pump, Front
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44308 Union Sub-assy, Pressure Port
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44312 Shaft, Vane Pump
44313 Rotor, Vane Pump
44320 Pump Assy, Vane
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338 Union, Pressure Port
44341 Plate, Vane Pump Side, Front
44342 Plate, Vane Pump Side, Rear
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44369A Bracket, Oil Reservoir, NO.1
44399 Cover, Vane Pump Oil Reservoir
44413F Tube, Pressure Feed, NO.2
89438D Switch, Power Steering Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
