Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

27 part groups · 4 illustrations

Illustrations

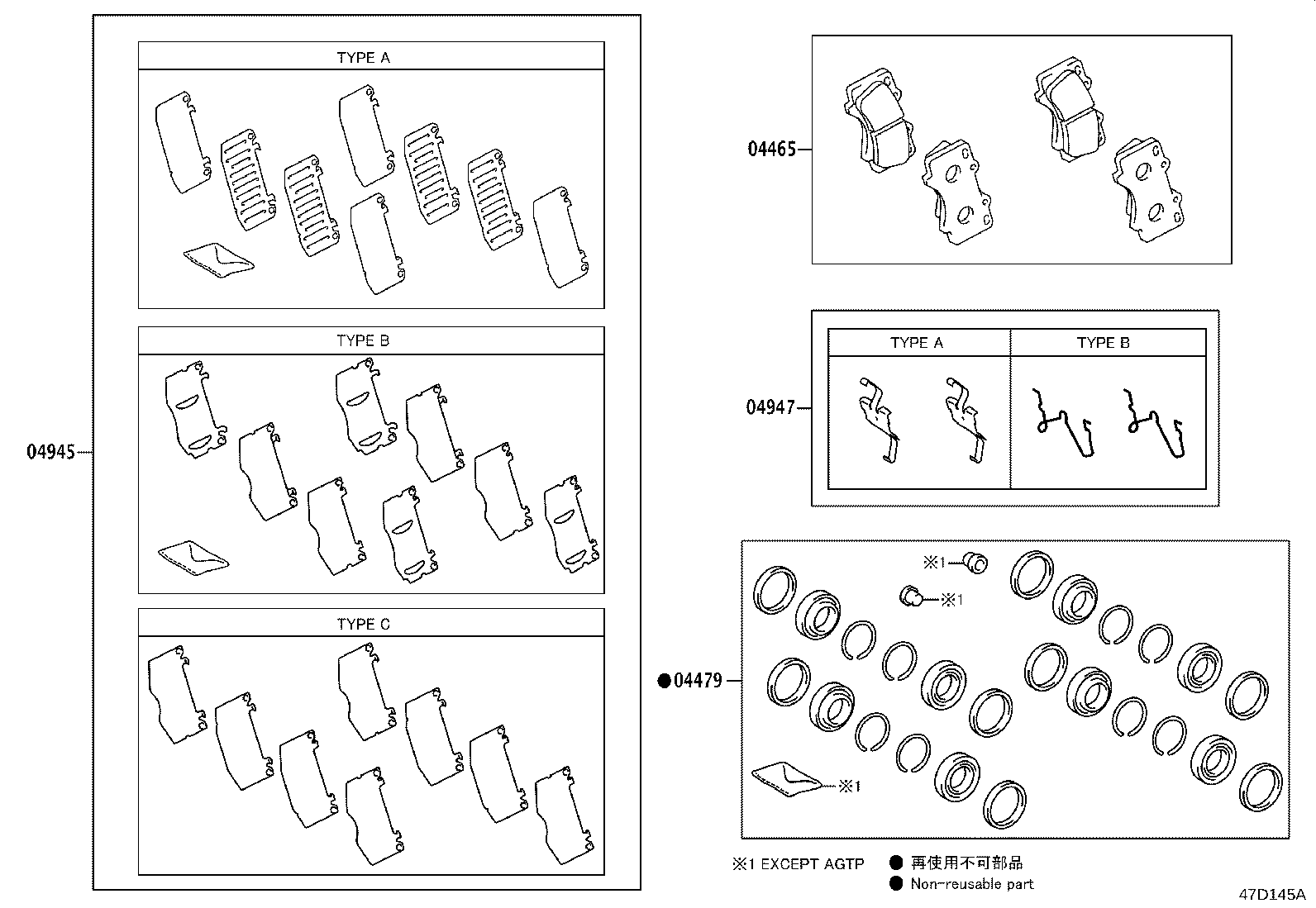

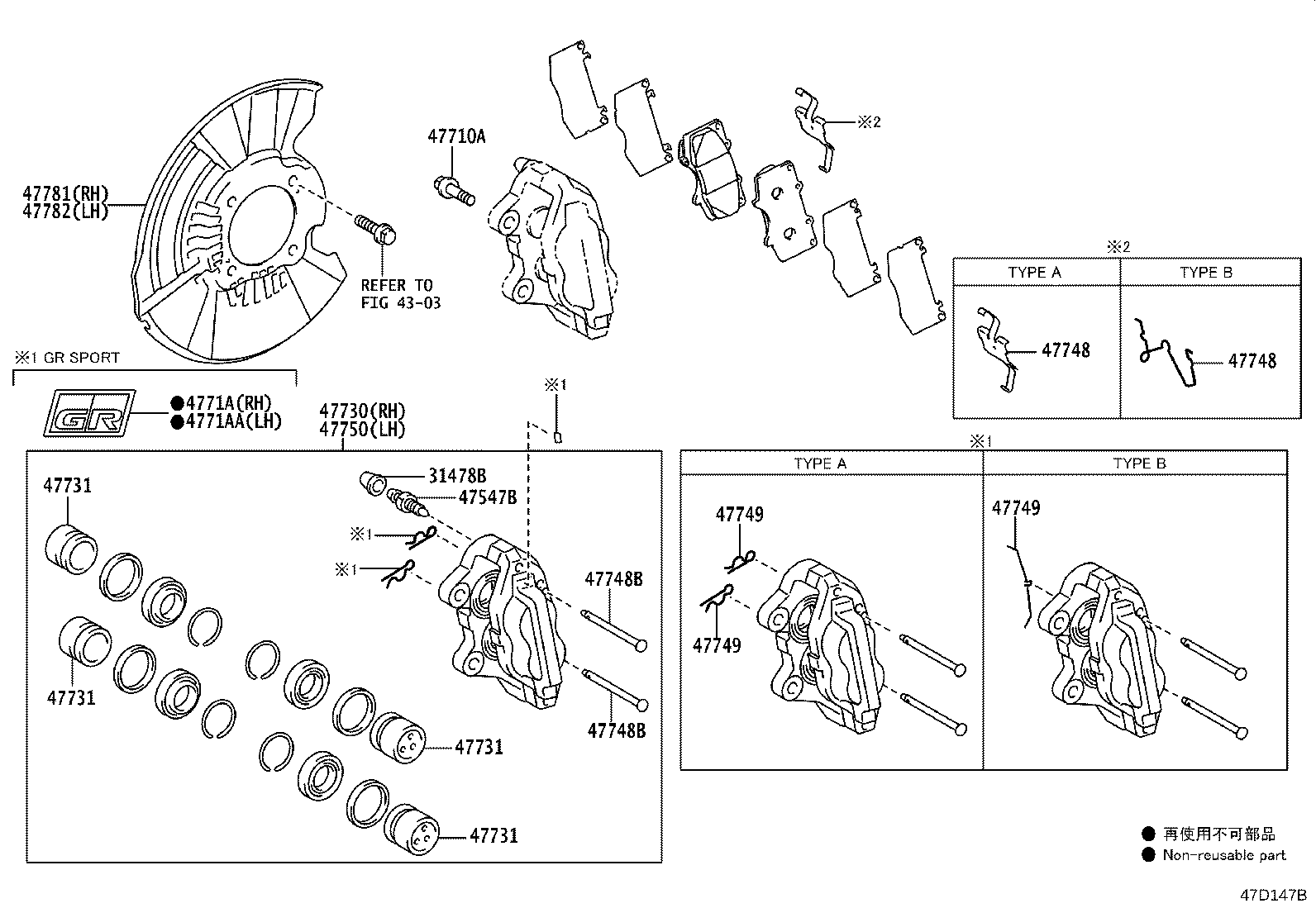

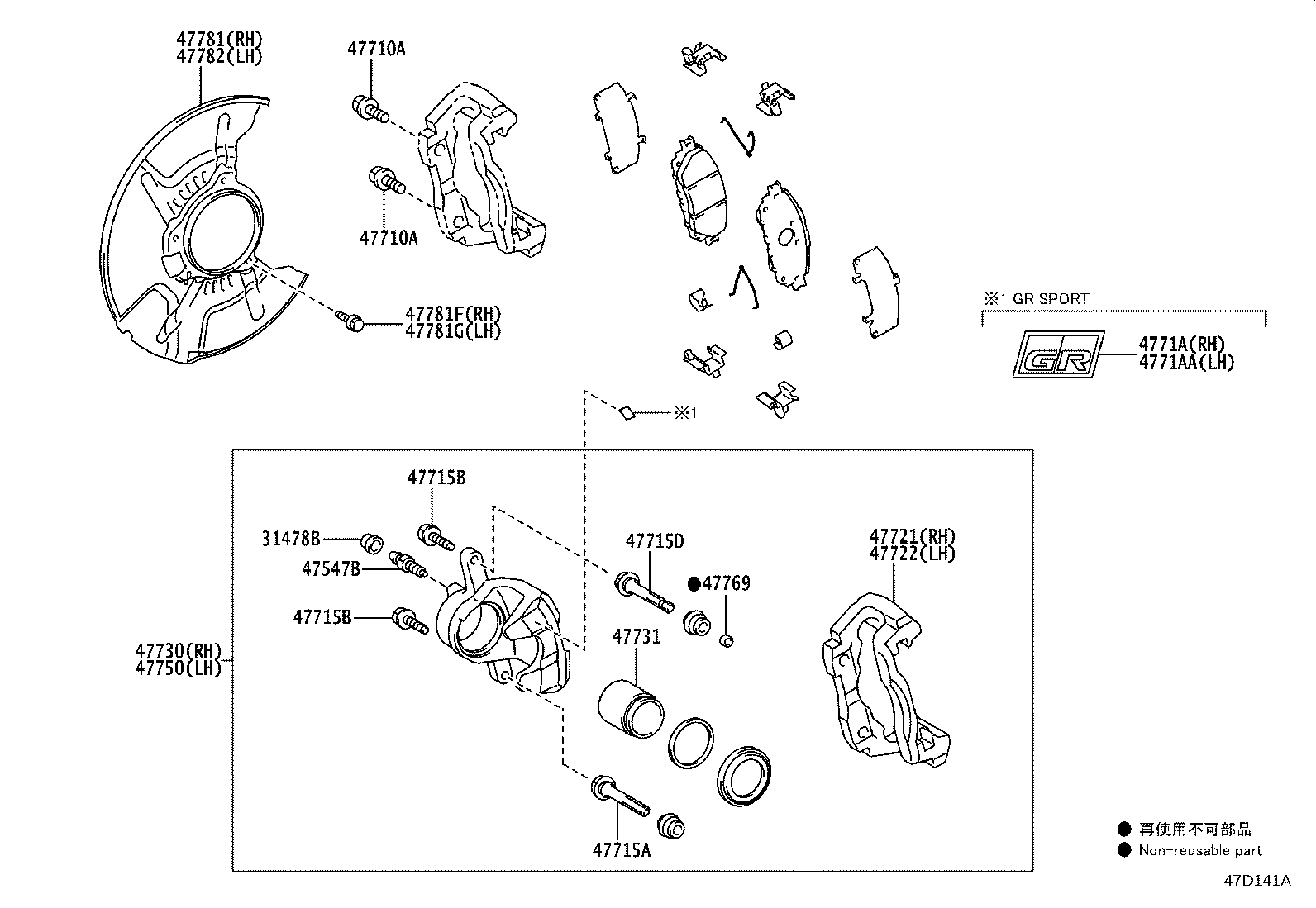

Figure 47D139A 47D139A 2021-08 → — Figure 47D141A 47D141A 2021-08 → — Figure 47D145A 47D145A 2021-09 → — Figure 47D147B 47D147B 2021-08 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
04951 Bush Kit, Disc Brake, Front
04952 Pin Kit, Front Disc Brake Cylinder Slide
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715D Pin, Front Disc Brake Cylinder Slide, NO.2
4771A Ornament, Brake Caliper Mark, RH
4771AA Ornament, Brake Caliper Mark, LH
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47749 Clip, Pin Hold
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47781F Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781G Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
