Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

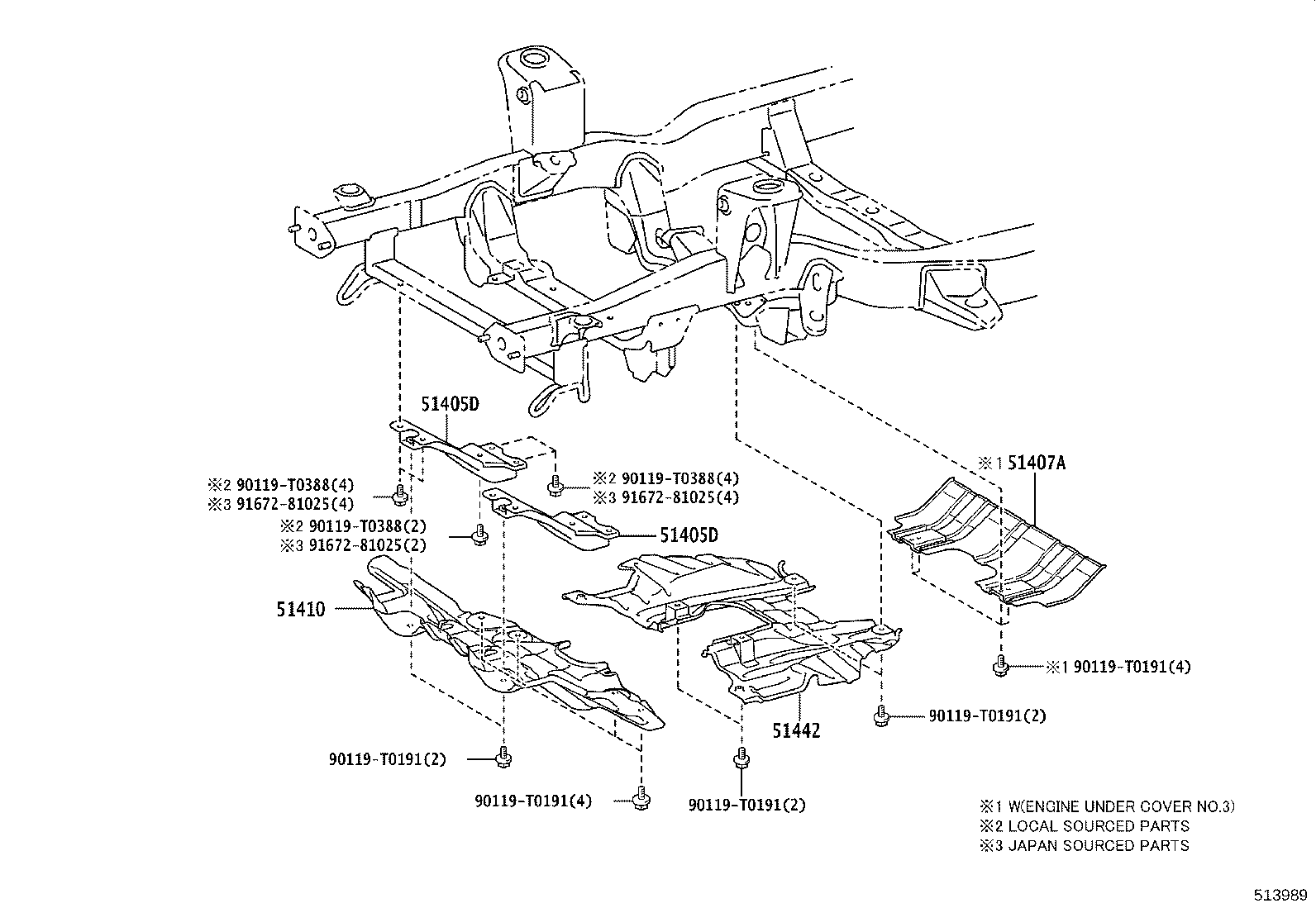

Figure 513988A 513988A 2021-08 → — Figure 513989 513989 2021-08 → —

Part groups

PNCDescription
45057A Protector Sub-assy, Rack Boot, NO.1 RH
45058A Protector Sub-assy, Rack Boot, NO.1 LH
51405D Brace Sub-assy, Engine Under
51407A Cover Sub-assy, Engine Under, NO.3
51410 Cover Assy, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
