Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

10 part groups · 2 illustrations

Illustrations

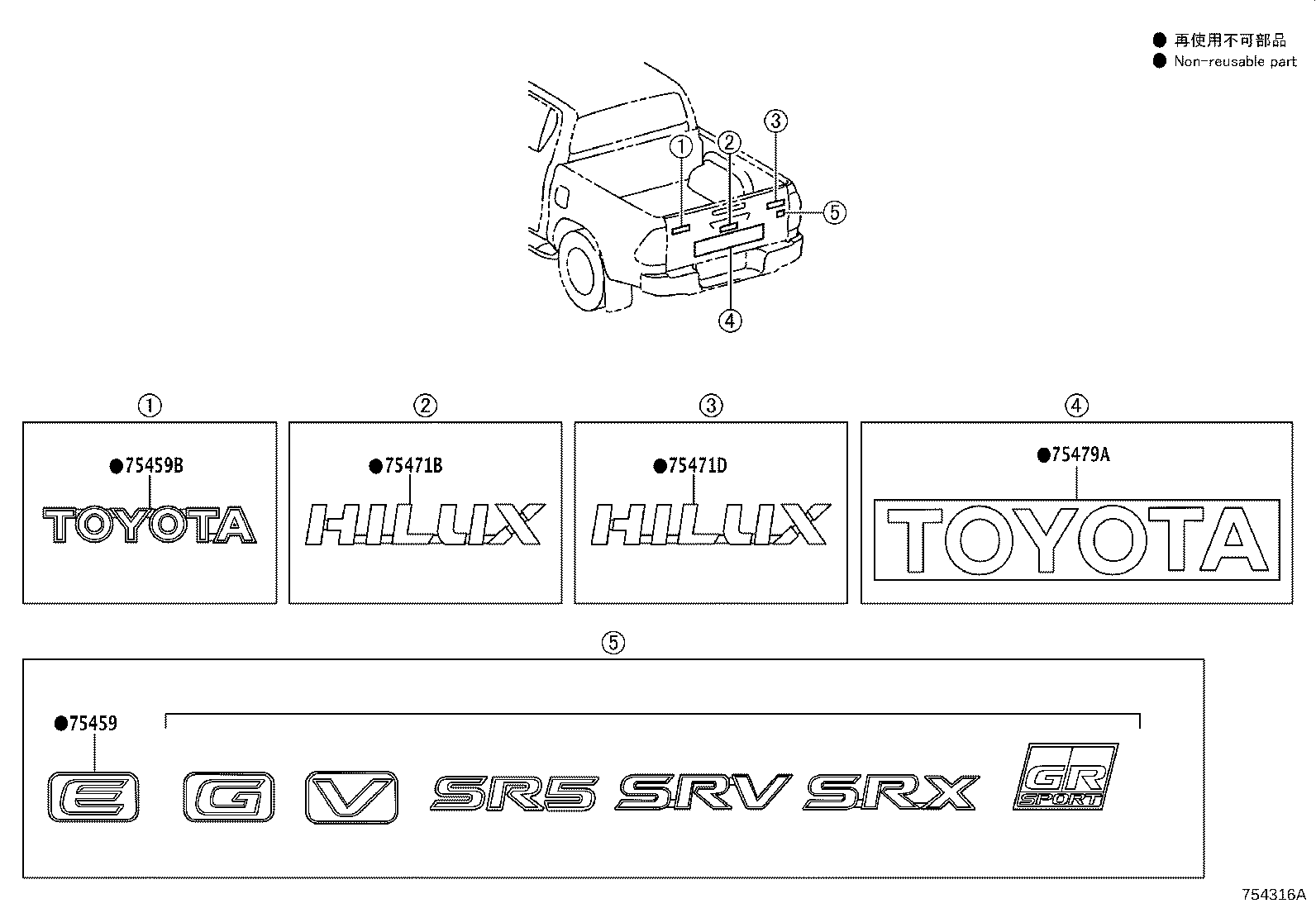

Figure 754315B 754315B 2021-08 → — Figure 754316A 754316A 2021-08 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75311A Plate, Front Name, NO.1
75312A Plate, Front Name, NO.2
75427 Plate, Front Door Name
75428B Plate, Front Door Name, NO.2
75459 Mark, Tail Gate
75459B Mark, Tail Gate, NO.2
75471B Plate, Rear Body Name, NO.1
75471D Plate, Rear Name
75479A Mark, Tail Gate, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
