Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

26 part groups · 9 illustrations

Illustrations

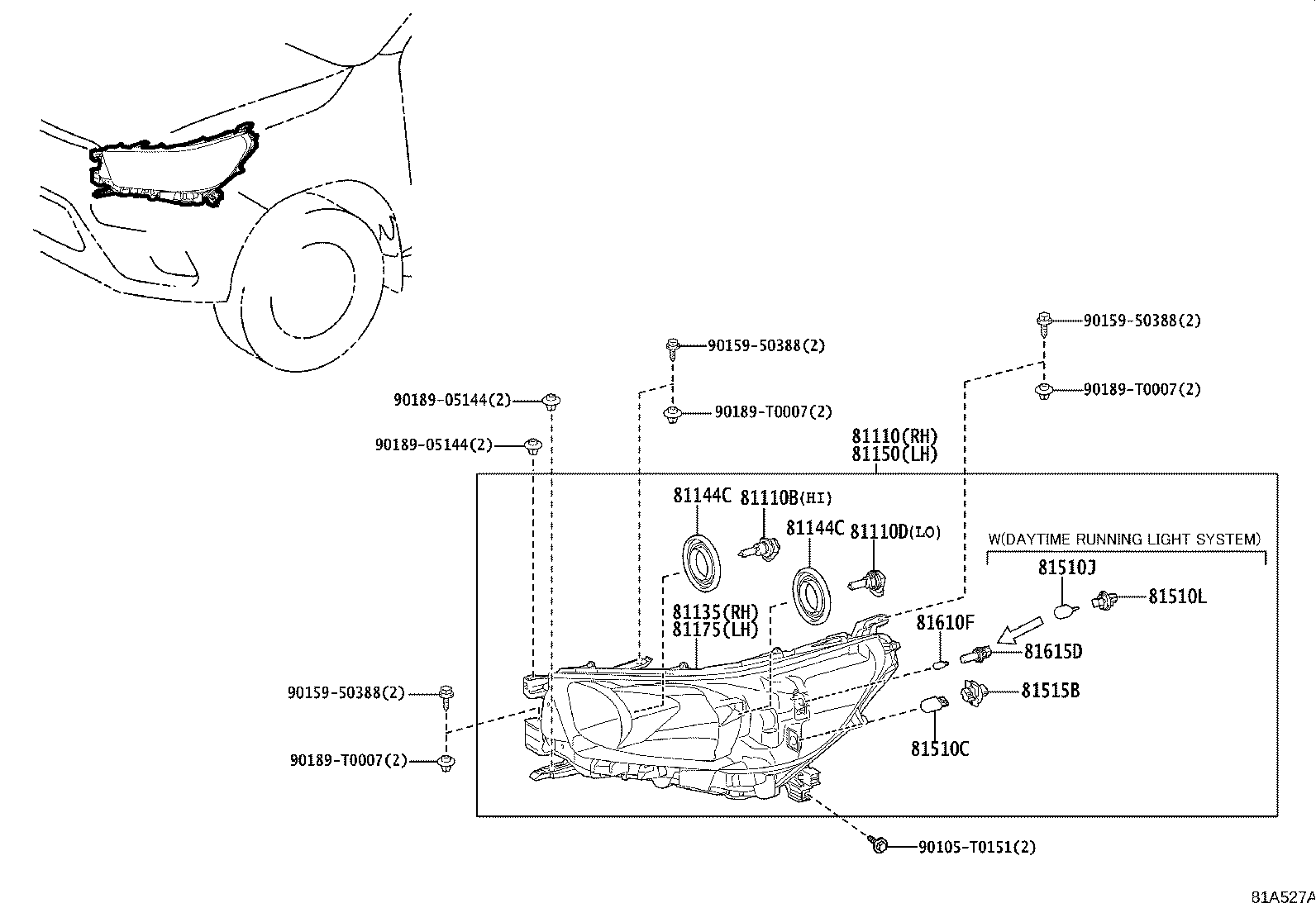

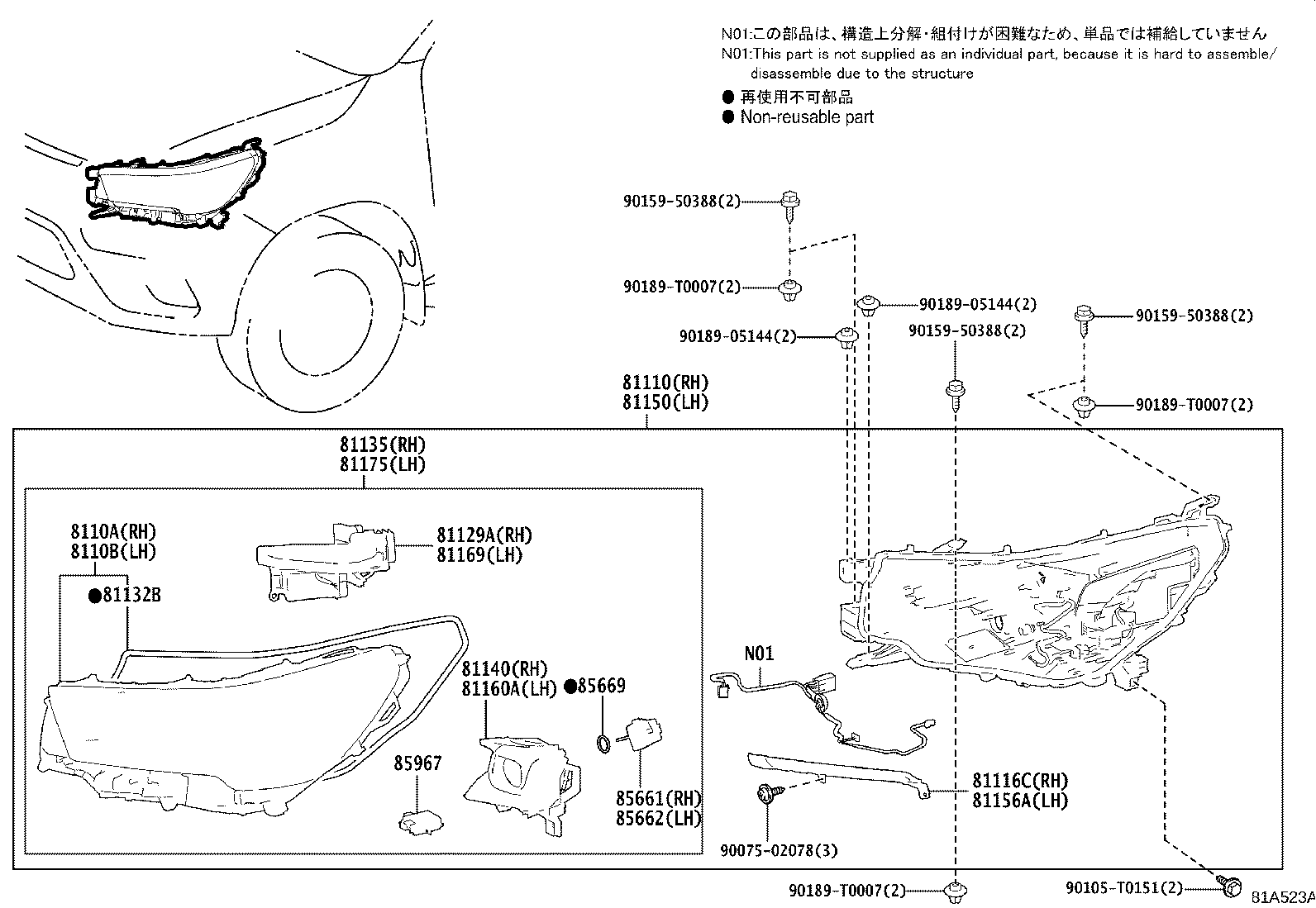

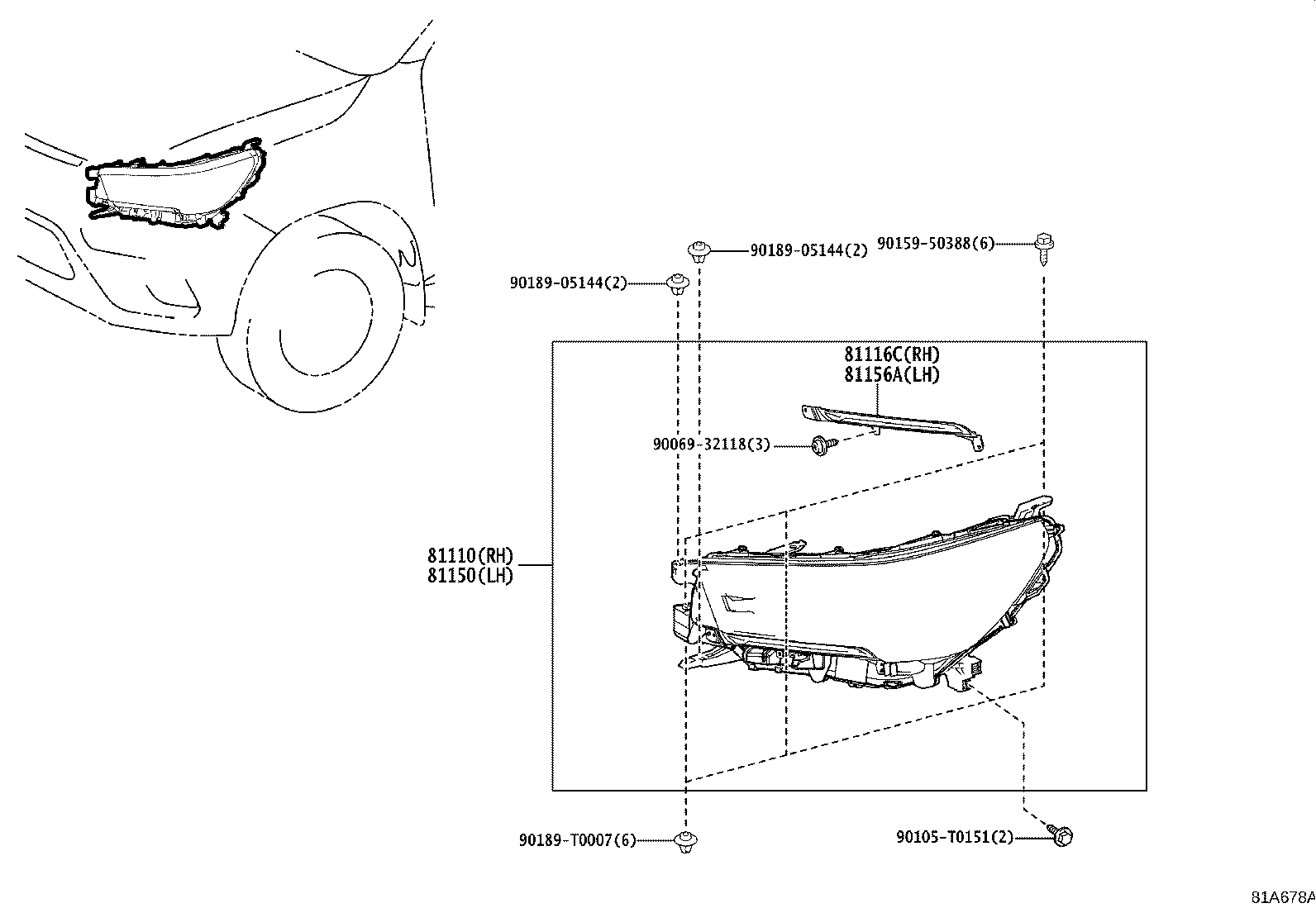

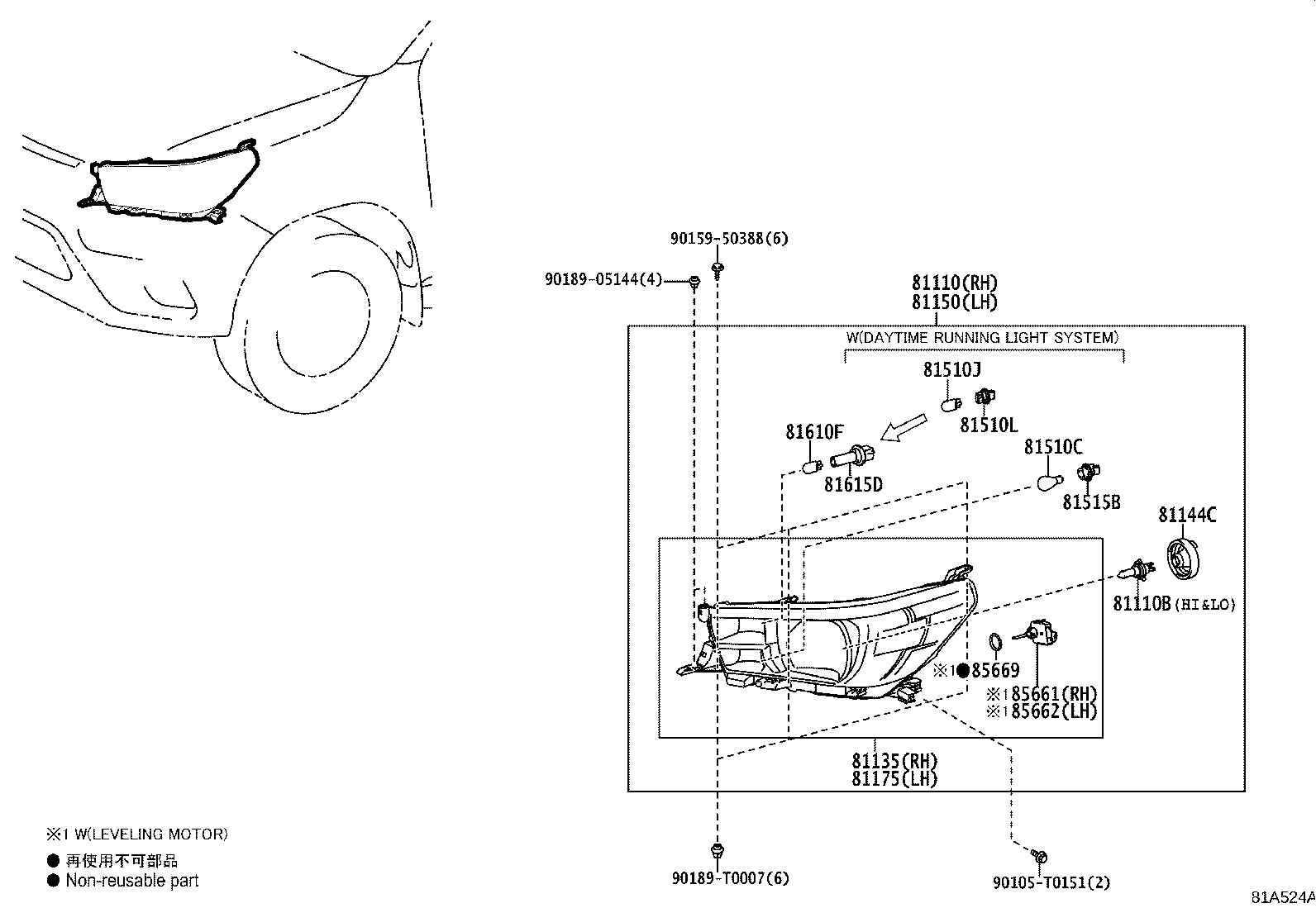

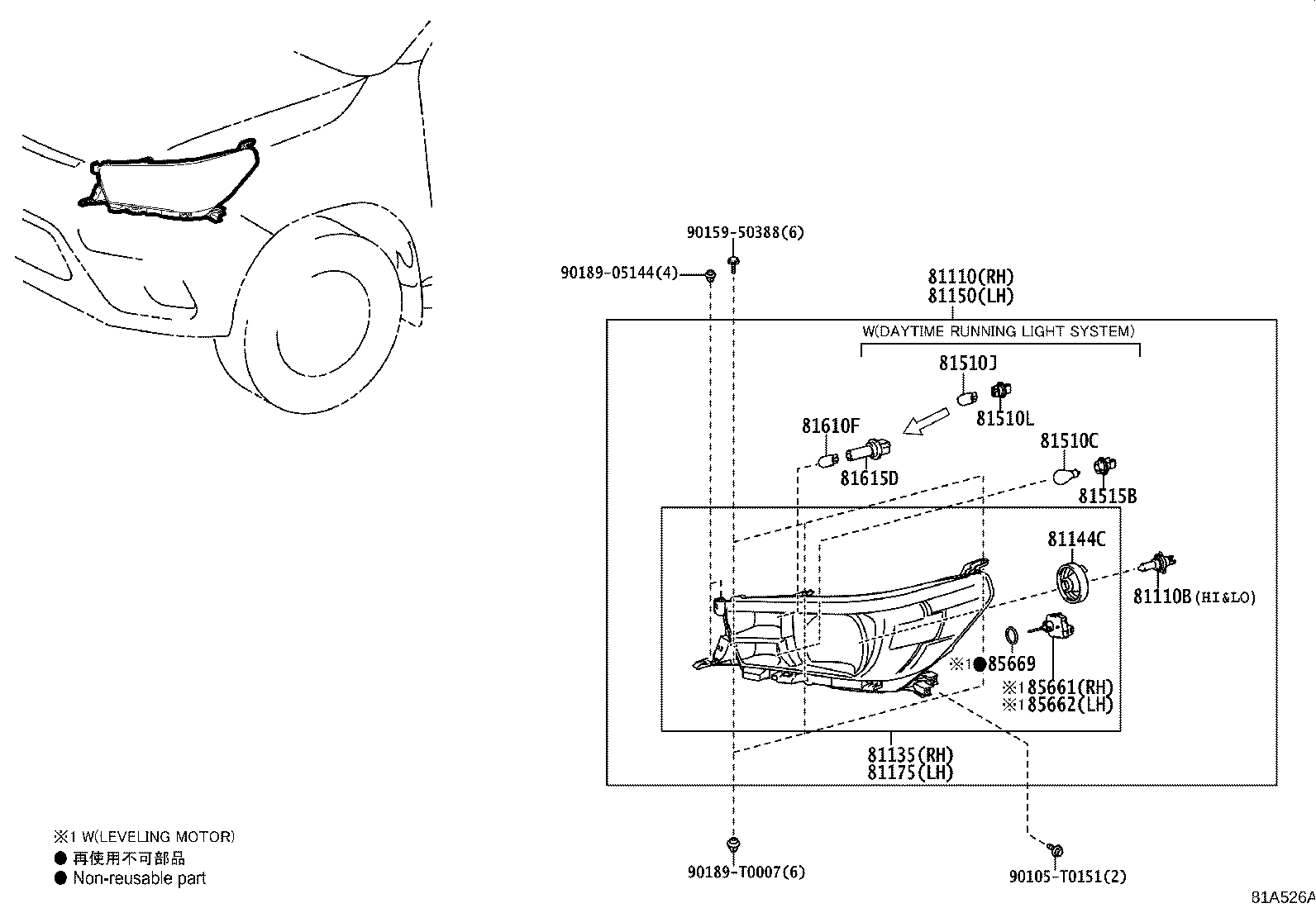

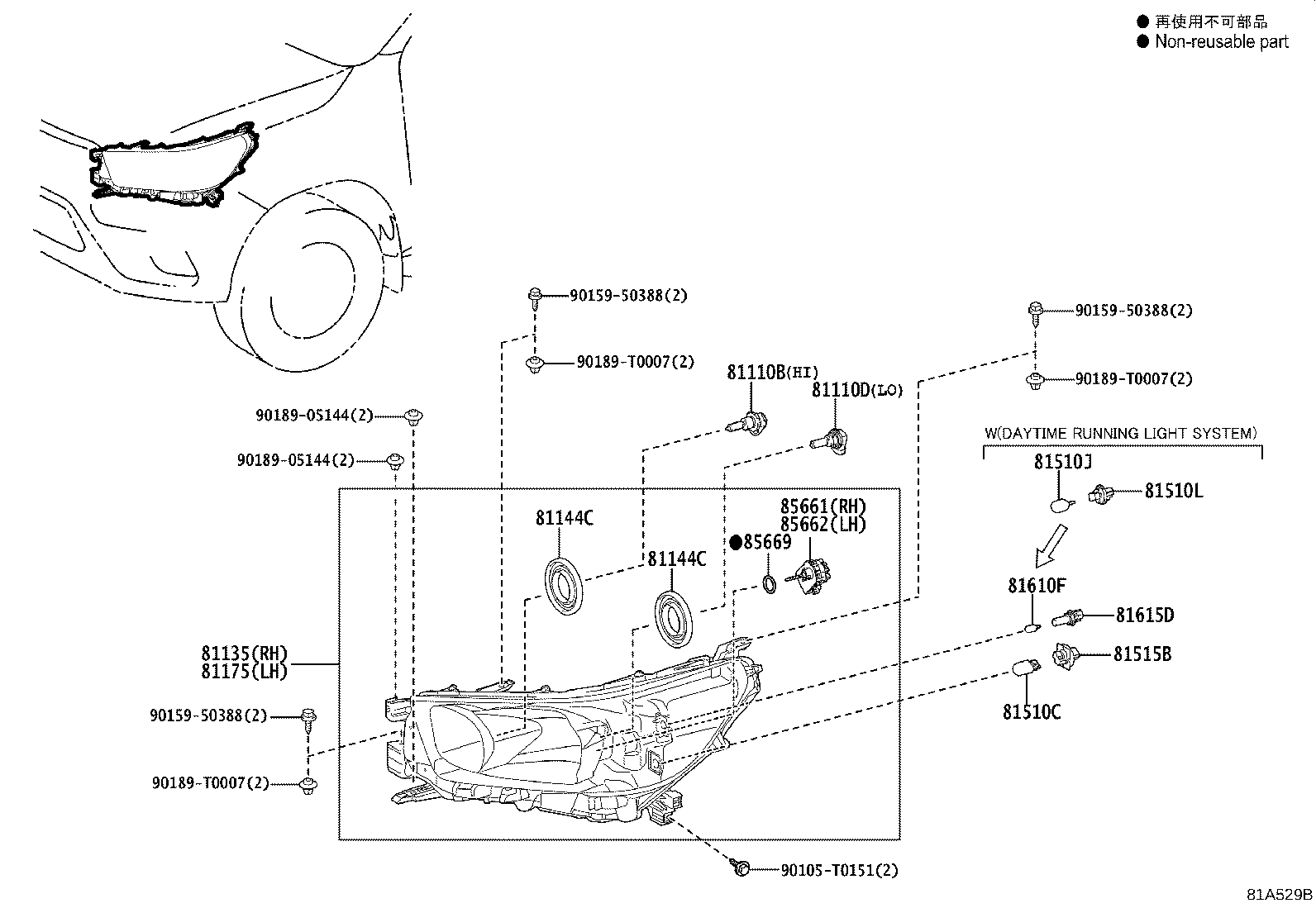

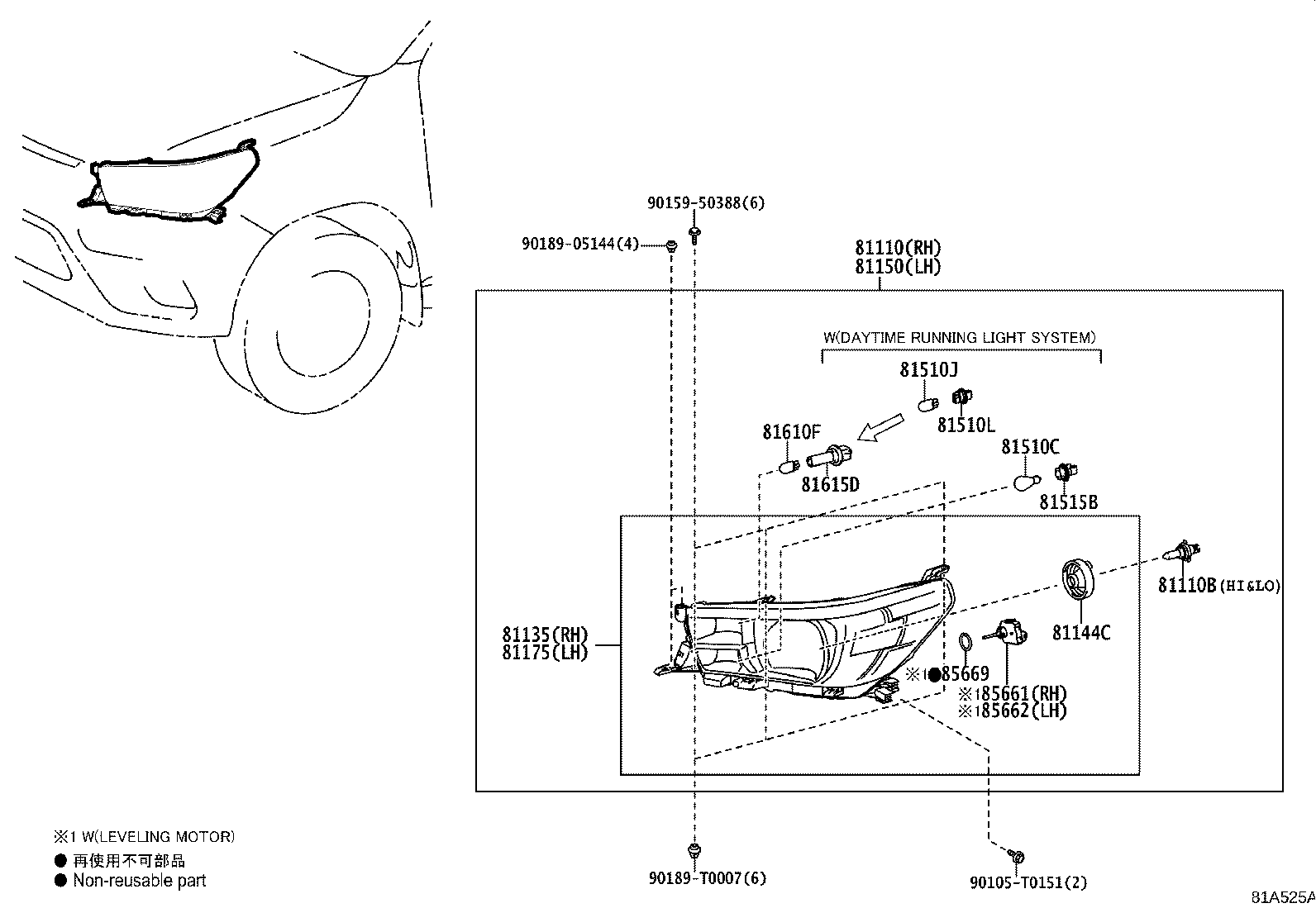

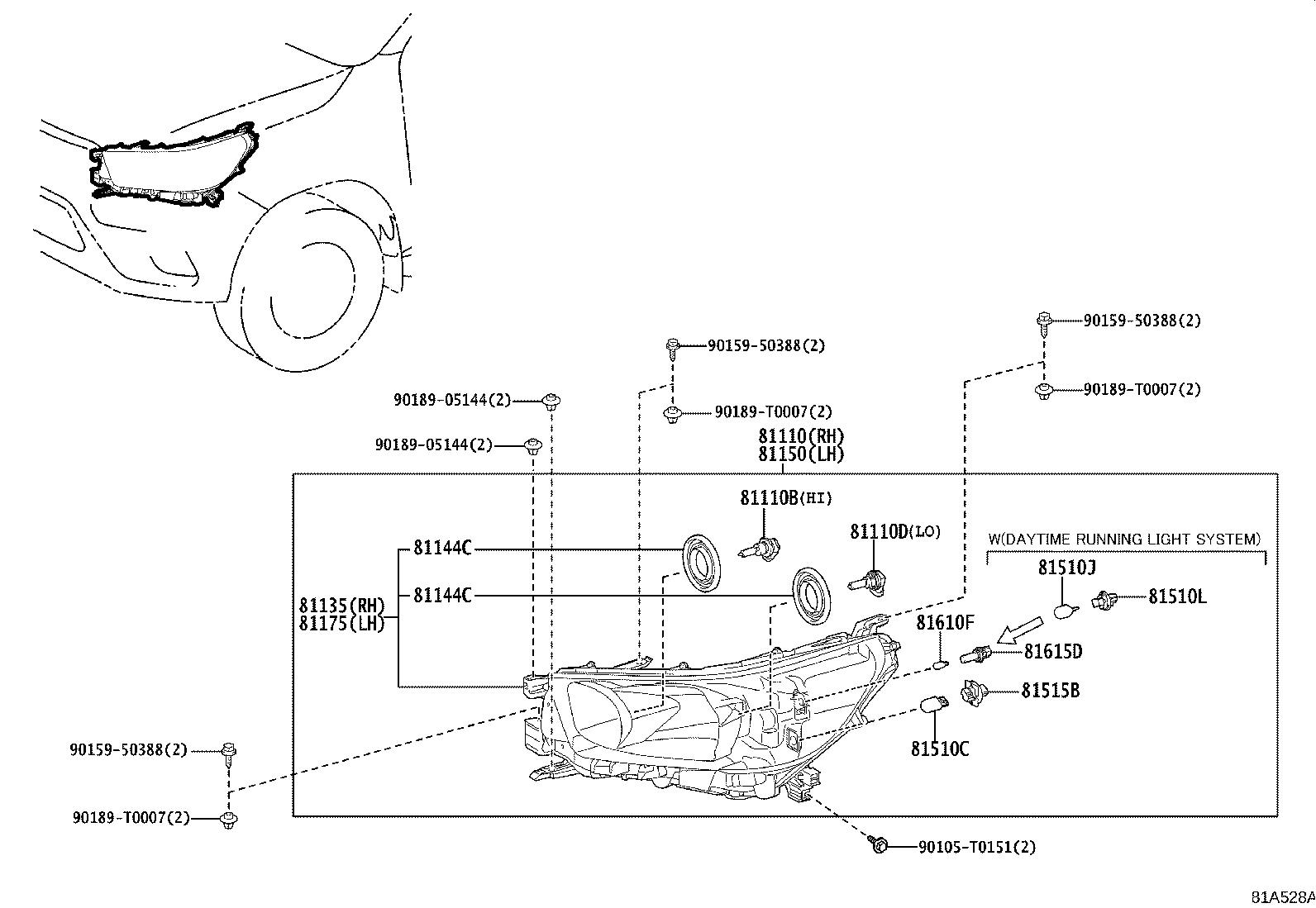

Figure 81A522B 81A522B 2021-11 → — Figure 81A523A 81A523A 2021-08 → — Figure 81A678A 81A678A 2021-09 → — Figure 81A524A 81A524A 2021-08 → — Figure 81A525A 81A525A 2021-09 → — Figure 81A526A 81A526A 2021-11 → — Figure 81A527A 81A527A 2021-08 → — Figure 81A528A 81A528A 2021-09 → — Figure 81A529D 81A529D 2021-11 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81116C Bracket, Headlamp, RH
81129A Reflector, Headlamp, RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81140 Unit Assy, Headlamp Led, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81156A Bracket, Headlamp, LH
81160A Unit Assy, Headlamp Led, LH
81169 Reflector, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510J Bulb(FOR DAYTIME RUNNING LAMP)
81510L Socket, Daytime Running Lamp
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
