Toyota Hilux (DOUBLE CAB)
2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · United States
Supported model
Data version 2022-02
Heating & Air Conditioning - Compressor
10 part groups · 7 illustrations
Part groups

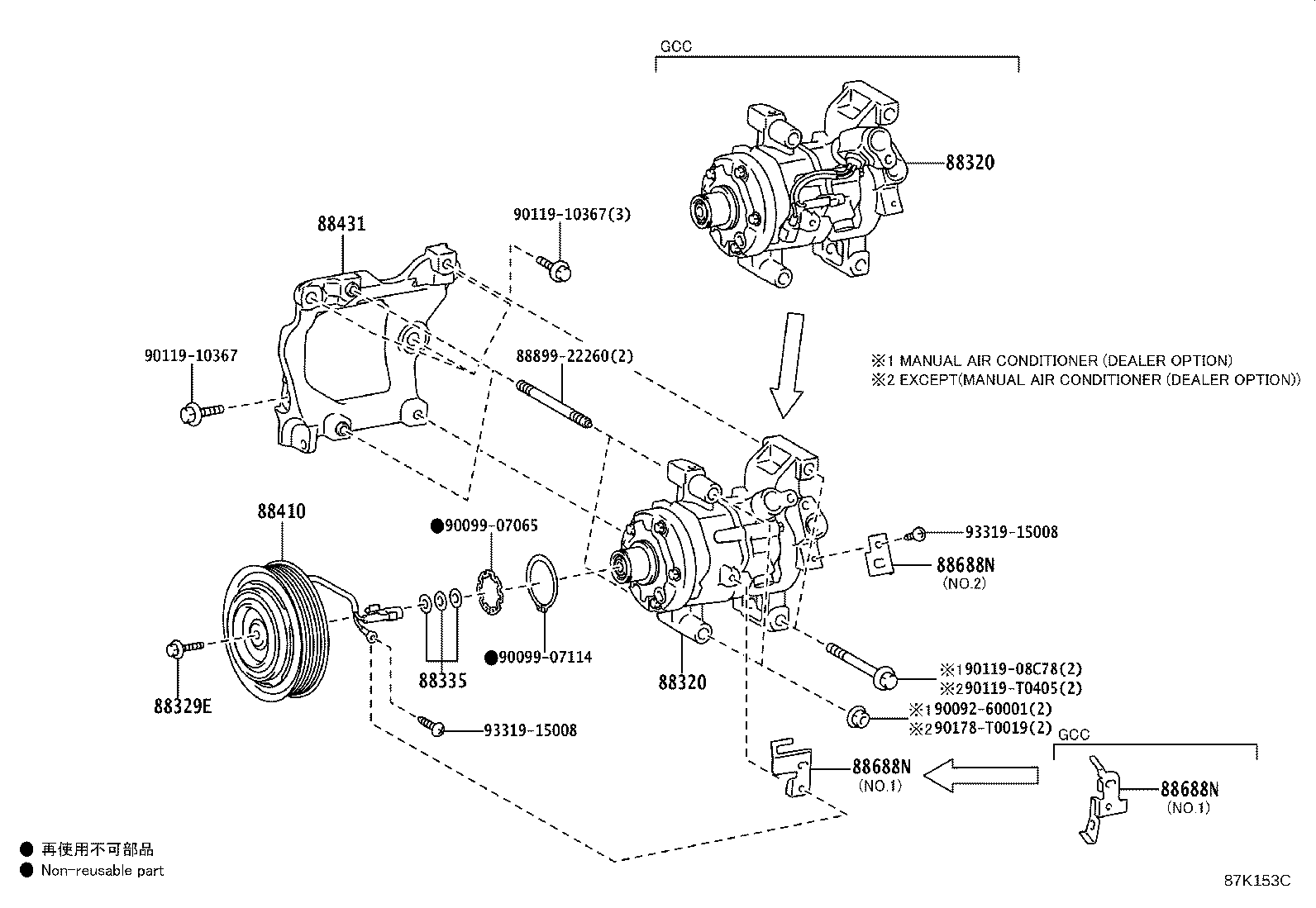

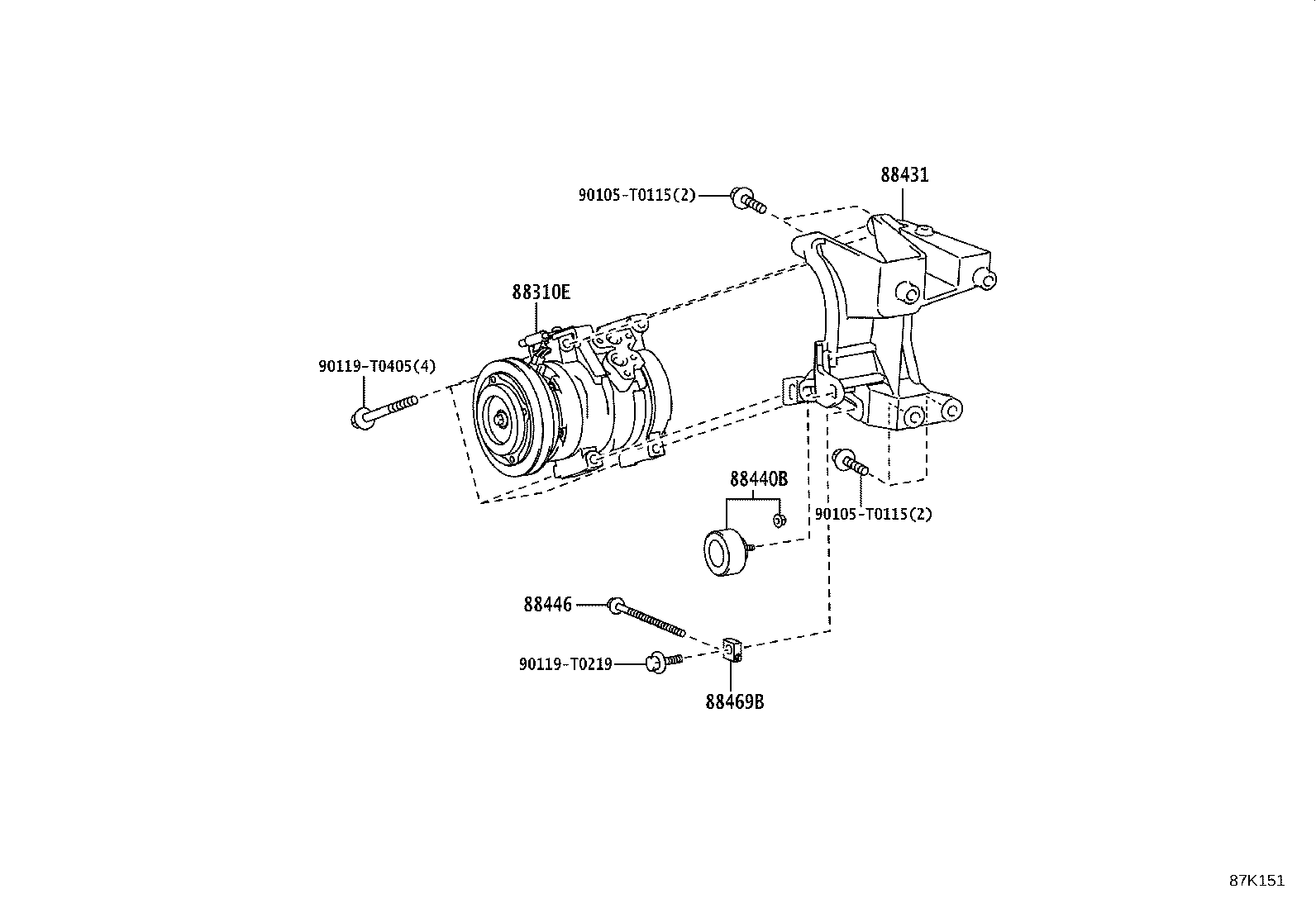

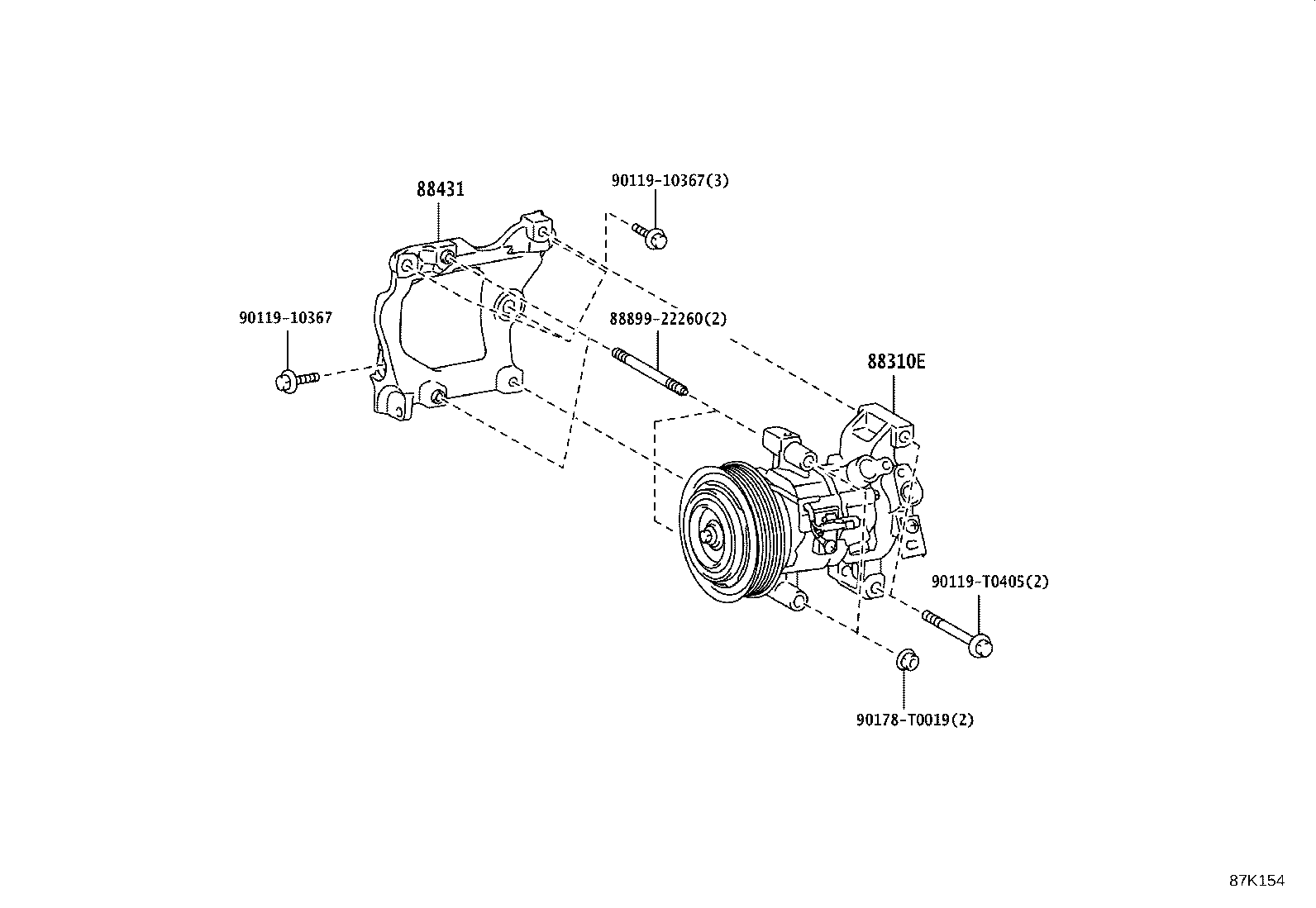

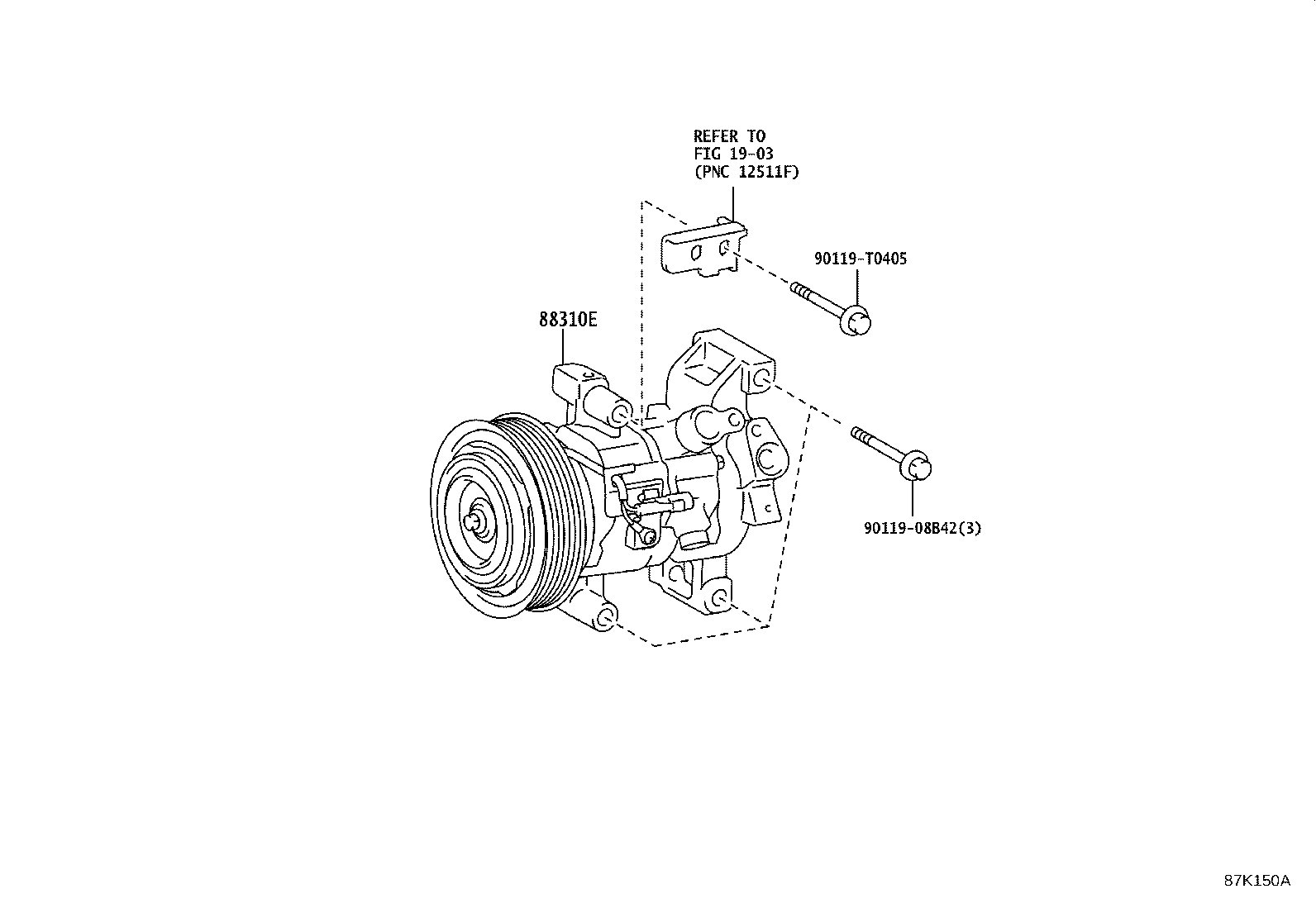

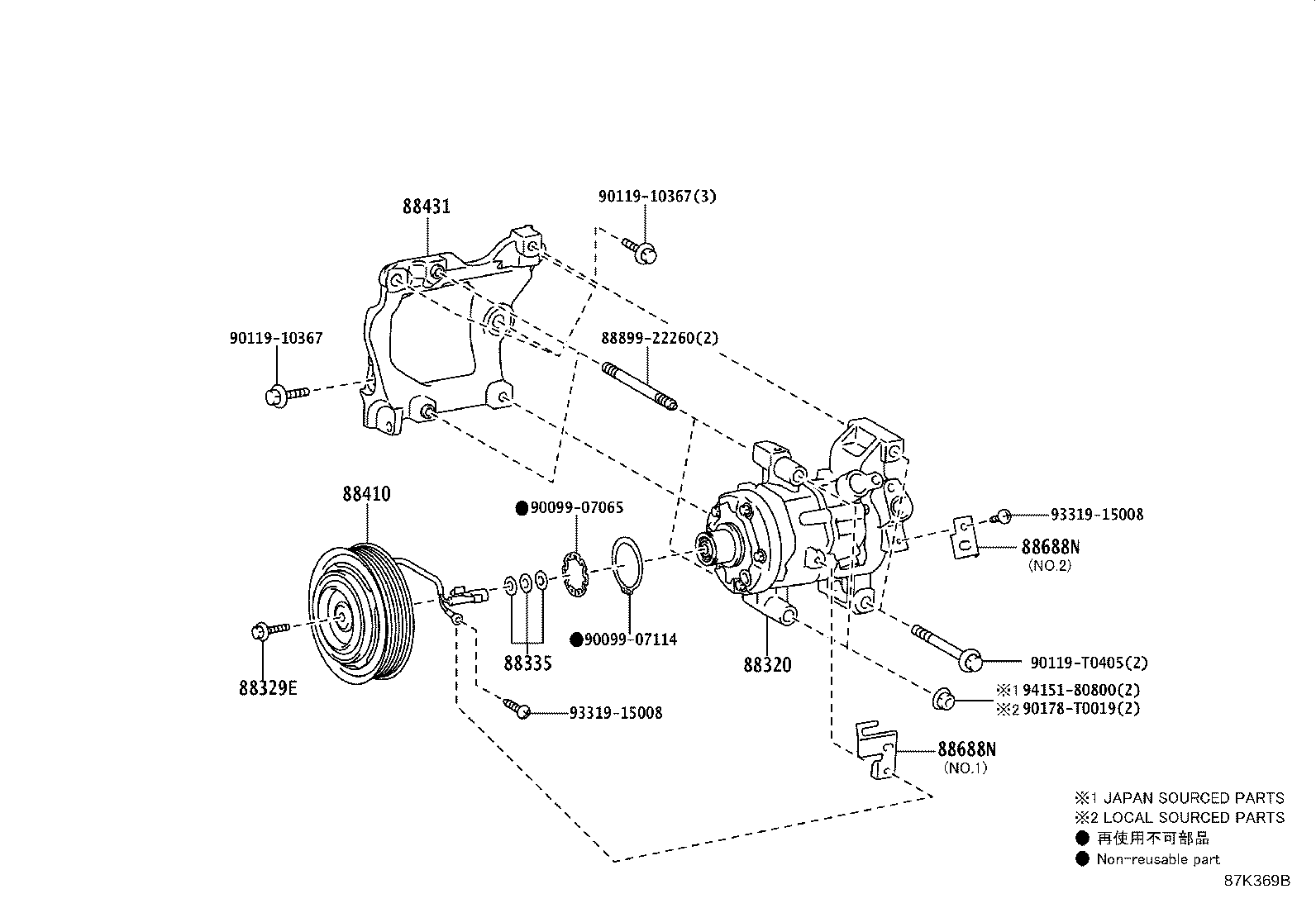

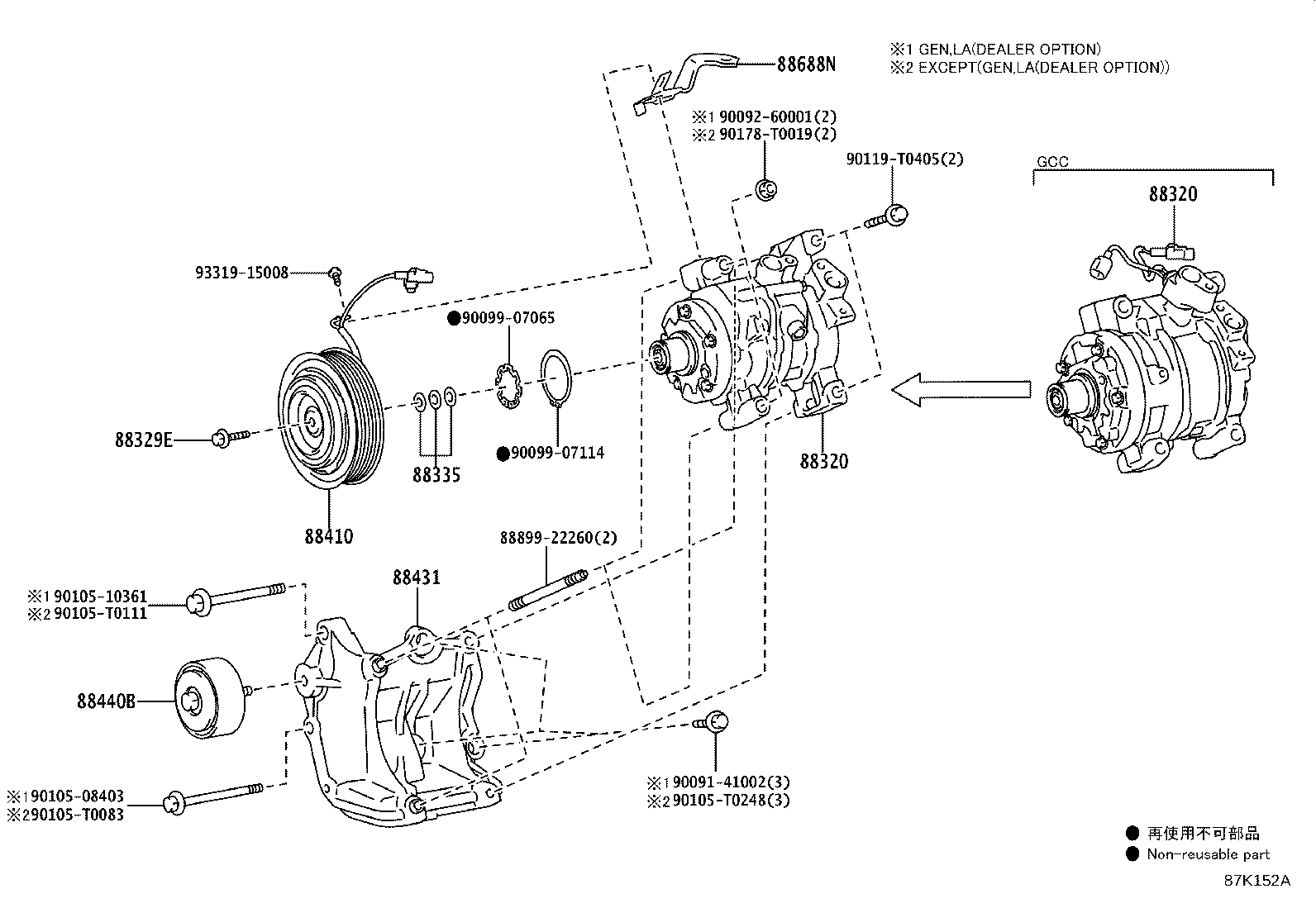

| PNC | Description |
|---|---|
| 88310E | Compressor, W/Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88335 | Gasket Kit, Overhaul |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88446 | Bolt, Idle Pulley |
| 88469B | Collar |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
