Toyota Hilux (DOUBLE CAB)
2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States
Supported model
Data version 2023-03
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

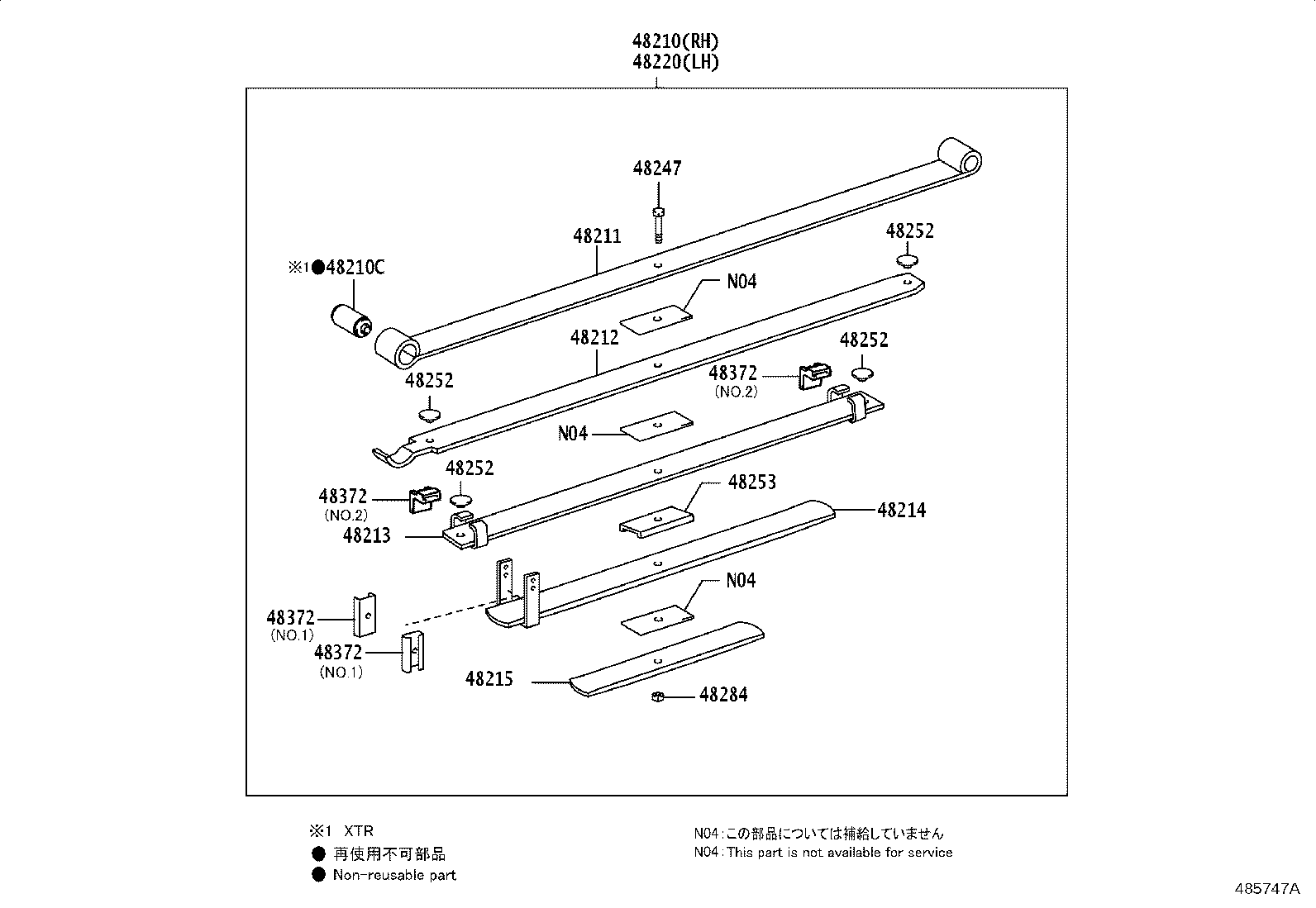

| 48210 — Spring Assy, Rear RH | ||||
| 48210-0K430 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN122,TGN120,121 THP (5F,6FC) | — | |
| 48210-0K450 note |
Spring Assy, Rear RH
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48210-0K450 note |
Spring Assy, Rear RH
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48210-0K450 note |
Spring Assy, Rear RH
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48210-0K450 note |
Spring Assy, Rear RH
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48210-0K450 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN120,121,122 TH | — | |
| 48210-0K470 note |
Spring Assy, Rear RH
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48210-0K730 note |
Spring Assy, Rear RH
2023-03 → —
|
GUN126 H PKN | — | |
| 48210-0K770 note |
Spring Assy, Rear RH
2023-03 → —
|
GUN126 (L,S) PKN | — | |
| 48210-0K880 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA30 note |
Spring Assy, Rear RH
2023-05 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA30 note |
Spring Assy, Rear RH
2023-01 → 2023-05
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA60 note |
Spring Assy, Rear RH
2023-05 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KB50 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48210-0KB60 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48210-0KC20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48210-0KC20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48210-0KC20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48210-0KC20 note |
Spring Assy, Rear RH
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48210-0KC30 note |
Spring Assy, Rear RH
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48210-0KC40 note |
Spring Assy, Rear RH
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48210-0KC40 note |
Spring Assy, Rear RH
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48210-0KC50 note |
Spring Assy, Rear RH
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48210-0KC60 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48210-0KC60 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48210-0KC80 note |
Spring Assy, Rear RH
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48210-0KC80 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48210-0KC90 note |
Spring Assy, Rear RH
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48210-0KD00 note |
Spring Assy, Rear RH
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48210-0KD00 note |
Spring Assy, Rear RH
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48210-0KD10 note |
Spring Assy, Rear RH
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48210-0KD20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48210-0KD20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48210-0KD20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48210-0KD20 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48210-0KD60 note |
Spring Assy, Rear RH
2022-08 → 2023-07
ended
|
GUN125,126,135 TH | — | |
| 48210-0KD90 note |
Spring Assy, Rear RH
2023-02 → 2023-05
ended
|
GUN126 AGTP 6FC H | — | |
| 48210-0KD90 note |
Spring Assy, Rear RH
2023-05 → 2023-10
ended
|
GUN126 AGTP 6FC H | — | |
| 48210C — Bush(FOR REAR SPRING LEAF) | ||||
| 90389-T0005 |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2024-01
ended
|
GUN120,121,122,TGN120,121 | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 90389-T0005 note |
Bush(FOR REAR SPRING LEAF)
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 90389-T0031 note |
Bush(FOR REAR SPRING LEAF)
2023-02 → 2023-05
ended
|
GUN126 AGTP 6FC H | — | |
| 90389-T0031 |
Bush(FOR REAR SPRING LEAF)
2022-11 → 2023-10
ended
|
GGN125,GUN125,126,13#,TGN126,136 AGTP | — | |
| 90389-T0031 note |
Bush(FOR REAR SPRING LEAF)
2023-05 → 2023-10
ended
|
GUN126 AGTP 6FC H | — | |
| 90389-T0031 |
Bush(FOR REAR SPRING LEAF)
2022-08 → —
|
GGN125,GUN125,126,13#,LAN125,TGN126,136 GHAP,INDP,KENP,MAP,MMRP,PKNP,SAP,THP | — | |
| 48211 — Leaf, Rear Spring, NO.1 | ||||
| 48201-0K430 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN122,TGN120,121 THP (5F,6FC) | — | |
| 48201-0K450 note |
Leaf, Rear Spring, NO.1
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48201-0K450 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48201-0K450 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48201-0K450 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48201-0K450 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN120,121,122 TH | — | |
| 48201-0K880 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48201-0KB50 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48201-0KB60 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48201-0KC20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48201-0KC20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48201-0KC20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48201-0KC20 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48201-0KC50 |
Leaf, Rear Spring, NO.1
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48201-0KC60 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48201-0KC60 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48201-0KC80 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48201-0KC80 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48201-0KD10 |
Leaf, Rear Spring, NO.1
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48201-0KD20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48201-0KD20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48201-0KD20 note |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48201-0KD20 |
Leaf, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48211-0K470 |
Leaf, Rear Spring, NO.1
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48211-0KC30 |
Leaf, Rear Spring, NO.1
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48211-0KC40 |
Leaf, Rear Spring, NO.1
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48211-0KC40 note |
Leaf, Rear Spring, NO.1
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48211-0KC90 |
Leaf, Rear Spring, NO.1
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48211-0KD00 |
Leaf, Rear Spring, NO.1
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48211-0KD00 note |
Leaf, Rear Spring, NO.1
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48212 — Leaf, Rear Spring, NO.2 | ||||
| 48203-0K880 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48203-0KC20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48203-0KC20 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48203-0KC20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48203-0KC20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48203-0KC50 |
Leaf, Rear Spring, NO.2
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48203-0KC60 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48203-0KC60 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48212-0K430 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN122,TGN120,121 THP (5F,6FC) | — | |
| 48212-0K450 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48212-0K450 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48212-0K450 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN120,121,122 TH | — | |
| 48212-0K450 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48212-0K450 note |
Leaf, Rear Spring, NO.2
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48212-0K470 |
Leaf, Rear Spring, NO.2
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48212-0KB50 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48212-0KB60 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48212-0KC30 |
Leaf, Rear Spring, NO.2
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48212-0KC40 |
Leaf, Rear Spring, NO.2
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48212-0KC40 note |
Leaf, Rear Spring, NO.2
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48212-0KC80 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48212-0KC80 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48212-0KC90 |
Leaf, Rear Spring, NO.2
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48212-0KD00 |
Leaf, Rear Spring, NO.2
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48212-0KD00 note |
Leaf, Rear Spring, NO.2
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48212-0KD10 |
Leaf, Rear Spring, NO.2
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48212-0KD20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48212-0KD20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48212-0KD20 note |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48212-0KD20 |
Leaf, Rear Spring, NO.2
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48213 — Leaf, Rear Spring, NO.3 | ||||
| 48204-0K430 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN122,TGN120,121 THP (5F,6FC) | — | |
| 48204-0K450 note |
Leaf, Rear Spring, NO.3
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48204-0K450 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN120,121,122 TH | — | |
| 48204-0K450 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48204-0K450 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48204-0K450 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48204-0KB50 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48204-0KB60 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48213-0K470 |
Leaf, Rear Spring, NO.3
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48213-0K880 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48213-0KC20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48213-0KC20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48213-0KC20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48213-0KC20 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48213-0KC30 |
Leaf, Rear Spring, NO.3
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48213-0KC40 |
Leaf, Rear Spring, NO.3
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48213-0KC40 note |
Leaf, Rear Spring, NO.3
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48213-0KC50 |
Leaf, Rear Spring, NO.3
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48213-0KC60 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48213-0KC60 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48213-0KC80 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48213-0KC80 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48213-0KC90 |
Leaf, Rear Spring, NO.3
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48213-0KD00 note |
Leaf, Rear Spring, NO.3
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48213-0KD00 |
Leaf, Rear Spring, NO.3
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48213-0KD10 |
Leaf, Rear Spring, NO.3
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48213-0KD20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48213-0KD20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48213-0KD20 |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48213-0KD20 note |
Leaf, Rear Spring, NO.3
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48214 — Leaf, Rear Spring, NO.4 | ||||
| 48205-0K880 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48205-0KC20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48205-0KC20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48205-0KC20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48205-0KC20 |
Leaf, Rear Spring, NO.4
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48205-0KC50 |
Leaf, Rear Spring, NO.4
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48205-0KC60 |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48205-0KC60 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48205-0KC80 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48205-0KC80 |
Leaf, Rear Spring, NO.4
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48205-0KD10 |
Leaf, Rear Spring, NO.4
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48205-0KD20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48205-0KD20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48205-0KD20 note |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48205-0KD20 |
Leaf, Rear Spring, NO.4
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48214-0K470 |
Leaf, Rear Spring, NO.4
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48214-0KC30 |
Leaf, Rear Spring, NO.4
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48214-0KC40 |
Leaf, Rear Spring, NO.4
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48214-0KC40 note |
Leaf, Rear Spring, NO.4
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48214-0KC90 |
Leaf, Rear Spring, NO.4
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48214-0KD00 |
Leaf, Rear Spring, NO.4
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48214-0KD00 note |
Leaf, Rear Spring, NO.4
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48215 — Leaf, Rear Spring, NO.5 | ||||
| 48215-0K470 |
Leaf, Rear Spring, NO.5
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48215-0KC30 |
Leaf, Rear Spring, NO.5
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48215-0KC40 note |
Leaf, Rear Spring, NO.5
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48215-0KC40 |
Leaf, Rear Spring, NO.5
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48215-0KC90 |
Leaf, Rear Spring, NO.5
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48215-0KD00 |
Leaf, Rear Spring, NO.5
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48215-0KD00 note |
Leaf, Rear Spring, NO.5
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48220 — Spring Assy, Rear LH | ||||
| 48210-0K430 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN122,TGN120,121 THP (5F,6FC) | — | |
| 48210-0K450 note |
Spring Assy, Rear LH
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48210-0K450 note |
Spring Assy, Rear LH
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48210-0K450 note |
Spring Assy, Rear LH
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48210-0K450 note |
Spring Assy, Rear LH
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48210-0K450 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN120,121,122 TH | — | |
| 48210-0K470 note |
Spring Assy, Rear LH
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48210-0K730 note |
Spring Assy, Rear LH
2023-03 → —
|
GUN126 H PKN | — | |
| 48210-0K770 note |
Spring Assy, Rear LH
2023-03 → —
|
GUN126 (L,S) PKN | — | |
| 48210-0K880 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA30 note |
Spring Assy, Rear LH
2023-05 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA30 note |
Spring Assy, Rear LH
2023-01 → 2023-05
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KA60 note |
Spring Assy, Rear LH
2023-05 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48210-0KB50 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48210-0KB60 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48210-0KC20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48210-0KC20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN135 S VN | — | |
| 48210-0KC20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 6FC S GEN;GUN126 +4 | — | |
| 48210-0KC20 note |
Spring Assy, Rear LH
2022-08 → 2023-09
ended
|
GUN126 ) LHD H +7 | — | |
| 48210-0KC30 note |
Spring Assy, Rear LH
2023-01 → 2024-03
ended
|
GGN125,GUN126,136 H (GHA,KEN,SA) | — | |
| 48210-0KC40 note |
Spring Assy, Rear LH
2022-11 → 2023-10
ended
|
GGN125,GUN126,136,TGN126 AGTP H | — | |
| 48210-0KC40 note |
Spring Assy, Rear LH
2022-11 → 2023-10
ended
|
GUN125,TGN136 AGTP (5F,6FC) LA | — | |
| 48210-0KC50 note |
Spring Assy, Rear LH
2022-09 → 2023-08
ended
|
GUN125,126 H MA | — | |
| 48210-0KC60 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48210-0KC60 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48210-0KC80 note |
Spring Assy, Rear LH
2022-08 → 2023-09
ended
|
TGN126 25,13#,TGN136 L THP +9 | — | |
| 48210-0KC80 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125,126 H GEN;GUN126 LHD +2 | — | |
| 48210-0KC90 note |
Spring Assy, Rear LH
2023-01 → 2024-03
ended
|
GUN126 S SA;GUN125,135,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48210-0KD00 note |
Spring Assy, Rear LH
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP (L,S) | — | |
| 48210-0KD00 note |
Spring Assy, Rear LH
2022-11 → 2023-10
ended
|
GUN126,136 H BZAG | — | |
| 48210-0KD10 note |
Spring Assy, Rear LH
2022-09 → 2023-08
ended
|
GUN125 S MA | — | |
| 48210-0KD20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
TGN126 H GEN | — | |
| 48210-0KD20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
TGN126 S GEN | — | |
| 48210-0KD20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 LHD (L,S) GEN;GUN125,TGN126 +3 | — | |
| 48210-0KD20 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125 LHD H GEN | — | |
| 48210-0KD60 note |
Spring Assy, Rear LH
2022-08 → 2023-07
ended
|
GUN125,126,135 TH | — | |
| 48210-0KD90 note |
Spring Assy, Rear LH
2023-05 → 2023-10
ended
|
GUN126 AGTP 6FC H | — | |
| 48210-0KD90 note |
Spring Assy, Rear LH
2023-02 → 2023-05
ended
|
GUN126 AGTP 6FC H | — | |
| 48247 — Bolt, Rear Spring, Center | ||||
| 48247-0K040 |
Bolt, Rear Spring, Center
2023-01 → 2024-01
ended
|
GUN122,TGN121 SA | — | |
| 48247-0K350 note |
Bolt, Rear Spring, Center
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48247-0K350 |
Bolt, Rear Spring, Center
2022-08 → 2023-07
ended
|
GUN120,121,122,TGN120,121 THP | — | |
| 48247-0K350 note |
Bolt, Rear Spring, Center
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48247-0K350 note |
Bolt, Rear Spring, Center
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48247-0K350 note |
Bolt, Rear Spring, Center
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48247-0K540 note |
Bolt, Rear Spring, Center
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48247-0K540 |
Bolt, Rear Spring, Center
2022-08 → 2023-09
ended
|
GGN125,GUN125,126,13#,TGN126,136 TWN,VN) (INDP,MMRP,THP) (ARL,GCC,GEN,IDN,IND,LA,MMR,PH, | — | |
| 48247-0K610 |
Bolt, Rear Spring, Center
2023-01 → 2024-03
ended
|
GGN125,GUN125,126,13#,LAN125,TGN126,136 GHA,KEN,SA | — | |
| 48247-0K720 |
Bolt, Rear Spring, Center
2022-11 → 2023-10
ended
|
GGN125,GUN125,126,13#,TGN126,136 AGTP | — | |
| 48247-0K810 |
Bolt, Rear Spring, Center
2022-09 → 2023-08
ended
|
GUN125,126 MA | — | |
| 48252 — Silencer, Rear Spring | ||||
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2023-07
ended
|
GUN125 6FC L GEN | — | |
| 48252-0K010 |
Silencer, Rear Spring
2022-08 → 2023-07
ended
|
GUN120,121,122,TGN120,121 THP | — | |
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48252-0K010 note |
Silencer, Rear Spring
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48252-0K040 |
Silencer, Rear Spring
2023-01 → 2024-03
ended
|
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 GHA,KEN,SA | — | |
| 48252-0K810 |
Silencer, Rear Spring
2022-09 → 2023-08
ended
|
GUN125,126 MA | — | |
| 48252-0KC40 |
Silencer, Rear Spring
2022-11 → 2023-10
ended
|
GGN125,GUN125,126,13#,TGN126,136 AGTP | — | |
| 48252-0KC60 note |
Silencer, Rear Spring
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48252-0KC60 |
Silencer, Rear Spring
2022-08 → 2023-09
ended
|
GGN125,GUN125,126,13#,TGN126,136 TWN,VN) (INDP,MMRP,THP) (ARL,GCC,GEN,IDN,IND,LA,MMR,PH, | — | |
| 48252-0KD60 |
Silencer, Rear Spring
2022-08 → 2023-07
ended
|
GUN125,126,135 TH | — | |
| 48253 — Spacer, Rear Spring, NO.1 | ||||
| 48253-0K010 note |
Spacer, Rear Spring, NO.1
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48253-0K010 note |
Spacer, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48253-0K010 note |
Spacer, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48253-0K010 note |
Spacer, Rear Spring, NO.1
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48253-0K010 note |
Spacer, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48253-0K010 |
Spacer, Rear Spring, NO.1
2022-08 → 2023-09
ended
|
GGN125,GUN120,121,122,136,TGN12#,136 C,GEN,IDN,IND,LA,MMR,PH,TWN,VN) THP;GUN125,126,135 (INDP,MMRP,THP) +1 | — | |
| 48253-0K040 |
Spacer, Rear Spring, NO.1
2023-01 → 2024-03
ended
|
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 GHA,KEN,SA | — | |
| 48253-0K110 |
Spacer, Rear Spring, NO.1
2022-11 → 2023-10
ended
|
GGN125,GUN125,126,13#,TGN126,136 AGTP | — | |
| 48253-0K160 |
Spacer, Rear Spring, NO.1
2022-09 → 2023-08
ended
|
GUN125,126 MA | — | |
| 48253-0K880 note |
Spacer, Rear Spring, NO.1
2022-08 → 2023-07
ended
|
GUN126 6FC H ARL +1 | — | |
| 48284 — Nut, Rear Spring Center Bolt | ||||
| 48284-0K040 |
Nut, Rear Spring Center Bolt
2023-01 → 2024-03
ended
|
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 GHA,KEN,SA | — | |
| 48284-0K120 |
Nut, Rear Spring Center Bolt
2022-11 → 2023-10
ended
|
GGN125,GUN125,126,13#,TGN126,136 AGTP | — | |
| 48284-0K160 |
Nut, Rear Spring Center Bolt
2022-09 → 2023-08
ended
|
GUN125,126 MA | — | |
| 48284-0K310 note |
Nut, Rear Spring Center Bolt
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48284-0K310 |
Nut, Rear Spring Center Bolt
2022-08 → 2023-09
ended
|
GGN125,GUN120,121,122,136,TGN12#,136 C,GEN,IDN,IND,LA,MMR,PH,TWN,VN) THP;GUN125,126,135 (INDP,MMRP,THP) +1 | — | |
| 48284-0K310 note |
Nut, Rear Spring Center Bolt
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48284-0K310 note |
Nut, Rear Spring Center Bolt
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48284-0K310 note |
Nut, Rear Spring Center Bolt
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48284-0K310 note |
Nut, Rear Spring Center Bolt
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48372 — Pad, Rear Spring | ||||
| 48372-0K010 note |
Pad, Rear Spring
2023-02 → 2023-05
ended
|
GUN126 AGTP 6FC H | — | |
| 48372-0K010 note |
Pad, Rear Spring
2023-05 → 2023-10
ended
|
GUN126 AGTP 6FC H | — | |
| 48372-0K010 note |
Pad, Rear Spring
2022-11 → 2024-03
ended
|
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 AGTP,GHAP,KENP,SAP | — | |
| 48372-0K020 note |
Pad, Rear Spring
2023-01 → 2024-03
ended
|
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 GHA,KEN,SA | — | |
| 48372-0K030 note |
Pad, Rear Spring
2022-08 → 2022-09
ended
|
GUN120,122 S TH | — | |
| 48372-0K030 note |
Pad, Rear Spring
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 48372-0K030 note |
Pad, Rear Spring
2022-08 → 2023-05
ended
|
GUN120,122 L TH | — | |
| 48372-0K030 note |
Pad, Rear Spring
2022-08 → 2023-05
ended
|
GUN120,122 S TH | — | |
| 48372-0K030 note |
Pad, Rear Spring
2022-08 → 2023-07
ended
|
GUN126 6FC TH | — | |
| 48372-0K030 |
Pad, Rear Spring
2022-08 → 2023-09
ended
|
GGN125,GUN120,121,122,136,TGN12#,136 C,GEN,IDN,IND,LA,MMR,PH,TWN,VN) THP;GUN125,126,135 (INDP,MMRP,THP) +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
