Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

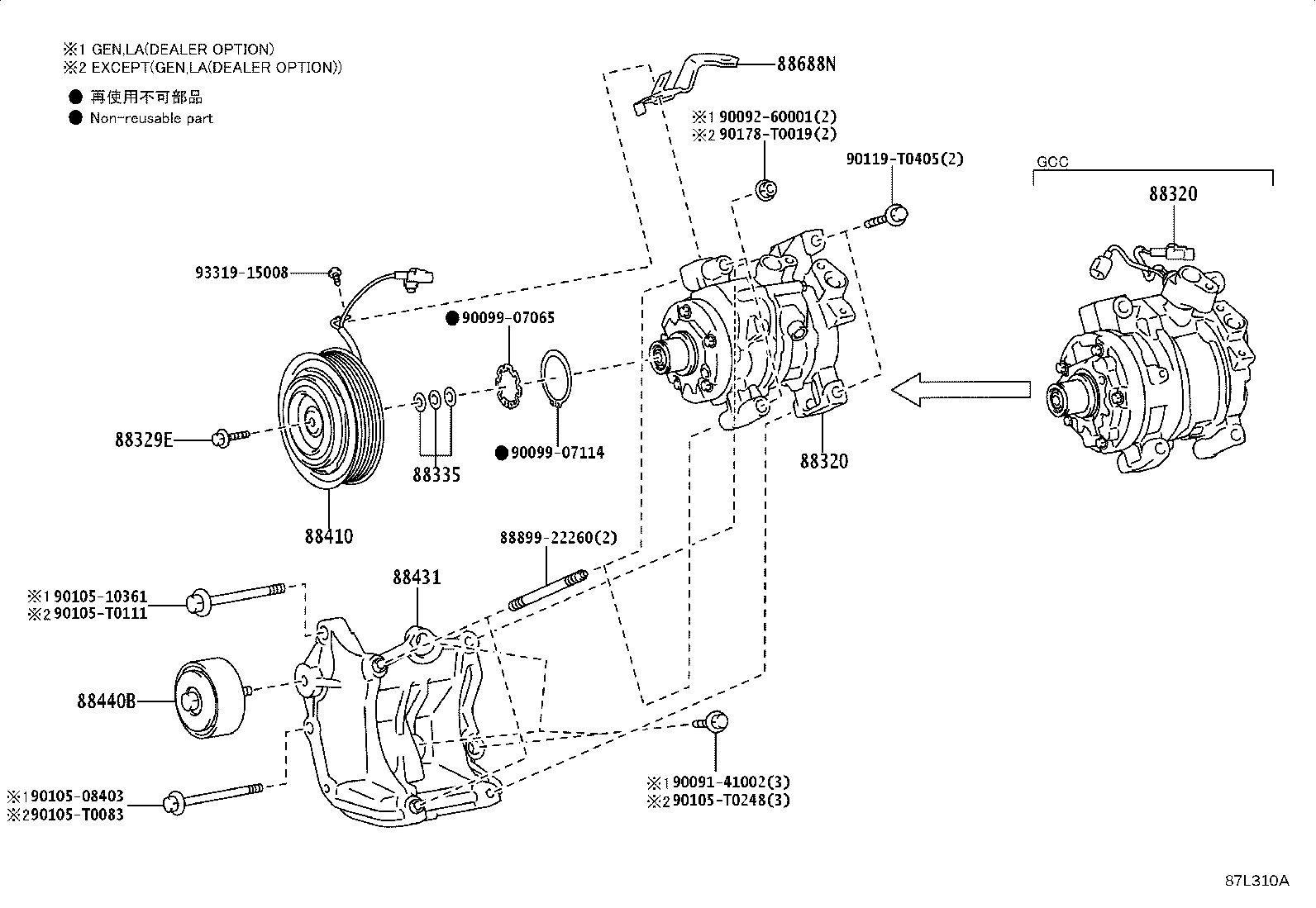

Exploded illustration 87L310A 88320 — COMPRESSOR ASSY, COOLER (10 parts) 88688N — BRACKET, COOLER (16 parts) 88410 — CLUTCH ASSY, MAGNET (12 parts) 88329E — BOLT, COMPRESSOR, NO.1 (7 parts) 88431 — BRACKET, COMPRESSOR MOUNTING, NO.1 (16 parts) 88440B — PULLEY ASSY, IDLE (7 parts) 88335 — GASKET KIT, OVERHAUL (7 parts) 88320 — COMPRESSOR ASSY, COOLER (10 parts) 9331915008 — not listed in this catalogue 90178T0019 — not listed in this catalogue 9009260001 — not listed in this catalogue 90119T0405 — not listed in this catalogue 8889922260 — not listed in this catalogue 90105T0111 — not listed in this catalogue 9010510361 — not listed in this catalogue 90105T0083 — not listed in this catalogue 9010508403 — not listed in this catalogue 9009141002 — not listed in this catalogue 90105T0248 — not listed in this catalogue 9009907065 — not listed in this catalogue 9009907114 — not listed in this catalogue
87L310A · 8 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
88320 — Compressor Assy, Cooler
88320-0K520 Compressor Assy, Cooler
2022-08 → 2023-07 ended
GUN12#,13#,TGN121,126,136 (MMRP,THP) (ARL,GEN,IDN,LA,MMR,PH,TH,TWN,VN) —
88320-0K520 Compressor Assy, Cooler
2022-08 → 2023-08 ended
GUN125,126 MA —
88320-0K520 Compressor Assy, Cooler
2022-08 → 2023-09 ended
GUN126 IND —
88320-0K520 note Compressor Assy, Cooler
2023-01 → 2023-11 ended
TGN126 L SA —
88320-0K520 Compressor Assy, Cooler
2022-08 → 2024-01 ended
TGN121,126,136 SA —
88320-0K530 Compressor Assy, Cooler
2022-08 → 2023-07 ended
GUN122,125,126 GCC —
88320-0K550 Compressor Assy, Cooler
2022-08 → 2023-07 ended
TGN12# GCC —
88320-0K590 Compressor Assy, Cooler
2022-11 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
88320-0K590 note Compressor Assy, Cooler
2022-11 → 2023-05 ended
TGN126 AGTP S —
88320-0K760 Compressor Assy, Cooler
2022-08 → 2023-07 ended
GGN125 GCC —
88329E — Bolt, Compressor, NO.1
90099-04349 note Bolt, Compressor, NO.1
2022-11 → 2023-05 ended
TGN126 AGTP S —
90099-04349 Bolt, Compressor, NO.1
2022-08 → 2024-01 ended
TGN121,126,136 SA —
90099-04349 note Bolt, Compressor, NO.1
2023-01 → 2023-11 ended
TGN126 L SA —
90099-04349 Bolt, Compressor, NO.1
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
90099-04349 Bolt, Compressor, NO.1
2022-08 → 2023-09 ended
GUN126 IND —
90099-04349 Bolt, Compressor, NO.1
2022-08 → 2023-08 ended
GUN125,126 MA —
90099-04349 Bolt, Compressor, NO.1
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 MMRP,THP —
88335 — Gasket Kit, Overhaul
88335-14020 note Gasket Kit, Overhaul
2022-11 → 2023-05 ended
TGN126 AGTP S —
88335-14020 Gasket Kit, Overhaul
2022-08 → 2024-01 ended
TGN121,126,136 SA —
88335-14020 note Gasket Kit, Overhaul
2023-01 → 2023-11 ended
TGN126 L SA —
88335-14020 Gasket Kit, Overhaul
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
88335-14020 Gasket Kit, Overhaul
2022-08 → 2023-09 ended
GUN126 IND —
88335-14020 Gasket Kit, Overhaul
2022-08 → 2023-08 ended
GUN125,126 MA —
88335-14020 Gasket Kit, Overhaul
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 MMRP,THP —
88410 — Clutch Assy, Magnet
88410-0K580 Clutch Assy, Magnet
2022-08 → 2023-07 ended
TGN121,126,136 THP (ARL,GEN,LA) —
88410-0K580 Clutch Assy, Magnet
2022-08 → 2024-01 ended
TGN121,126,136 SA —
88410-0K580 note Clutch Assy, Magnet
2023-01 → 2023-11 ended
TGN126 L SA —
88410-0K600 Clutch Assy, Magnet
2022-08 → 2023-07 ended
GUN12#,13# MMRP,THP —
88410-0K600 Clutch Assy, Magnet
2022-08 → 2023-08 ended
GUN125,126 MA —
88410-0K600 Clutch Assy, Magnet
2022-08 → 2023-09 ended
GUN126 IND —
88410-0K621 Clutch Assy, Magnet
2022-11 → 2023-10 ended
GGN125 LA —
88410-0K631 Clutch Assy, Magnet
2022-08 → 2023-07 ended
GGN125 GCC —
88410-0K690 Clutch Assy, Magnet
2022-08 → 2023-07 ended
TGN12# GCC —
88410-0K760 Clutch Assy, Magnet
2022-11 → 2023-10 ended
GUN125,126,13# AGTP —
88410-0K770 note Clutch Assy, Magnet
2022-11 → 2023-05 ended
TGN126 AGTP S —
88410-0K770 Clutch Assy, Magnet
2022-11 → 2023-10 ended
TGN126,136 AGTP —
88431 — Bracket, Compressor Mounting, NO.1
88431-0K080 Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01 ended
LAN125 —
88431-0K130 Bracket, Compressor Mounting, NO.1
2022-10 → 2023-09 ended
GUN126 IND —
88431-0K140 Bracket, Compressor Mounting, NO.1
2022-08 → 2023-07 ended
GUN12#,13# MMRP,THP —
88431-0K150 note Bracket, Compressor Mounting, NO.1
2022-11 → 2023-05 ended
GUN125,135 AGTP 6F LA;GUN126 +4 —
88431-0K150 Bracket, Compressor Mounting, NO.1
2022-11 → 2023-10 ended
GUN125,126,13# AGTP —
88431-0K160 Bracket, Compressor Mounting, NO.1
2023-01 → 2024-03 ended
GUN125,126 GHA,KEN —
88431-0K160 note Bracket, Compressor Mounting, NO.1
2023-01 → 2023-11 ended
GUN122,125,135 LHD L SA —
88431-0K160 note Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01 ended
GUN125 RHD L SA —
88431-0K160 Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01 ended
GUN125 (H,S) SA;GUN122,126,13# SA;GUN125 +3 —
88431-0K180 Bracket, Compressor Mounting, NO.1
2022-09 → 2023-08 ended
GUN125,126 MA —
88431-0K210 Bracket, Compressor Mounting, NO.1
2022-08 → 2023-07 ended
TGN12#,136 THP —
88431-0K220 note Bracket, Compressor Mounting, NO.1
2022-11 → 2023-05 ended
TGN126 AGTP (L,S) —
88431-0K220 Bracket, Compressor Mounting, NO.1
2022-11 → 2023-10 ended
TGN126,136 AGTP —
88431-0K230 Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01 ended
TGN121,126,136 SA —
88431-0K230 note Bracket, Compressor Mounting, NO.1
2023-01 → 2023-11 ended
TGN126 L SA —
88431-0K290 Bracket, Compressor Mounting, NO.1
2023-03 → —
GUN126 PKN —
88440B — Pulley Assy, Idle
88440-0K161 note Pulley Assy, Idle
2022-11 → 2023-05 ended
TGN126 AGTP (L,S) —
88440-0K161 Pulley Assy, Idle
2022-11 → 2023-10 ended
TGN126,136 AGTP —
88440-0K261 note Pulley Assy, Idle
2023-01 → 2023-11 ended
TGN126 L SA —
88440-0K261 Pulley Assy, Idle
2023-01 → 2024-01 ended
TGN121,126,136 SA —
88440-0K270 Pulley Assy, Idle
2023-01 → 2024-01 ended
LAN125 —
88440-0K381 Pulley Assy, Idle
2022-08 → 2023-07 ended
TGN12# GCC —
88440-0K381 note Pulley Assy, Idle
2022-08 → 2023-07 ended
TGN121 GEN;TGN126 THP (L,S) +1 —
88688N — Bracket, Cooler
88688-0K280 Bracket, Cooler
2022-08 → 2024-01 ended
TGN121,126,136 SA —
88688-0K280 note Bracket, Cooler
2023-01 → 2023-11 ended
TGN126 L SA —
88688-0K280 Bracket, Cooler
2022-08 → 2023-10 ended
TGN126,136 AGTP —
88688-0K280 Bracket, Cooler
2022-08 → 2023-07 ended
TGN12#,136 THP —
88688-0K280 note Bracket, Cooler
2022-11 → 2023-05 ended
TGN126 AGTP S —
88849-0K010 note Bracket, Cooler
2022-08 → 2023-08 ended
GUN125,126 MA —
88849-0K010 note Bracket, Cooler
2022-08 → 2023-09 ended
GUN126 IND —
88849-0K010 note Bracket, Cooler
2022-08 → 2023-07 ended
GUN12#,13# (MMRP,THP) (ARL,GEN,IDN,LA,MMR,PH,TH,TWN,VN) —
88849-0K010 note Bracket, Cooler
2022-08 → 2023-10 ended
GUN125,126,13# AGTP —
88849-0K010 Bracket, Cooler
2022-11 → 2023-10 ended
GGN125 LA —
88849-0K020 note Bracket, Cooler
2022-08 → 2023-07 ended
GUN12#,13# MMRP,THP —
88849-0K020 note Bracket, Cooler
2022-08 → 2023-08 ended
GUN125,126 MA —
88849-0K020 note Bracket, Cooler
2022-08 → 2023-09 ended
GUN126 IND —
88849-0K020 note Bracket, Cooler
2022-08 → 2023-10 ended
GUN125,126,13# AGTP —
88849-0K030 Bracket, Cooler
2022-08 → 2023-07 ended
GGN125 GCC —
88849-0K030 note Bracket, Cooler
2022-08 → 2023-07 ended
GUN122,125,126 GCC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
