Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

11 part groups · 4 illustrations

Illustrations

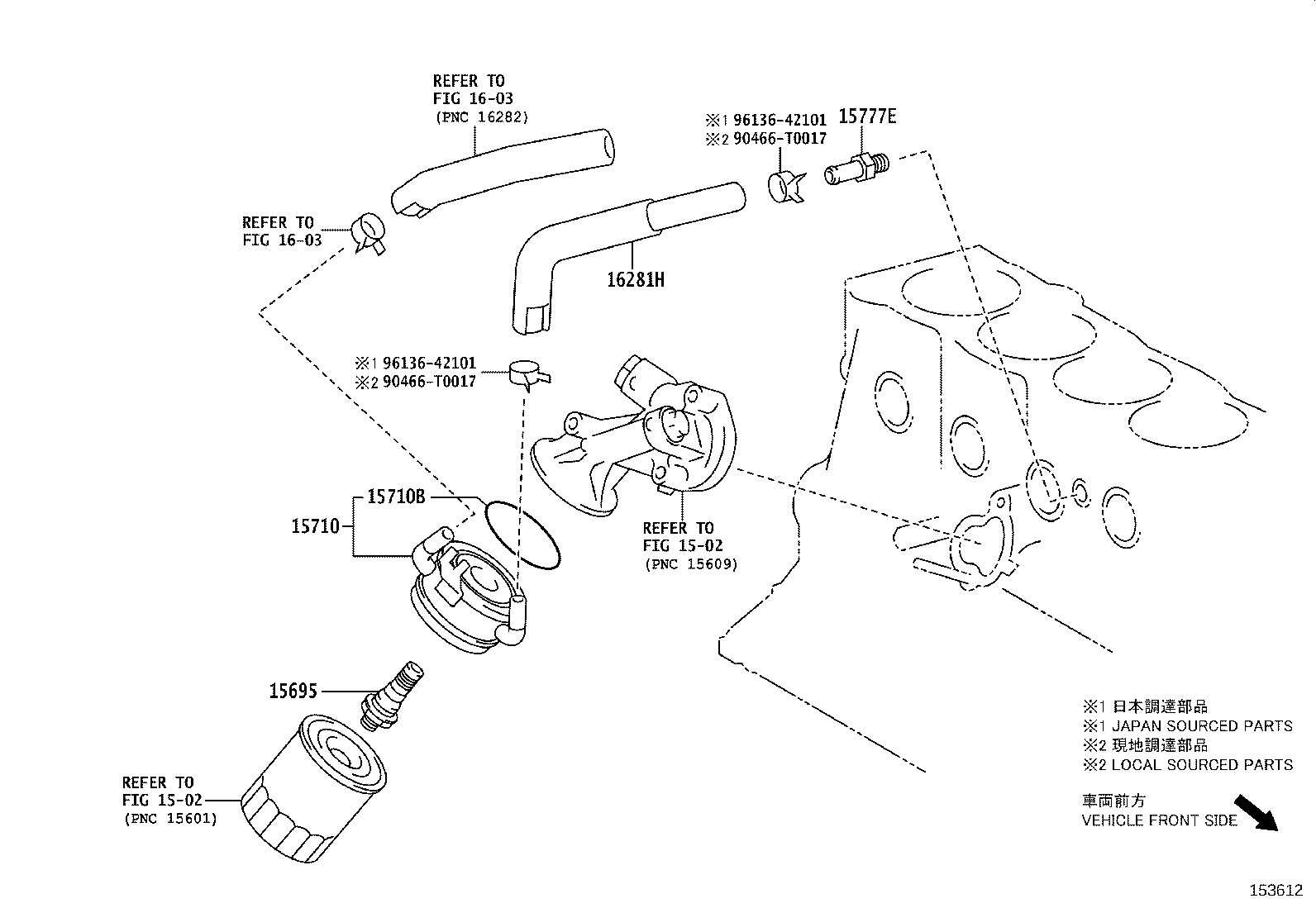

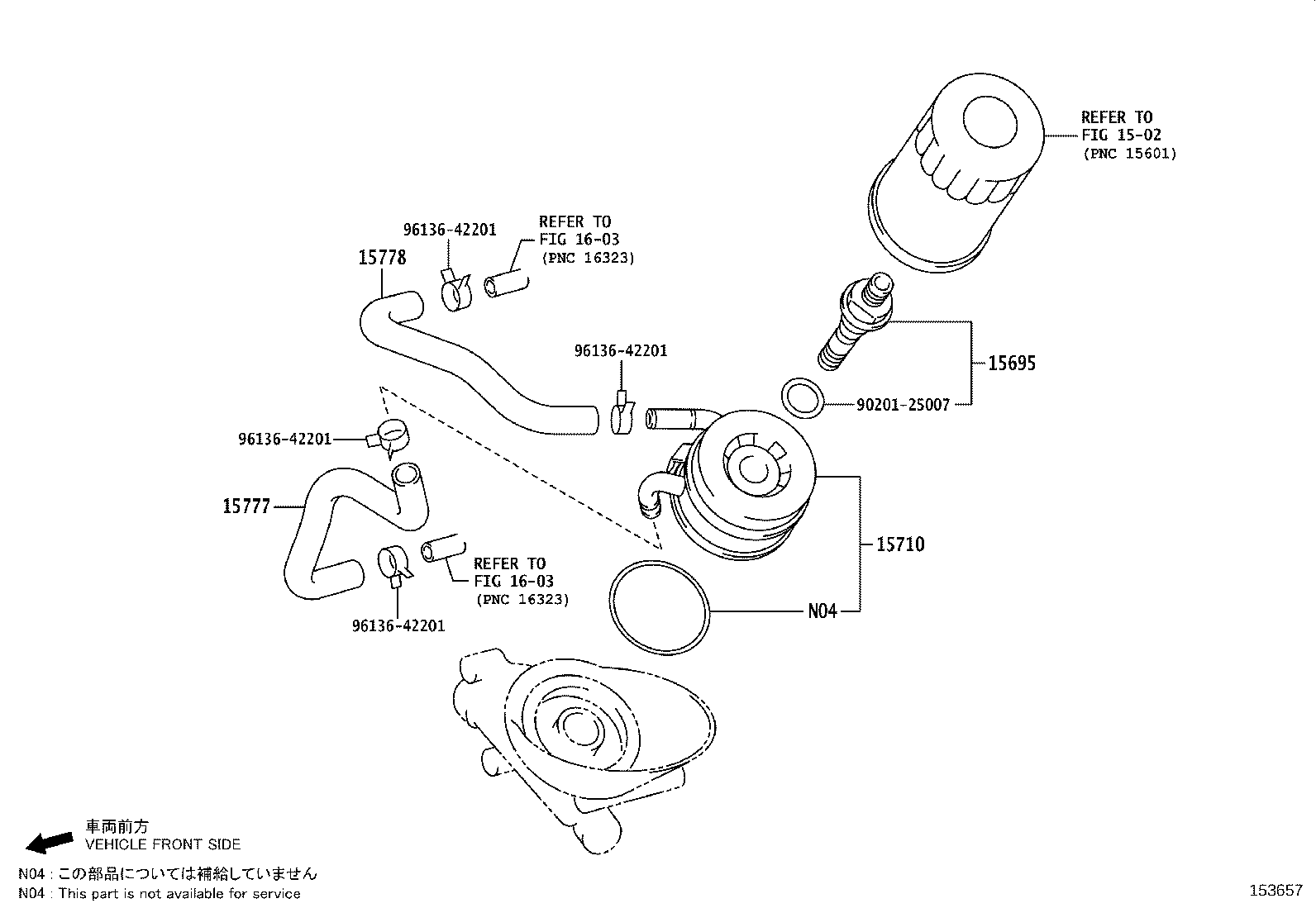

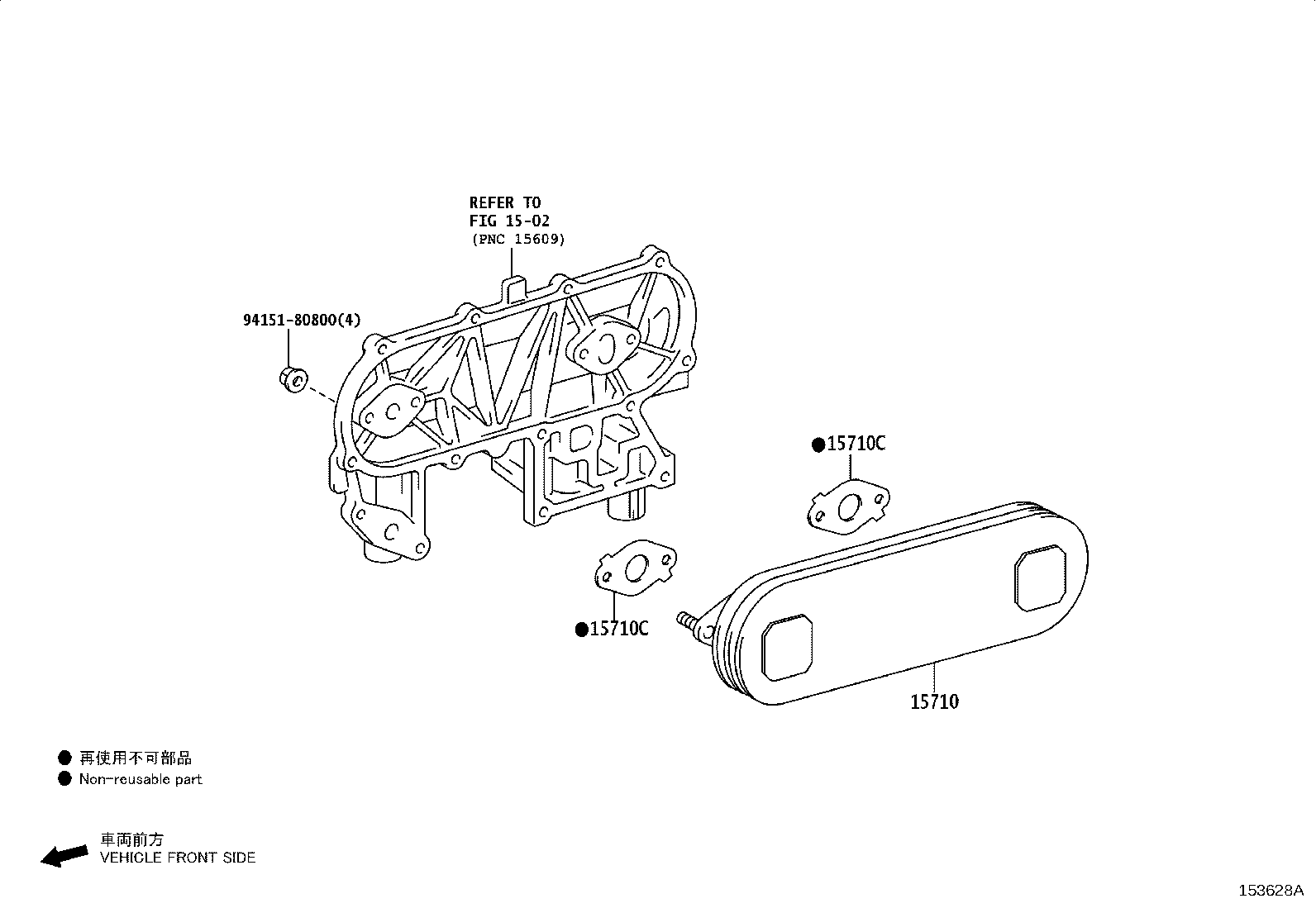

Figure 153656A 153656A 2022-08 → — Figure 153657 153657 2022-08 → — Figure 153628A 153628A 2023-01 → — Figure 153612 153612 2022-08 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15723 Ring, O
15777 Hose, Oil Cooler
15777E Union
15778 Hose, Oil Cooler, NO.2
16281H Hose, Water By-pass, NO.4
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
