Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

20 part groups · 21 illustrations

Illustrations

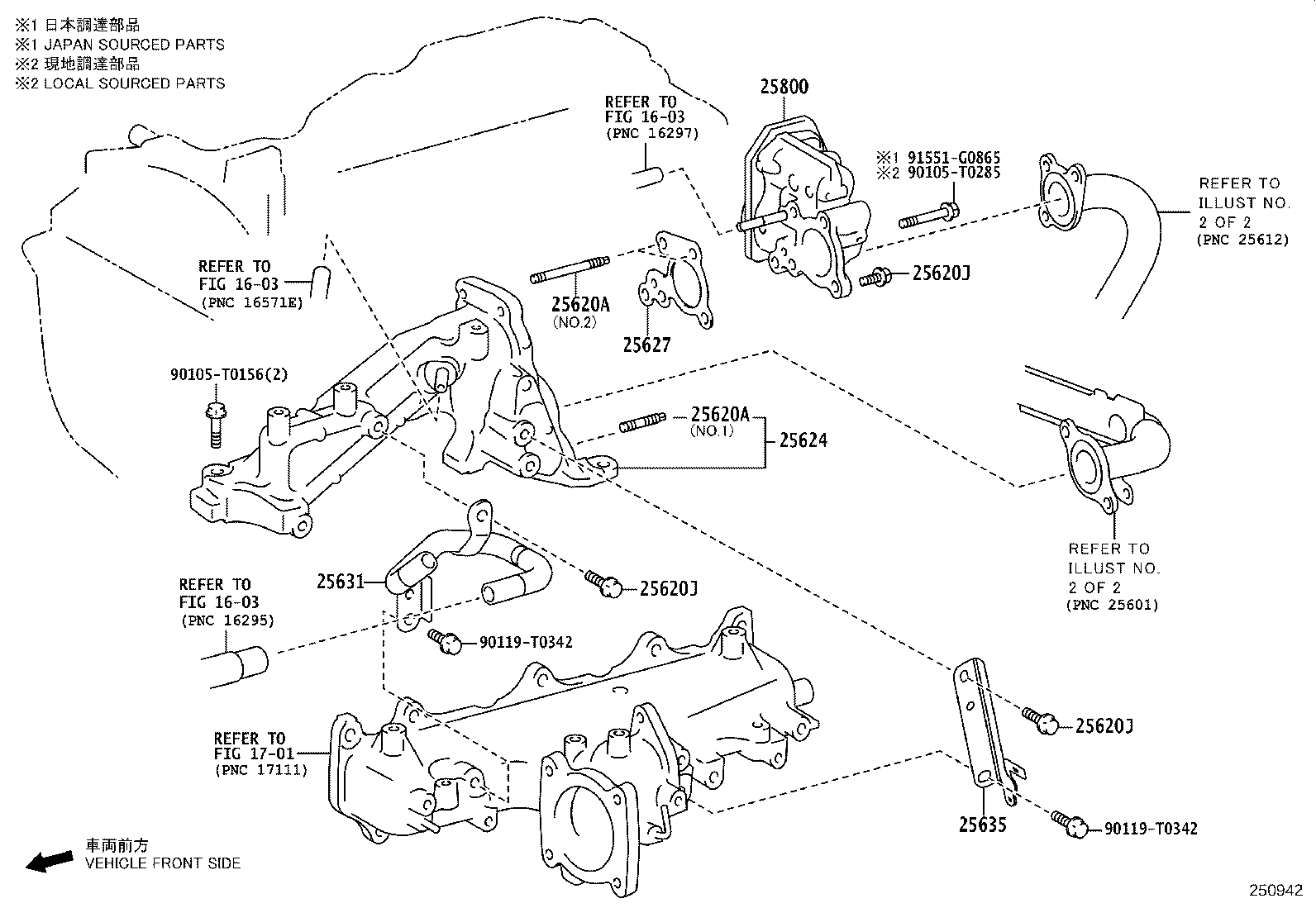

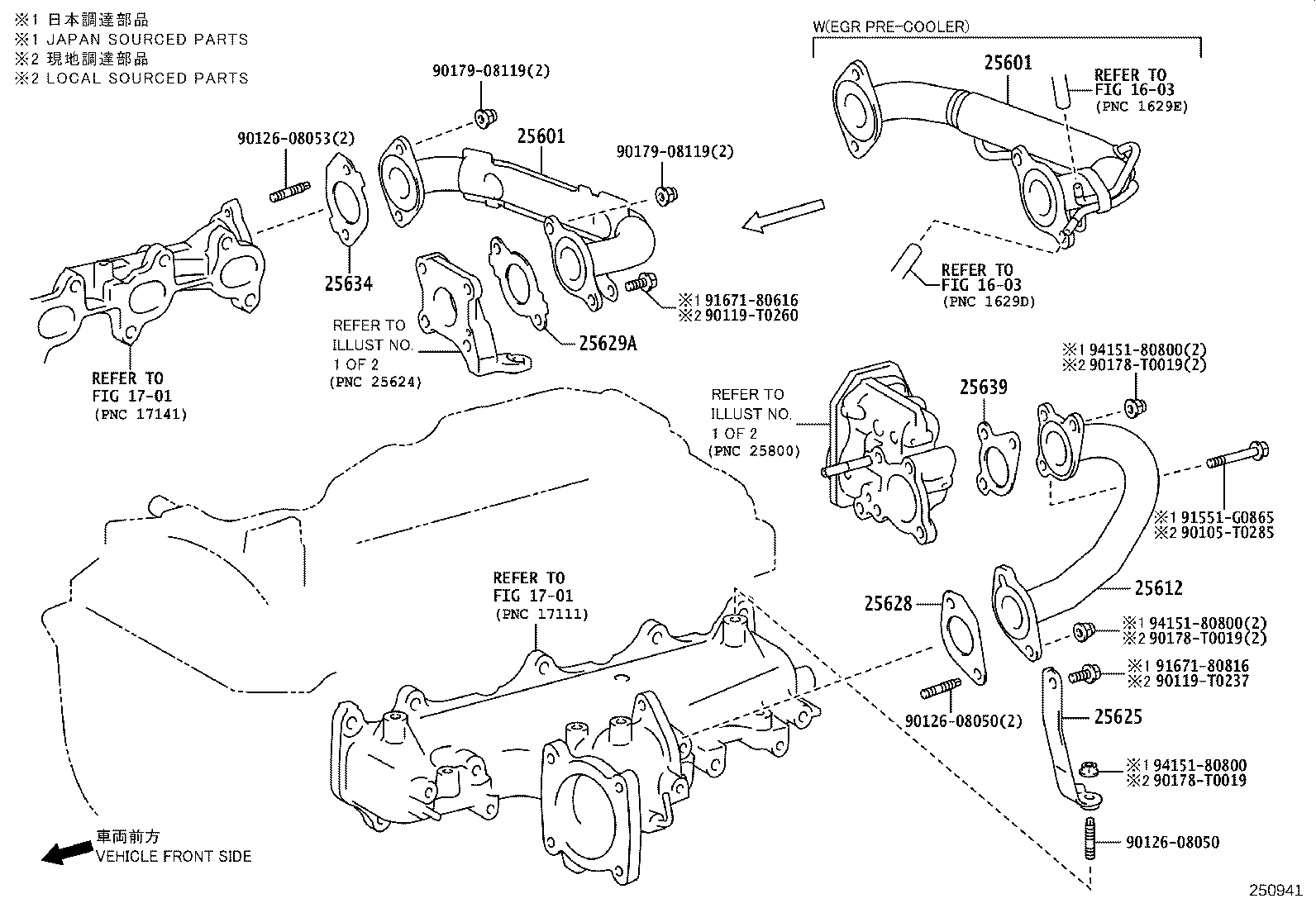

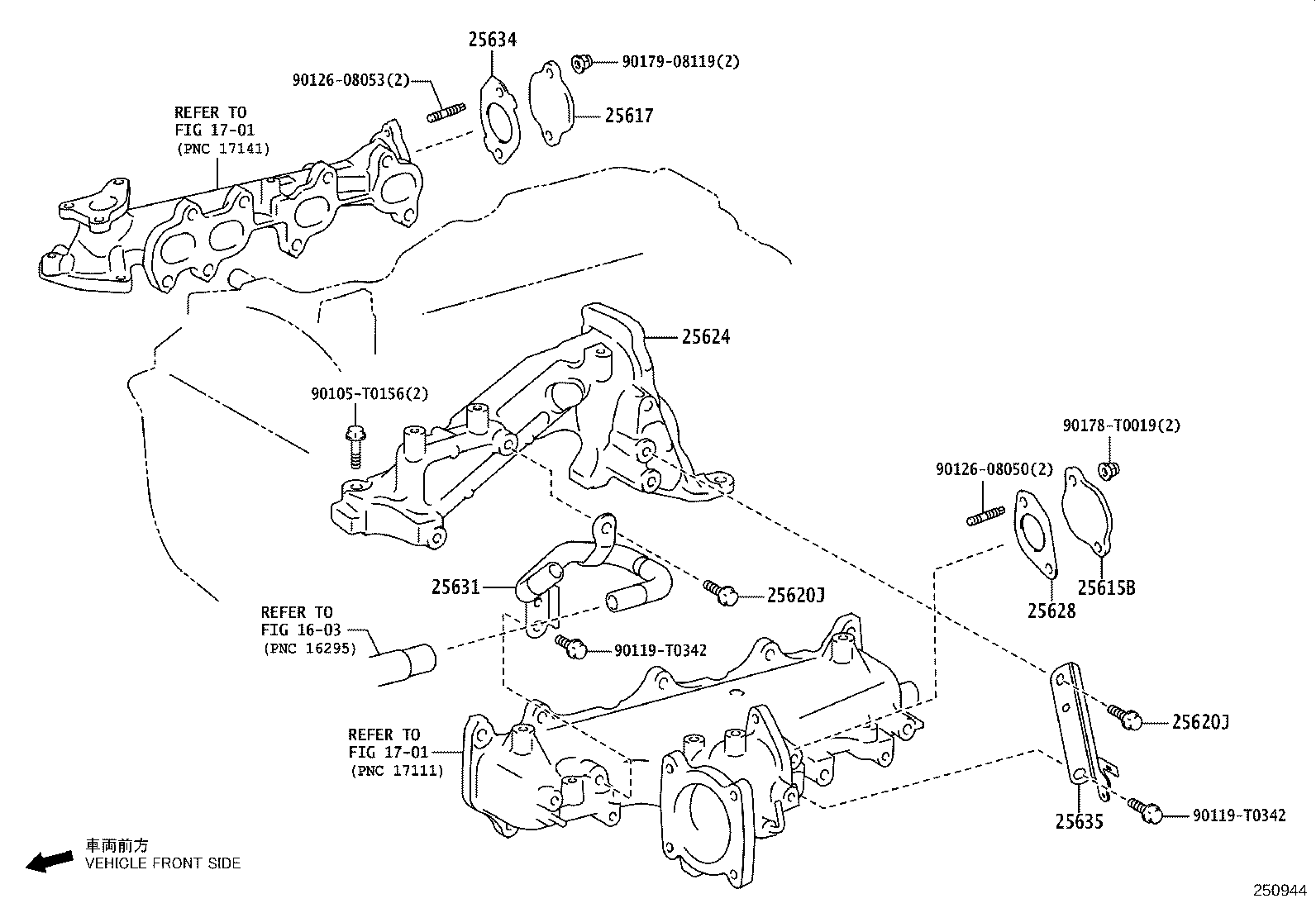

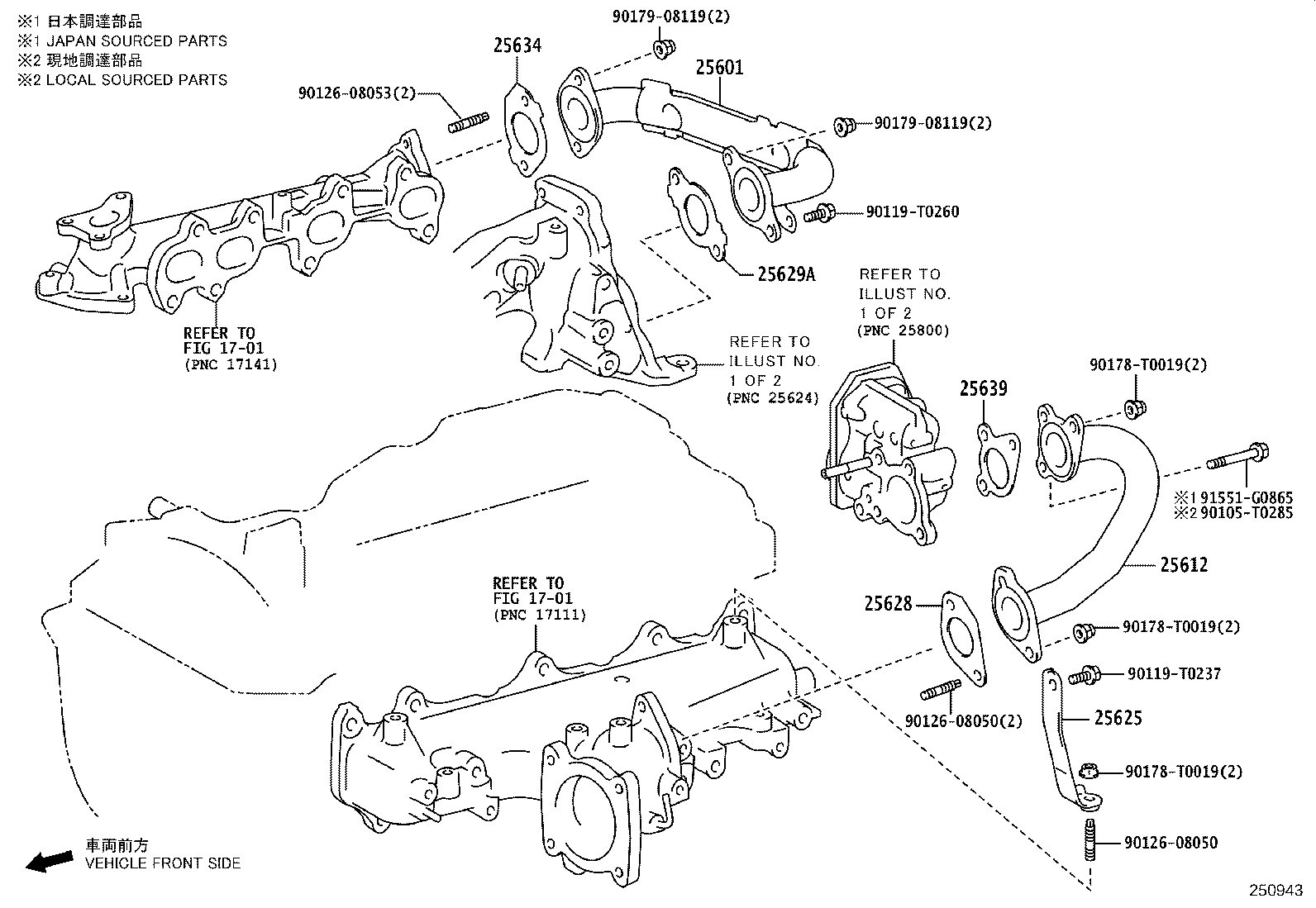

Figure 250940 250940 2022-08 → — Figure 250940 250940 2022-08 → — Figure 250940 250940 2022-08 → — Figure 250940 250940 2022-08 → — Figure 250940 250940 2022-08 → — Figure 250940 250940 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250941 250941 2022-08 → — Figure 250942 250942 2022-08 → — Figure 250942 250942 2022-08 → — Figure 250942 250942 2022-08 → — Figure 250943 250943 2022-08 → — Figure 250943 250943 2022-08 → — Figure 250943 250943 2022-08 → — Figure 250944 250944 2022-08 → — Figure 250944 250944 2022-08 → — Figure 250944 250944 2022-08 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25612 Pipe, Egr, NO.2
25615B Plate, Egr Hole Cover, NO.1
25617 Plate, Egr Hole Cover
25620A Bolt, Stud(FOR EGR VALVE)
25620J Bolt(FOR EGR VALVE)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25631 Stay, Egr Pipe, NO.1
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25639 Gasket, Egr Pipe, NO.3
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
