Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

12 part groups · 6 illustrations

Illustrations

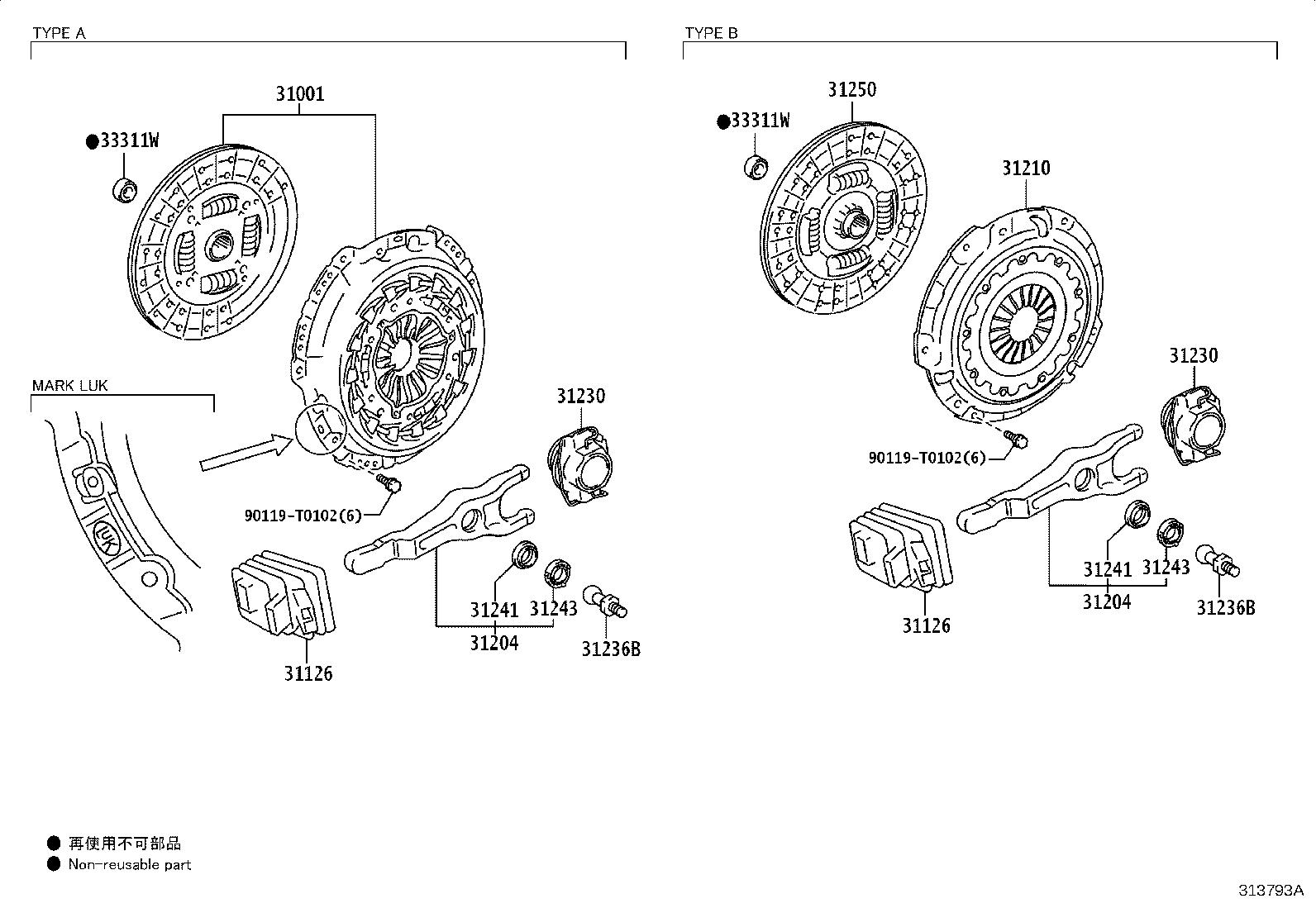

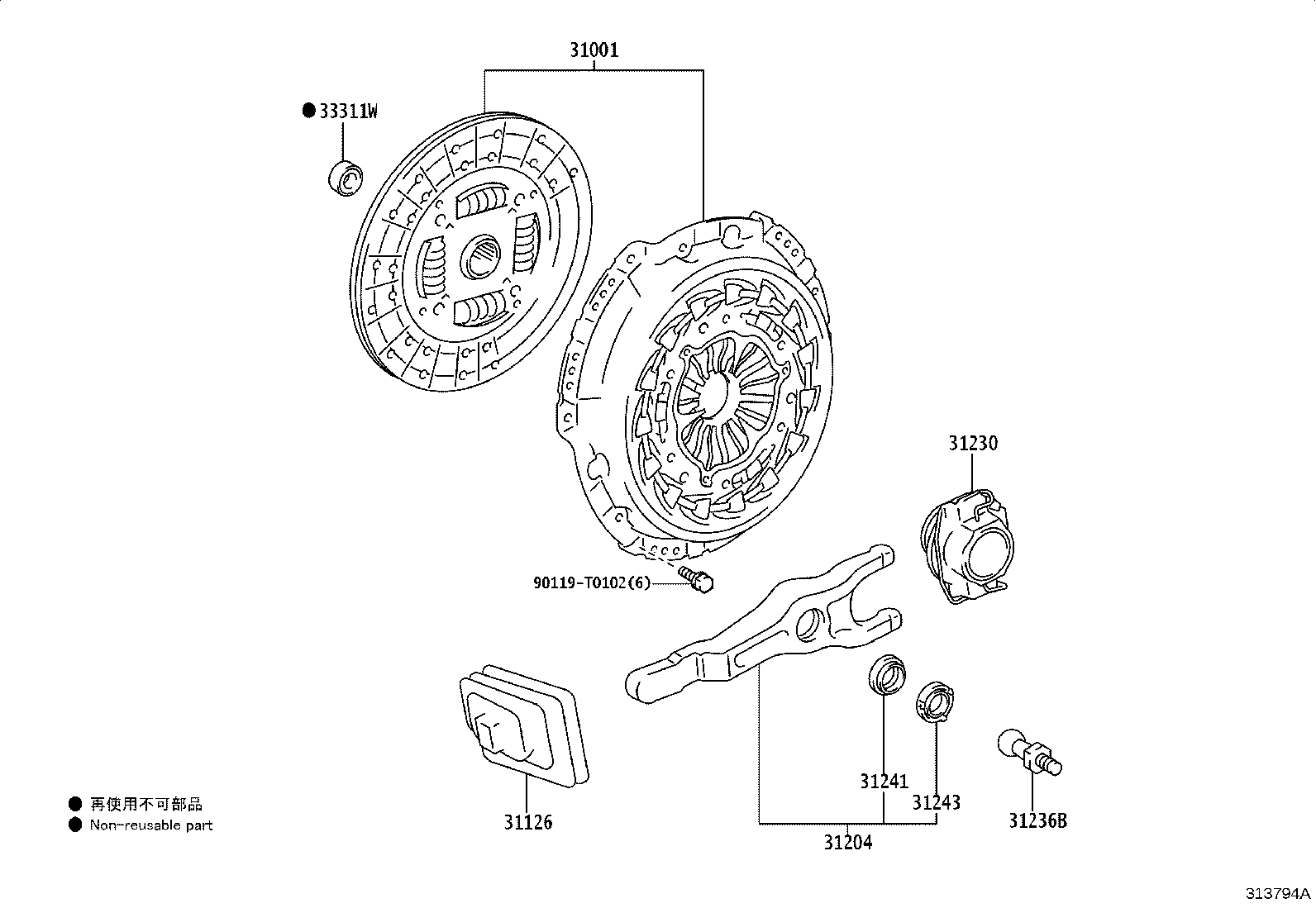

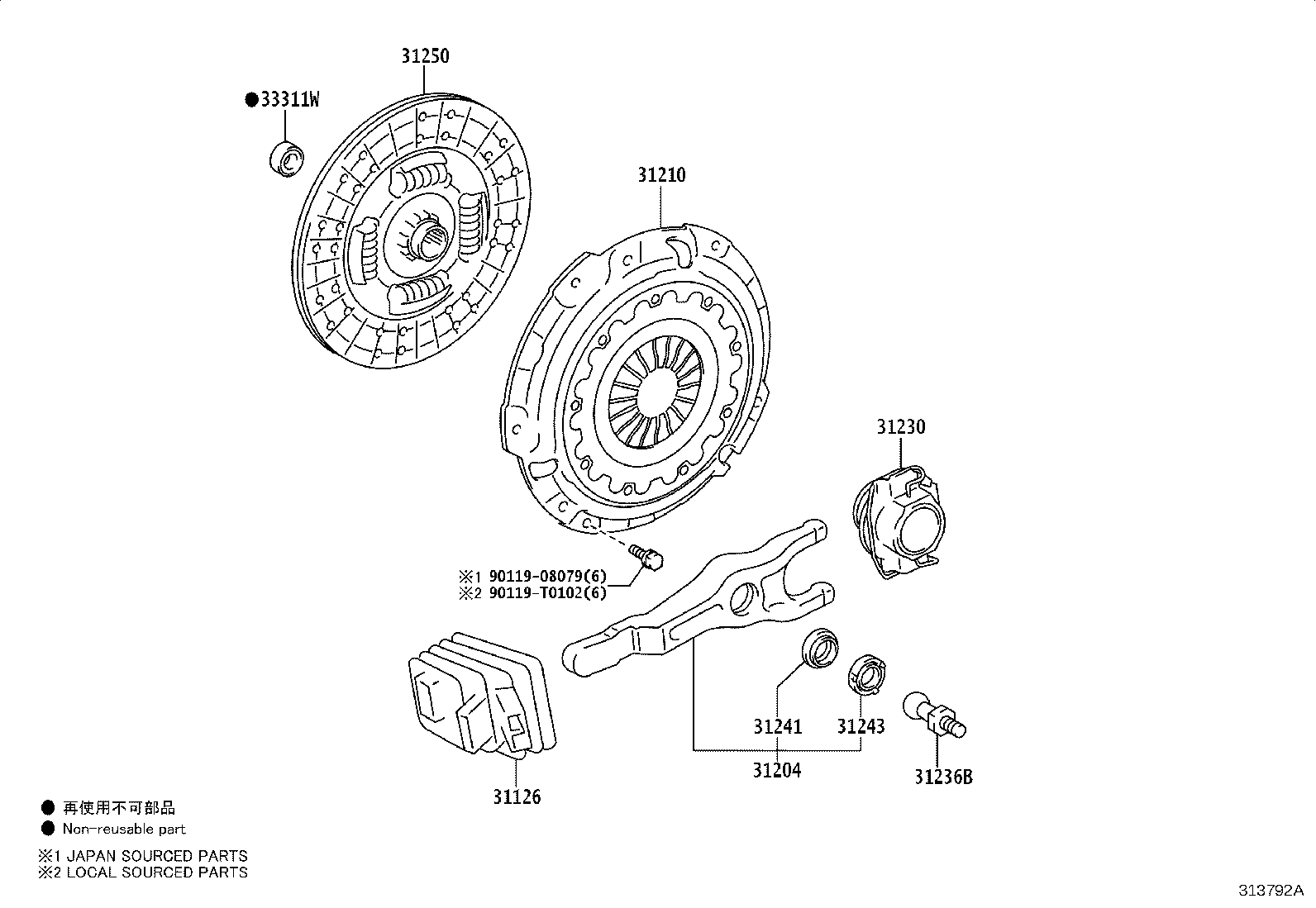

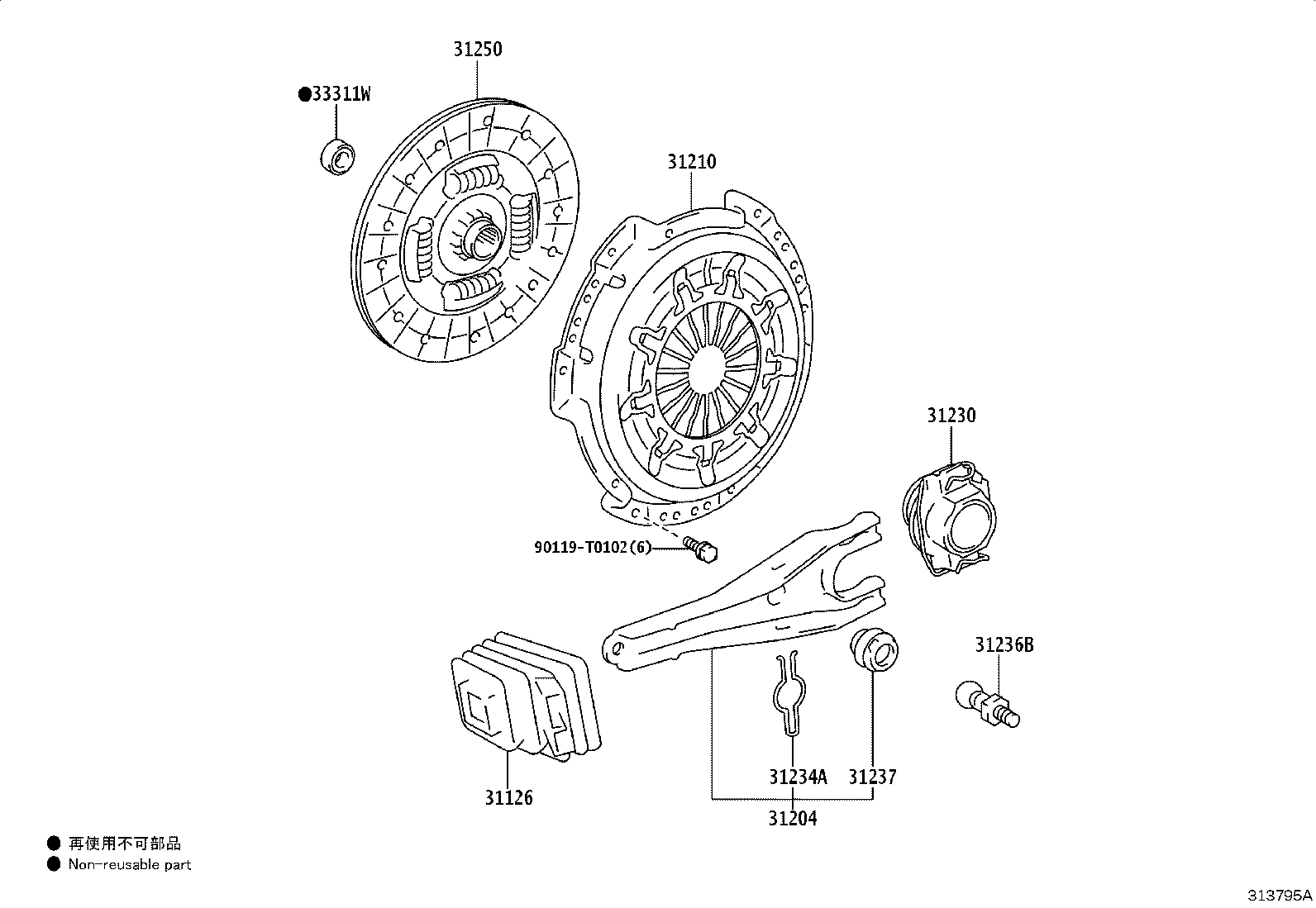

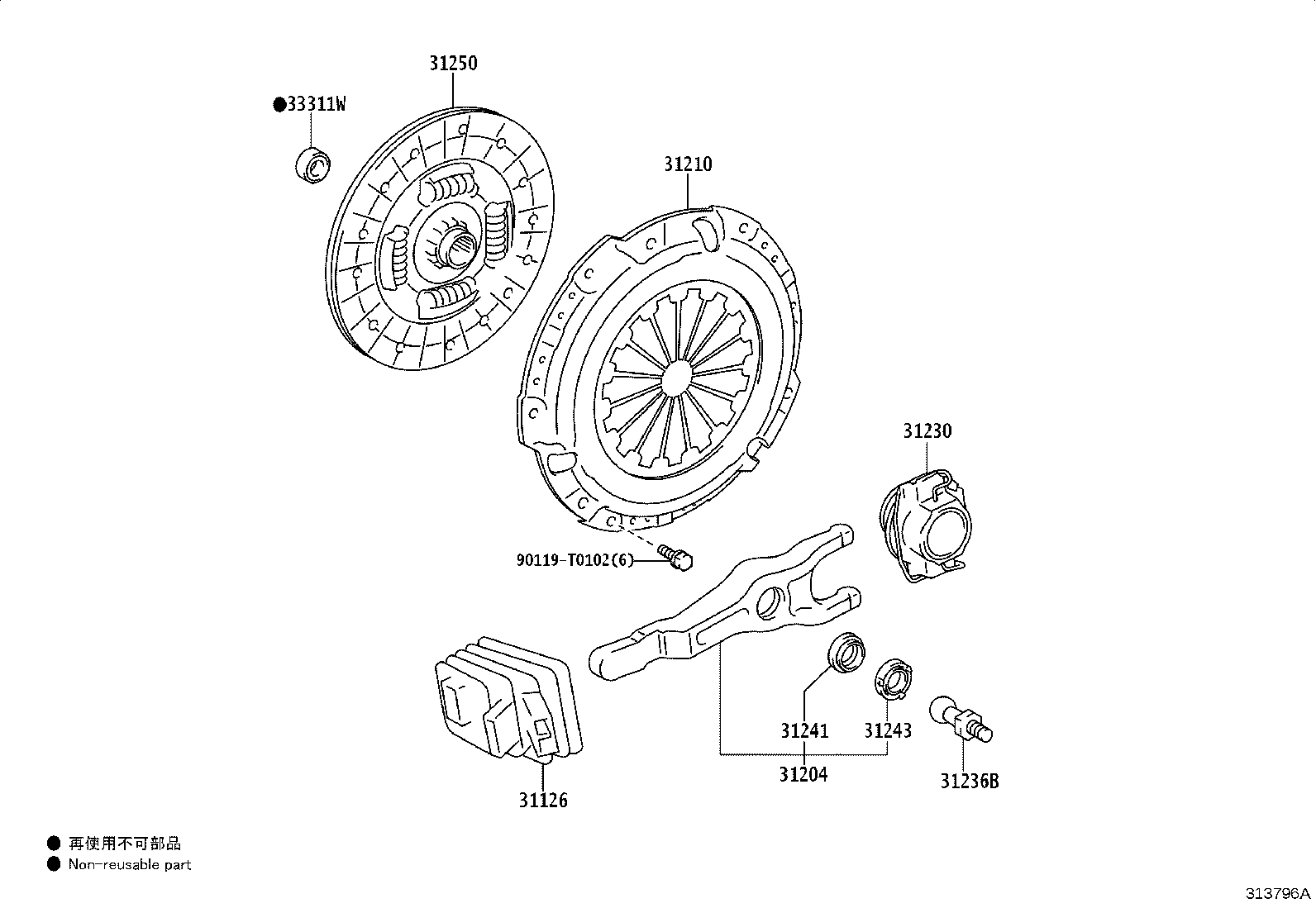

Figure 313791A 313791A 2022-08 → — Figure 313796A 313796A 2022-08 → — Figure 313792A 313792A 2022-08 → — Figure 313793A 313793A 2022-08 → — Figure 313794A 313794A 2022-08 → — Figure 313795A 313795A 2022-08 → —

Part groups

PNCDescription
31001 Clutch Set, Cover & Disc
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31241 Seal, Clutch Release Fork Dust
31243 Collar, Clutch Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
