Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 9 illustrations

Illustrations

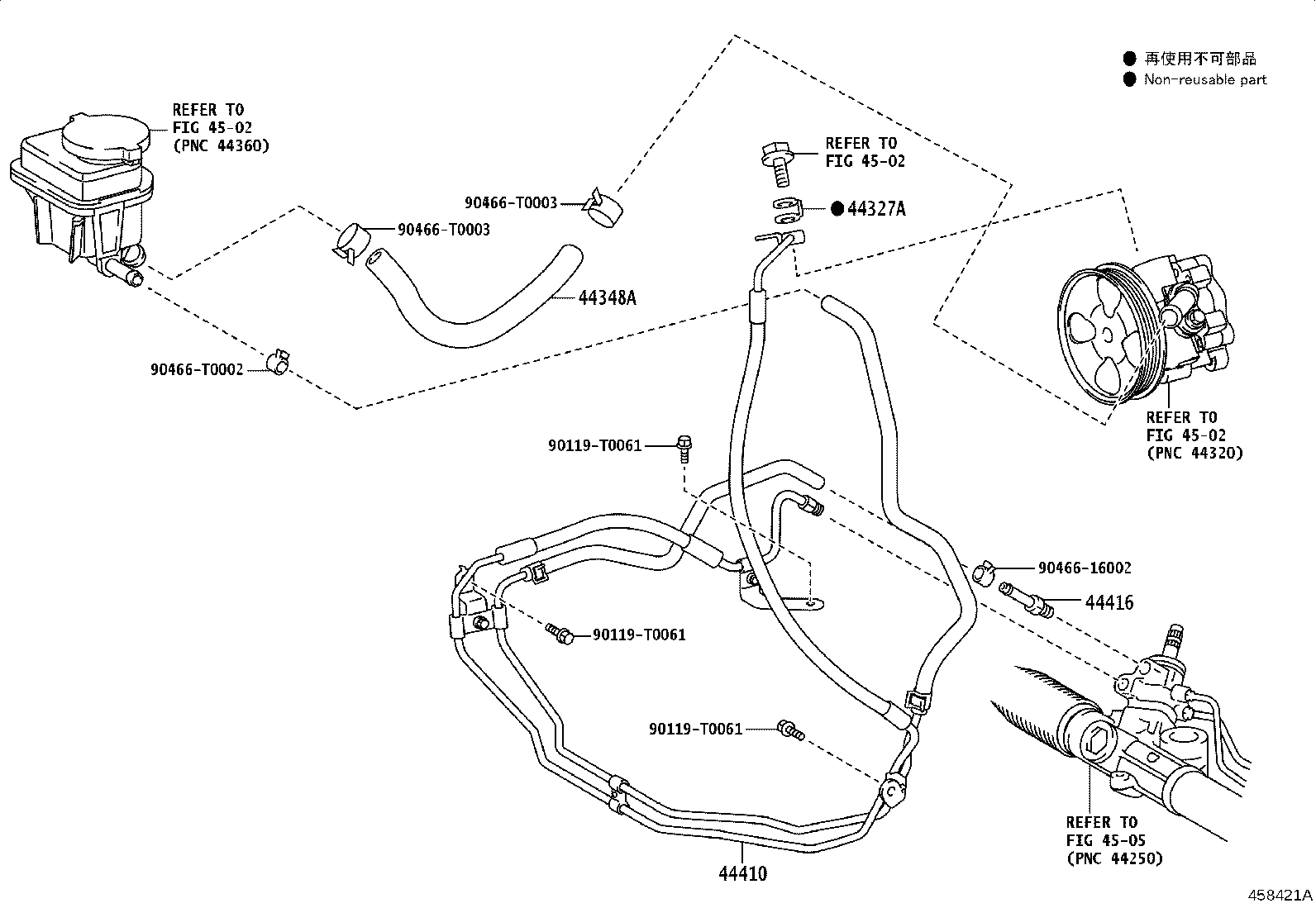

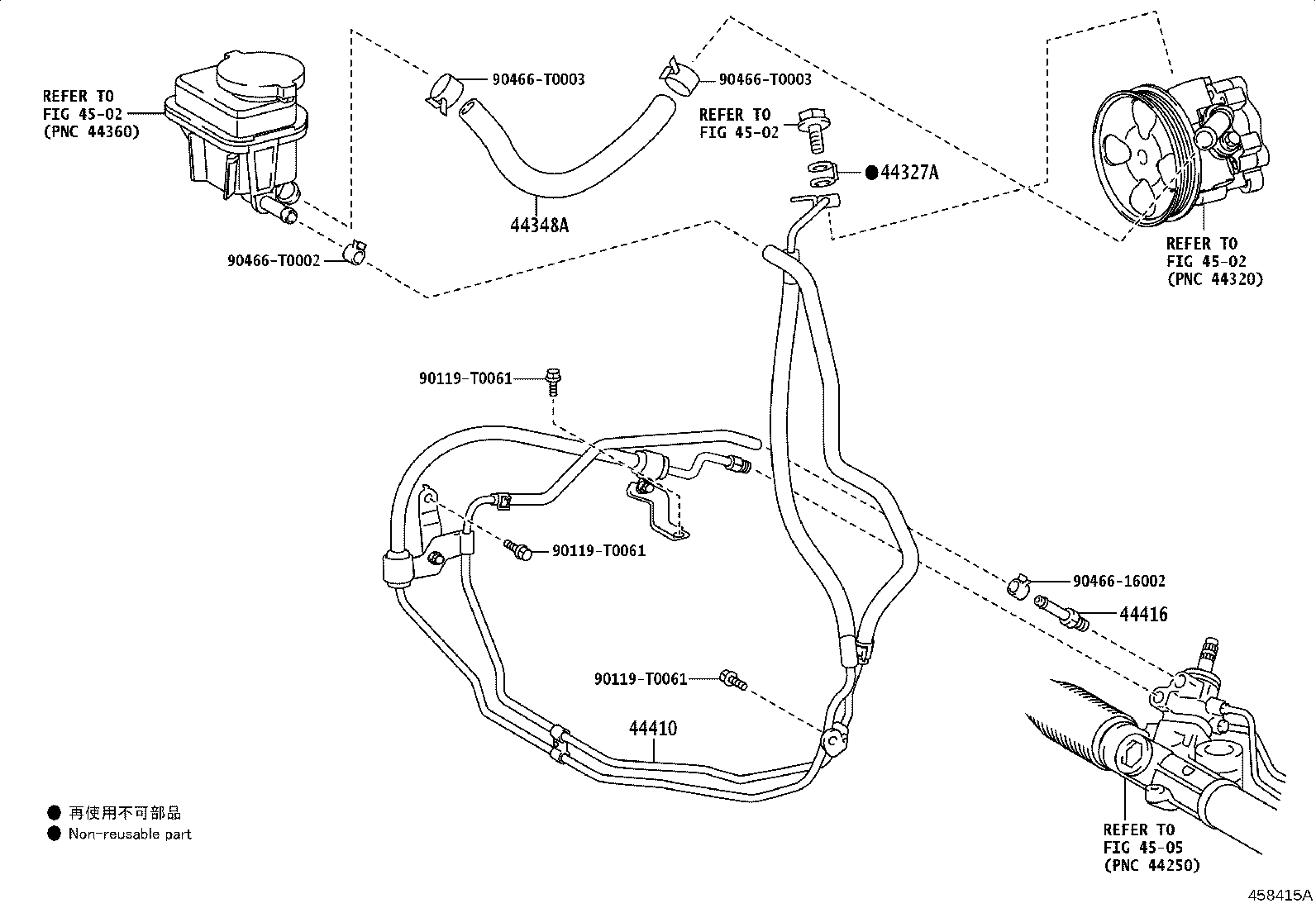

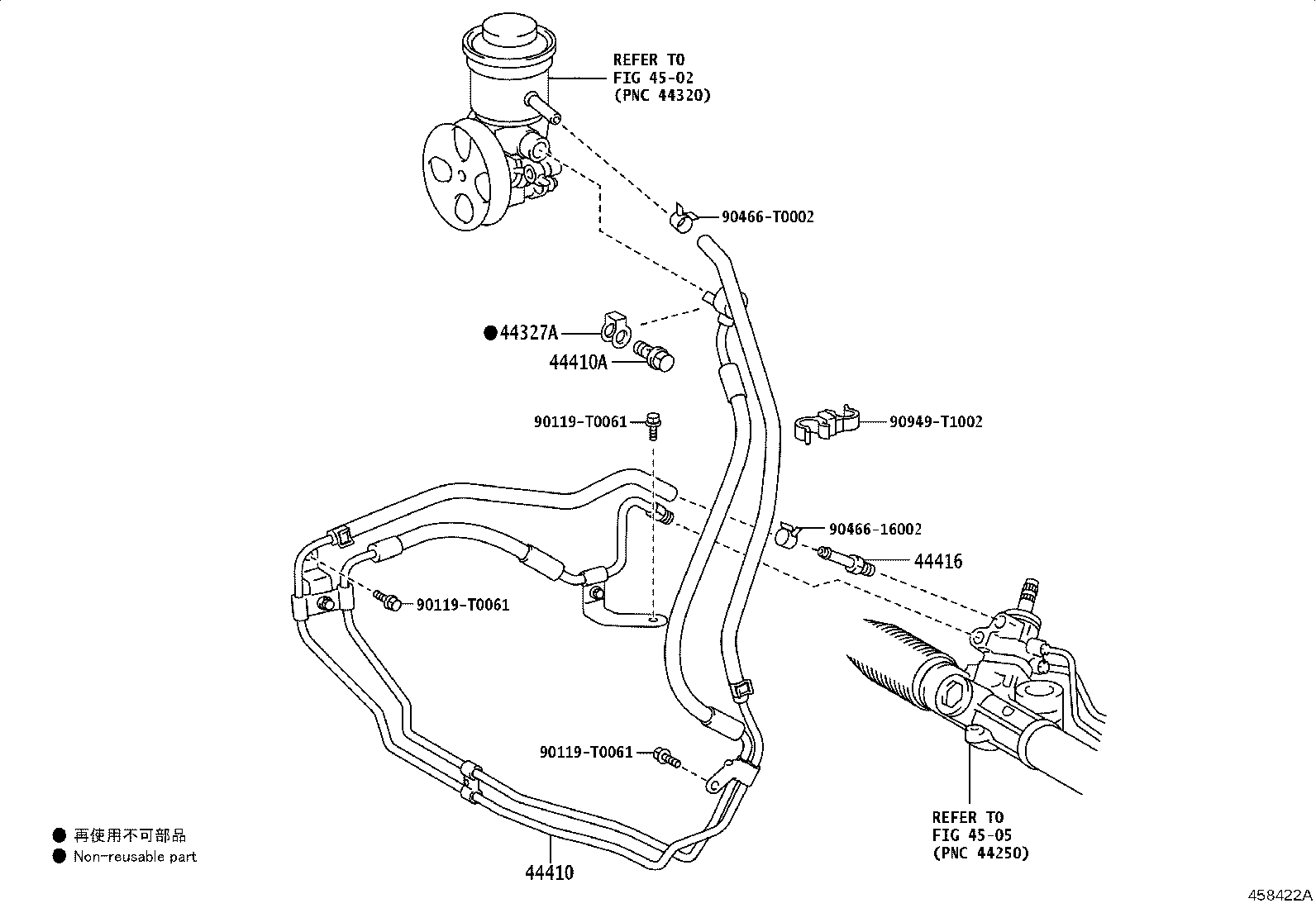

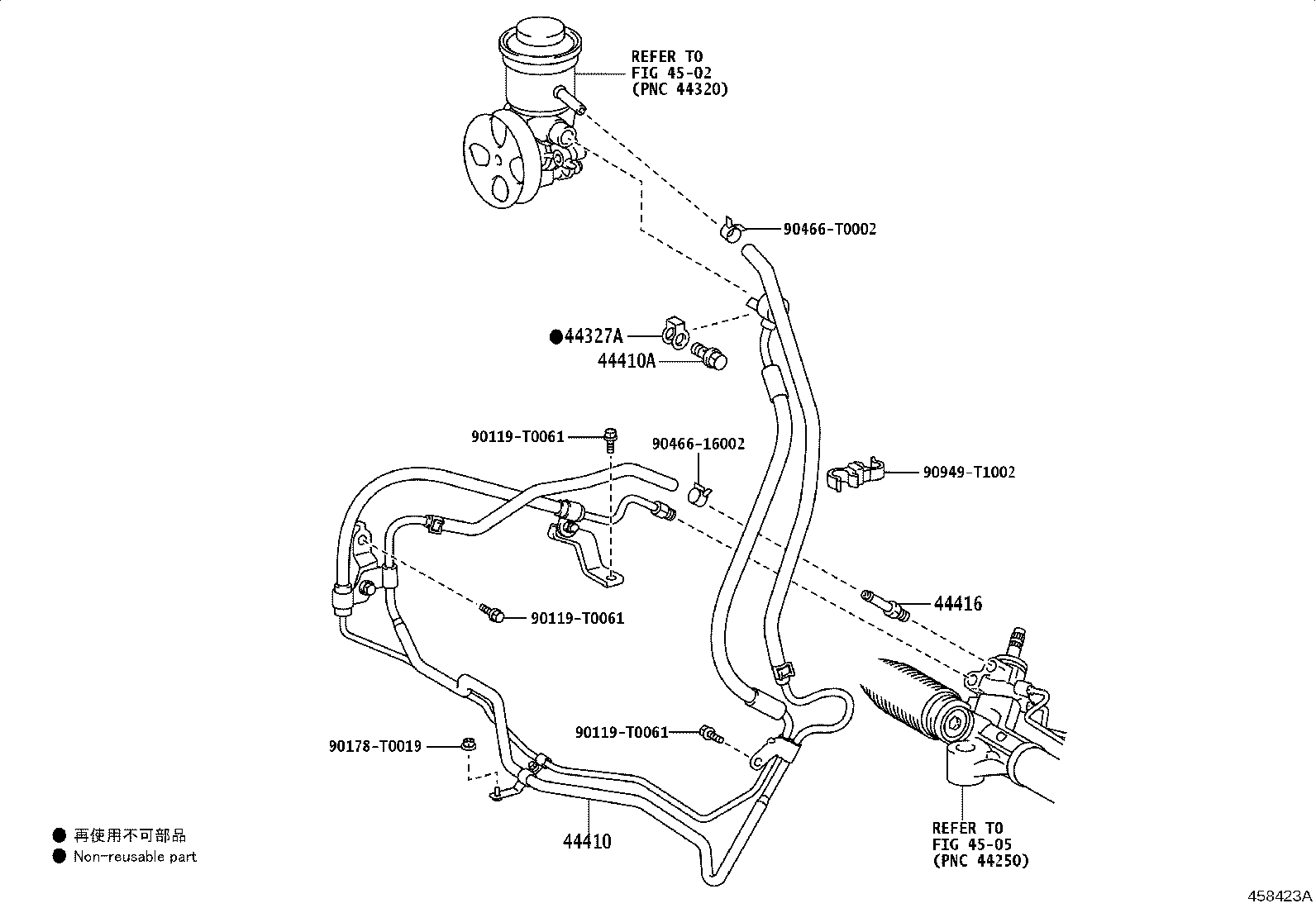

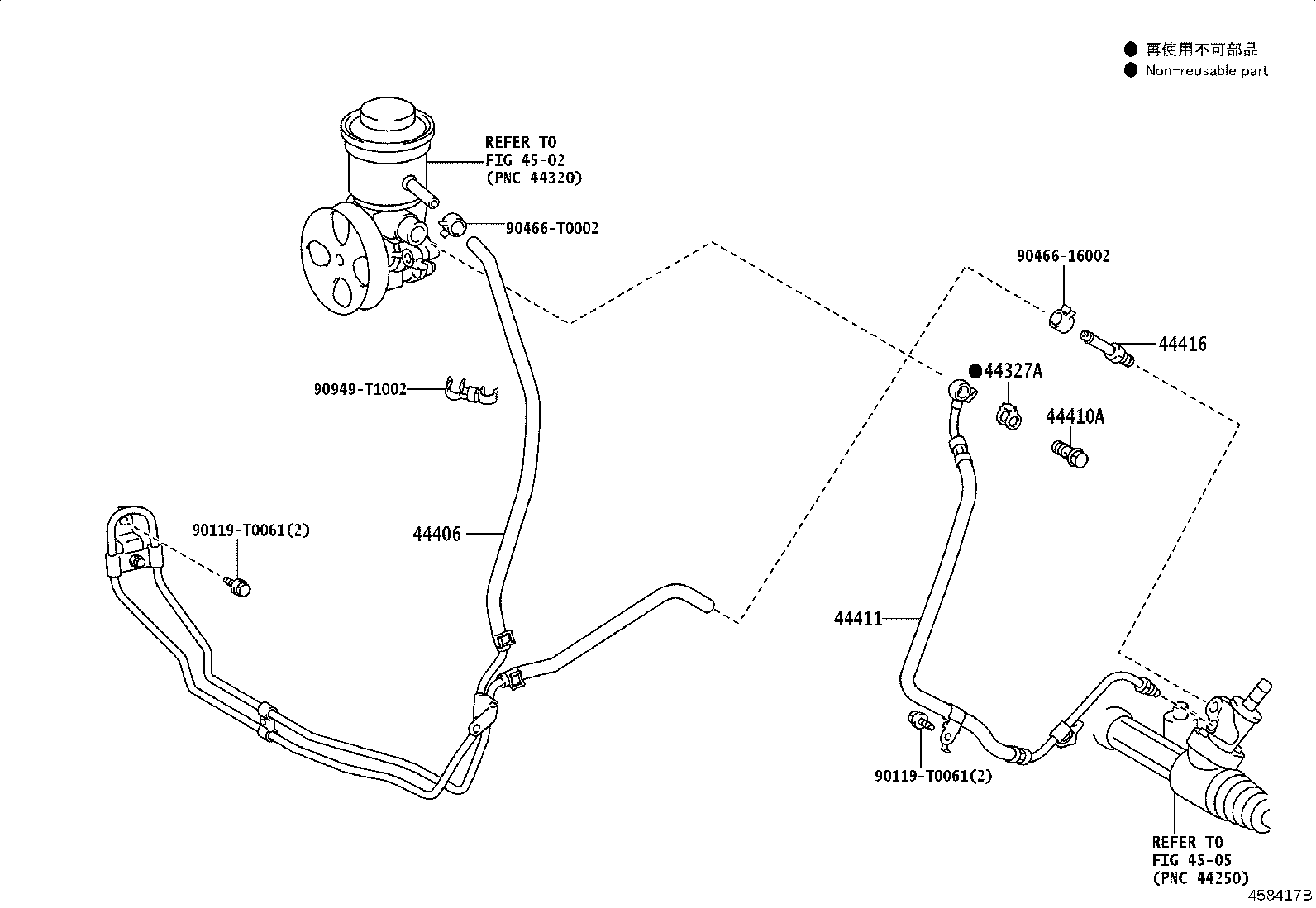

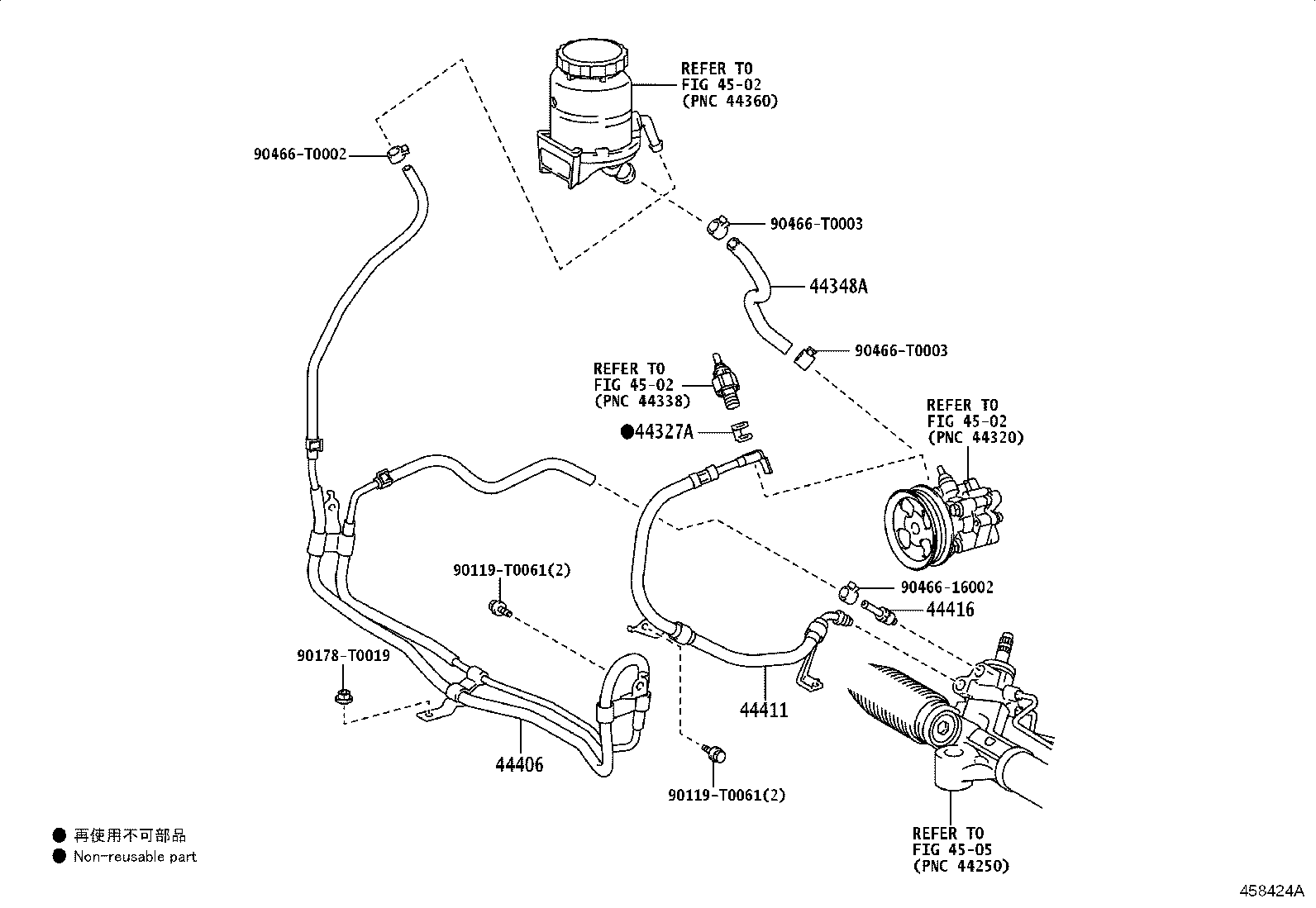

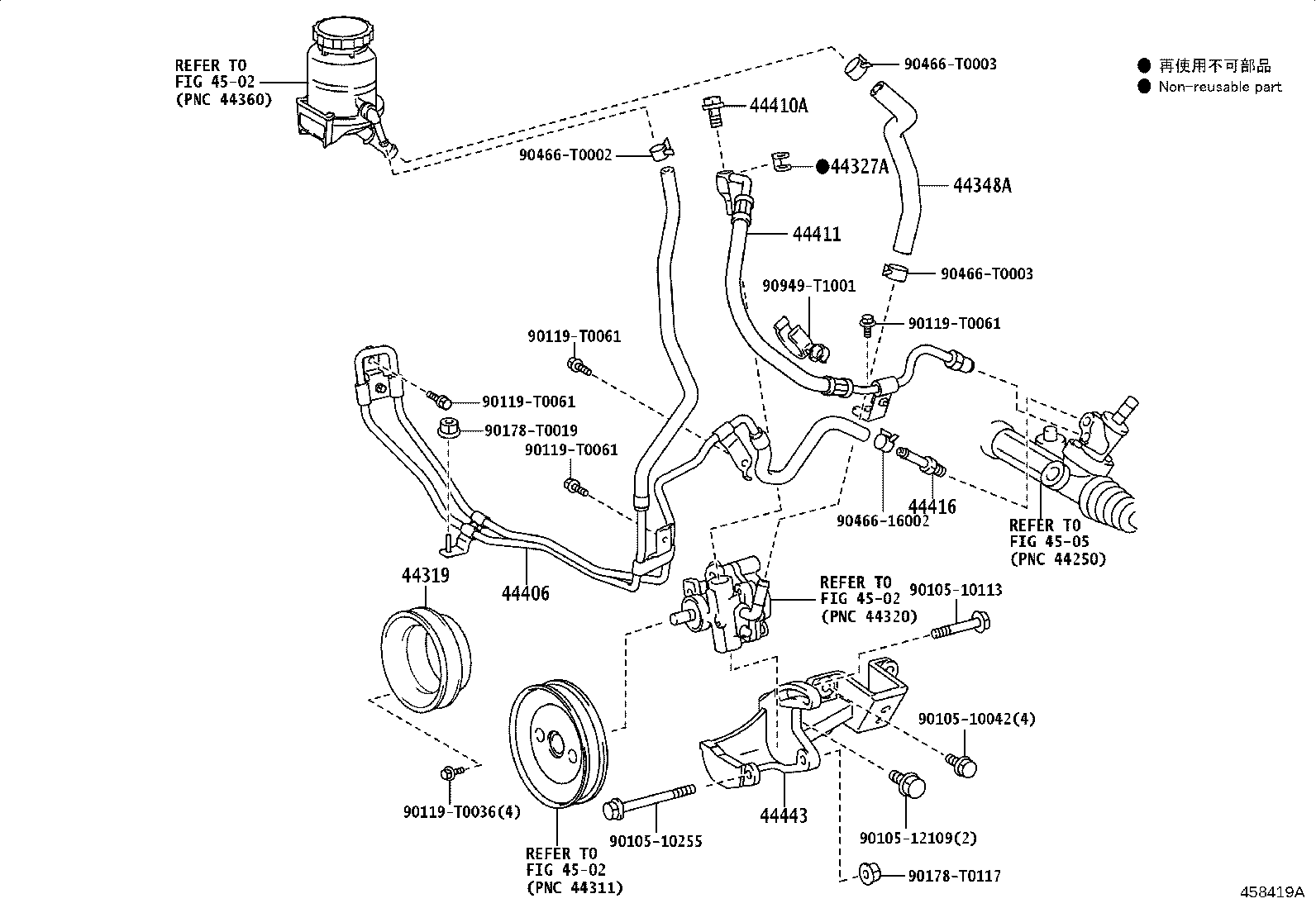

Figure 458413A 458413A 2022-08 → — Figure 458424A 458424A 2023-01 → — Figure 458414B 458414B 2022-08 → — Figure 458421A 458421A 2022-08 → — Figure 458415A 458415A 2022-08 → — Figure 458417B 458417B 2022-08 → — Figure 458422A 458422A 2022-08 → — Figure 458423A 458423A 2023-01 → — Figure 458419A 458419A 2023-01 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
