Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 6 illustrations

Illustrations

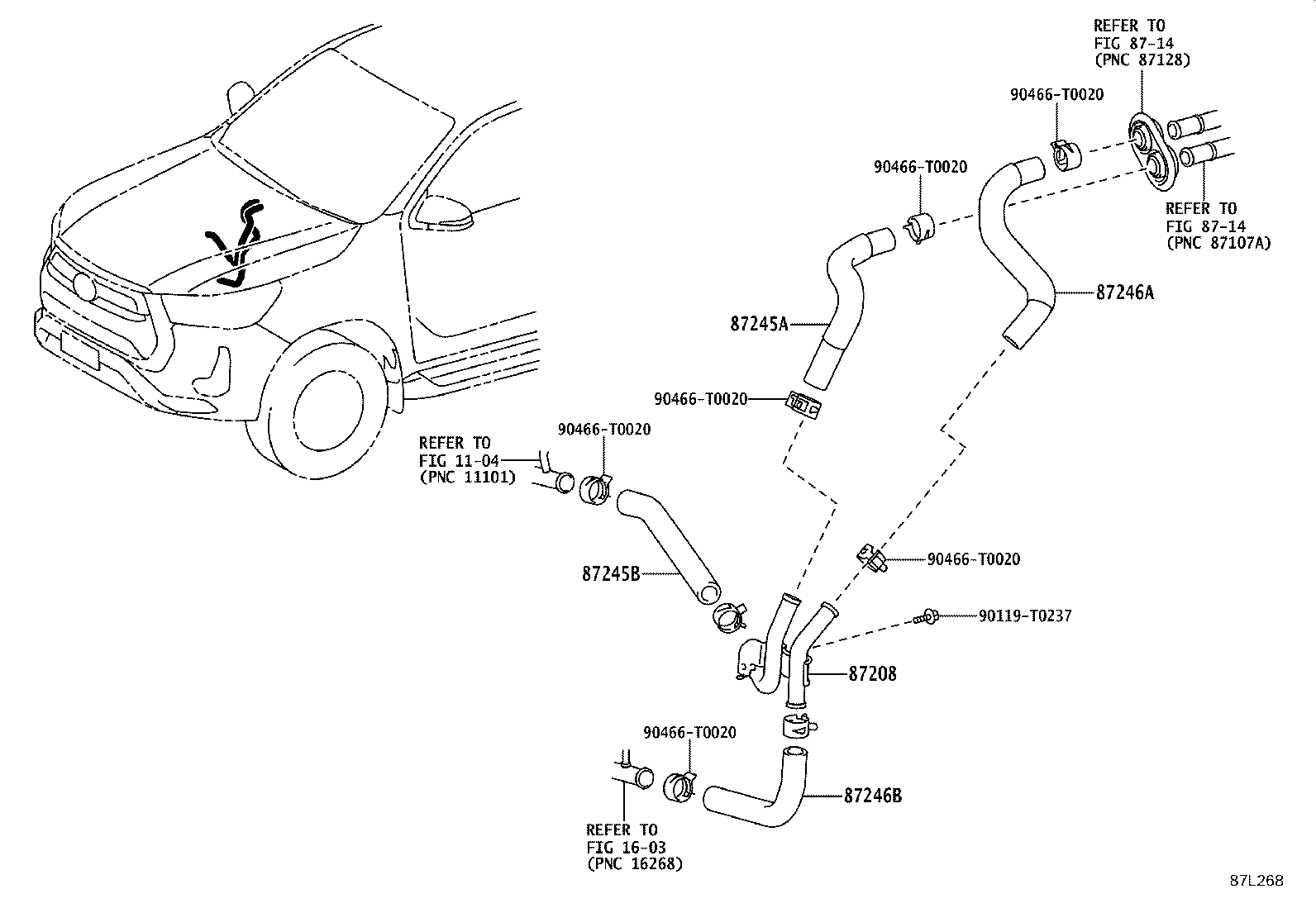

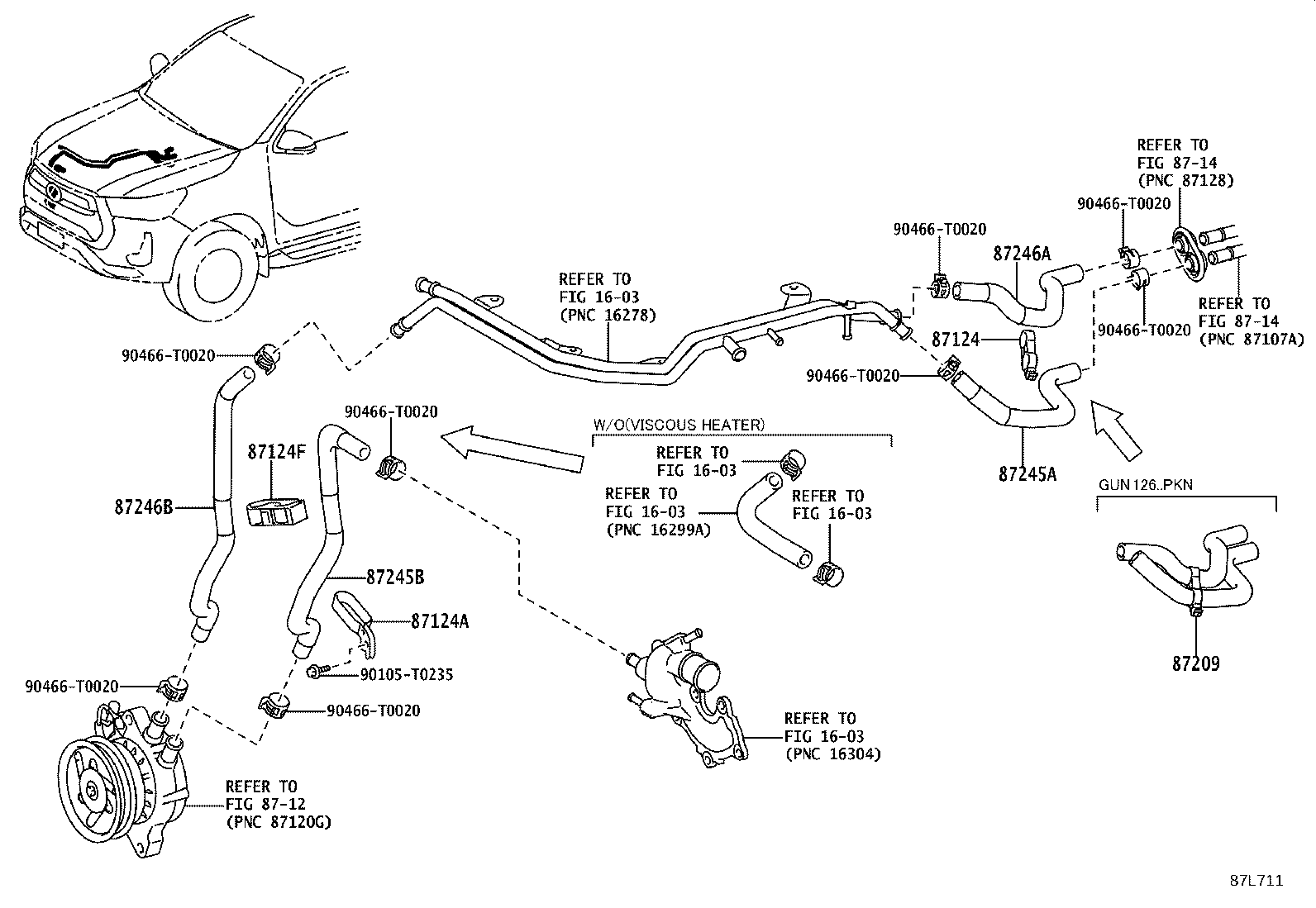

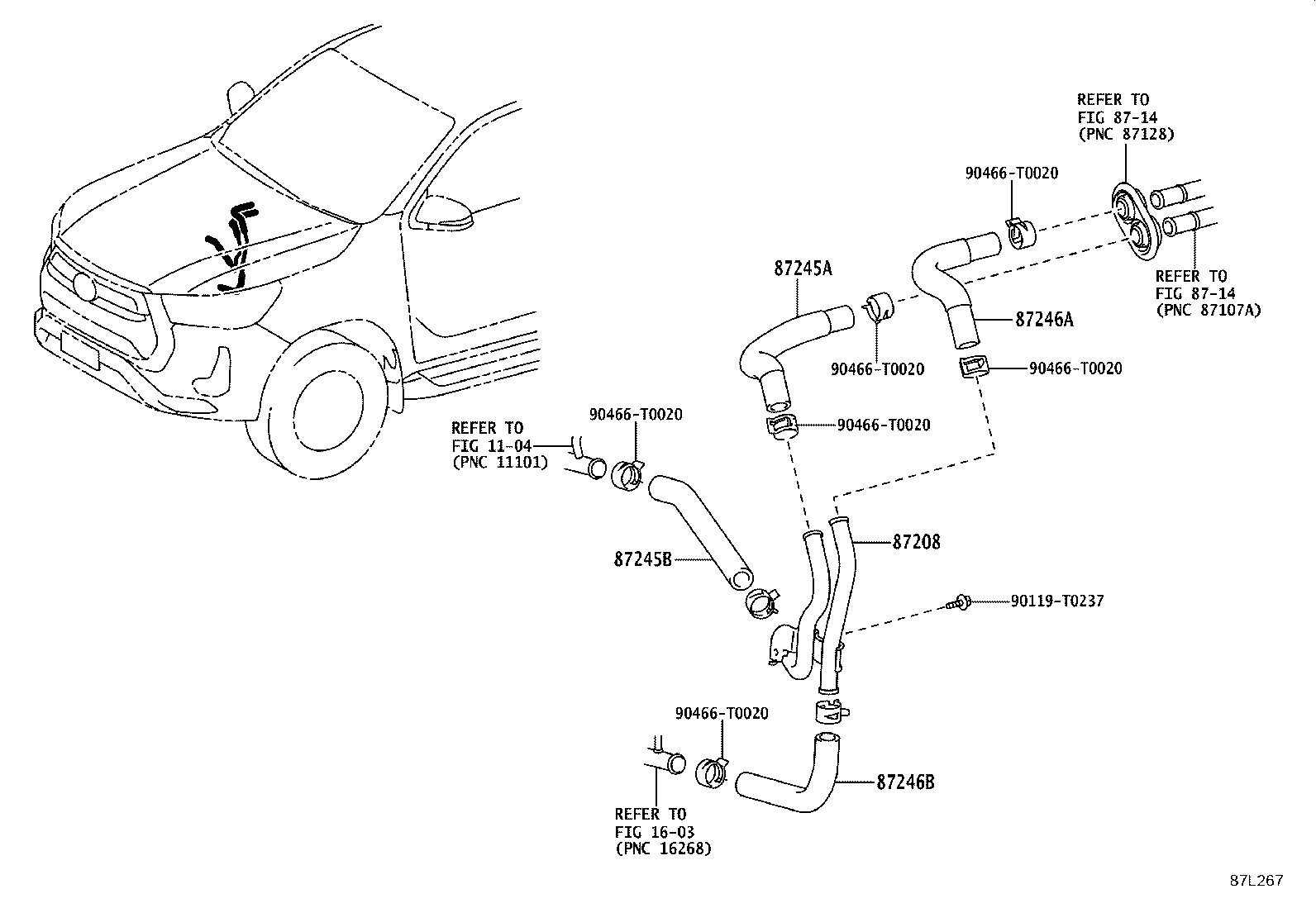

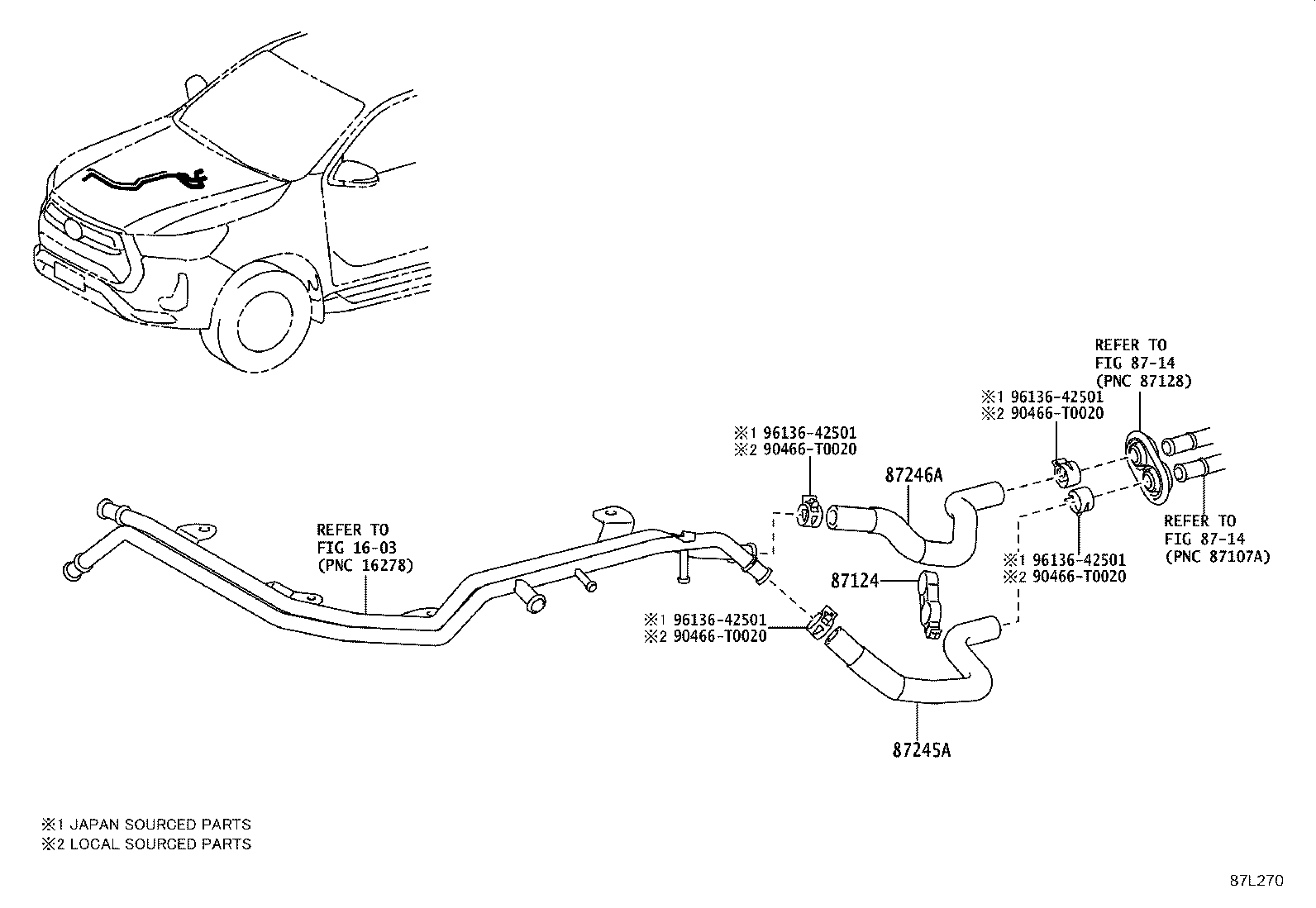

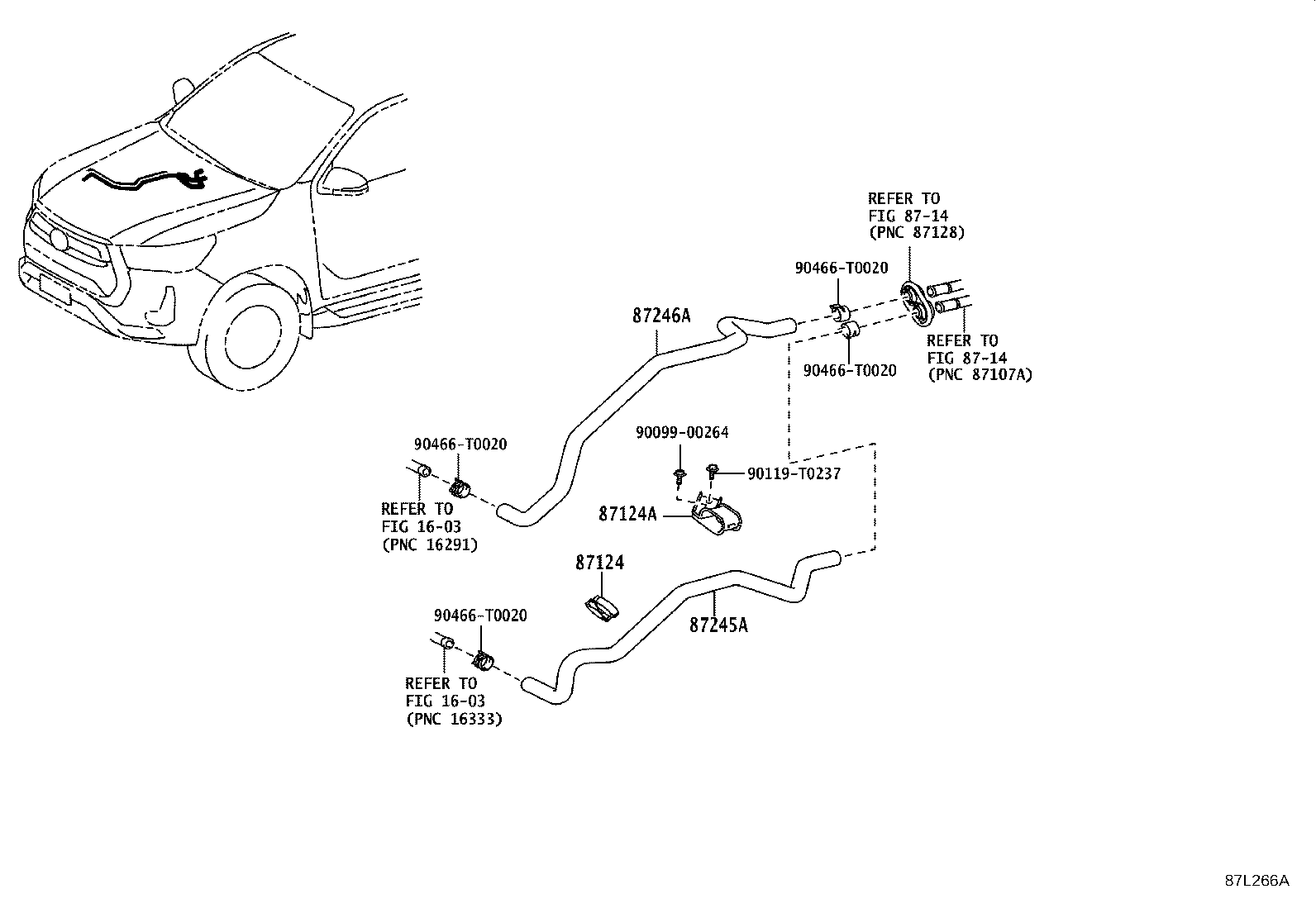

Figure 87L269 87L269 2022-08 → — Figure 87L711 87L711 2022-08 → — Figure 87L267 87L267 2022-08 → — Figure 87L268 87L268 2022-08 → — Figure 87L270 87L270 2022-10 → — Figure 87L266A 87L266A 2023-01 → —

Part groups

PNCDescription
87124 Clamp, Heater
87124A Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
