Toyota Hilux (DOUBLE CAB)

2023-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

137 part groups · 14 illustrations

Illustrations

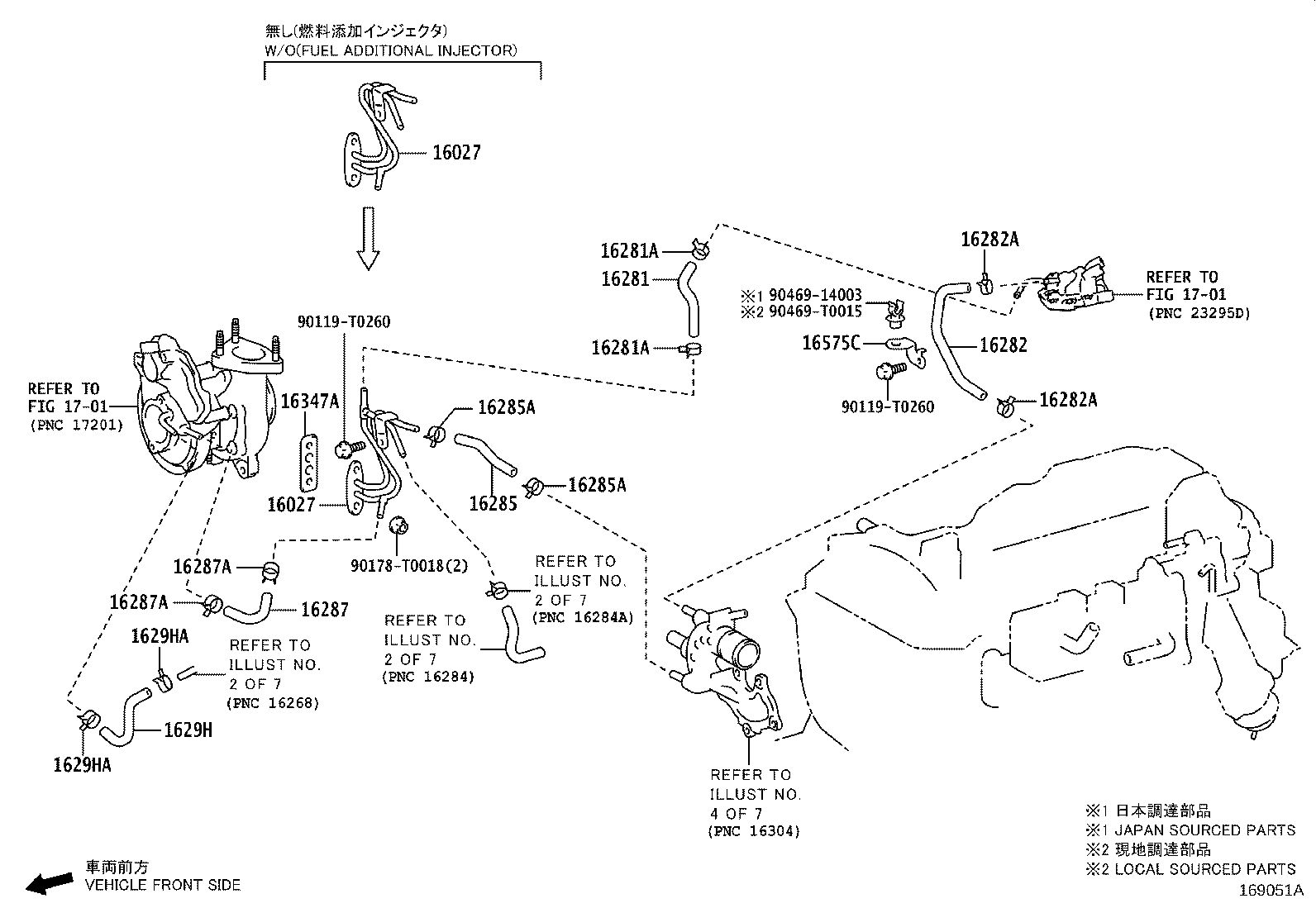

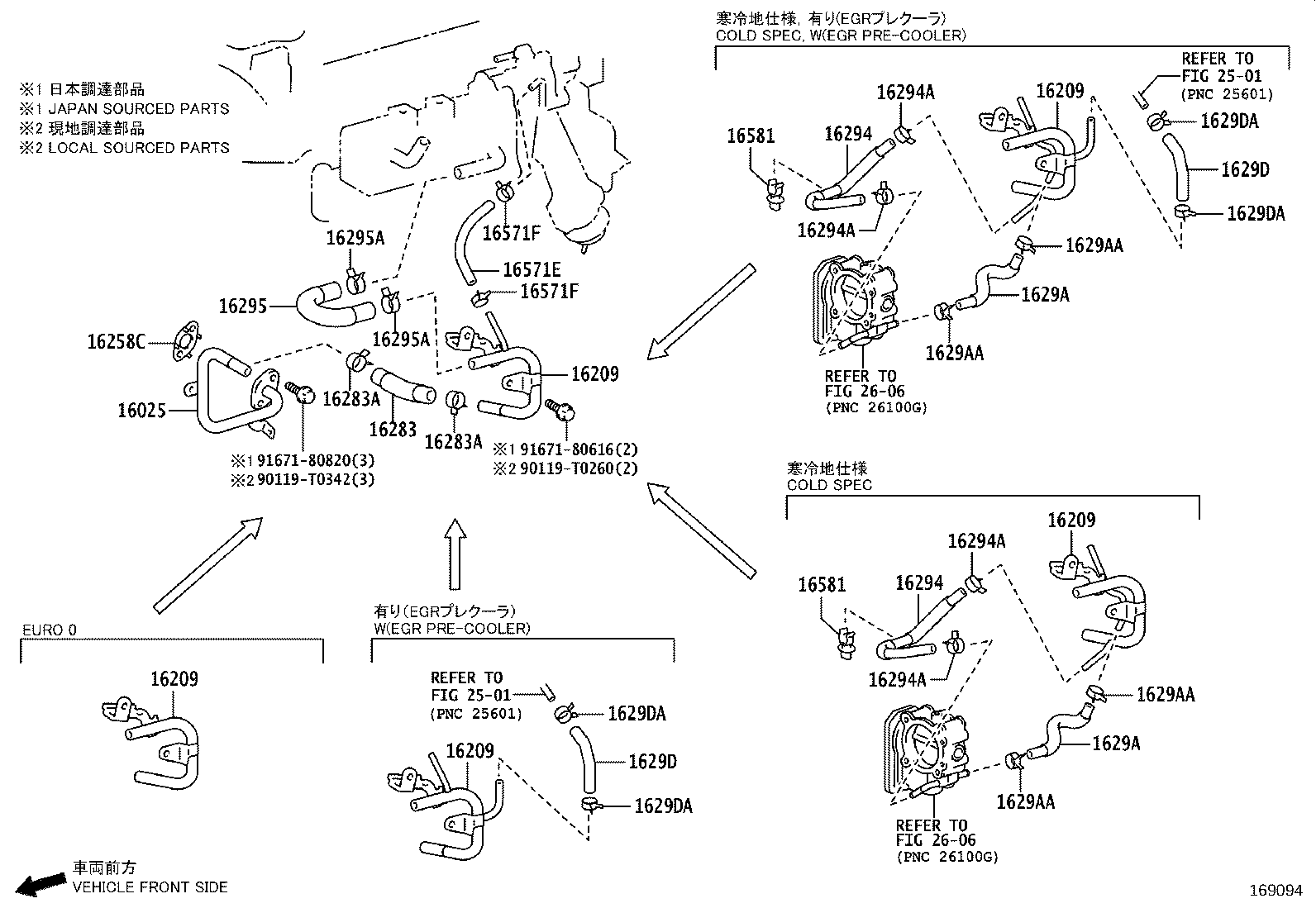

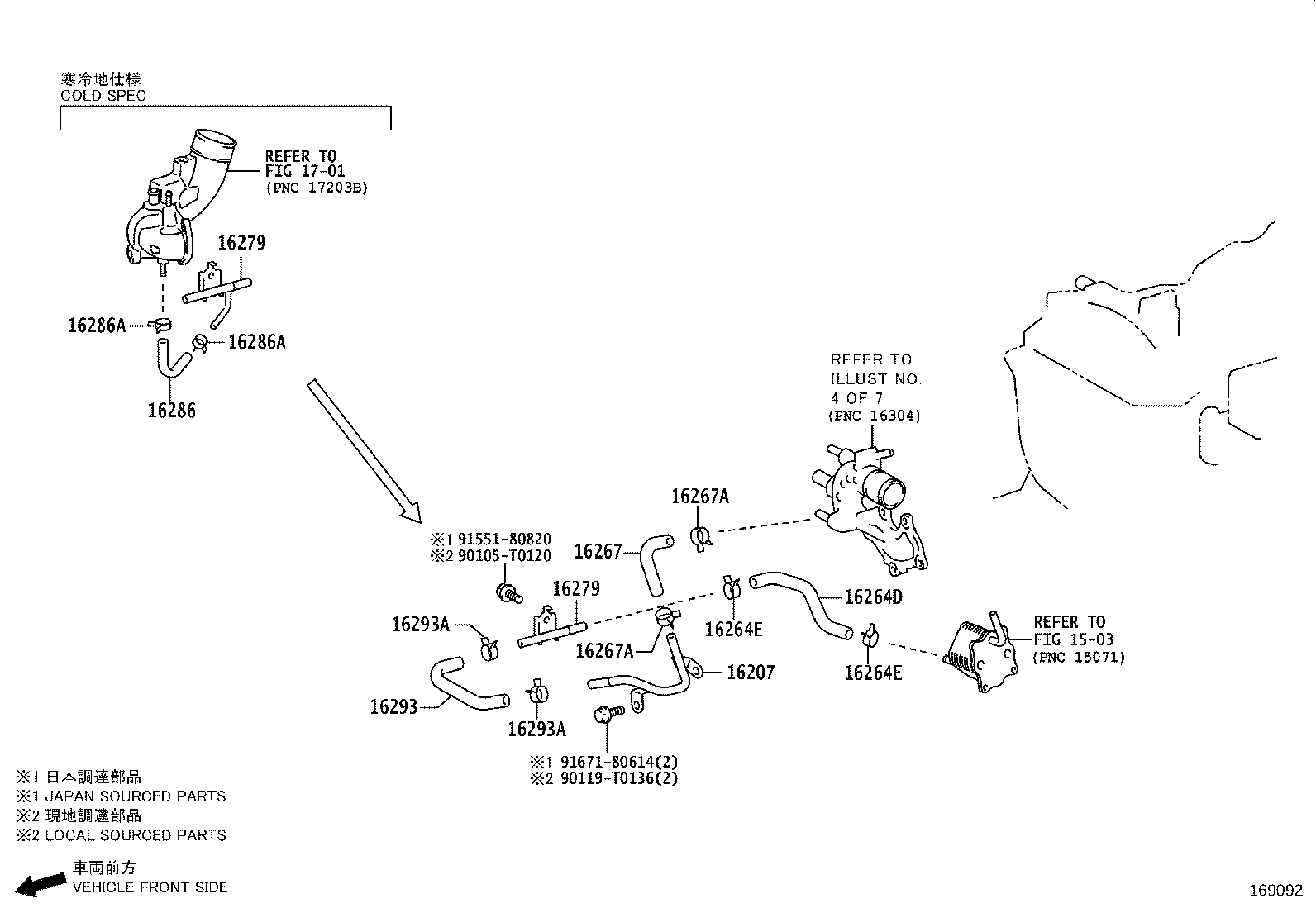

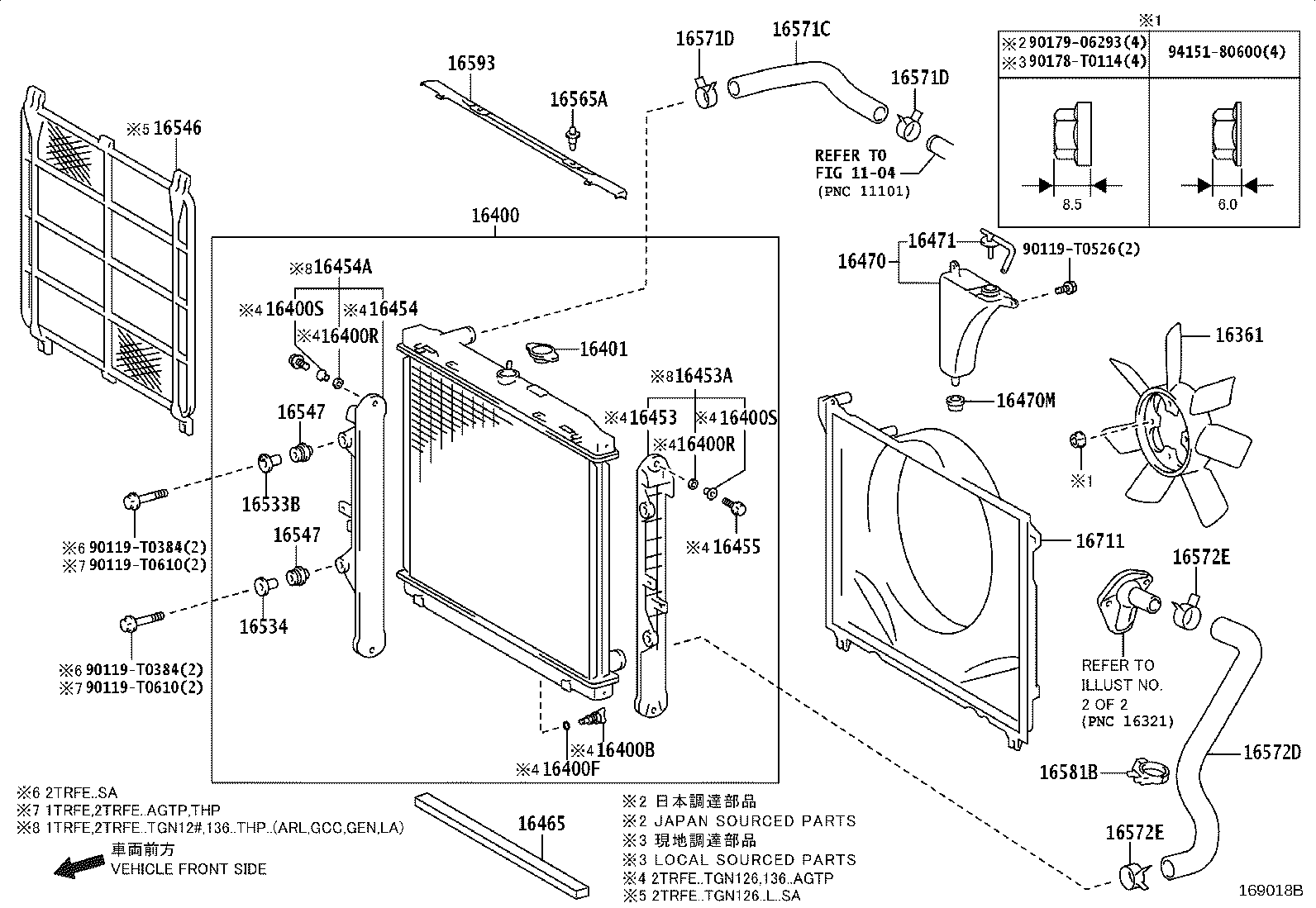

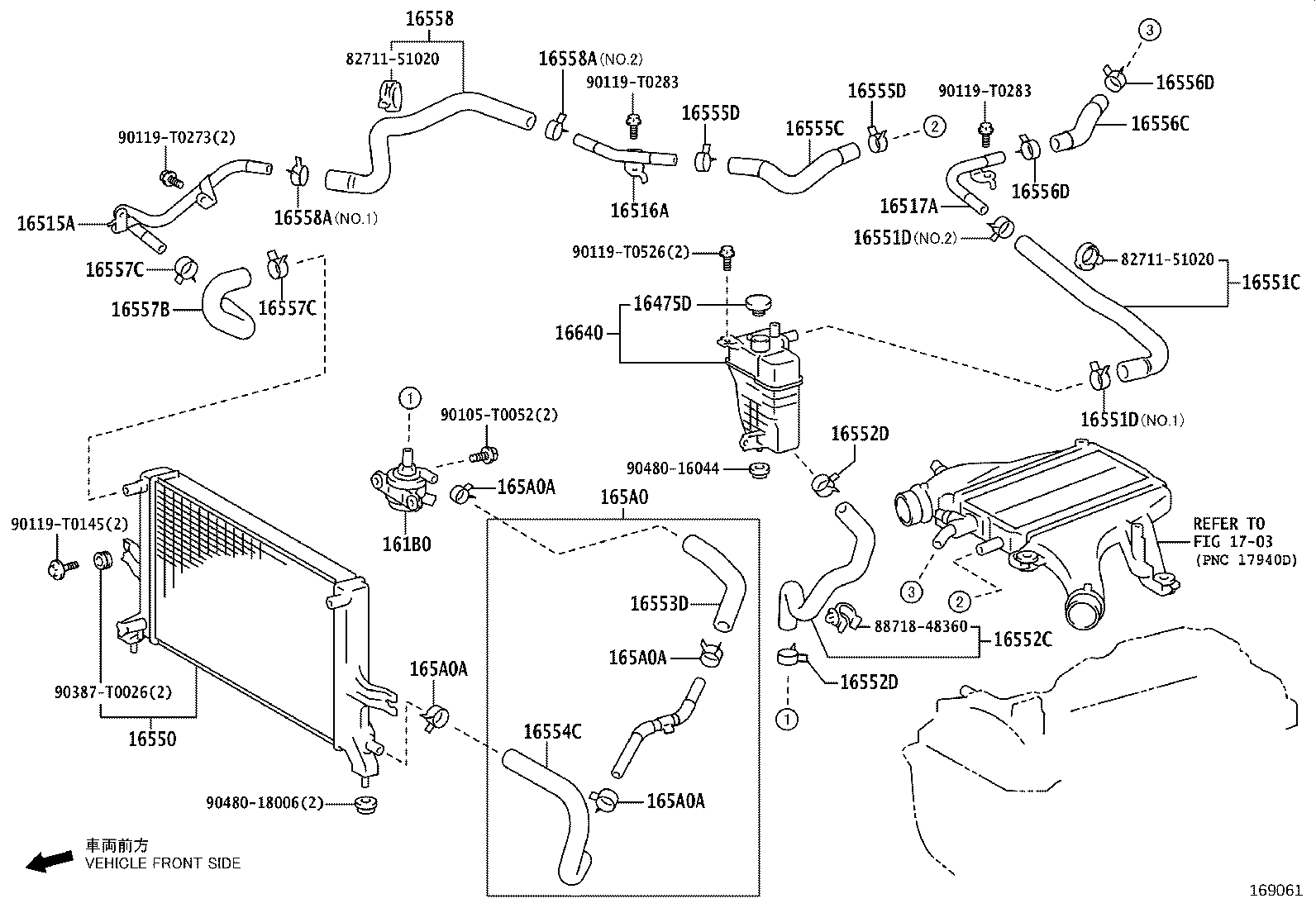

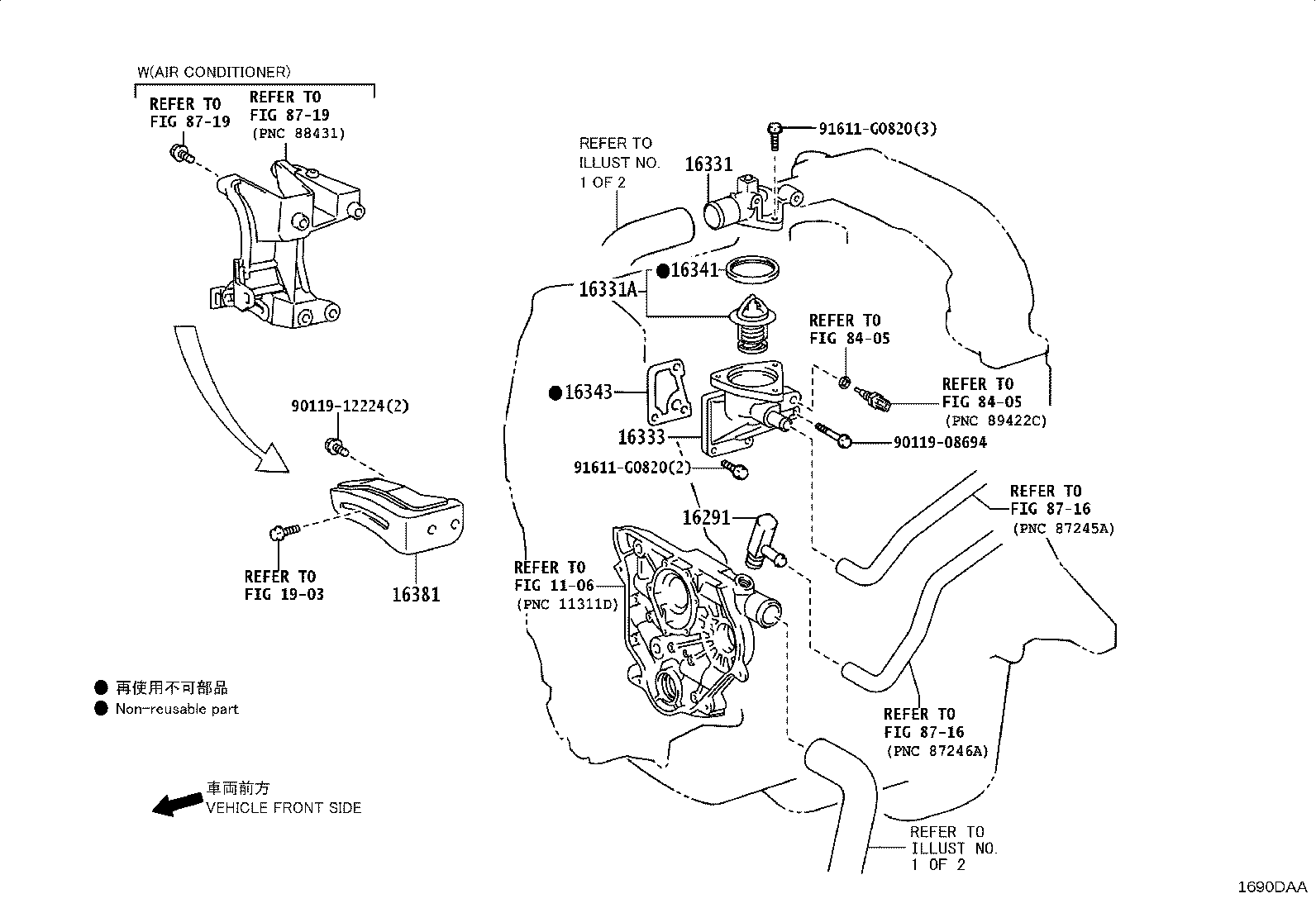

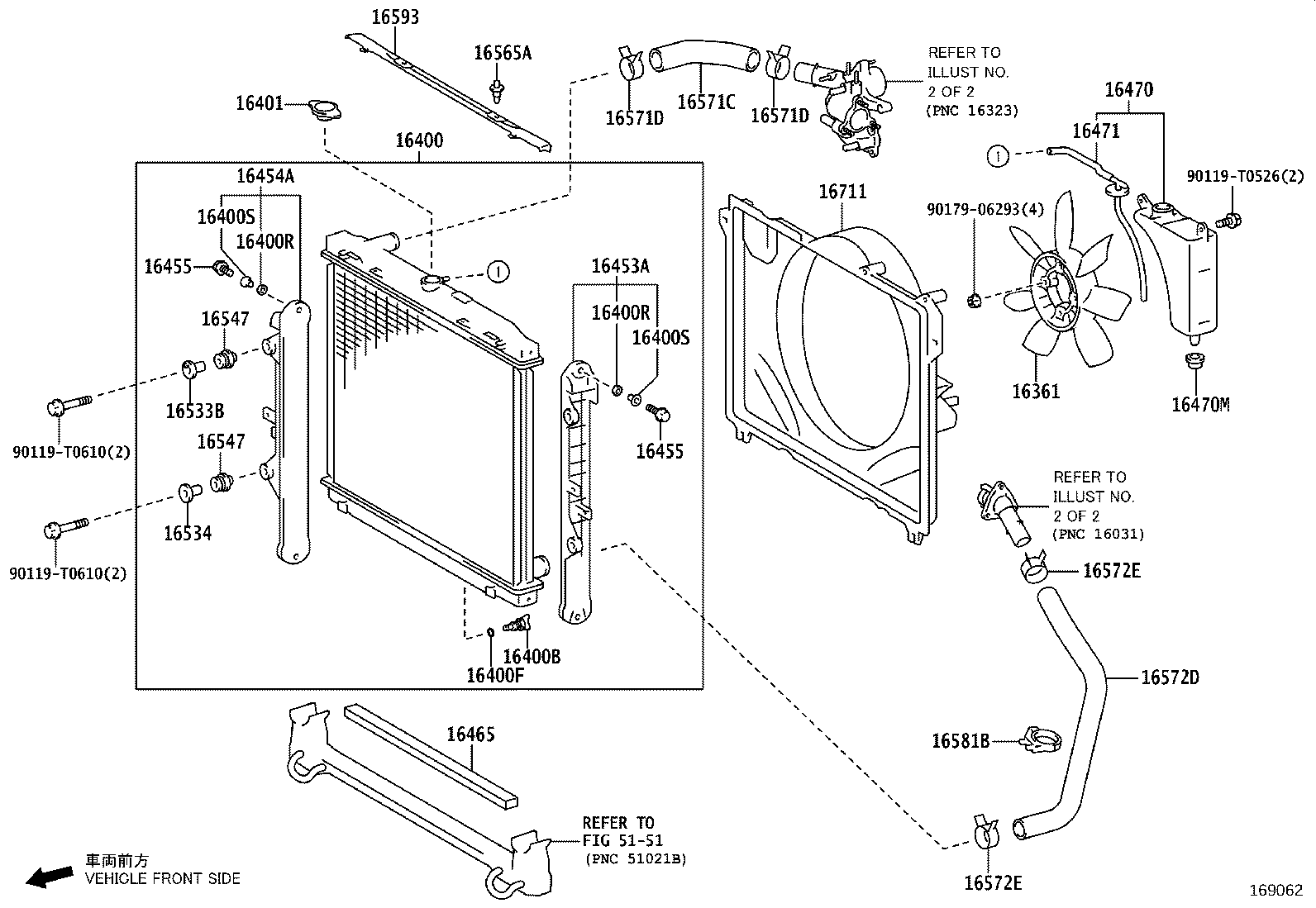

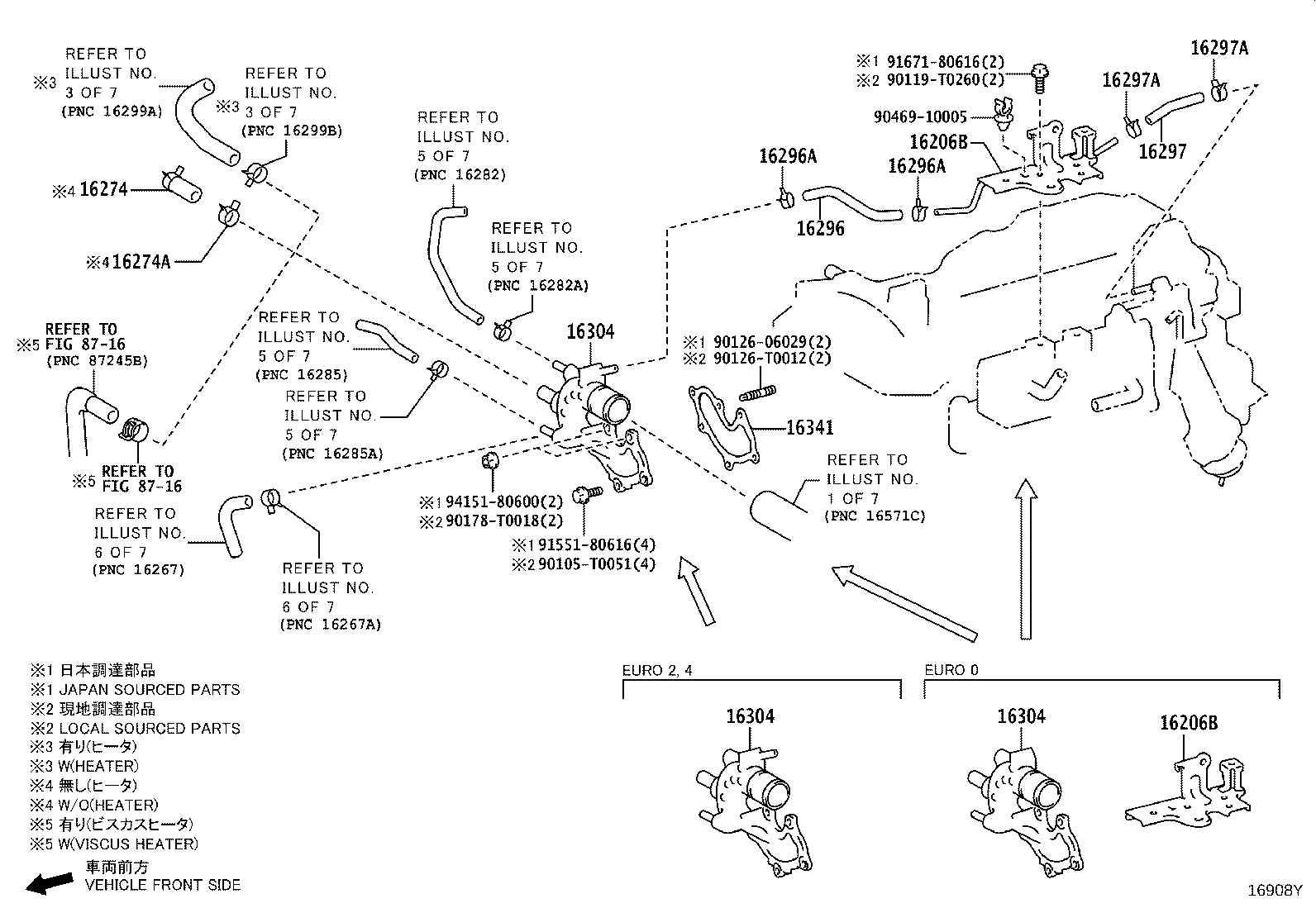

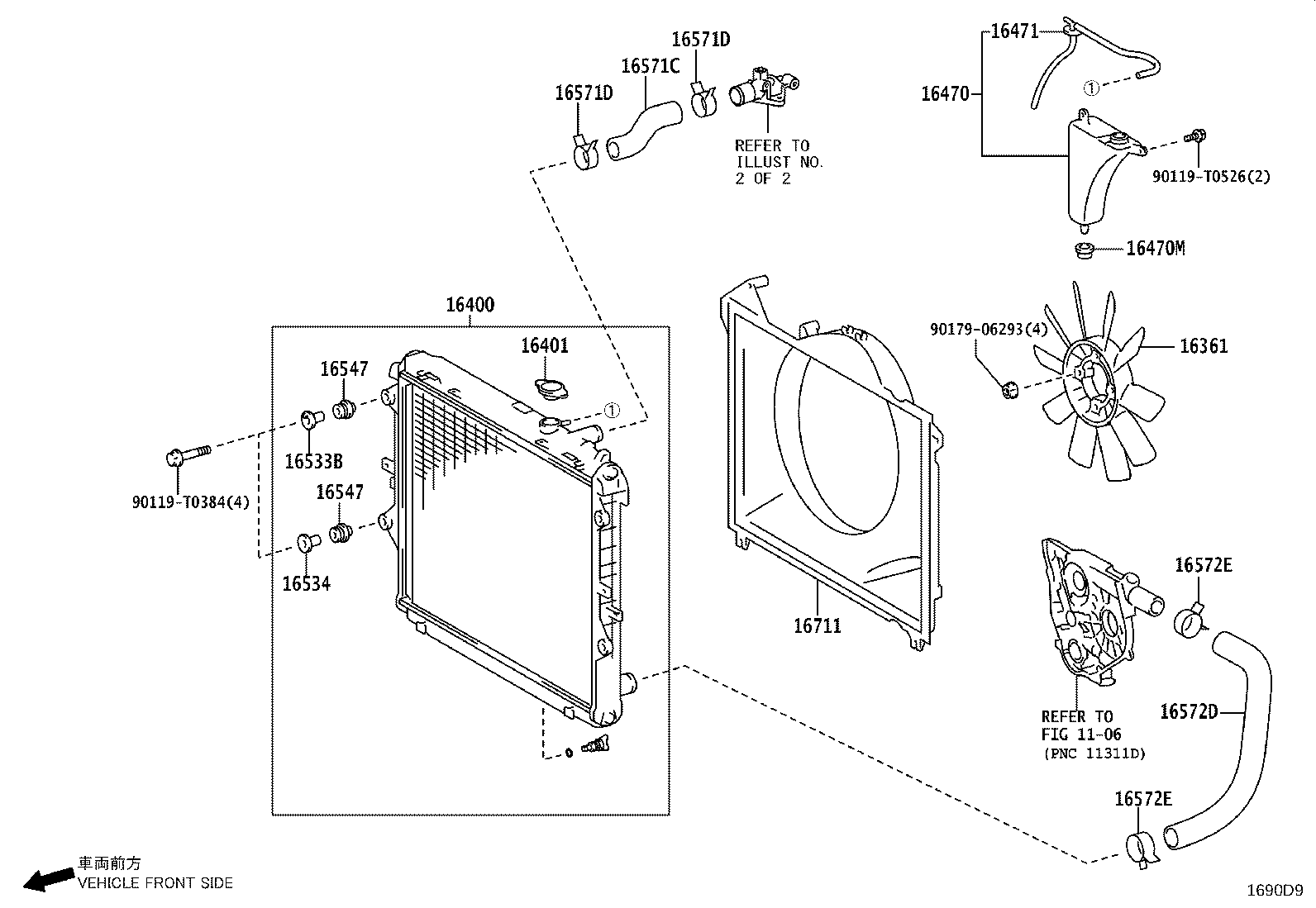

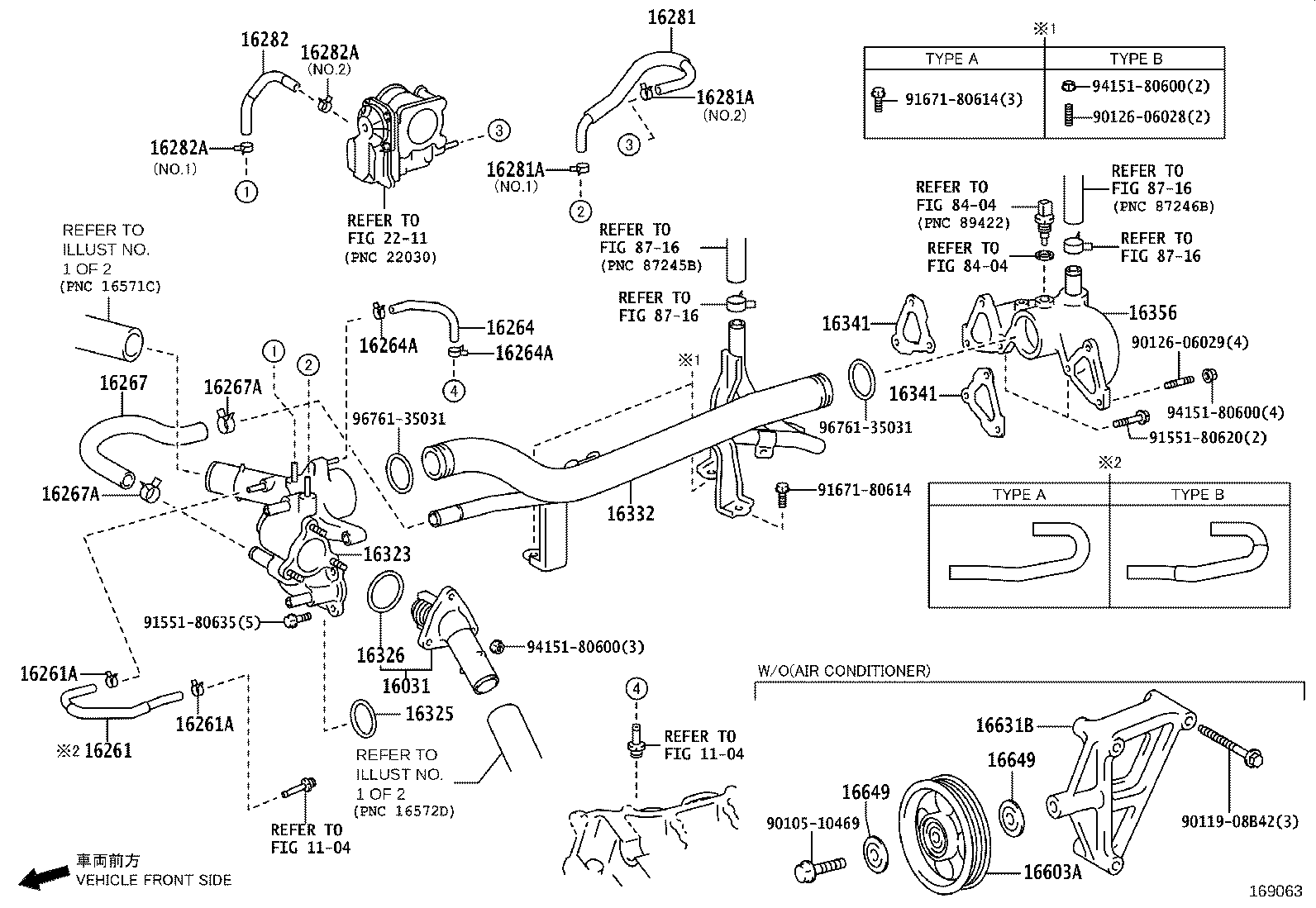

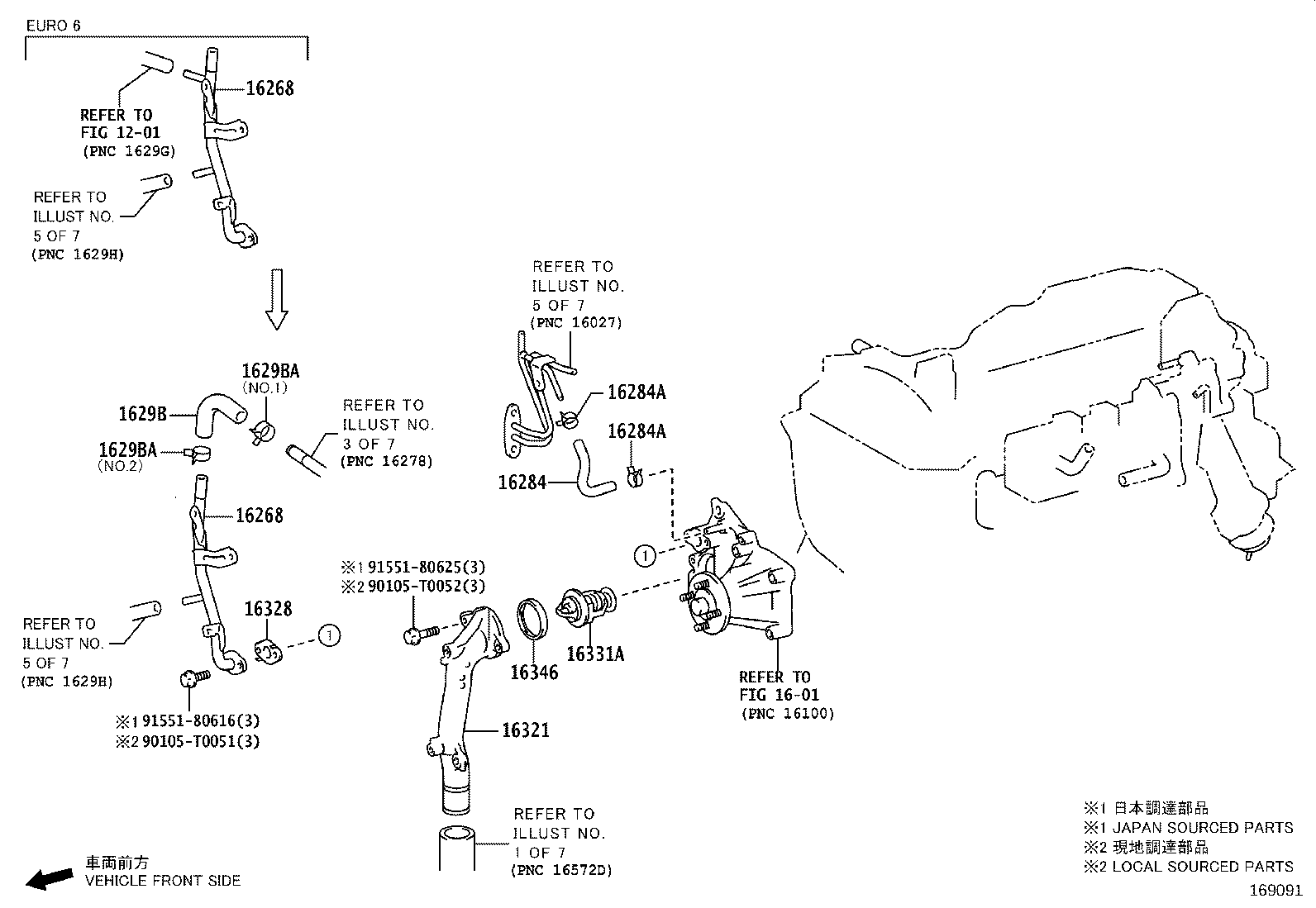

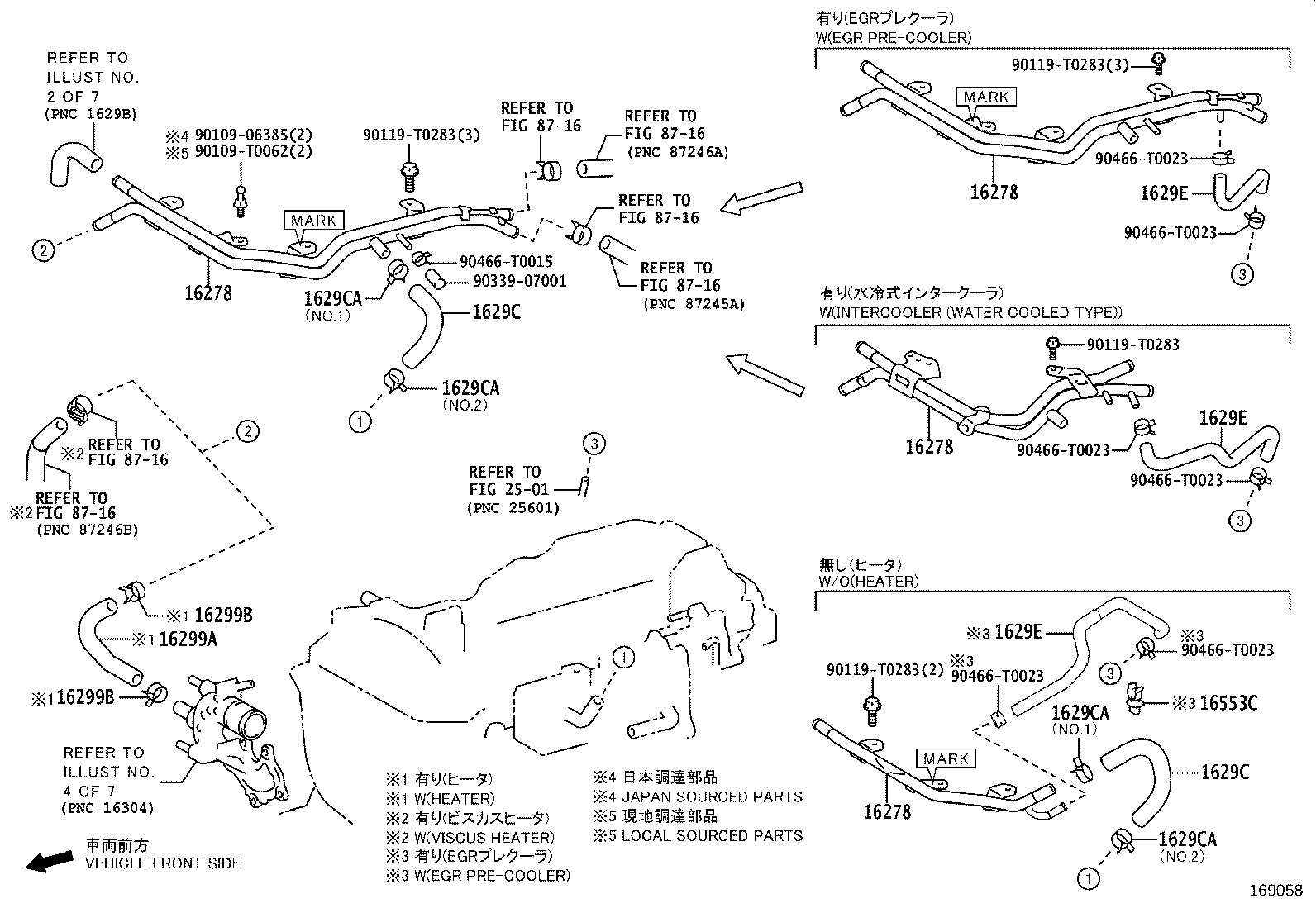

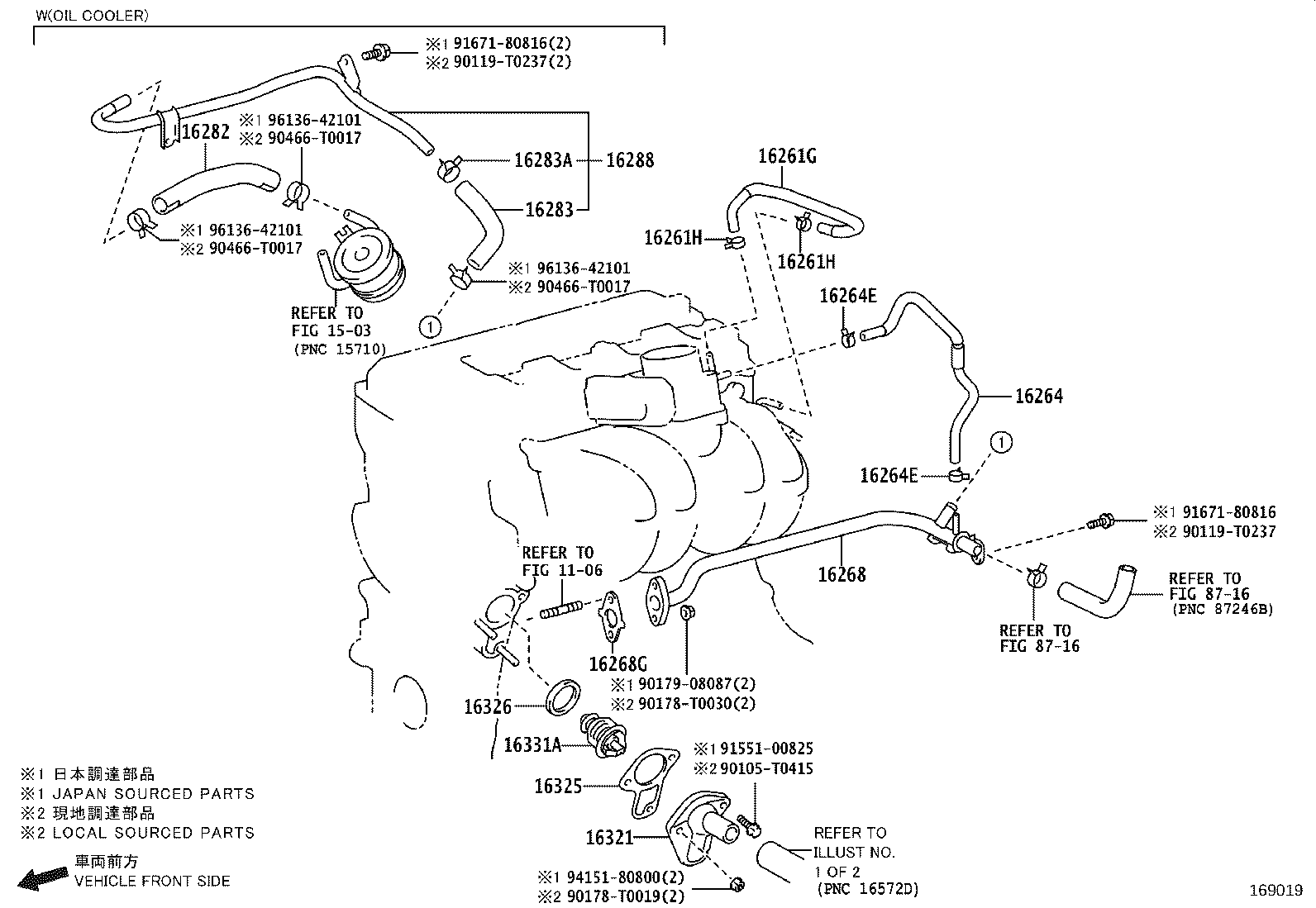

Figure 169080A 169080A 2023-08 → — Figure 169091 169091 2023-08 → — Figure 169058 169058 2023-08 → — Figure 16908Y 16908Y 2023-08 → — Figure 169051A 169051A 2023-08 → — Figure 169092 169092 2023-08 → — Figure 169094 169094 2023-08 → — Figure 169061 169061 2023-08 → — Figure 169062 169062 2023-08 → — Figure 169063 169063 2023-08 → — Figure 1690D9 1690D9 2024-02 → — Figure 1690DAA 1690DAA 2024-02 → — Figure 169018B 169018B 2023-08 → — Figure 169019 169019 2023-08 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
161B0 Pump Assy, Electric Water
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16274 Plug, Water By-pass
16274A Clip(FOR WATER BY-PASS PLUG)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629E Hose, Water By-pass, NO.18
1629H Hose, Water By-pass, NO.21
1629HA Clip(FOR WATER BY-PASS HOSE NO.21)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16356 Joint, Water By-pass, Rear
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16453 Plate, Radiator Side
16453A Plate, Radiator Side Support, RH
16454 Plate, Radiator Side
16454A Plate, Radiator Side Support, LH
16455 Bolt, Radiator Side Support Plate
16465 Packing, Radiator
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16475D Cap, Reserve Tank
16515A Pipe, Intercooler Cooling Water, NO.1
16516A Pipe, Intercooler Cooling Water, NO.2
16517A Pipe, Intercooler Cooling Water, NO.3
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16546 Protector, Radiator
16547 Bush, Radiator Support, NO.1
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16553C Clamp, Hose
16553D Hose, Intercooler Cooling Water, NO.3
16554C Hose, Intercooler Cooling Water, NO.4
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C Hose, Intercooler Cooling Water, NO.6
16556D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B Hose, Intercooler Cooling Water, NO.7
16557C Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
16558 Hose, Intercooler Cooling Water, NO.8
16558A Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
16565A Clip
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16593 Guide, Radiator Air, NO.1
165A0 Hose Assy, Intercooler Cooling Water, NO.1
165A0A Clip, Hose
16603A Pulley Sub-assy, Idler, NO.1
16631B Bracket, Idler Pulley
16640 Tank Assy, Intercooler Reserve
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
