Toyota Hilux (DOUBLE CAB)
2023-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733D0 · United States
Supported model
Data version 2024-11
Starter
20 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28014 | Shaft Sub-assy, Planet Carrier |

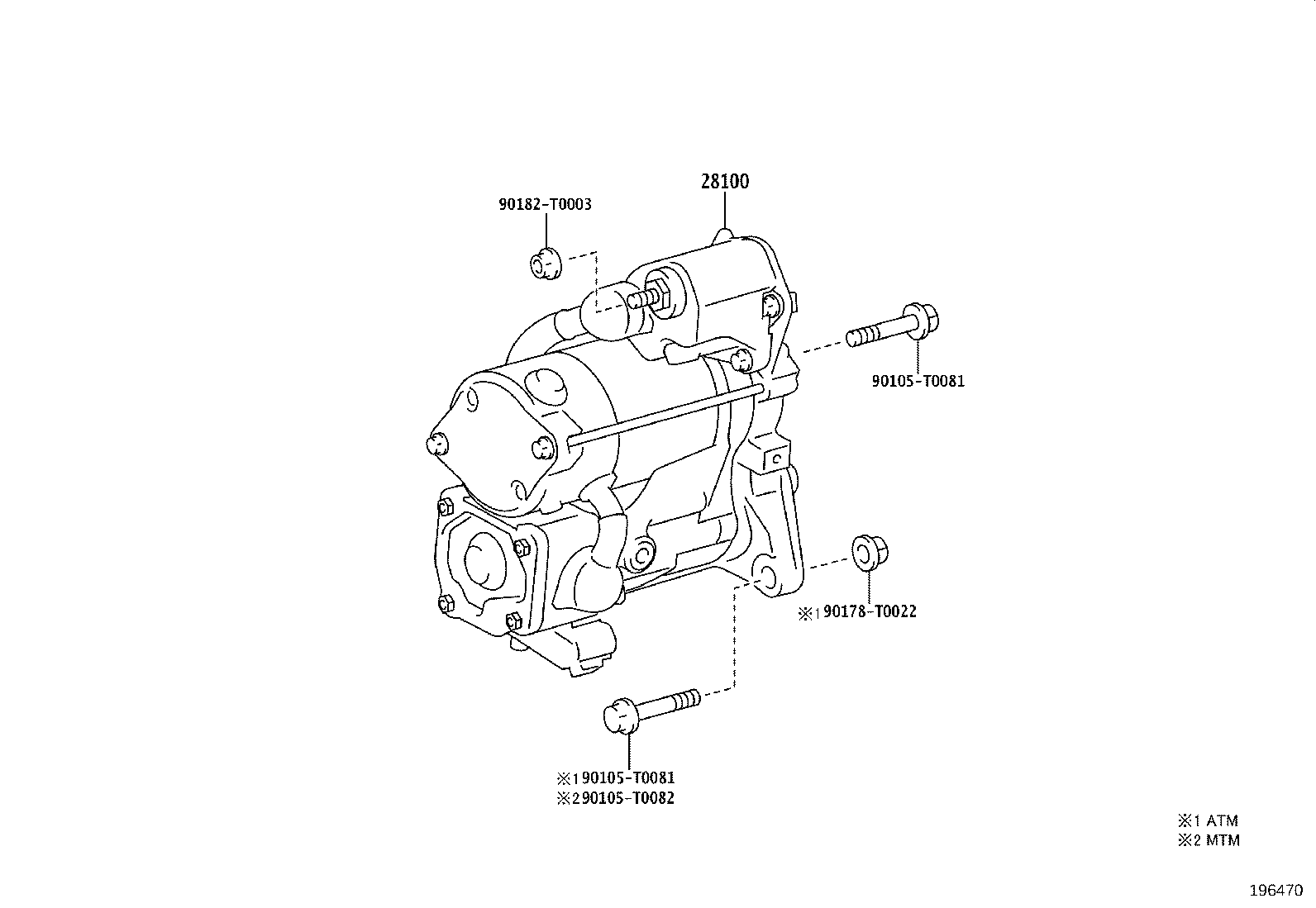

| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28112 | Bolt, Housing Set |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28191 | Stay, Starter |
| 28226B | Starter Kit, Repair Service |

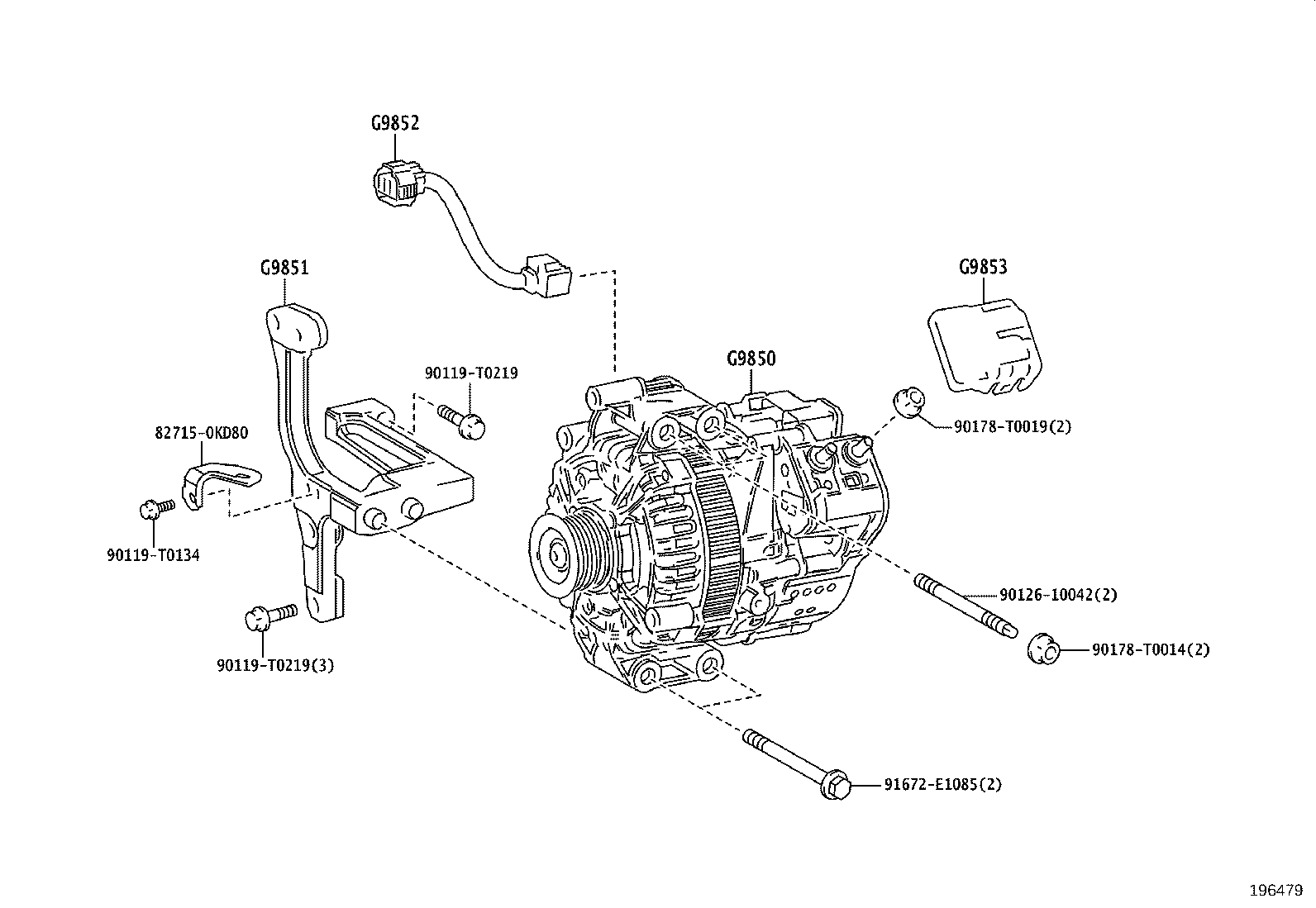

| G9850 | Motor Assy, 48V Control Starter Generator |
| G9851 | Bracket, 48V Control Starter Generator |
| G9852 | Wire, 48V Control Starter Generator |
| G9853 | Cover, 48V Control Starter Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
