Toyota Hilux (DOUBLE CAB)

2023-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733D0 · United States

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

5 part groups · 2 illustrations

Illustrations

Figure 81B826A

81B826A 2023-08 → —

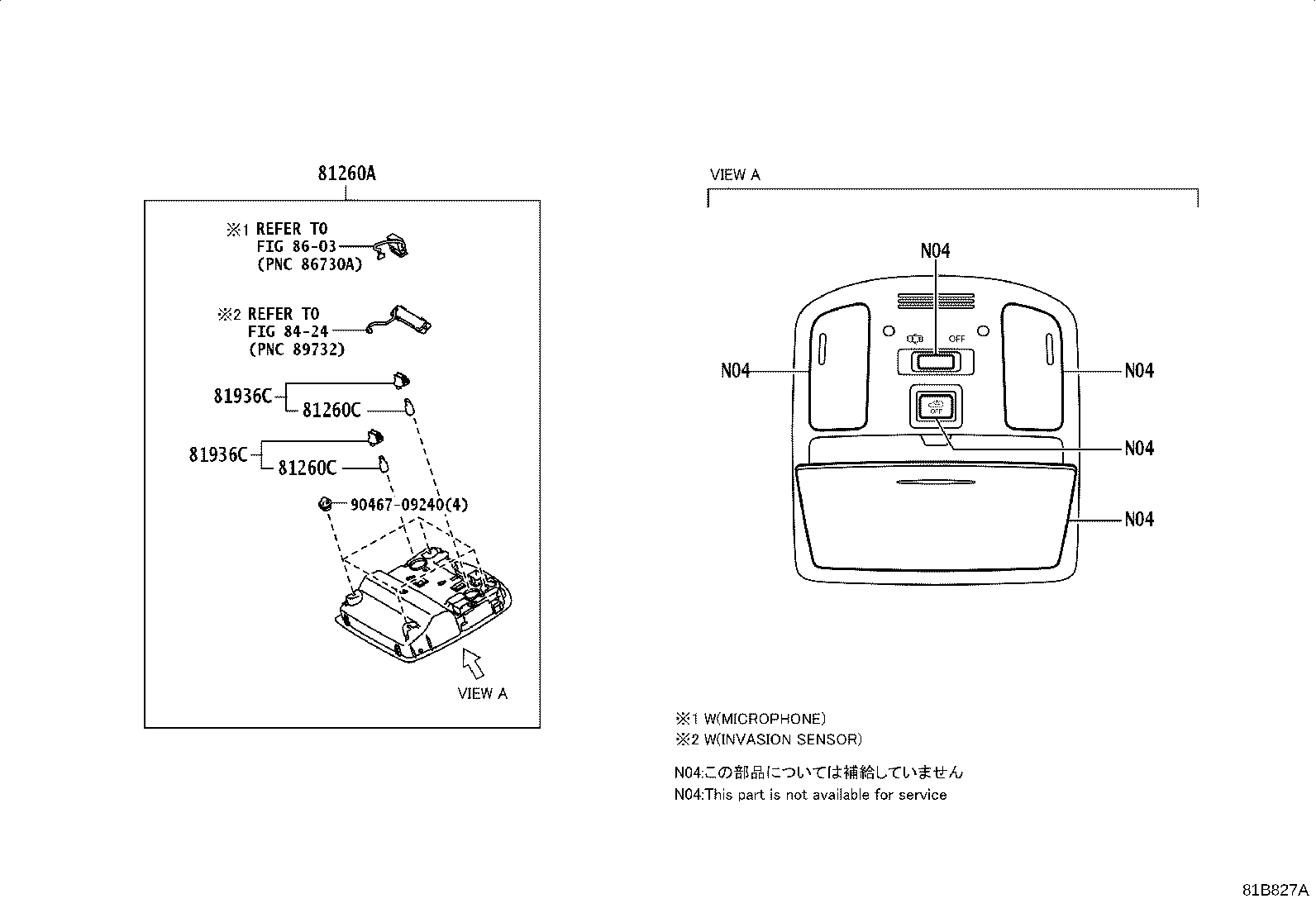

Figure 81B827A

81B827A 2023-08 → —

Part groups

PNC	Description
81240	Lamp Assy, Room, NO.1
81240B	Bulb, Room Lamp, NO.1
81260A	Lamp Assy, Map
81260C	Bulb(FOR MAP LAMP)
81936C	Bulb Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
