Toyota Hilux (DOUBLE CAB)

2024-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733E0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

14 part groups · 4 illustrations

Illustrations

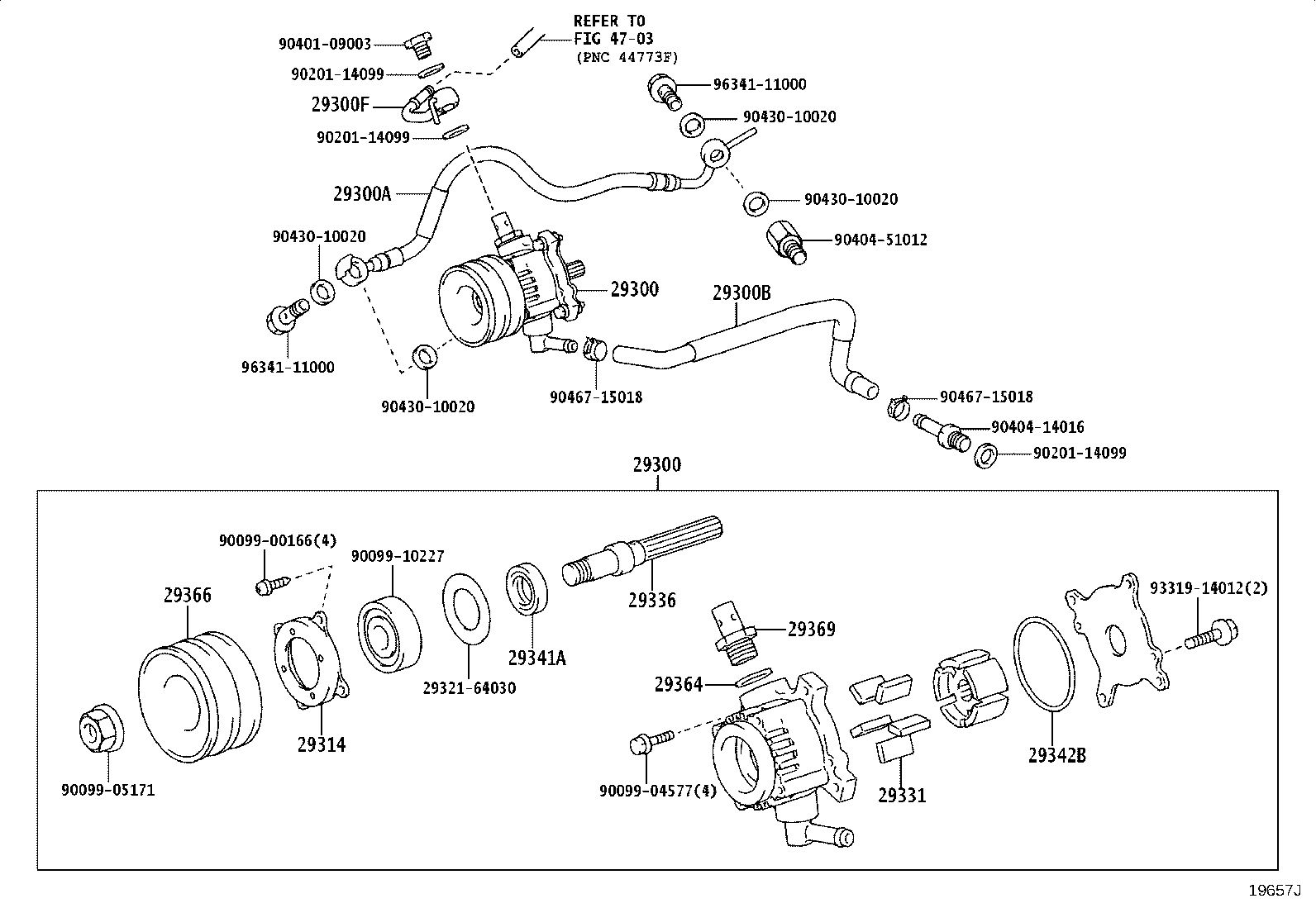

Figure 19655N 19655N 2024-08 → — Figure 19655N 19655N 2024-08 → — Figure 19657J 19657J 2024-11 → — Figure 19655O 19655O 2024-12 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300F Union
29314 Ring, Stop
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29341A Seal, Oil
29342B Ring, O
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29364 Washer, Vacuum Pump
29366 Pulley, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
