Toyota Hilux (DOUBLE CAB)

2024-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733E0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

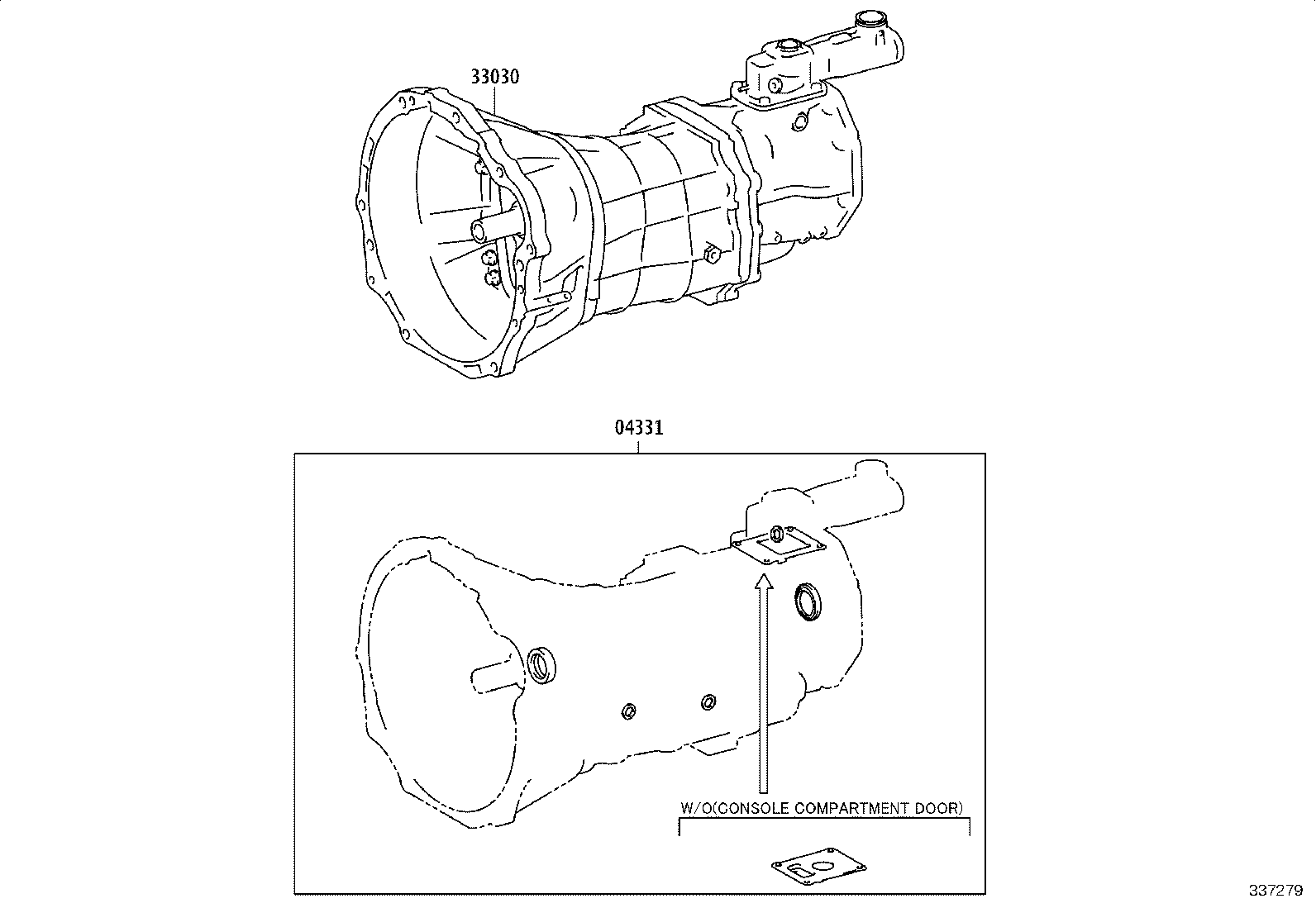

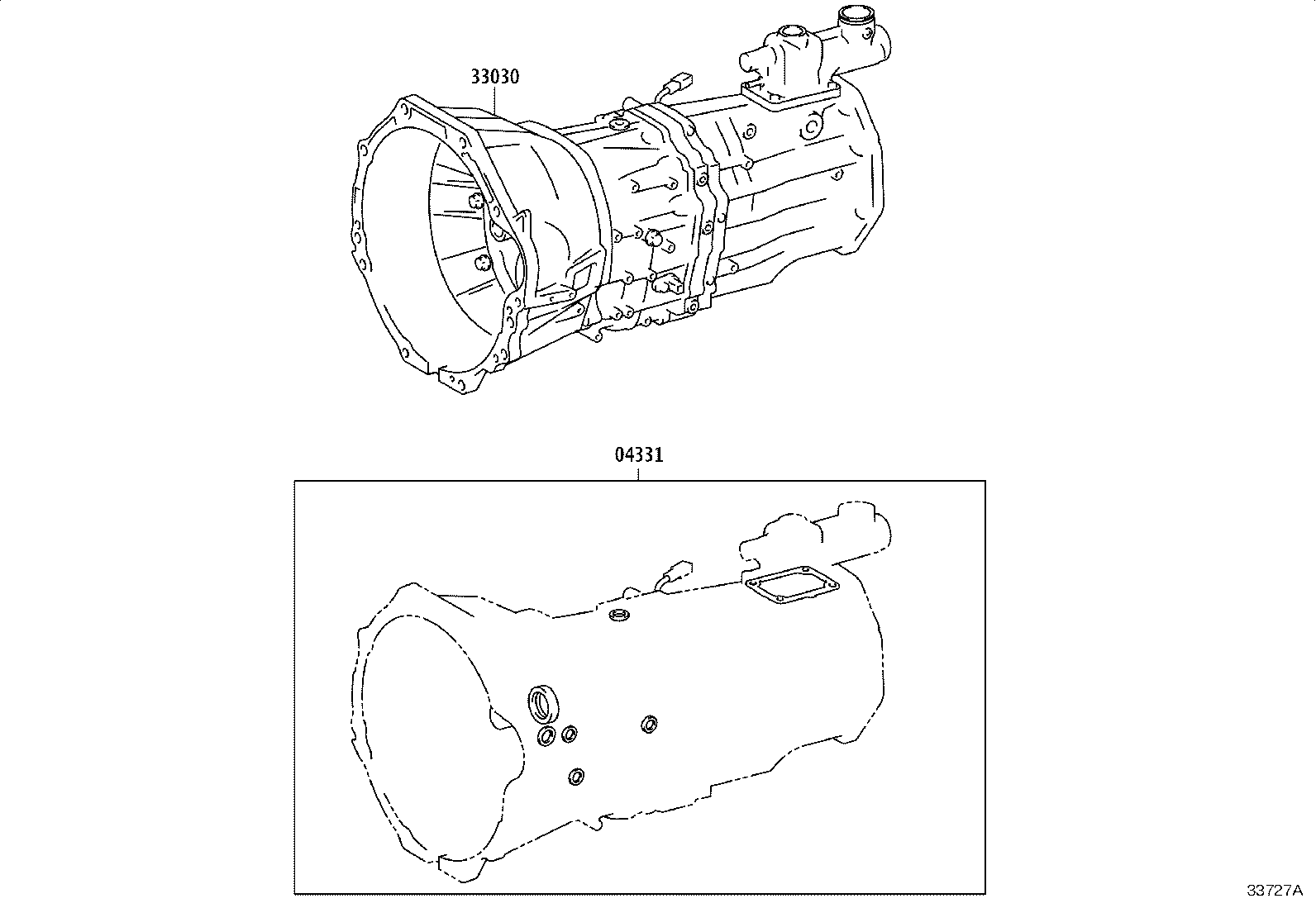

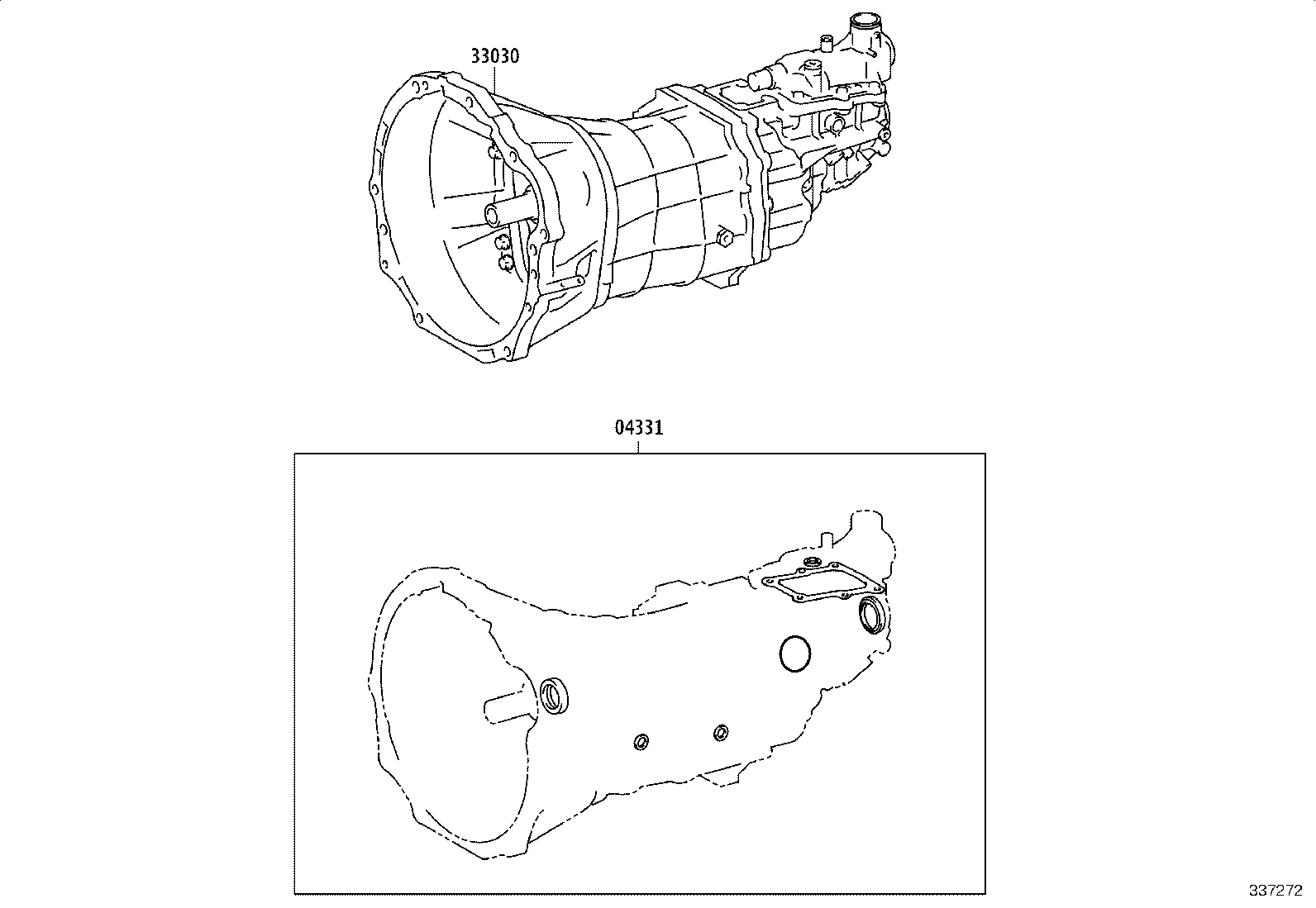

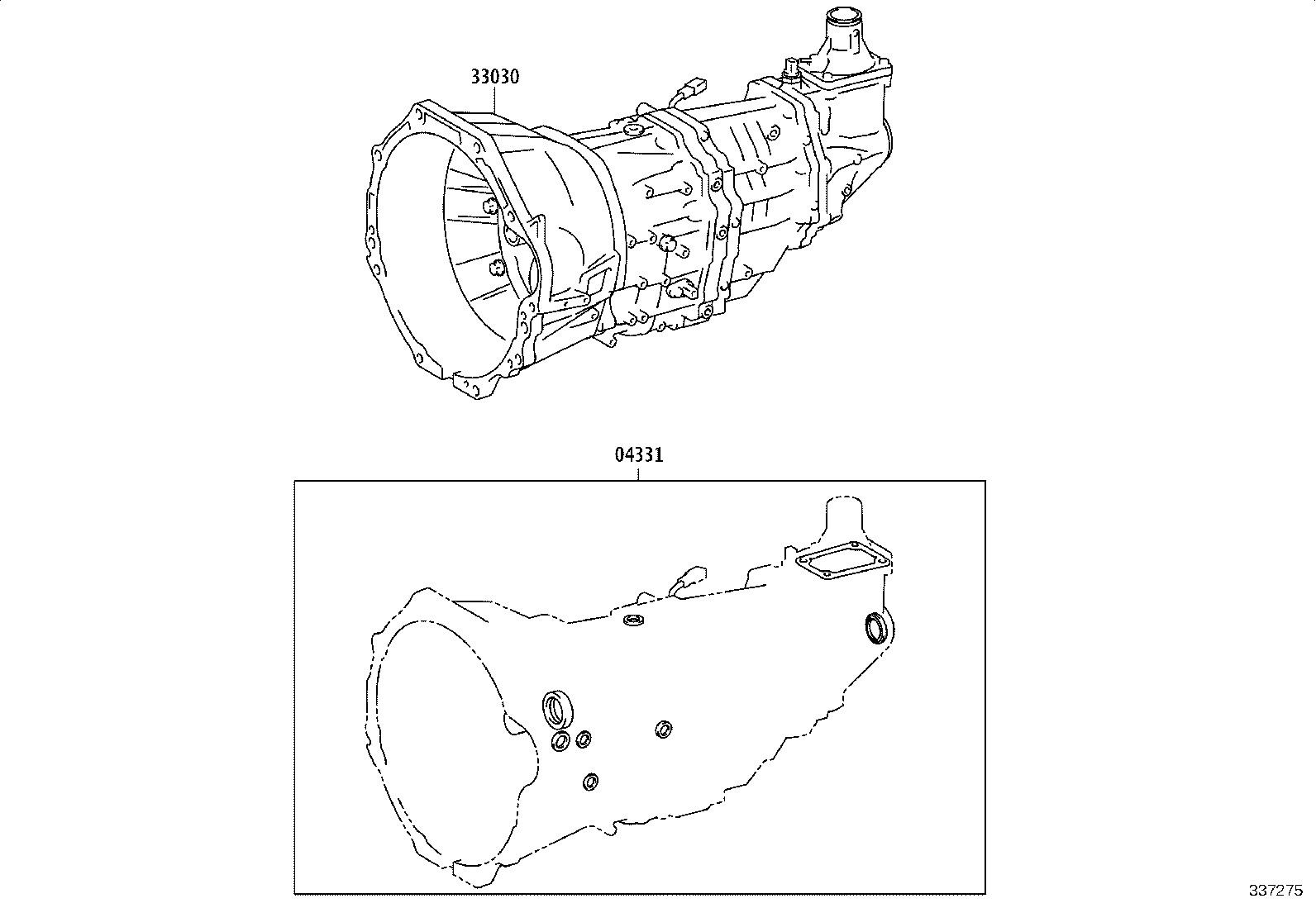

Figure 337278 337278 2024-08 → — Figure 337272 337272 2024-08 → — Figure 337279 337279 2024-08 → — Figure 337274 337274 2024-08 → — Figure 337275 337275 2024-08 → — Figure 33727A 33727A 2024-08 → — Figure 337277 337277 2024-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
