Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

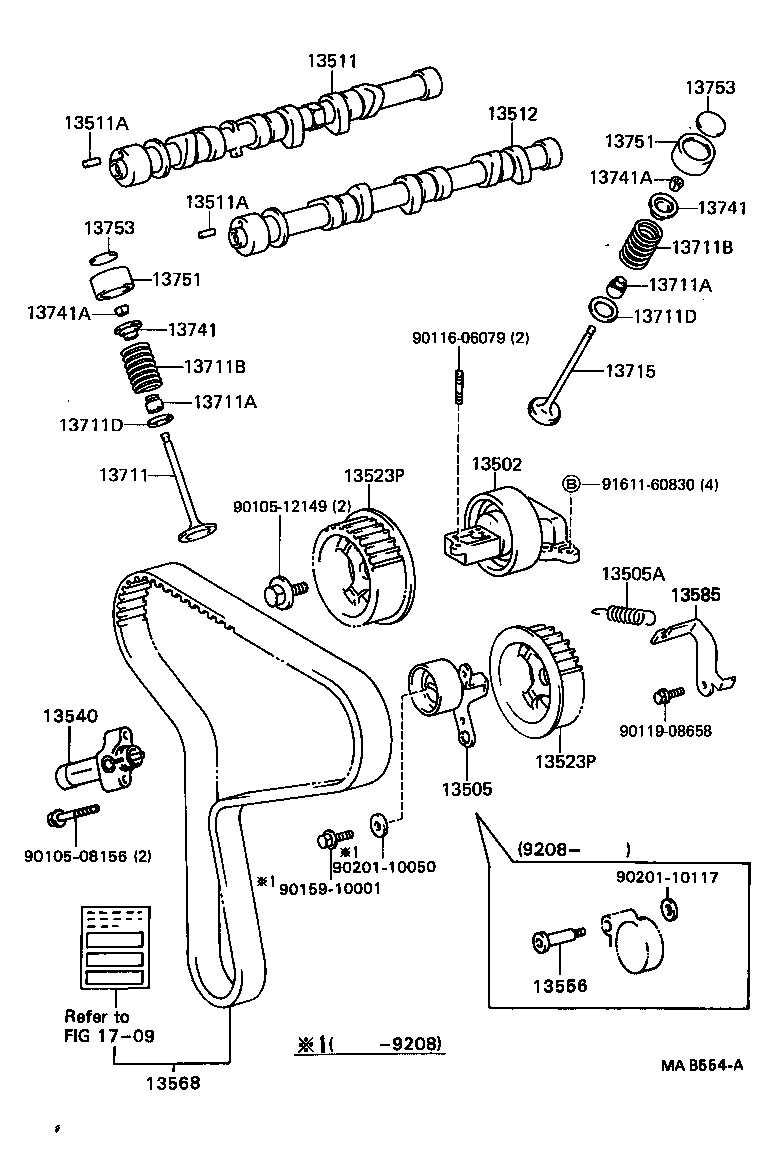

Exploded illustration MAB554A 13511 — CAMSHAFT (2 parts) 13753 — SHIM, VALVE ADJUSTING (25 parts) 13512 — CAMSHAFT, NO.2 (1 parts) 13511A — PIN, STRAIGHT(FOR CAMSHAFT KNOCK) (2 parts) 13751 — LIFTER, VALVE (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (2 parts) 13511A — PIN, STRAIGHT(FOR CAMSHAFT KNOCK) (2 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13753 — SHIM, VALVE ADJUSTING (25 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (2 parts) 13751 — LIFTER, VALVE (1 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (2 parts) 13711D — WASHER, PLATE(FOR VALVE SPRING SEAT) (2 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 9011606079 — not listed in this catalogue 13711B — SPRING, COMPRESSION(FOR INNER) (2 parts) 13715 — VALVE, EXHAUST (2 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (4 parts) 13711D — WASHER, PLATE(FOR VALVE SPRING SEAT) (2 parts) 13502 — IDLER SUB-ASSY, TIMING BELT, NO.2 (1 parts) 13711 — VALVE, INTAKE (2 parts) 13523P — PULLEY, CAMSHAFT TIMING (1 parts) 9161160830 — not listed in this catalogue 9010512149 — not listed in this catalogue 13505A — SPRING, TENSION(FOR IDLER) (1 parts) 13585 — BRACKET, TENSION SPRING (1 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (2 parts) 9011908658 — not listed in this catalogue 13523P — PULLEY, CAMSHAFT TIMING (1 parts) 13505 — IDLER SUB-ASSY, TIMING BELT, NO.1 (2 parts) 9010508156 — not listed in this catalogue 9020110050 — not listed in this catalogue 9020110117 — not listed in this catalogue 9015910001 — not listed in this catalogue 13556 — SHAFT, TIMING BELT IDLER (1 parts) 1709 — not listed in this catalogue 13568 — BELT, TIMING (3 parts)
MAB554A · 29 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
13502 — Idler Sub-assy, Timing Belt, NO.2
13503-65010 Idler Sub-assy, Timing Belt, NO.2
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13505 — Idler Sub-assy, Timing Belt, NO.1
13505-65020 Idler Sub-assy, Timing Belt, NO.1
1992-02 → 1992-05 ended
3VZE VZN100 —
13505-65040 Idler Sub-assy, Timing Belt, NO.1
1992-05 → 1995-01 ended
3VZE VZN100,110 —
13505A — Spring, Tension(FOR IDLER)
90507-21001 Spring, Tension(FOR IDLER)
1992-02 → 1995-01 ended
3VZE VZN100 —
13511 — Camshaft
13501-65011 Camshaft
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13511-38011 Camshaft
1992-02 → 1995-01 ended
22RE RN101,110 —
13511A — Pin, Straight(FOR CAMSHAFT KNOCK)
90250-05121 note Pin, Straight(FOR CAMSHAFT KNOCK)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
90250-06001 note Pin, Straight(FOR CAMSHAFT KNOCK)
1992-02 → 1995-01 ended
22RE RN101,110 —
13512 — Camshaft, NO.2
13502-65011 Camshaft, NO.2
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13523P — Pulley, Camshaft Timing
13051-65010 Pulley, Camshaft Timing
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13540 — Tensioner Assy, Chain, NO.1
13540-35011 Tensioner Assy, Chain, NO.1
1992-02 → 1995-01 ended
22RE RN101,110 —
13540-65010 Tensioner Assy, Chain, NO.1
1992-05 → 1995-01 ended
3VZE VZN100,110 —
13556 — Shaft, Timing Belt Idler
13556-65010 Shaft, Timing Belt Idler
1992-05 → 1995-01 ended
3VZE VZN100,110 —
13568 — Belt, Timing
13568-65011 Belt, Timing
1992-02 → 1992-05 ended
3VZE VZN100 —
13568-65020 Belt, Timing
1992-05 → 1992-08 ended
3VZE VZN100 —
13568-69075 Belt, Timing
1992-08 → 1995-01 ended
3VZE VZN100,110 —
13585 — Bracket, Tension Spring
13558-65010 Bracket, Tension Spring
1992-02 → 1995-01 ended
3VZE VZN100 —
13711 — Valve, Intake
13711-35010 Valve, Intake
1992-02 → 1995-01 ended
22RE RN101,110 —
13711-65010 Valve, Intake
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02053 note Seal OR Ring, O(FOR VALVE STEM OIL)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
90913-02072 Seal OR Ring, O(FOR VALVE STEM OIL)
1992-02 → 1992-11 ended
22RE RN101 —
90913-02091 note Seal OR Ring, O(FOR VALVE STEM OIL)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
90913-02102 Seal OR Ring, O(FOR VALVE STEM OIL)
1992-11 → 1995-01 ended
22RE RN101,110 —
13711B — Spring, Compression(FOR INNER)
90504-41001 note Spring, Compression(FOR INNER)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
90504-41003 note Spring, Compression(FOR INNER)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13711D — Washer, Plate(FOR VALVE SPRING SEAT)
90201-20579 Washer, Plate(FOR VALVE SPRING SEAT)
1992-02 → 1995-01 ended
22RE RN101,110 —
90201-21002 Washer, Plate(FOR VALVE SPRING SEAT)
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13715 — Valve, Exhaust
13715-35020 Valve, Exhaust
1992-02 → 1995-01 ended
22RE RN101,110 —
13715-65010 Valve, Exhaust
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13741 — Retainer, Valve Spring
13741-38010 Retainer, Valve Spring
1992-02 → 1995-01 ended
22RE RN101,110 —
13741-65010 Retainer, Valve Spring
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13741A — Lock, Valve Spring Retainer
90913-03005 Lock, Valve Spring Retainer
1992-02 → 1995-01 ended
22RE RN101,110 —
90913-03014 Lock, Valve Spring Retainer
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13751 — Lifter, Valve
13751-64011 Lifter, Valve
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753 — Shim, Valve Adjusting
13753-65580 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65600 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65620 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65640 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65660 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65680 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65700 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65720 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65740 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65760 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65780 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65800 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65820 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65840 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65860 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-65880 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B010 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B030 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B050 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B070 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B090 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B110 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B130 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B150 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
13753-6B170 note Shim, Valve Adjusting
1992-02 → 1995-01 ended
3VZE VZN100,110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
