Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

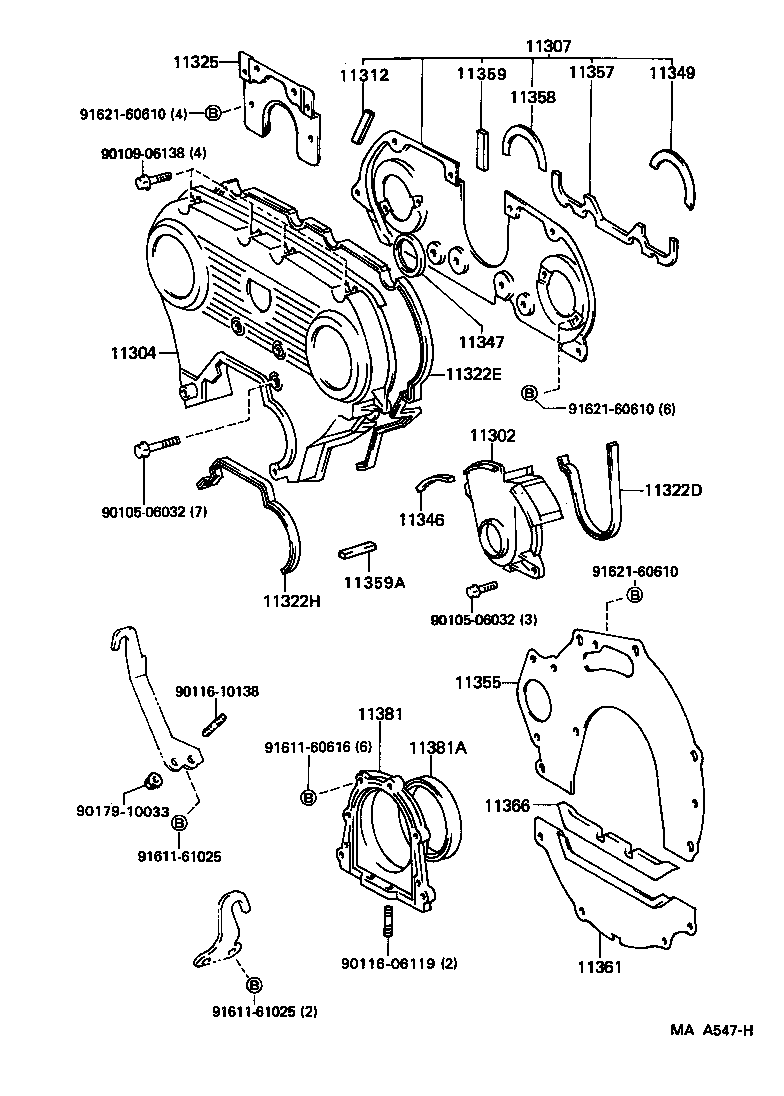

Timing Gear Cover & Rear End Plate
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11312 | Gasket, Front End Plate |
| 11322D | Gasket, Timing Belt Cover, NO.1 |
| 11322E | Gasket, Timing Belt Cover, NO.2 |
| 11322H | Gasket, Timing Belt Cover, NO.3 |
| 11325 | Cover, Timing Belt, NO.4 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11338 | Gasket, Timing Chain Cover, NO.2 |
| 11346 | Gasket, Timing Belt Cover, NO.4 |
| 11347 | Gasket, Timing Belt Cover, NO.5 |
| 11349 | Gasket, Timing Belt Cover, NO.9 |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11357 | Gasket, Timing Belt Cover, NO.6 |
| 11358 | Gasket,Timing Belt Cover, NO.7 |
| 11359 | Gasket, Timing Belt Cover, NO.8 |
| 11359A | Gasket, Timing Belt Cover, NO.8 |
| 11361 | Cover, Flywheel Housing Under |
| 11366 | Seal, Flywheel Housing Under Cover Dust |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
