Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

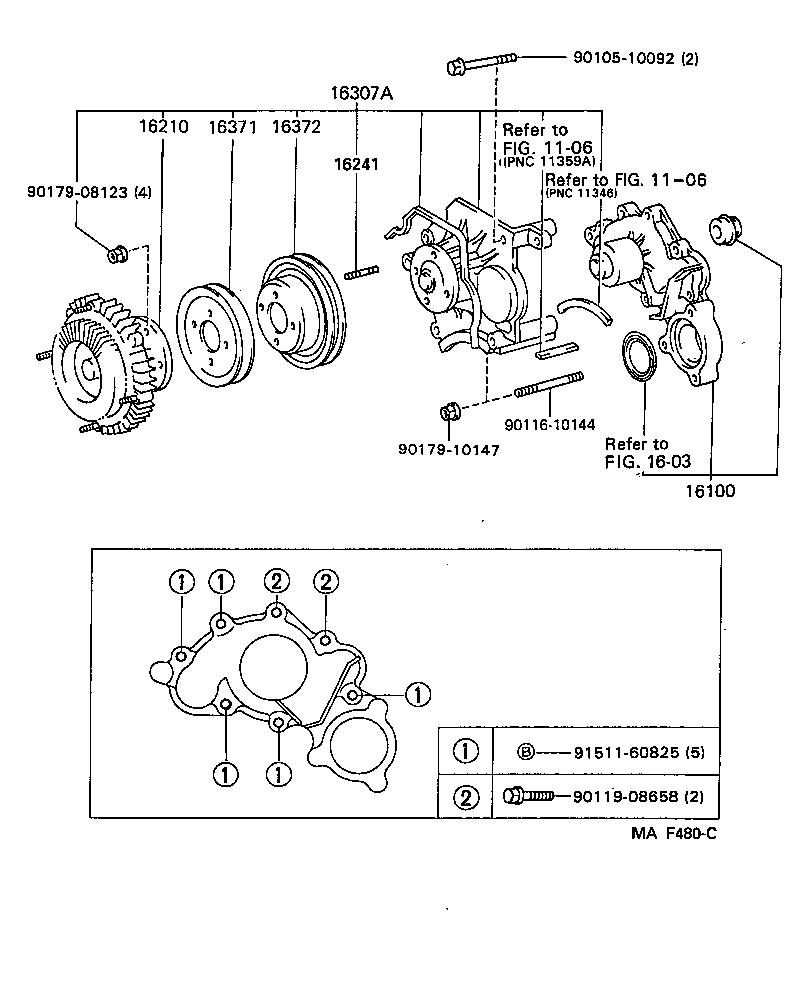

Water Pump
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16124 | Gasket, Water Pump Cover |
| 16171 | Seat, Water Pump Pulley |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16307A | Bracket Sub-assy, Fan |
| 16371 | Pulley, Fan |
| 16372 | Pulley, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
