Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

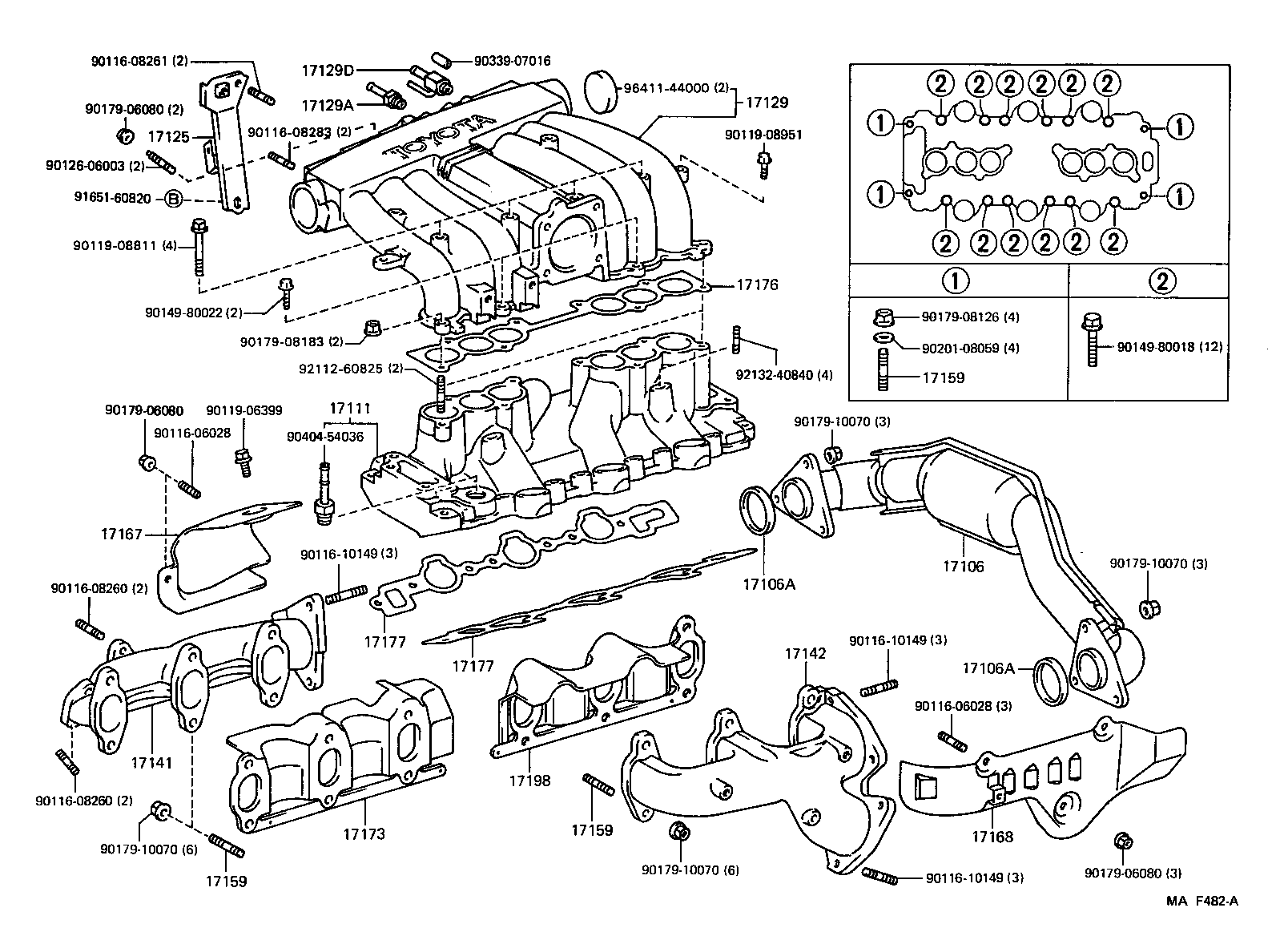

Manifold
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17106 | Pipe Sub-assy, Exhaust Crossover |
| 17106A | Gasket, Exhaust Pipe |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129B | Plug |
| 17129D | Union, NO.2 |
| 17141 | Manifold, Exhaust |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17198 | Gasket, Exhaust Manifold, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
