Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 5 illustrations

Illustrations

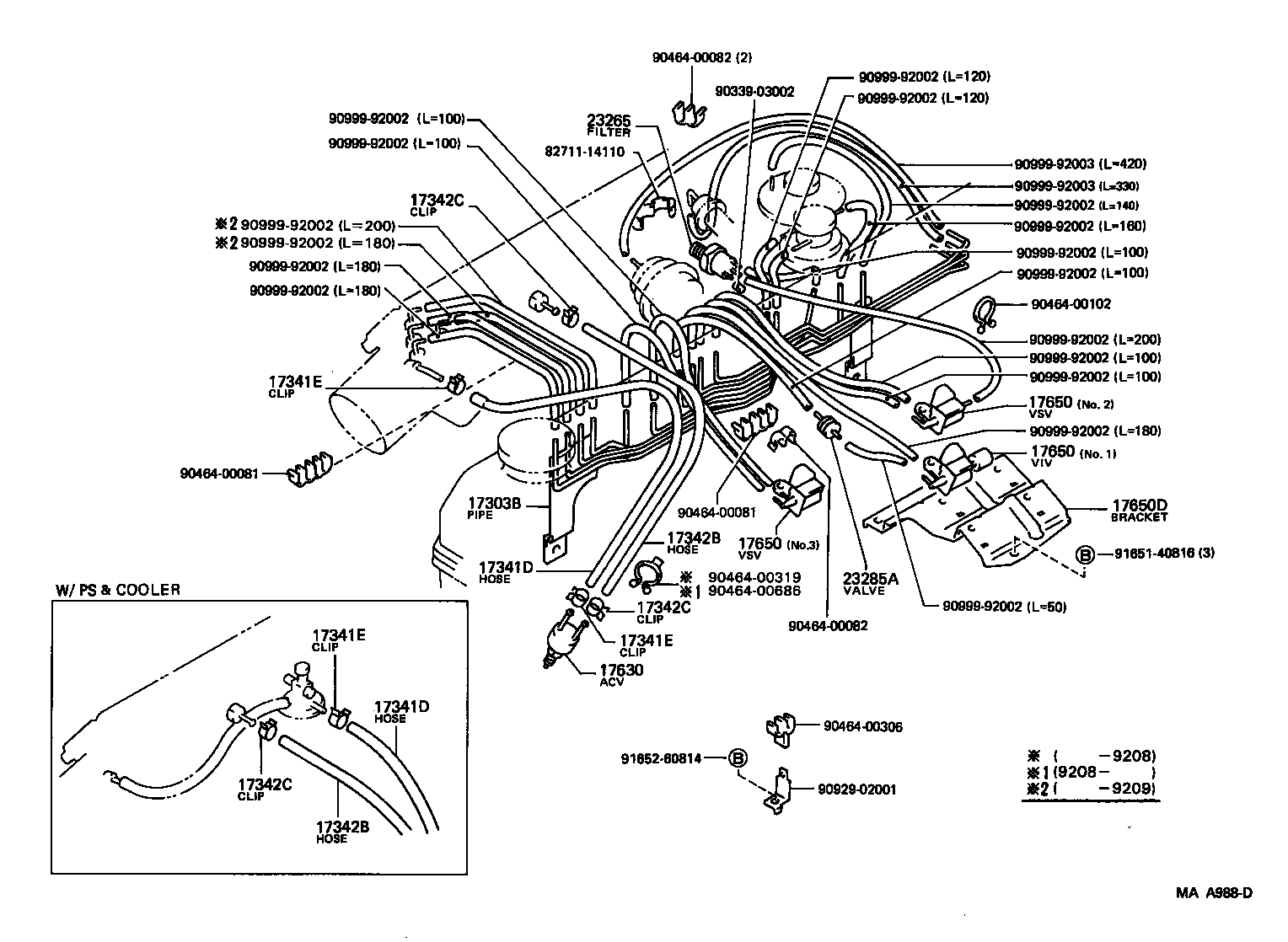

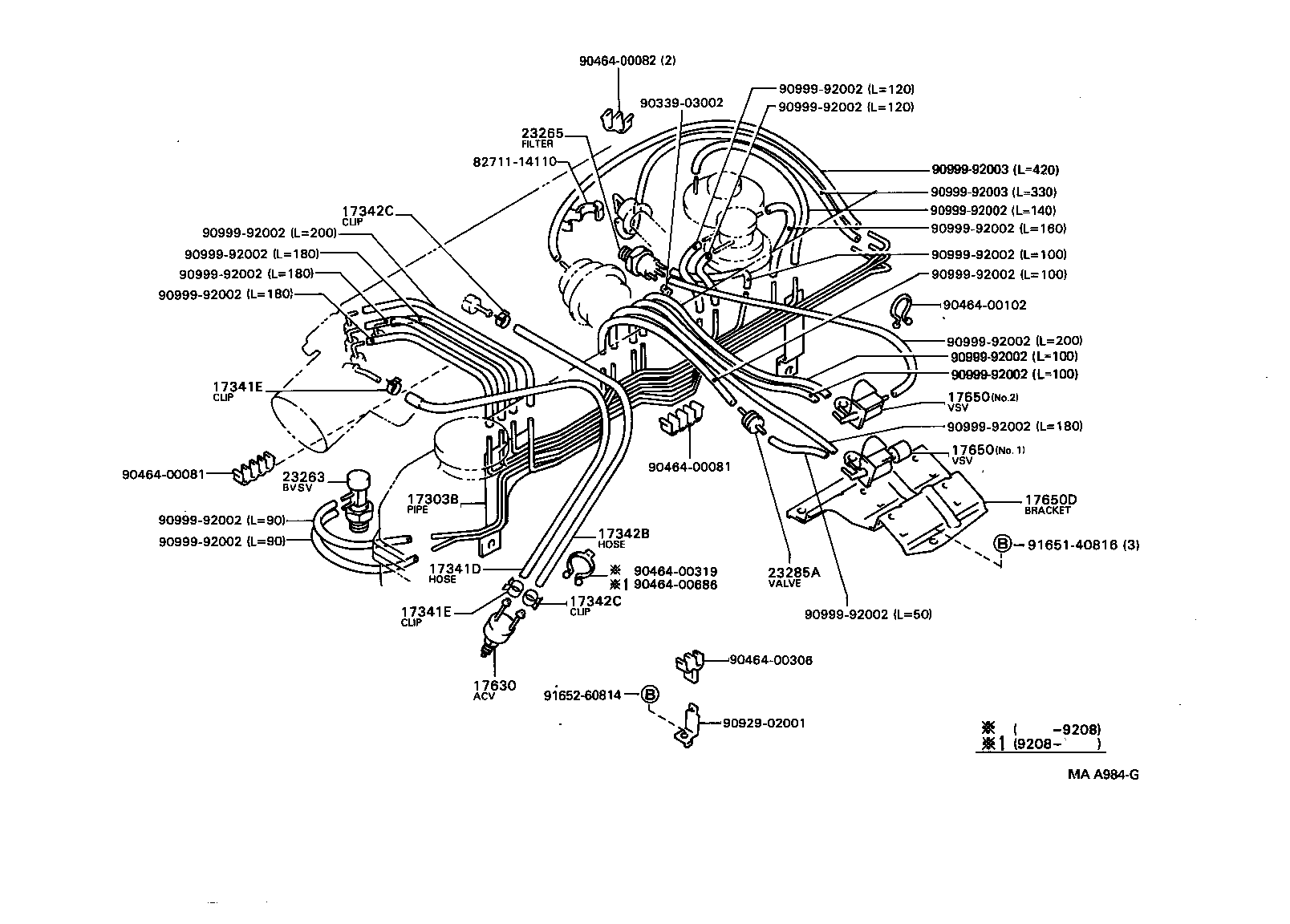

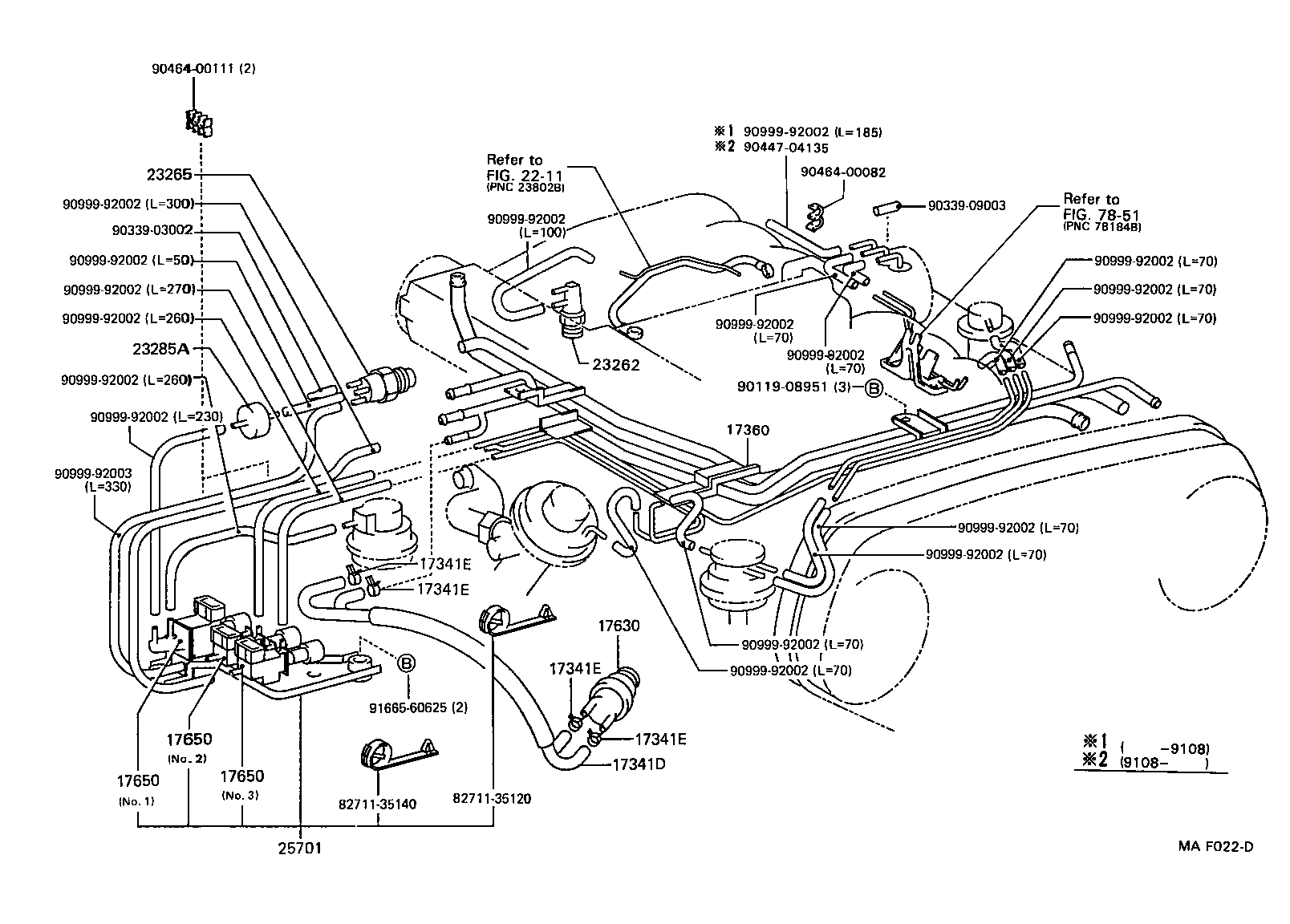

Figure MA9504B MA9504B 1988-08 → — Figure MAA984G MAA984G 1988-08 → — Figure MAA988D MAA988D 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAF022D MAF022D 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
