Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08
Front Steering Gear & Link
57 part groups · 4 illustrations
Part groups

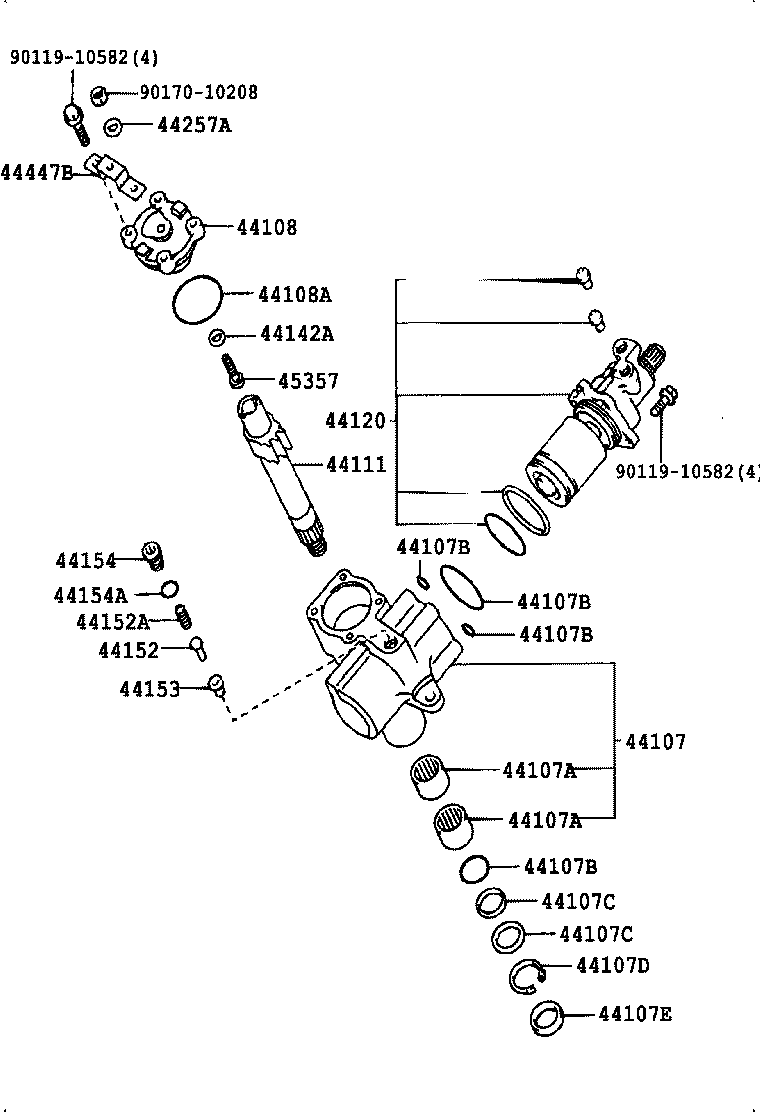

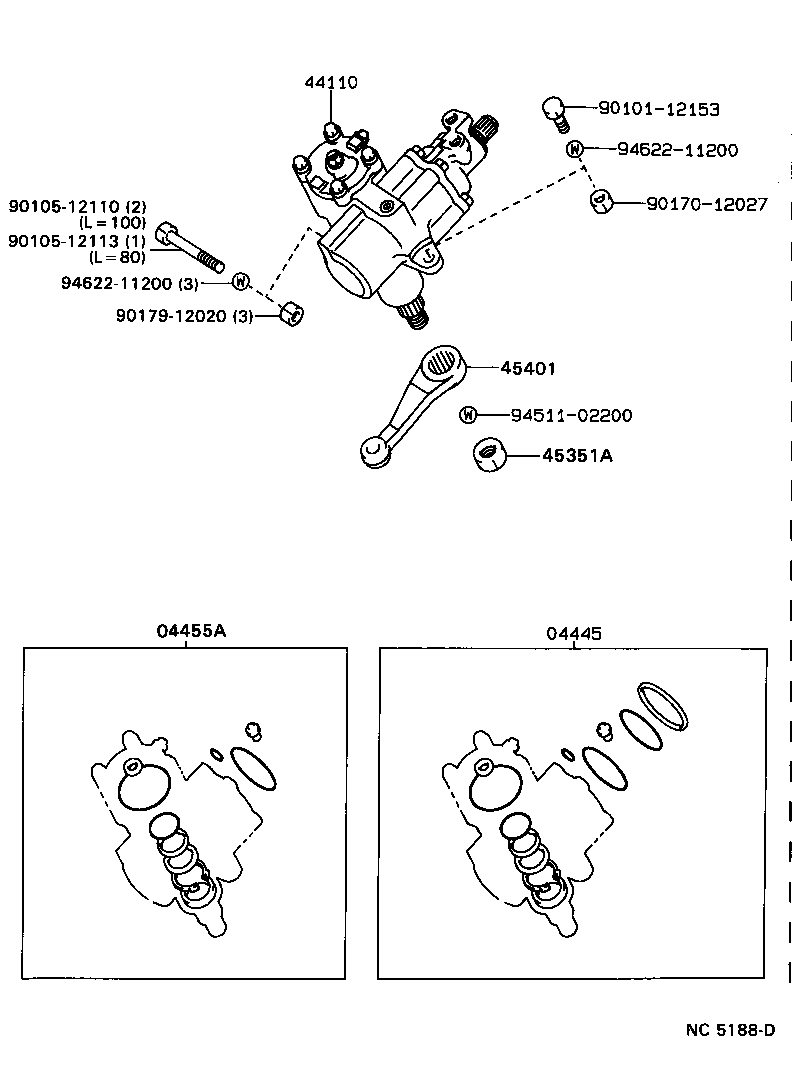

| PNC | Description |
|---|---|
| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455A | Gasket Kit, Power Steering Cross Shaft Overhole |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |
| 44110 | Gear Assy, Power Steering |
| 44111 | Shaft, Cross |
| 44120 | Valve Assy, W/Ball Nut |
| 44142A | Nut, Lock, NO.1 |
| 44152 | Plunger, Power Piston |
| 44152A | Spring, Compression(FOR POWER PISTON PLUNGER) |
| 44153 | Guide, Power Piston Plunger |
| 44154 | Nut, Power Piston Plunger Guide |
| 44154A | Ring, O(FOR POWER PISTON PLUNGER GUIDE NUT) |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |
| 44447B | Bracket, Hose Support, NO.1 |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45240 | Worm Assy, Steering |
| 45240A | Bearing(FOR STEERING WORM) |
| 45240B | Seal, Oil(FOR STEERING WORM) |
| 45242 | Screw, Worm Bearing Adjusting |
| 45243 | Nut, Worm Bearing Adjusting Screw Lock |
| 45301 | Housing Sub-assy, Steering Gear |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45310 | Housing Assy, Steering Gear |
| 45331 | Cover, Sector Shaft End |
| 45332 | Gasket, Sector Shaft End Cover |
| 45351A | Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING) |
| 45352 | Washer, Sector Shaft Thrust |
| 45357 | Screw, Sector Shaft Adjusting |
| 45372 | Plug, Steering Gear Housing Oil |
| 45401 | Arm Sub-assy, Pitman |
| 45401A | Nut, Castle(FOR PITMAN ARM) |
| 45406 | Rod Sub-assy, Tie, RH |
| 45406A | Nut, Castle(FOR TIE ROD) |
| 45407 | Rod Sub-assy, Tie, LH |
| 45409D | Bush(FOR IDLER ARM) |
| 45409E | Seal, Dust(FOR IDLER ARM SUPPORT) |
| 45450 | Rod Assy, Steering Relay |
| 45460 | Rod Assy, Tie, RH |
| 45461 | Rod, Steering Tie |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45490 | Arm Assy, Steering Idler |
| 45490A | Nut, Castle(FOR IDLER ARM) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611P | Bolt(FOR STEERING KNUCKLE) |
| 45612 | Arm, Steering Knuckle, LH |
| 45700 | Damper Assy, Steering |
| 45700A | Nut(FOR STEERING DAMPER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
