Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08

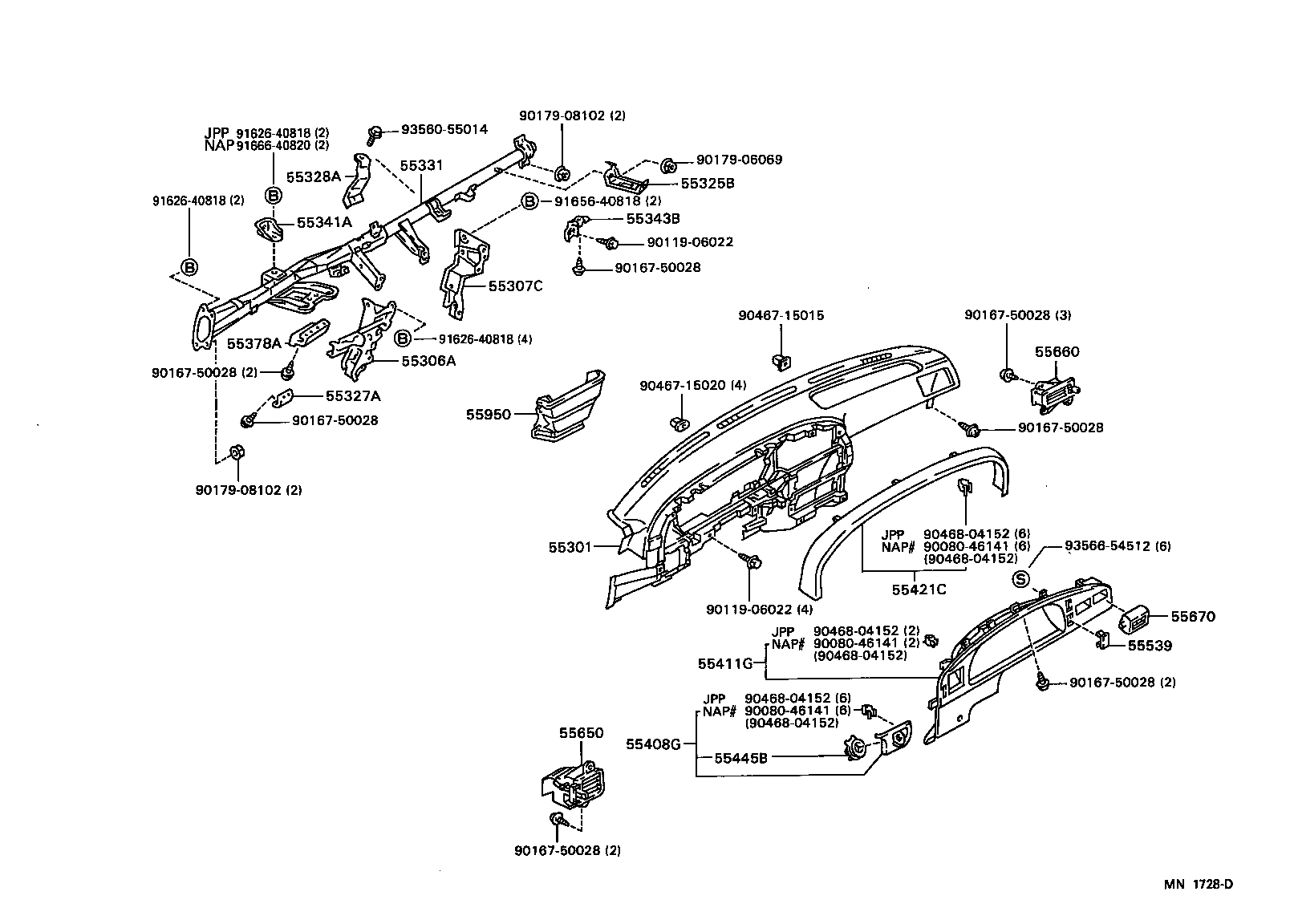

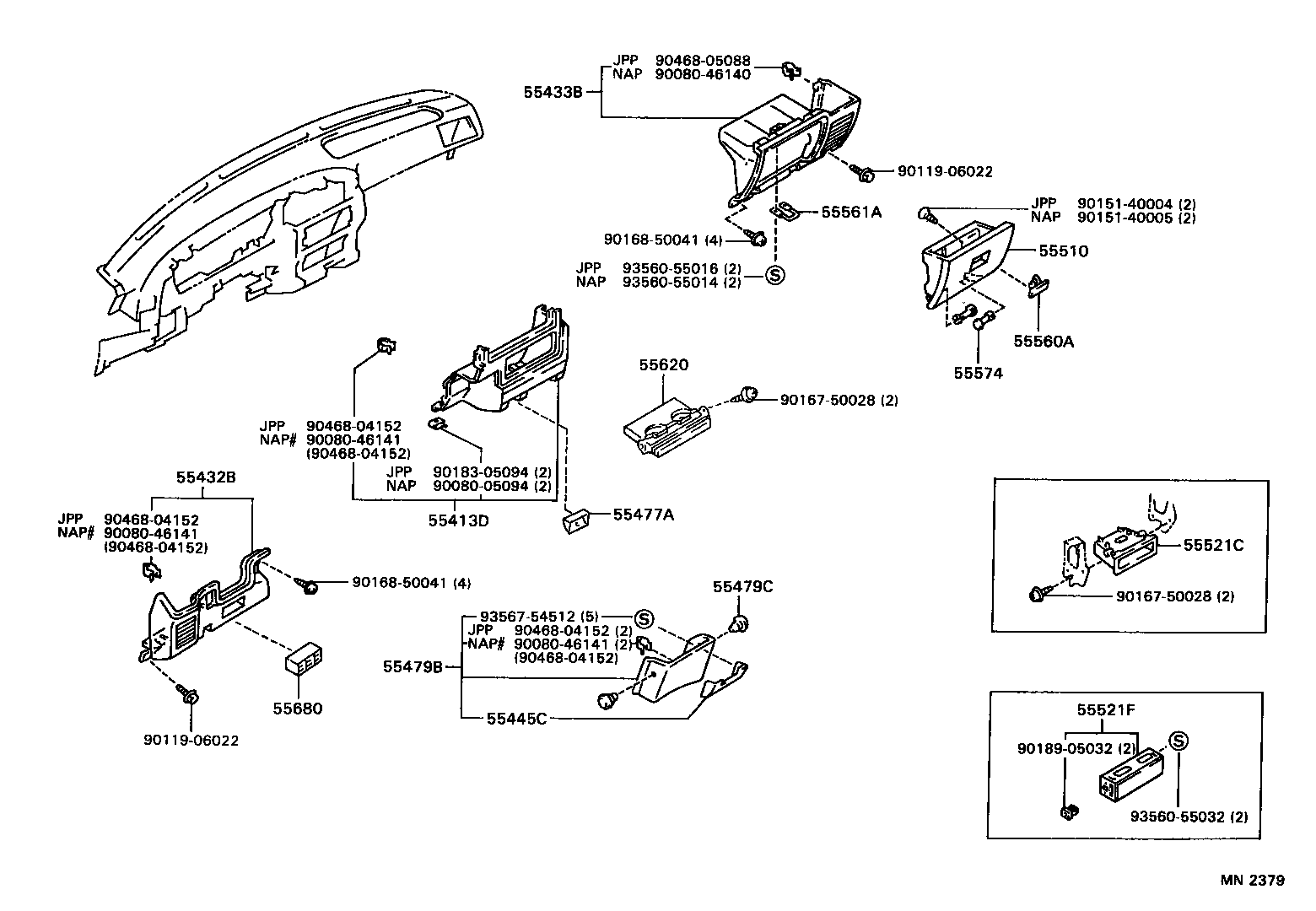

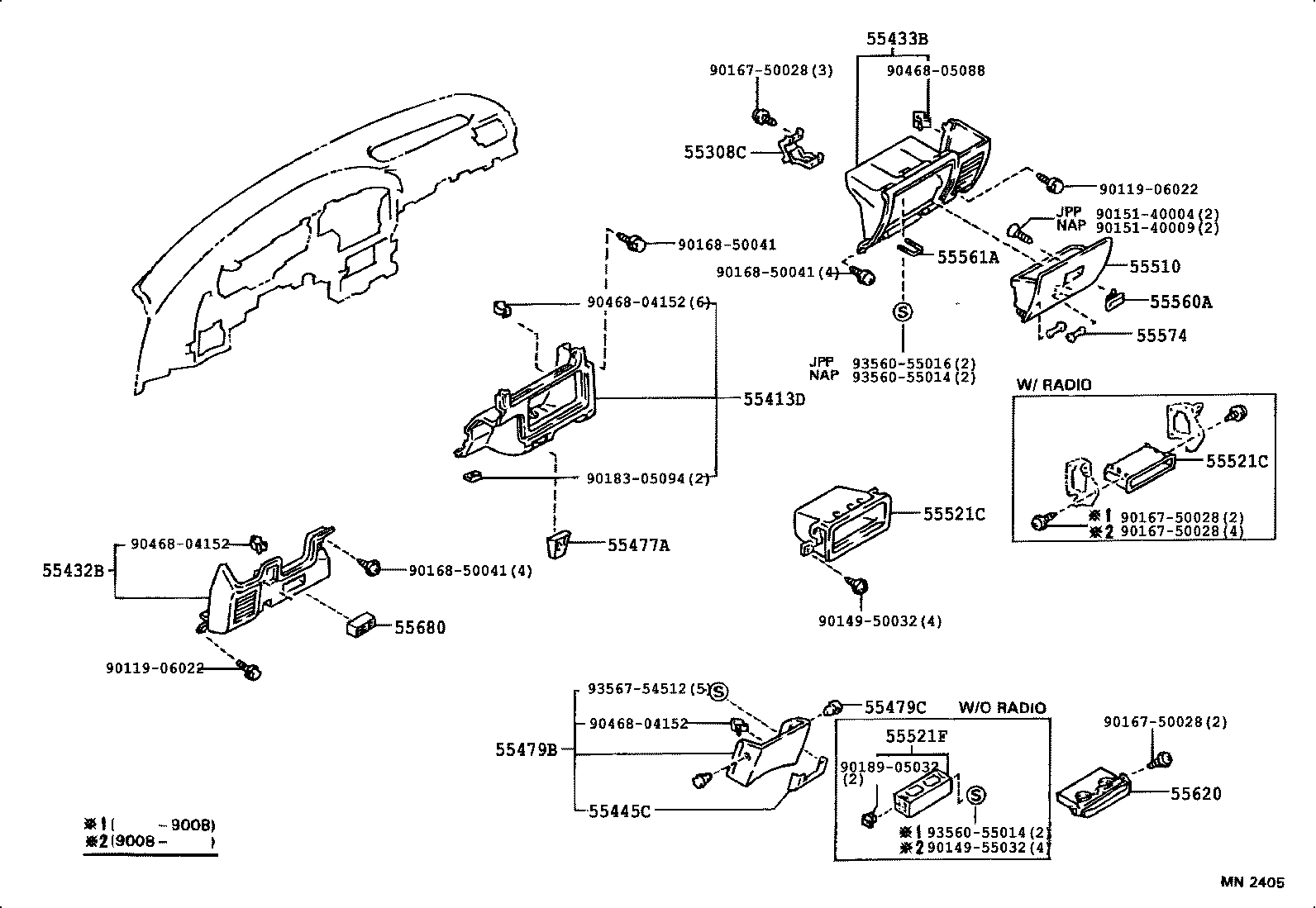

Instrument Panel & Glove Compartment

36 part groups · 4 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55325B	Bracket, Instrument Panel, NO.5
55327A	Stay, Instrument Panel, NO.2
55328A	Stay, Instrument Panel, NO.3
55331	Reinforcement, Instrument Panel
55341A	Brace, Instrument Panel TO Cowl, Upper
55343B	Brace, Instrument Panel TO Cowl, Center
55378A	Bracket, Glove Compartment Door Lock Mounting
55401E	Pad Sub-assy, Instrument Panel Safety
55408G	Bezel Sub-assy, Starter Switch
55411G	Panel, Instrument Cluster Finish, NO.1
55413D	Panel, Instrument Cluster Finish, Center Lower
55421C	Hood, Meter
55432B	Panel, Instrument Panel Finish, Lower
55433B	Panel, Instrument Panel Finish, Lower NO.2
55445B	Plate, Instrument Panel Finish
55445C	Plate, Instrument Panel Box
55477A	Bezel, Cigarette Lighter Hole
55479B	Cover, Instrument, Lower Center
55479C	Clip(FOR INSTRUMENT LOWER COVER)
55510	Door Assy, Glove Compartment
55521C	Cover, Stereo Opening
55521F	Cover, Stereo Opening, NO.2
55539	Cover, Spare Switch Hole
55560A	Lock Assy, Glove Compartment Door
55561A	Striker, Glove Compartment Door Lock
55574	Shaft, Glove Compartment Door Hinge
55620	Holder Assy, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680	Register Assy, Instrument Panel, Lower NO.1
55950	Nozzle Assy, Defroster

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
