Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

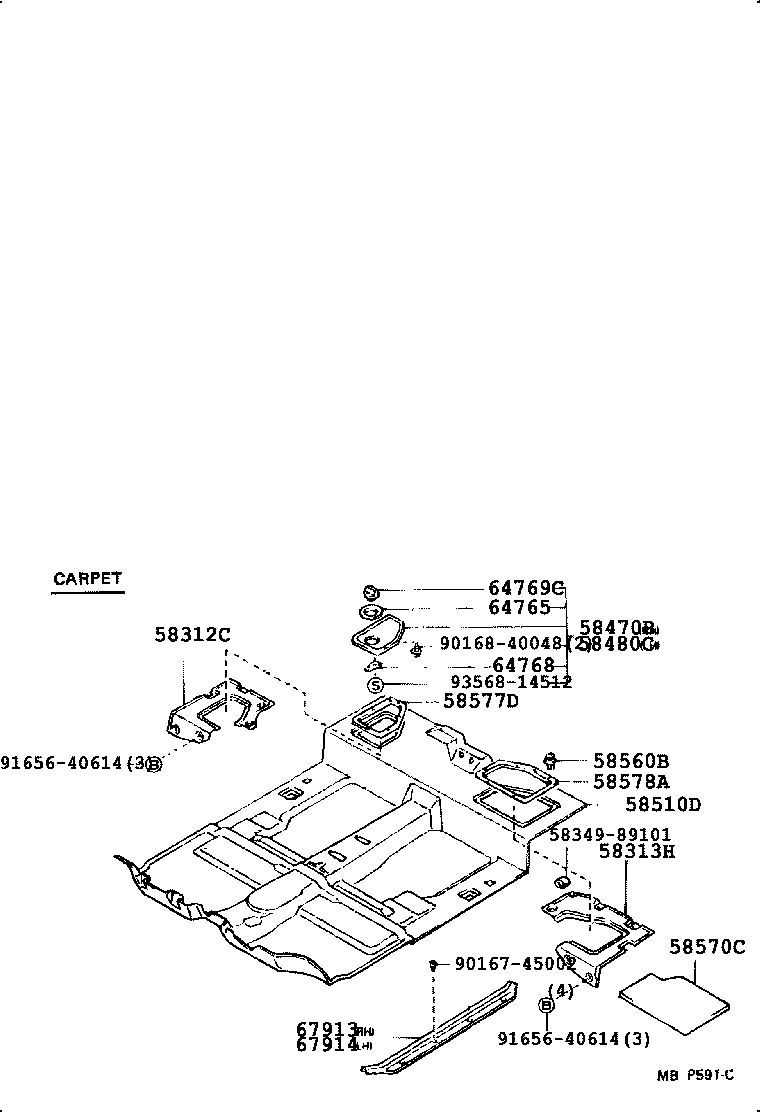

Floor Mat & Silencer Pad
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58312C | Board, Rear Floor |
| 58313H | Board, Rear Floor, NO.2 |
| 58470B | Cover Assy, Seat Floor Service Hole, RH |
| 58480C | Cover Assy, Seat Floor Service Hole, LH |
| 58510D | Carpet Assy, Floor, Front |
| 58560B | Clip(FOR FLOOR CARPET, REAR) |
| 58570C | Carpet Assy, Rear Floor |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 64765 | Bezel, Jack Cover, Upper |
| 64768 | Stopper, Jack Cover |
| 64769C | Knob, Jack Cover |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
