Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

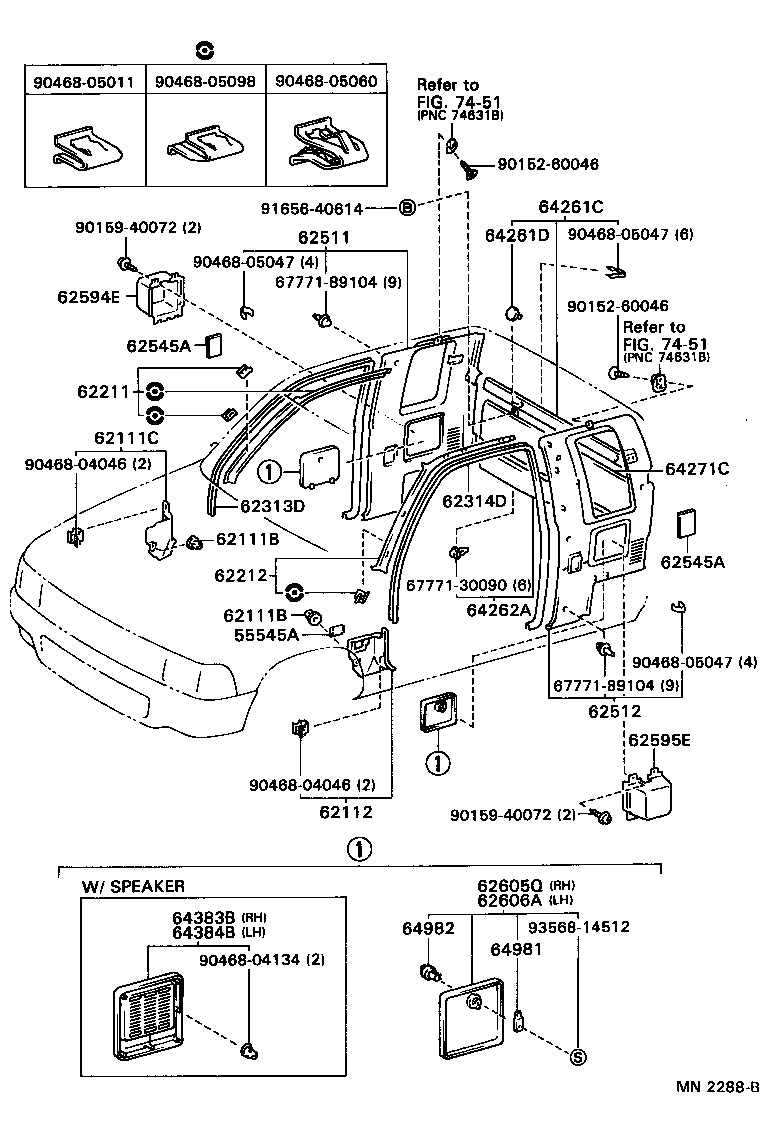

Inside Trim Board
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55545A | Cover, Fuse Box Opening |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62545A | Silencer, Quarter Trim |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 62606A | Lid Sub-assy, Quarter Trim, LH |
| 64261C | Garnish, Back Panel, Upper |
| 64261D | Plug, Hole(FOR BACK PANEL GARNISH) |
| 64262A | Garnish, Back Panel, Lower |
| 64271C | Trim, Back Panel |
| 64383B | Grille, Rear Speaker, RH |
| 64384B | Grille, Rear Speaker, LH |
| 64981 | Stopper, Washer Tank Cover |
| 64982 | Knob, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
