Toyota 4-Runner Truck (NAP)
1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States
Discontinued model
Data version 1996-08

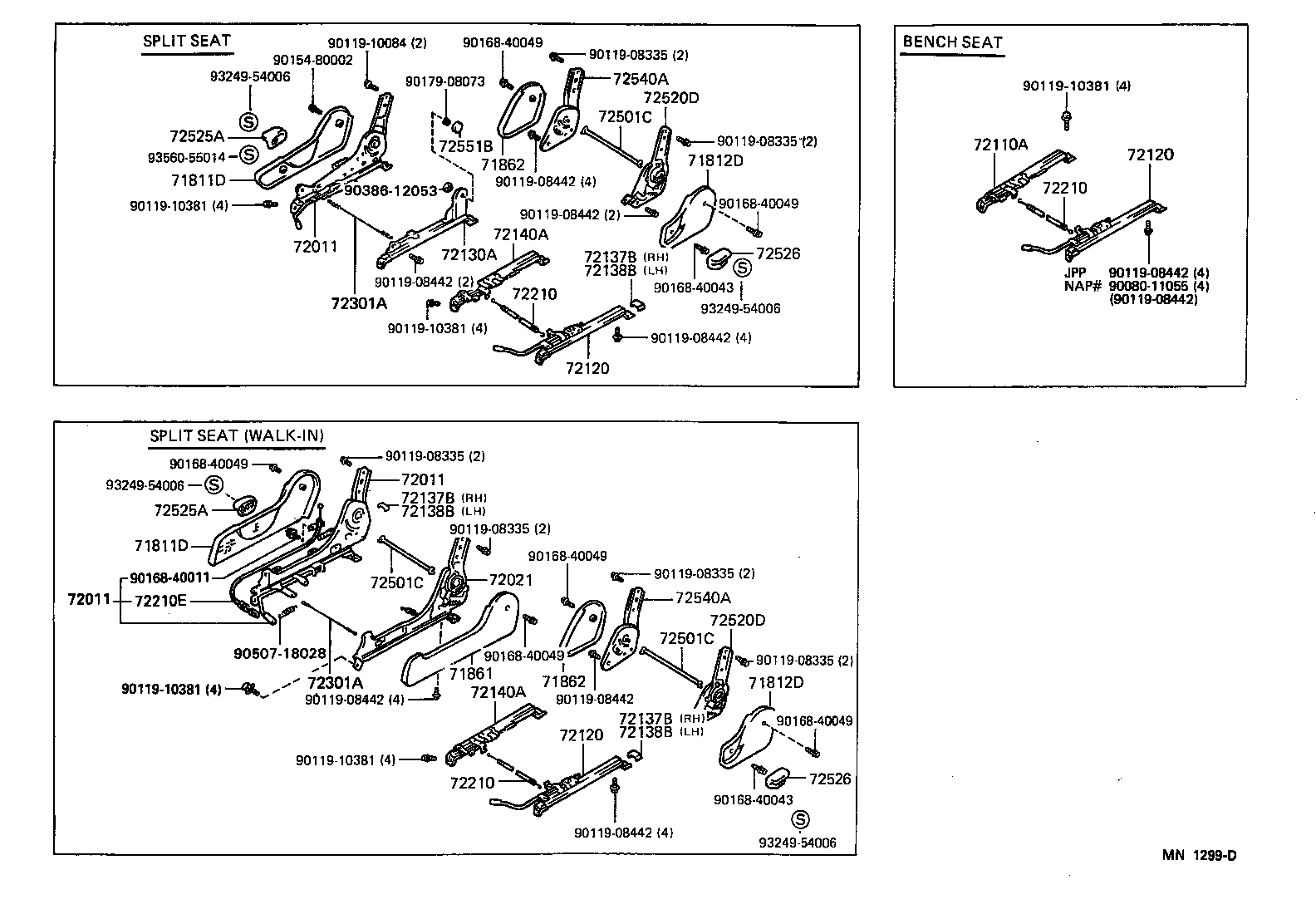

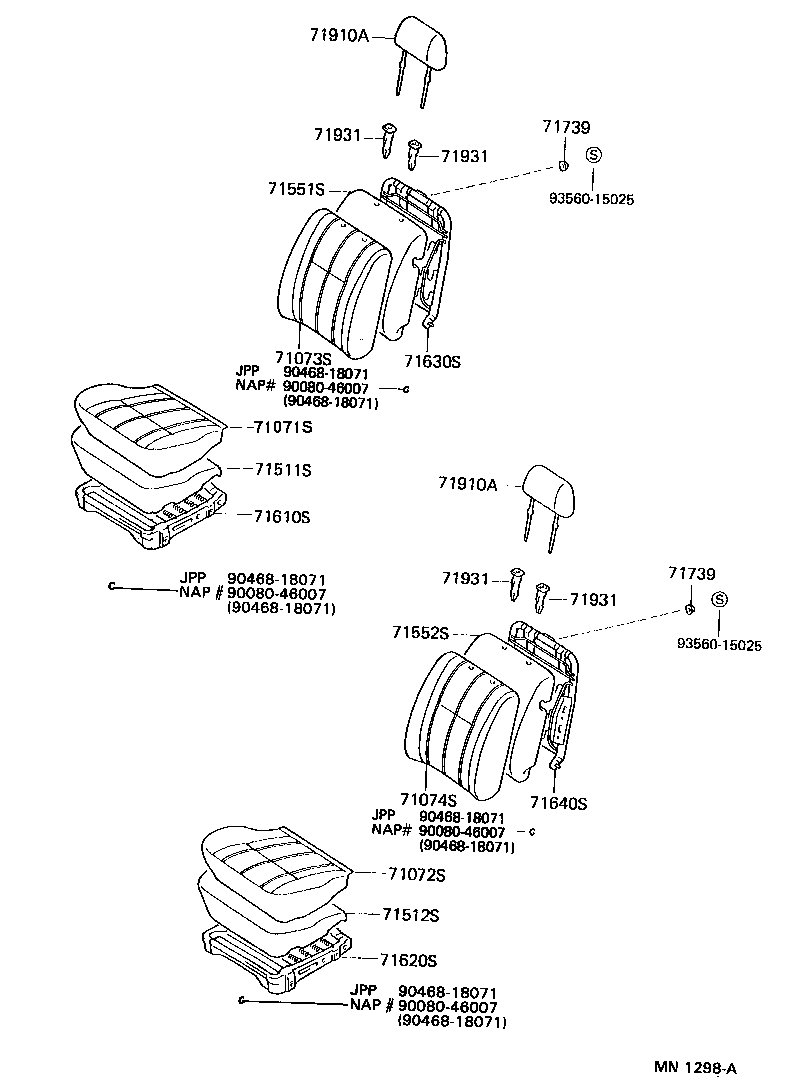

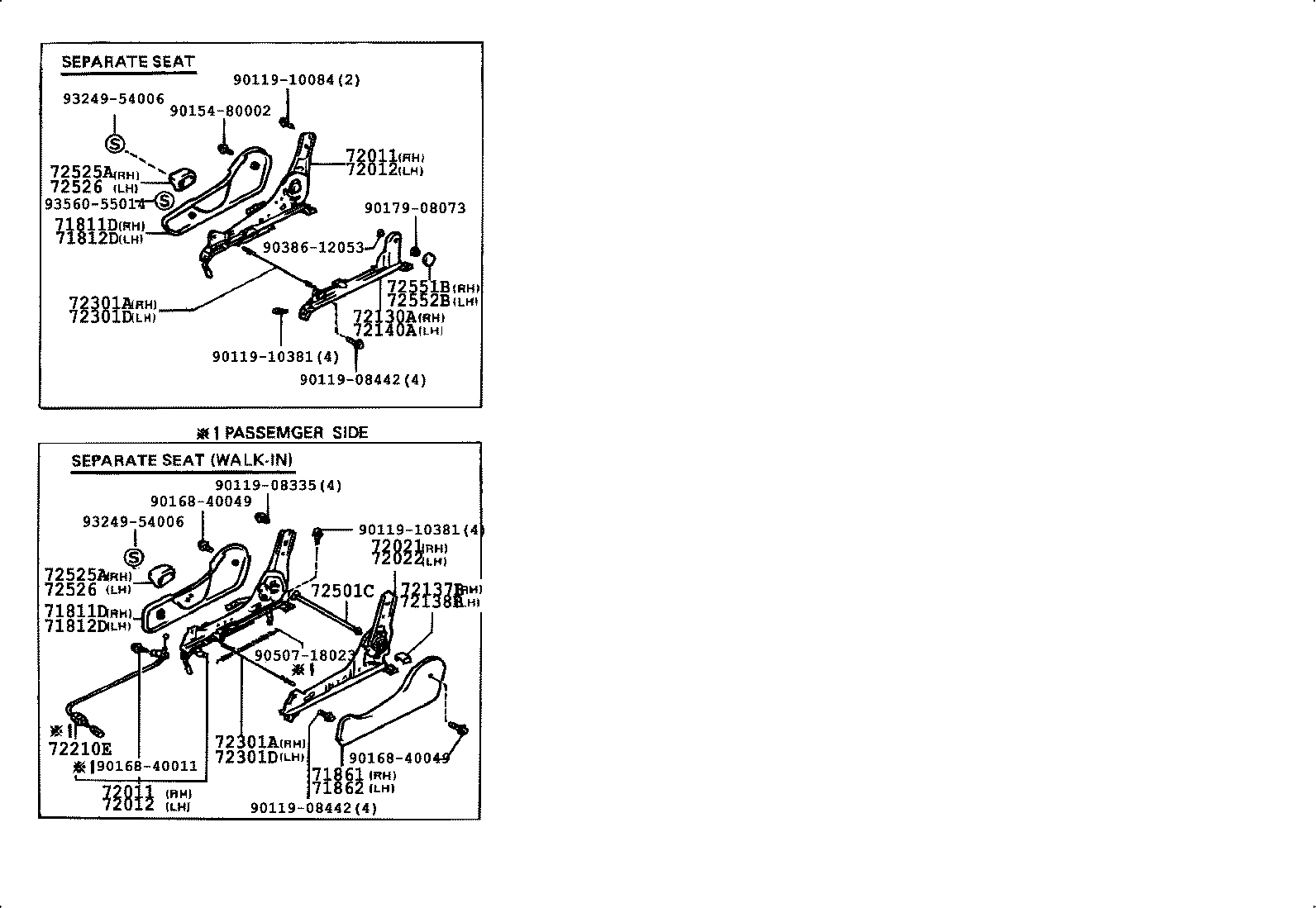

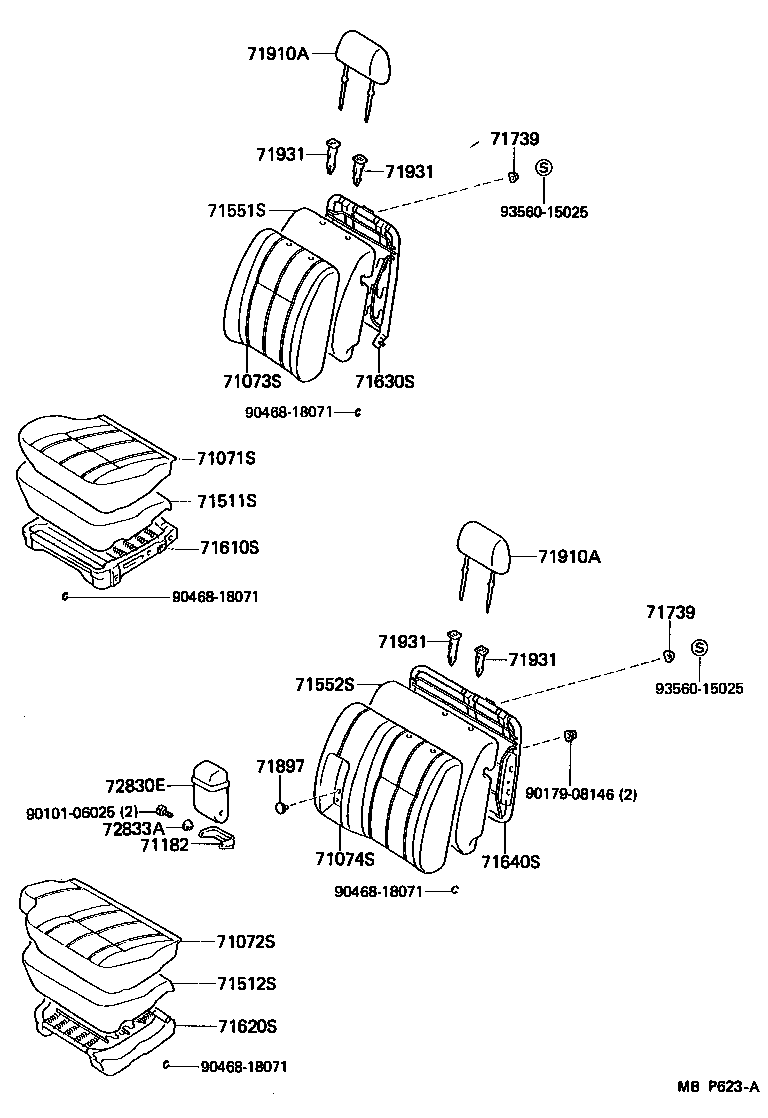

Seat & Seat Track
69 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071B | Cover, Front Seat Cushion(FOR BENCH TYPE) |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073B | Cover, Front Seatback(FOR BENCH TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71182 | Holder, Front Seat Armrest |
| 71303B | Hinge Sub-assy, Rear NO.2 Seat, RH |
| 71304B | Hinge Sub-assy, Rear NO.2 Seat, LH |
| 71311 | Pin, Front Seat Hinge |
| 71344A | Plate, Rear Seat Cushion Hinge |
| 71495 | Spring, Rear Seat Cusion |
| 71511B | Pad, Front Seat Cushion(FOR BENCH TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551B | Pad, Front Seatback(FOR BENCH TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71561B | Pad, Front Seatback, Upper |
| 71587 | Protector, Front Seatback Edge |
| 71610B | Spring Assy, Front Seat Cushion(FOR BENCH TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71628E | Spacer, Rear Seat Cushion |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71630B | Spring Assy, Front Seatback(FOR BENCH TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71691D | Cover, Rear Seat Cushion Hinge, Upper RH |
| 71692D | Cover, Rear Seat Cushion Hinge, Upper LH |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71739 | Cushion, Seat Support |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71897 | Hook, Seat Cover Side |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72210 | Cable Assy, Seat Track Control |
| 72210E | Cable Assy, Seat Track Control(FOR WALK IN) |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72501C | Pipe Sub-assy, Reclining Connecting |
| 72520D | Adjuster Assy, Reclining Seat, Outer LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72540A | Adjuster Assy, Reclining Seat, Inner LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72830E | Armrest Assy, Front Seat |
| 72833A | Plate, Seat Center Armrest, Inner |
| 72955A | Plate, Rear Seat Turn Lock, NO.1 |
| 72956 | Plate, Rear Seat Turn Lock, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
