Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

5 part groups · 2 illustrations

Illustrations

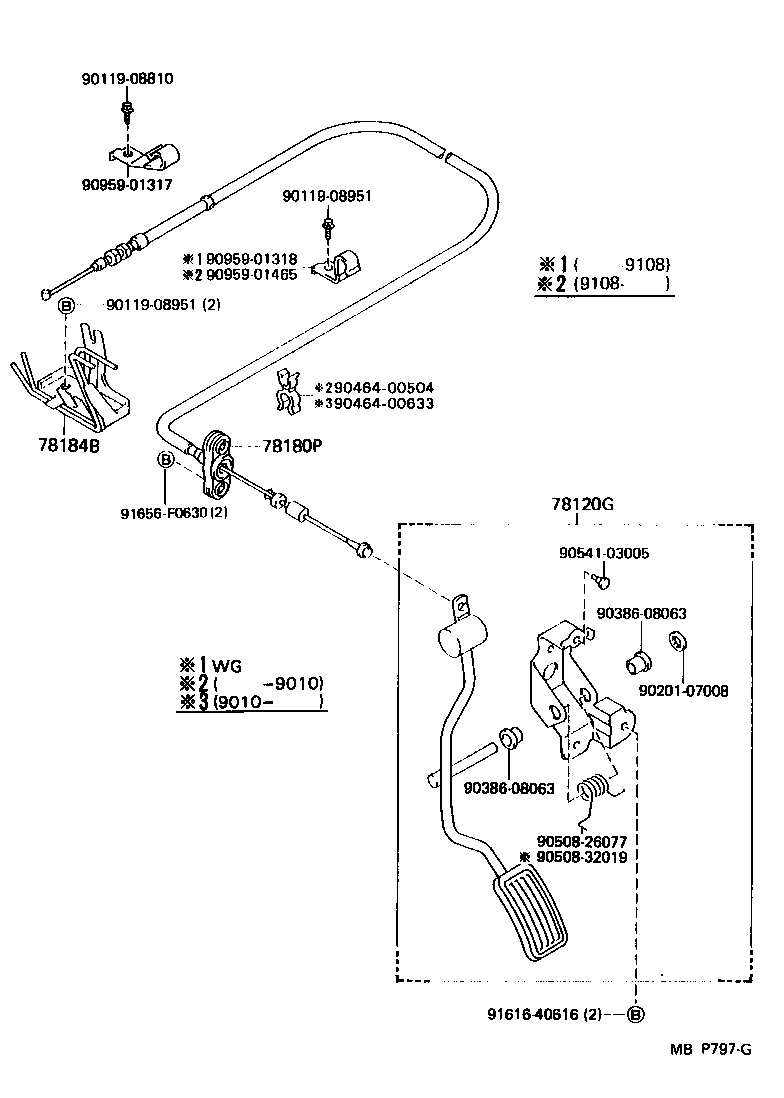

Figure MBP759D MBP759D 1988-08 → — Figure MBP797G MBP797G 1988-08 → —

Part groups

PNCDescription
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
