Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

Figure NE0986A

NE0986A 1988-08 → —

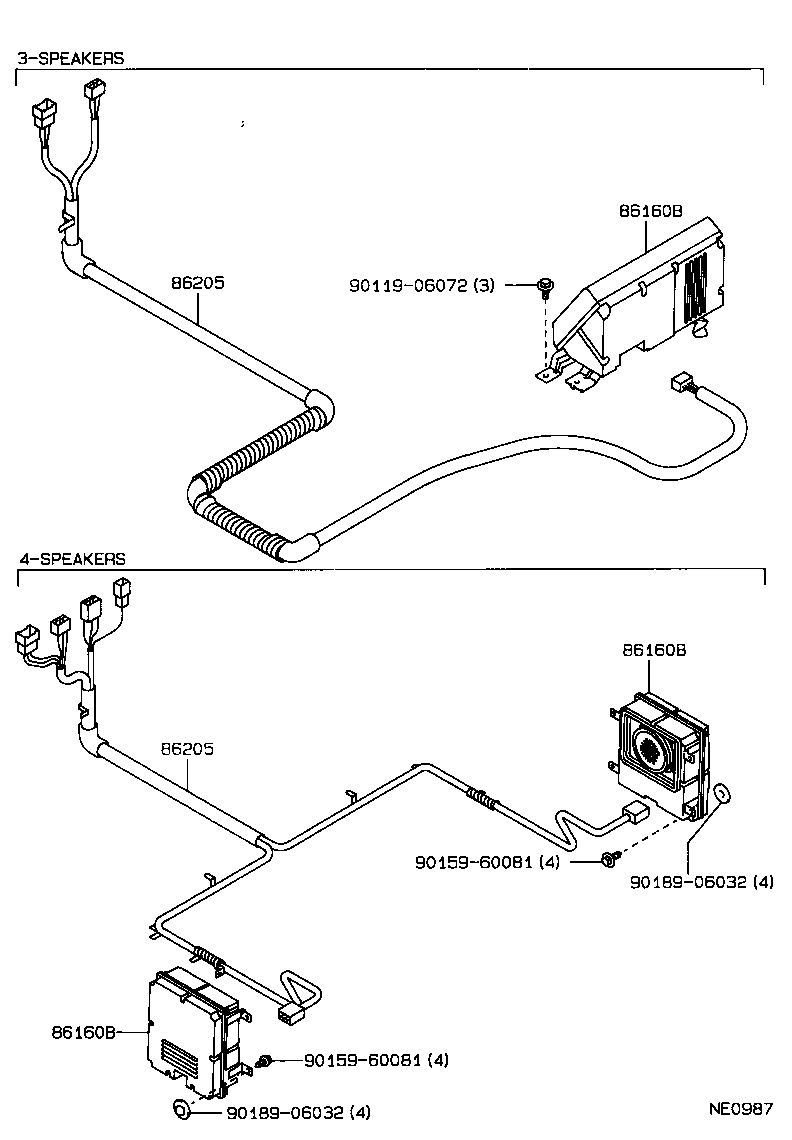

Figure NE0987

NE0987 1988-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86205	Wiring Sub-assy, Speaker, RR

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
